Waterproof Panel Mount Connector

Waterproof Panel Mount Connector solutions for industrial, energy, and outdoor applications.

Waterproof Panel Mount Connector page focuses on LLT panel interfaces used where a sealed connector must pass cleanly through the enclosure wall and still remain practical for assembly and field maintenance.

The current catalog includes 24 published references across M16, M19, M25, M12 series and Push-Lock, Threaded, Bayonet structures. Use the filters below to compare panel architecture, mating direction, and cable-side pairing before moving into enclosure drawings or project quotation.

Request Engineering Review Browse All Families

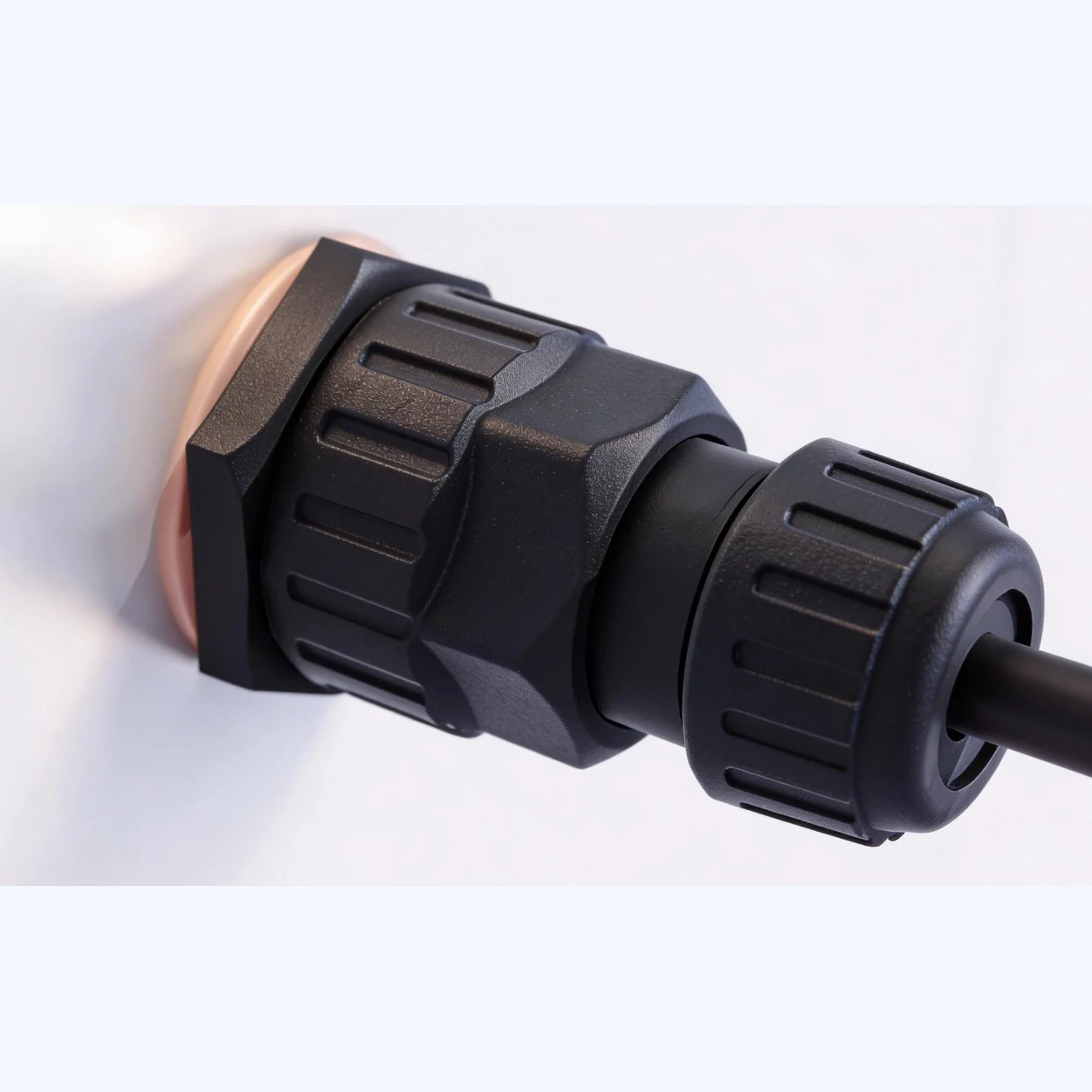

Waterproof Panel Mount Connector image 1
Application visuals Category presentation built around current landing assets

Selection directions for Waterproof Panel Mount Connector

Panel thickness and fastening method

Review nut, flange, and cutout conditions with enclosure wall thickness before freezing the panel interface.

Front-side sealing path

The gasket, flange compression, and mating face need to be evaluated as part of the whole enclosure sealing strategy.

Rear-space and cable bend clearance

Confirm rear harness space, cable exit direction, and service access so the connector remains usable after installation.

Application scenario

Control cabinets and equipment housings that require front-to-rear sealed interfaces

Application scenario

Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access

Application scenario

Distributed I/O or service points where panel thickness and rear-space limits affect connector choice

Application scenario

Systems that combine fixed receptacles with field wiring, cable plugs, or harness subassemblies

Technical overview

Waterproof Panel Mount Connector

Waterproof Panel Mount Connector category landing page. Add product stories, technical highlights, and image blocks here.

Related solutions and industries

Connect this family to environment-driven pages so buyers can move from application problem to connector architecture faster.

Related product families

Use adjacent family pages to compare mounting style, electrical range, and installation method.

These CMS-driven cards represent the most useful published references for early comparison.

Filter products in Waterproof Panel Mount Connector

Find exact products by series, structure type, and model or application terms.

LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector thumbnail

M16 Push-Lock

LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector

Description of 4Pin Plug waterproof connector 4 pin wire to board waterproof connector male circular waterproof connector m16 industrial connector 2pin 3pin 4pin 5pin 6pin 8pin available Industrial Electrical Plug socket Sealed against dust and fluid (IP65/IP67) Vibration resistance,impact resistance,stretching resistance socket with cover M16 4pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
LLT IP68 Waterproof 3 Pin Front Wire To Board 20A Circular Connectors For LED Display thumbnail

M19 Threaded

LLT IP68 Waterproof 3 Pin Front Wire To Board 20A Circular Connectors For LED Display

Description of IP68 Waterproof connectors Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M19 connectors will be a perfet option. it is widely used in outdoor LED lighting, Agricultural Grow Lights,marine electronics, and industrial automation systems.

FAQ

What matters most when selecting a waterproof panel mount connector?

Panel thickness, cutout geometry, sealing compression, rear-space clearance, and matching cable-side connector structure should be reviewed together before model confirmation.

Why are panel mount connectors often chosen instead of inline connectors?

Panel mount connectors create a controlled enclosure interface, making it easier to preserve sealing performance while separating internal wiring from external service access.

Can LLT help with panel-side adaptation and matching cable plugs?

Yes. LLT can review receptacle style, cable-side connector pairing, fastening direction, and harness routing to fit the enclosure design and service plan.
