LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light

Waterproof Panel Mount Connector M12 Threaded Model: LLT-M12-10002F2961
M12 / Threaded LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 6.1mm

Pin

2-12

IP Rating

IP68

Rated Current

10A

Rated Voltage

110V

Product Series

M12

Wiring Type

Soldering

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Description: IP68 Rated: Superior protection against dust and water immersion, ideal for outdoor LED lighting applications. Industrial Waterproof Connector: IP68 rating ensures durability in harsh environments. High Current Rating: Supports up to 10A for robust power transmission. Durable Construction: Made from Nylon and ABS for long-lasting use. Cable Management: Designed for easy cable routing and connection. Universal Compatibility: Available in Male/Female configurations.

Application Fit

Typical application directions

  • Control cabinets and equipment housings that require front-to-rear sealed interfaces
  • Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 1

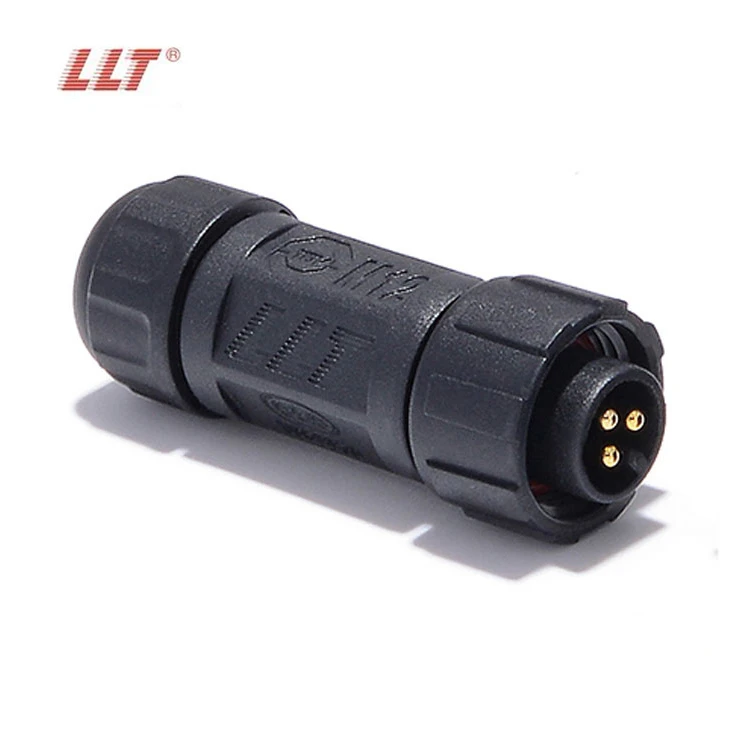

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 2

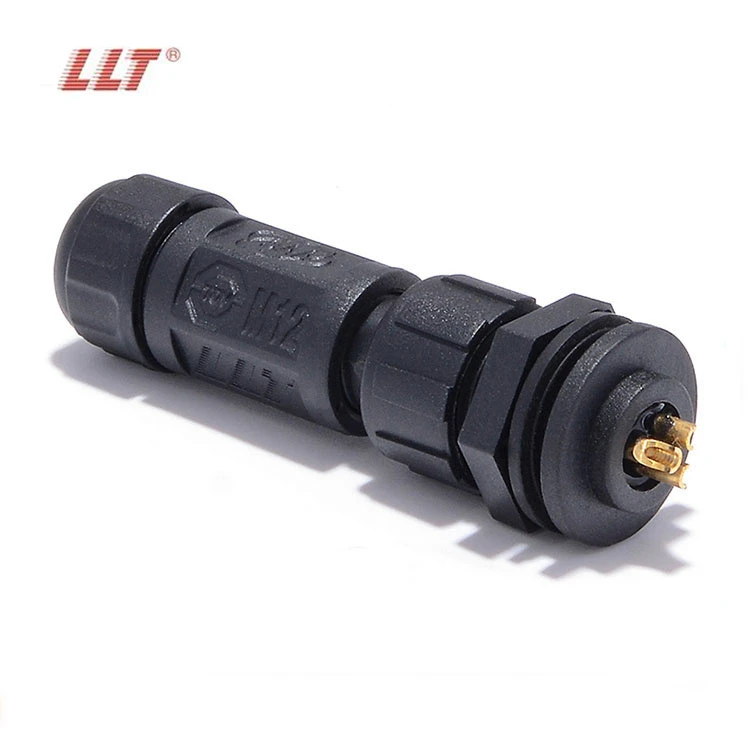

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 3

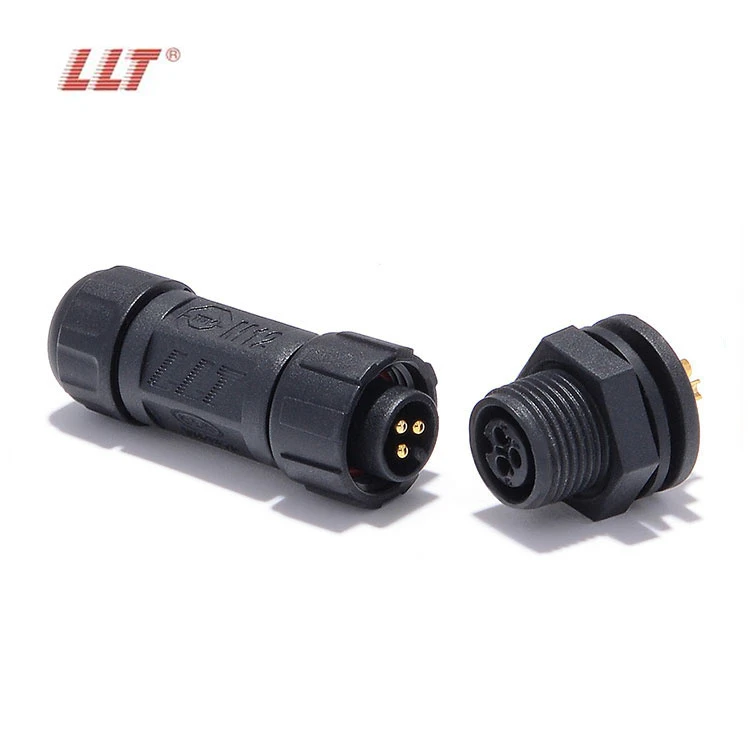

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 4

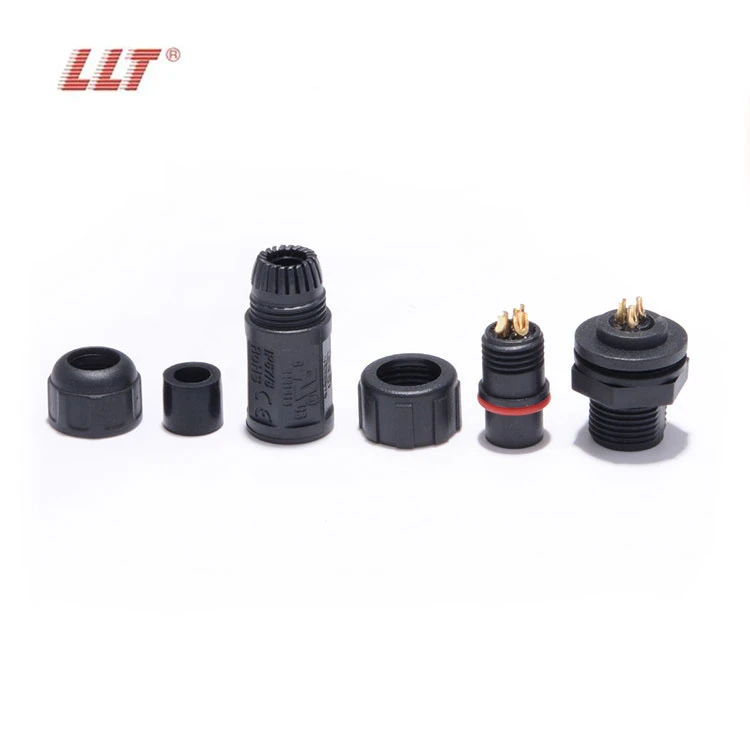

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 5

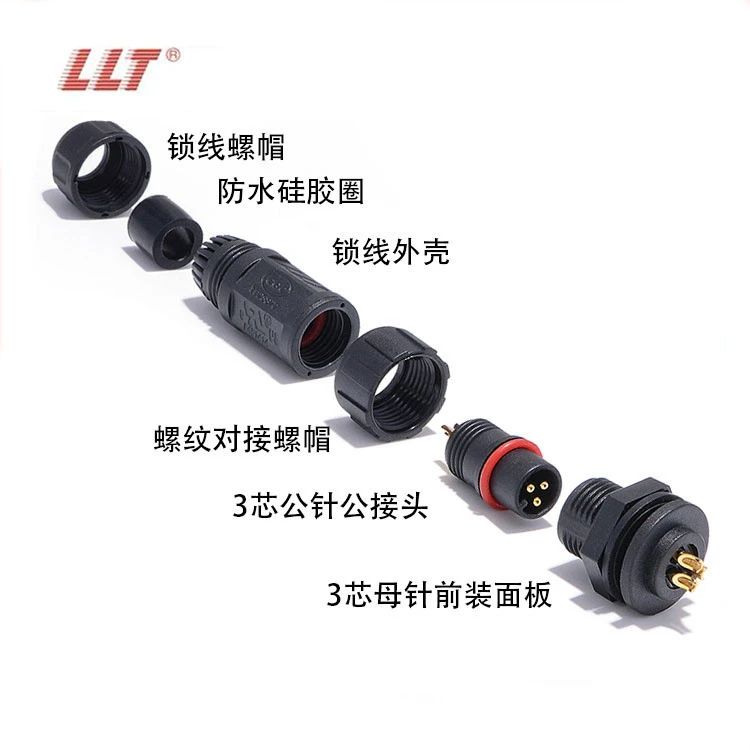

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 6

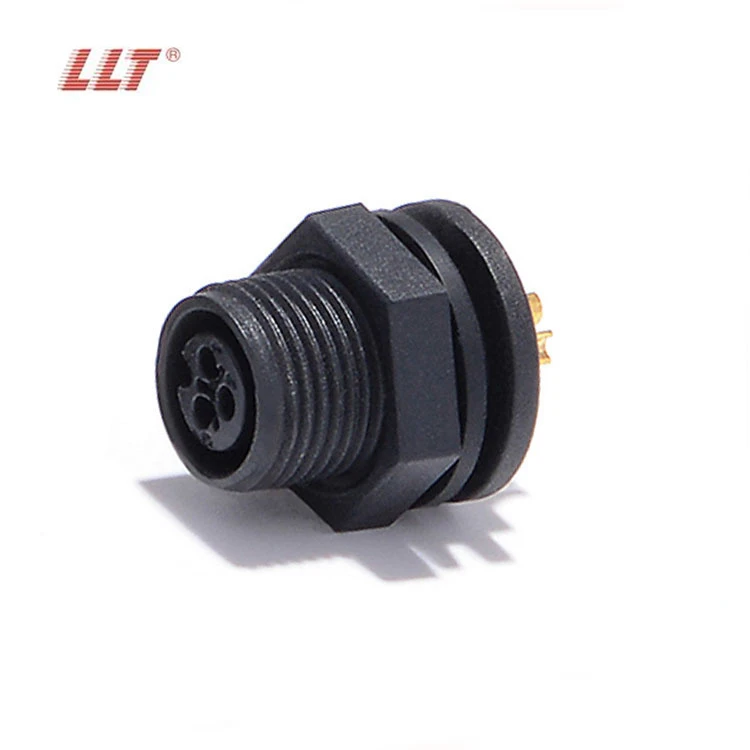

LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 110V 10A M12 2 3 4 Pin IP67 Male Female Panel Type Waterproof Connector for Light?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
