Residential Vertical Energy Storage Connector Solution

Safe and modular connector interfaces for home ESS stacks, battery cabinets, and intelligent residential energy control modules.

Recommended Connectors: LP16 / LP20 / RJ45 Waterproof

Get Connector Selection Support Browse Product Center
Residential Vertical Energy Storage Connector Solution

What This Application Demands

Safe and modular connector interfaces for home ESS stacks, battery cabinets, and intelligent residential energy control modules.

  • Long mating life for service and upgrade cycles
  • Combined power and communication interface strategy
  • Stable sealing under temperature and humidity changes

Recommended Connector Architecture

Shenzhen LLT Connector Co., Ltd. typically maps this application to LP16 / LP20 / RJ45 Waterproof, then validates the architecture with project-specific interface and harness constraints.

  • Define connector interface by environment, electrical load, and installation constraints.
  • Align panel integration, cable routing, and locking strategy as one architecture package.
  • Connect architecture decisions to harness, overmold, and production checkpoints.

What This Application Demands

  • Long mating life for service and upgrade cycles
  • Combined power and communication interface strategy
  • Stable sealing under temperature and humidity changes

Common Connector Challenges in This Environment

Thermal Margin Under Load

High-current projects require contact geometry and conductor strategy that stay stable over long operation cycles.

Sealing Continuity in Outdoor Installations

Ingress risk increases around panel transitions, cable entries, and repeated service operations.

Field Wiring Variation

Inconsistent assembly quality can reduce reliability unless connector and harness instructions are tightly controlled.

Recommended Connector Architecture and Design Direction

  • Locking structure aligned with vibration and maintenance rhythm
  • Ingress protection strategy around panel interface and cable exit
  • Current and voltage margin with realistic duty cycle assumptions
  • Signal routing and shielding boundaries for mixed interfaces
  • Harness routing and strain-relief behavior under installation constraints

Cable, Overmold, Harness, and Assembly Support

  • Connector and cable specification review in one package
  • Panel interface and rear harness routing coordination
  • Overmolding or potting direction aligned to environment and service movement
  • Pilot sample feedback loop before production release

Validation, Testing, and Reliability Considerations

  • Ingress verification under representative exposure conditions
  • Mating stability and lock retention checks
  • Temperature rise or load stability review for power paths
  • Assembly consistency checks across pilot samples
  • Service-side replacement verification for maintainability

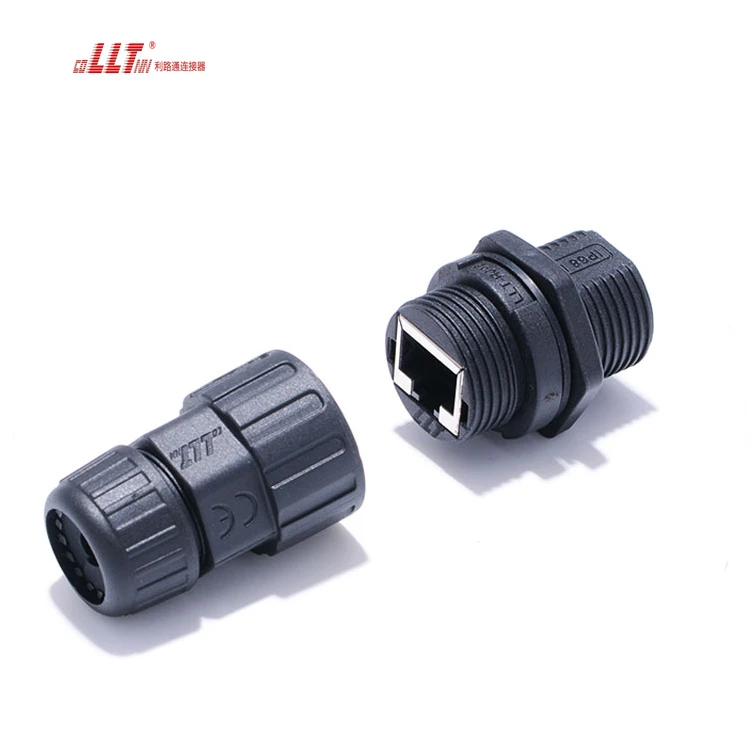

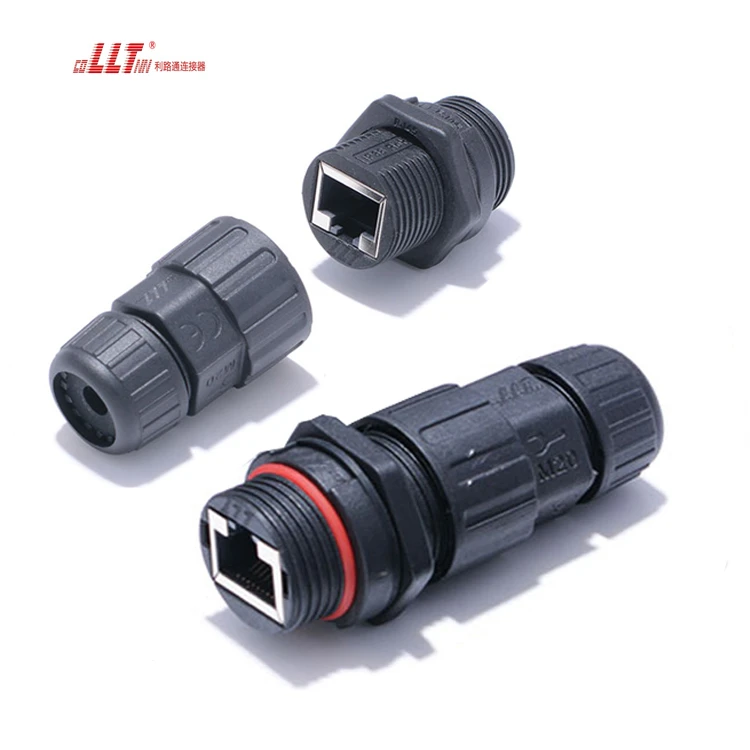

Recommended LLT Products for This Industry

FAQ

Can LLT recommend both connector and harness direction for this application?

Yes. LLT can review interface structure, cable selection, harness routing, and assembly path as one coordinated solution.

How do we speed up connector architecture selection?

Provide environment exposure, load profile, panel space, cable constraints, and service expectations. This enables faster filtering and practical shortlist recommendations.

What validation items are usually reviewed before release?

Teams typically review ingress performance, mating stability, electrical baseline, assembly consistency, and service replacement practicality before release.

Need Connector Recommendation for This Application?

Share environment, load, and installation constraints. LLT can provide an application-fit connector and harness direction.

Request Engineering Support Browse Product Families
