Industry Connector Solution
Landscape Lighting Connector Solution
Outdoor waterproof connector strategy for landscape lighting projects, cable branches, and long-distance power distribution.
Recommended Connectors: T-L25 / LP20 / Overmolded Harness
What This Application Demands
Outdoor waterproof connector strategy for landscape lighting projects, cable branches, and long-distance power distribution.
- UV and rain resistance for long-term outdoor deployment
- Safe low-voltage waterproof branching topology
- Low maintenance and fast field replacement
Recommended Connector Architecture
Shenzhen LLT Connector Co., Ltd. typically maps this application to T-L25 / LP20 / Overmolded Harness, then validates the architecture with project-specific interface and harness constraints.
- Define connector interface by environment, electrical load, and installation constraints.
- Align panel integration, cable routing, and locking strategy as one architecture package.
- Connect architecture decisions to harness, overmold, and production checkpoints.
What This Application Demands
- UV and rain resistance for long-term outdoor deployment
- Safe low-voltage waterproof branching topology
- Low maintenance and fast field replacement
Common Connector Challenges in This Environment
Vibration Loosening and Mating Drift
Unstable locking structure or poor retention strategy can cause intermittent contact and unplanned downtime.
Sealing Degradation and Contamination Risk
Ingress issues often start at cable exits, panel interfaces, or maintenance-side remating operations.
Cable Exit Stress and Space Constraints
Tight bend radius, branch congestion, and unclear service access can reduce connector life in real operation.
Recommended Connector Architecture and Design Direction
- Locking structure aligned with vibration and maintenance rhythm
- Ingress protection strategy around panel interface and cable exit
- Current and voltage margin with realistic duty cycle assumptions
- Signal routing and shielding boundaries for mixed interfaces
- Harness routing and strain-relief behavior under installation constraints
Cable, Overmold, Harness, and Assembly Support
- Connector and cable specification review in one package
- Panel interface and rear harness routing coordination
- Overmolding or potting direction aligned to environment and service movement
- Pilot sample feedback loop before production release
Validation, Testing, and Reliability Considerations
- Ingress verification under representative exposure conditions
- Mating stability and lock retention checks
- Temperature rise or load stability review for power paths
- Assembly consistency checks across pilot samples
- Service-side replacement verification for maintainability
Recommended LLT Products for This Industry
M12 Push-Lock
LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector
L20 Threaded

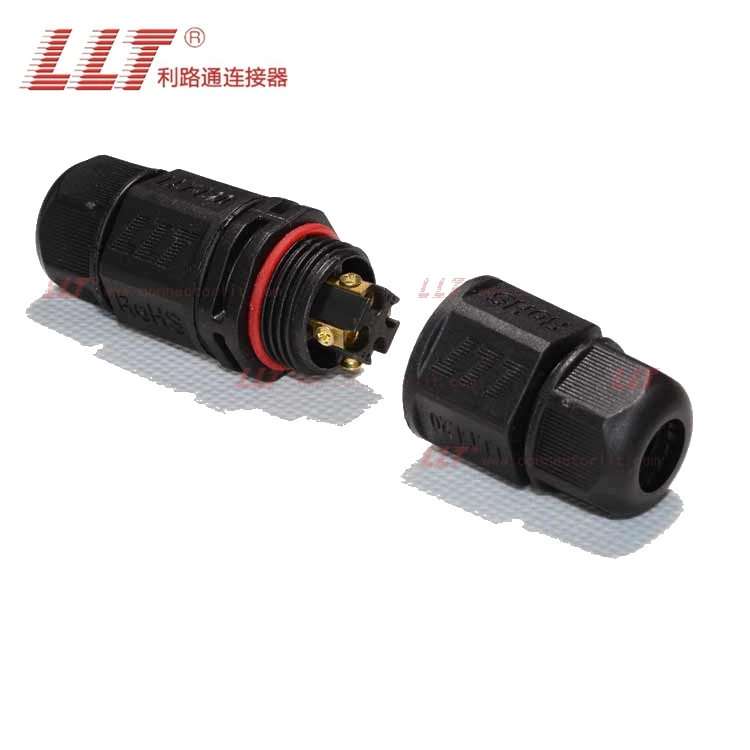

LLT L20 straight Led 4pin IP68 Screw Wire Waterproof Connector
M16 Threaded
LLT M16 300V 15A 3 Pin Waterproof Cable Connector Male Female Over Molding With Screw Locking
Product Description 1. IP68 waterproof connector 2. Over molding type with cable 3. Screw locking type for quick installation 4. Cable length and specification can be customized as per customer's requirement 5. Waterproof male female connector using for LED lighting
M25 Threaded
LLT M25 Waterproof IP68 Male and Female Connectors 2 3 4 Core High Power Connector Power Socket
Key Features Weatherproof Reliability: achieve IP68 waterproof rating, ensuring stable power delivery in harsh outdoor and industrial environments. High-Current Capacity: Supports up to 35A/600V, making it ideal for high-power LED drivers and outdoor lighting systems. Solderless Installation: Includes easy-to-use screw terminals for quick field assembly without the need for specialized soldering tools. Universal Fitment: Accommodates a wide range of cable diameters from 8mm to 16mm for maximum project versatility. Secure Screw Locking: Designed with a reliable screw-lock mechanism to prevent accidental disconnection from vibration or tension.
FAQ
Can LLT recommend both connector and harness direction for this application?
Yes. LLT can review interface structure, cable selection, harness routing, and assembly path as one coordinated solution.
How do we speed up connector architecture selection?
Provide environment exposure, load profile, panel space, cable constraints, and service expectations. This enables faster filtering and practical shortlist recommendations.
What validation items are usually reviewed before release?
Teams typically review ingress performance, mating stability, electrical baseline, assembly consistency, and service replacement practicality before release.
Need Connector Recommendation for This Application?
Share environment, load, and installation constraints. LLT can provide an application-fit connector and harness direction.
