Power Distribution Box Connector Solution

Connector architecture for electrical distribution boxes requiring safe power interfaces, robust enclosure sealing, and scalable wiring layouts.

Recommended Connectors: LP20 / Panel Mount / High-Current Series

Get Connector Selection Support Browse Product Center
Power Distribution Box Connector Solution

What This Application Demands

Connector architecture for electrical distribution boxes requiring safe power interfaces, robust enclosure sealing, and scalable wiring layouts.

  • Secure and standardized distribution interfaces
  • Panel-level sealing and mechanical reliability
  • Simplified installation and maintenance workflow

Recommended Connector Architecture

Shenzhen LLT Connector Co., Ltd. typically maps this application to LP20 / Panel Mount / High-Current Series, then validates the architecture with project-specific interface and harness constraints.

  • Define connector interface by environment, electrical load, and installation constraints.
  • Align panel integration, cable routing, and locking strategy as one architecture package.
  • Connect architecture decisions to harness, overmold, and production checkpoints.

What This Application Demands

  • Secure and standardized distribution interfaces
  • Panel-level sealing and mechanical reliability
  • Simplified installation and maintenance workflow

Common Connector Challenges in This Environment

Thermal Margin Under Load

High-current projects require contact geometry and conductor strategy that stay stable over long operation cycles.

Sealing Continuity in Outdoor Installations

Ingress risk increases around panel transitions, cable entries, and repeated service operations.

Field Wiring Variation

Inconsistent assembly quality can reduce reliability unless connector and harness instructions are tightly controlled.

Recommended Connector Architecture and Design Direction

  • Locking structure aligned with vibration and maintenance rhythm
  • Ingress protection strategy around panel interface and cable exit
  • Current and voltage margin with realistic duty cycle assumptions
  • Signal routing and shielding boundaries for mixed interfaces
  • Harness routing and strain-relief behavior under installation constraints

Cable, Overmold, Harness, and Assembly Support

  • Connector and cable specification review in one package
  • Panel interface and rear harness routing coordination
  • Overmolding or potting direction aligned to environment and service movement
  • Pilot sample feedback loop before production release

Validation, Testing, and Reliability Considerations

  • Ingress verification under representative exposure conditions
  • Mating stability and lock retention checks
  • Temperature rise or load stability review for power paths
  • Assembly consistency checks across pilot samples
  • Service-side replacement verification for maintainability

Recommended LLT Products for This Industry

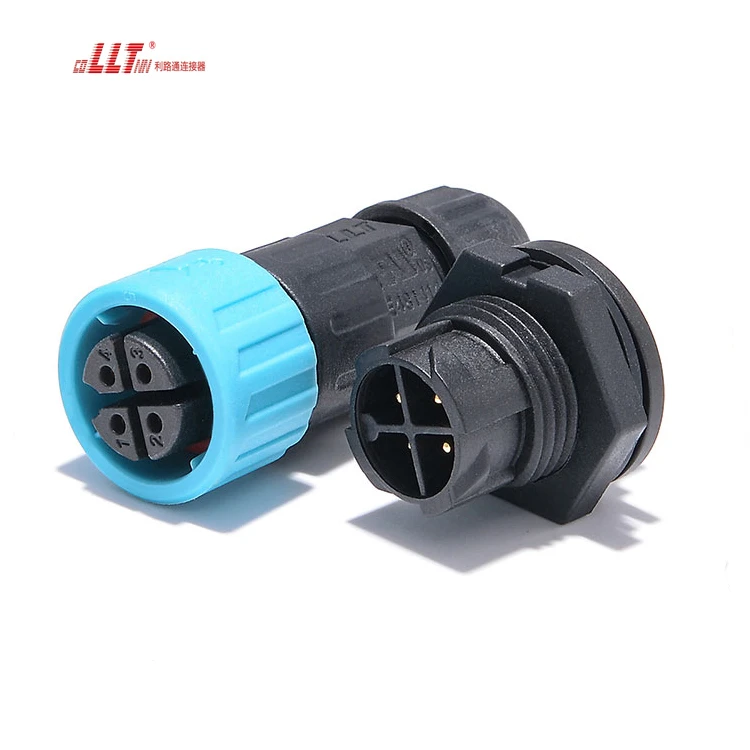

LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector thumbnail

M16 Push-Lock

LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector

Description of 4Pin Plug waterproof connector 4 pin wire to board waterproof connector male circular waterproof connector m16 industrial connector 2pin 3pin 4pin 5pin 6pin 8pin available Industrial Electrical Plug socket Sealed against dust and fluid (IP65/IP67) Vibration resistance,impact resistance,stretching resistance socket with cover M16 4pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
LLT IP68 Waterproof 3 Pin Front Wire To Board 20A Circular Connectors For LED Display thumbnail

M19 Threaded

LLT IP68 Waterproof 3 Pin Front Wire To Board 20A Circular Connectors For LED Display

Description of IP68 Waterproof connectors Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M19 connectors will be a perfet option. it is widely used in outdoor LED lighting, Agricultural Grow Lights,marine electronics, and industrial automation systems.

FAQ

Can LLT recommend both connector and harness direction for this application?

Yes. LLT can review interface structure, cable selection, harness routing, and assembly path as one coordinated solution.

How do we speed up connector architecture selection?

Provide environment exposure, load profile, panel space, cable constraints, and service expectations. This enables faster filtering and practical shortlist recommendations.

What validation items are usually reviewed before release?

Teams typically review ingress performance, mating stability, electrical baseline, assembly consistency, and service replacement practicality before release.

Need Connector Recommendation for This Application?

Share environment, load, and installation constraints. LLT can provide an application-fit connector and harness direction.

Request Engineering Support Browse Product Families
