LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector

Waterproof Panel Mount Connector M16 Push-Lock Model: LLT-M16-15004M2841
M16 / Push-Lock LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

4pin

IP Rating

IP67/IP68

Rated Current

15A

Rated Voltage

300V

Product Series

M16

Wiring Type

by Solder

Interface Type

2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

M16 4-Pin Front Mount Self-Locking Panel Connector This M16 4‑pin front mount self‑locking panel connector is designed for stable and reliable power transmission in industrial control, instrumentation, automotive electronics, and outdoor equipment. Features - M16 standard circular interface with 4 contacts, supporting 15A/300V moderate current and voltage requirements. - Front panel mounting design for easy installation and maintenance on equipment enclosures. - Self-locking mechanism ensures secure connection, effectively preventing loosening caused by vibration and mechanical shock. - Good sealing performance, providing stable protection against dust and moisture ,We have 5.5/6.5/7.2/8.5mm grommet can meet your suitable cable diameter . - Compact structure, high mechanical strength, and long service life. - Compatible with conventional wiring and assembly processes, suitable for mass industrial applications. Applications Widely used in sensors, actuators, control modules, lighting systems, and various electrical equipment requiring reliable panel‑mounted circular connectors.

Application Fit

Typical application directions

  • Control cabinets and equipment housings that require front-to-rear sealed interfaces
  • Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

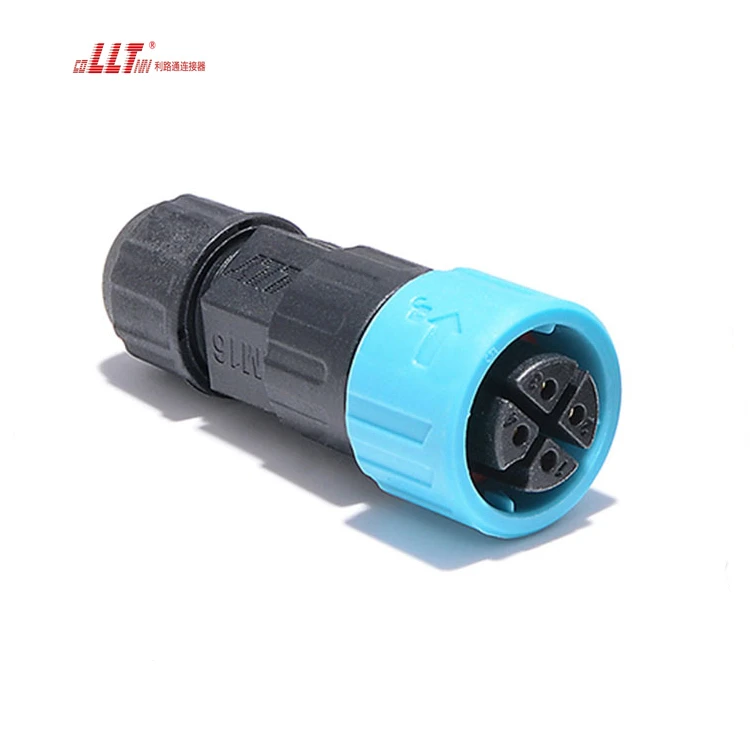

LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 1

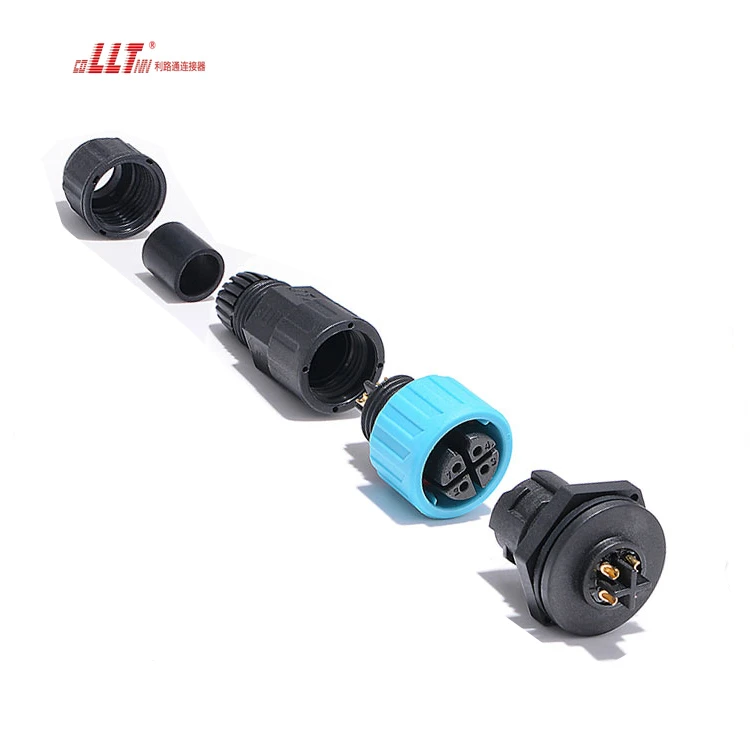

LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 2

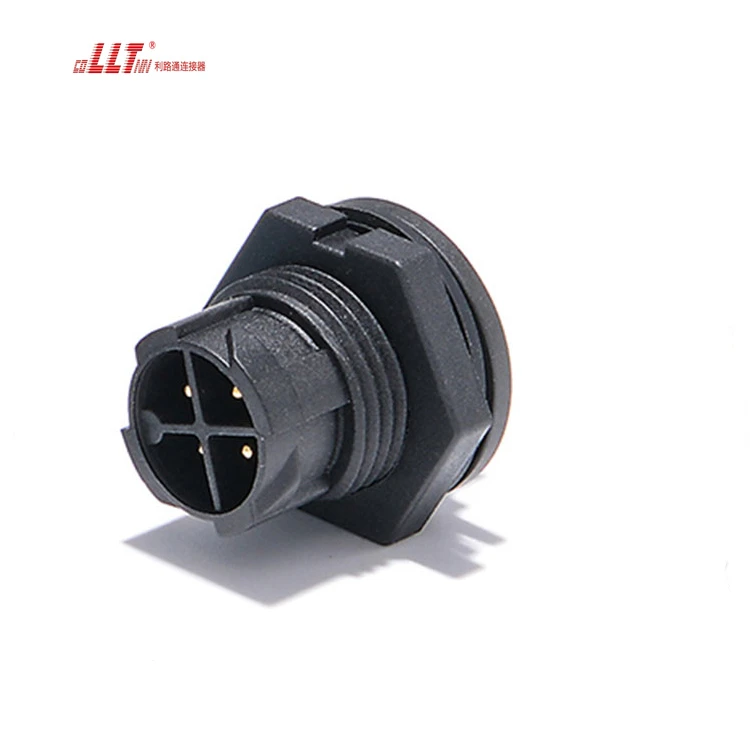

LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 3

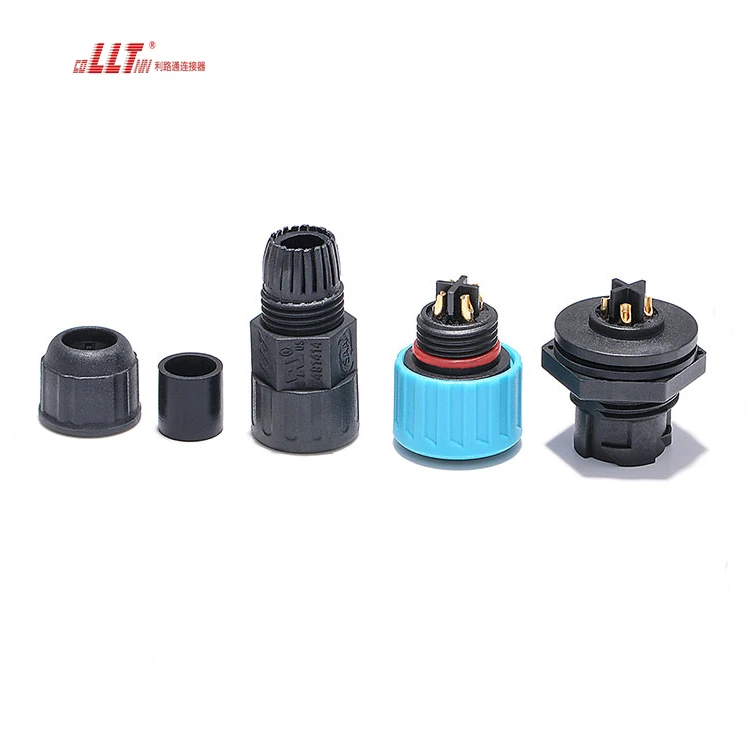

LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 4

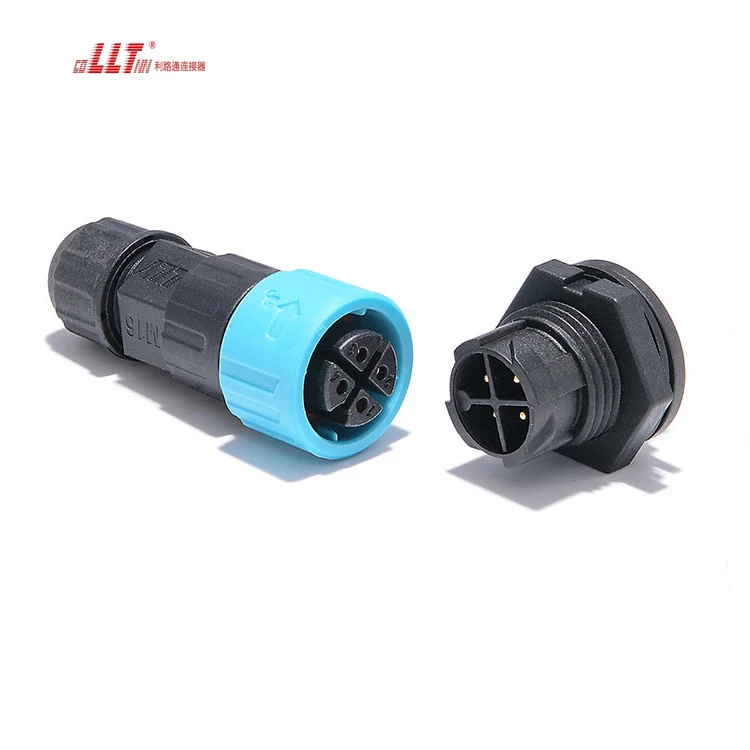

LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 5
LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector is currently configured around 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M16 4pin Panel Mount IP67 IP68 Male to Female Board Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.

Request Quote Open Waterproof Panel Mount Connector
