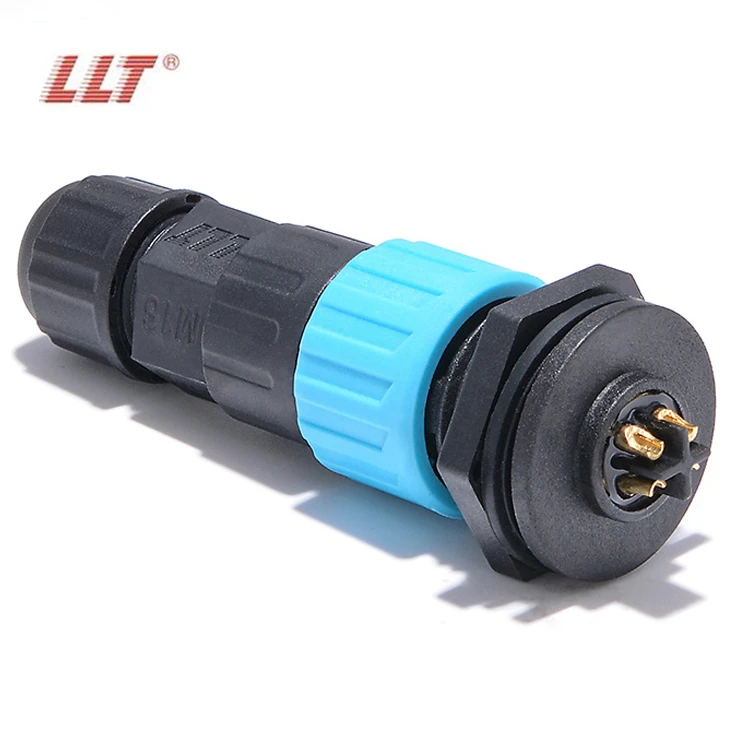

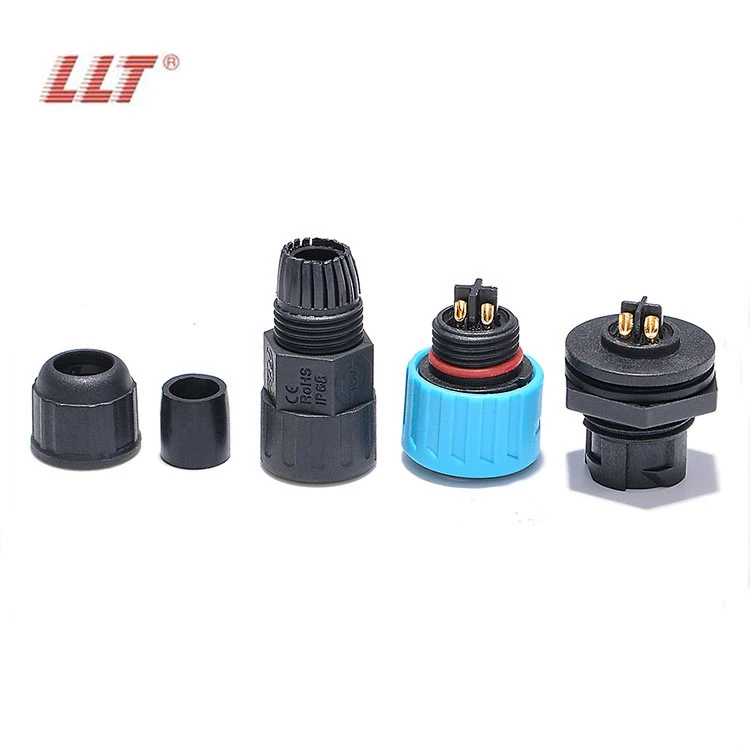

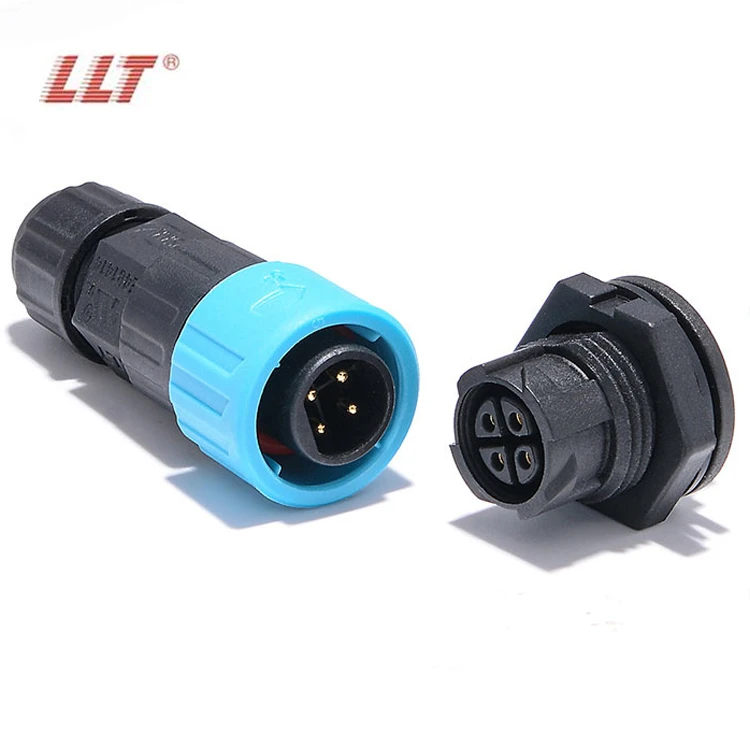

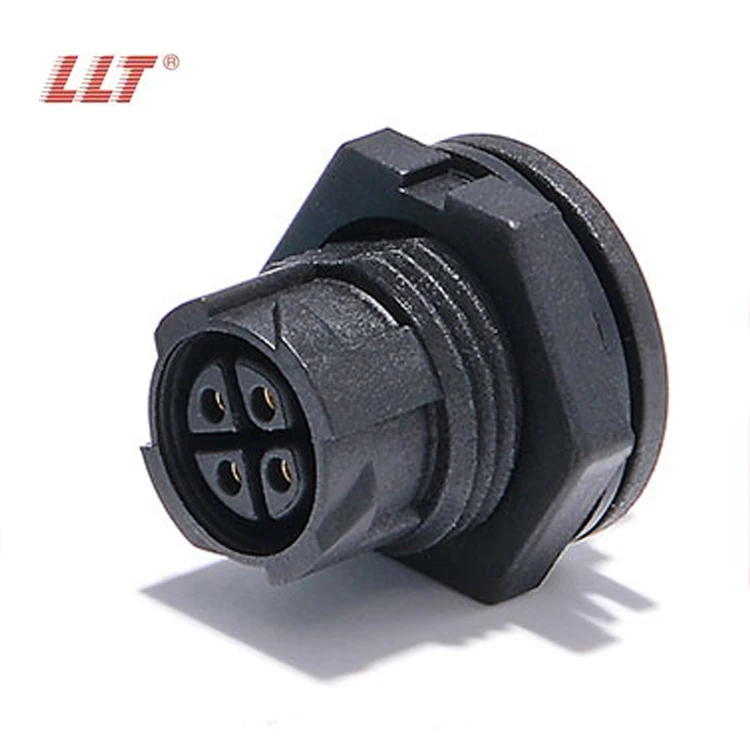

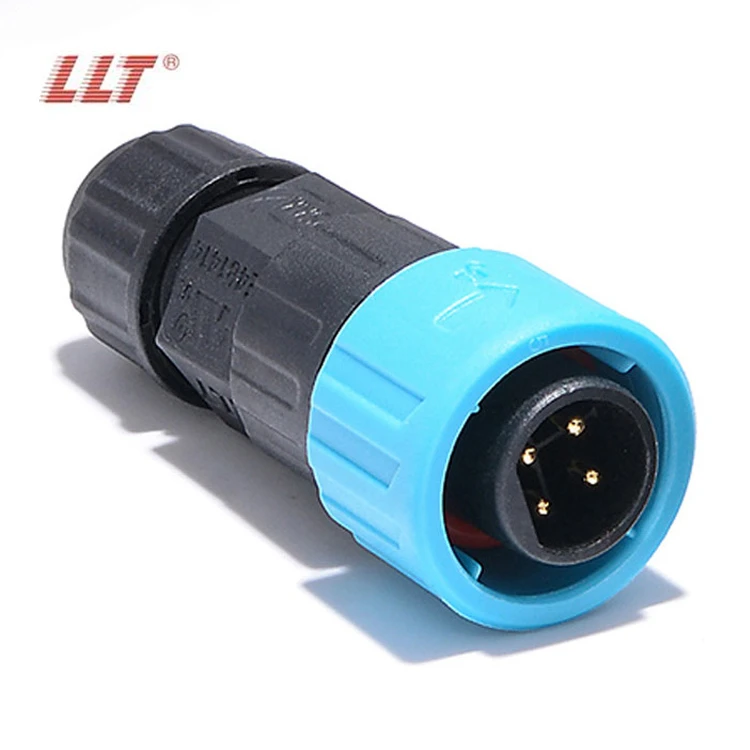

LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector
Description of 4Pin Plug waterproof connector 4 pin wire to board waterproof connector male circular waterproof connector m16 industrial connector 2pin 3pin 4pin 5pin 6pin 8pin available Industrial Electrical Plug socket Sealed against dust and fluid (IP65/IP67) Vibration resistance,impact resistance,stretching resistance socket with cover M16 4pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 8.5mm
Pin
2-12pin
IP Rating
IP68
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Control cabinets and equipment housings that require front-to-rear sealed interfaces
- Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 Male Gender Plug Connector 4Pin Female Waterproof Front Panel Mount connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
