LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector

Waterproof Panel Mount Connector M16 Push-Lock Model: LLT-M16-15002M2841
M16 / Push-Lock LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

2pin

IP Rating

IP67/IP68

Rated Current

15A

Rated Voltage

300V

Product Series

M16

Wiring Type

by Solder

Interface Type

2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

The M16-2pin panel connector is a rugged circular connector designed for stable power transmission in industrial equipment. Featuring a standard panel-mount structure, it provides safe and reliable connection for power supply circuits Key Features - Compact 2-pin design: Specially used for DC/AC power transmission, with stable current carrying capacity and reliable wiring. - Panel mount installation: Suitable for front installation on equipment cabinets, control boxes and instrument panels, easy for assembly and fixation. - Excellent electrical performance: Gold-plated contacts ensure low contact resistance, good conductivity and oxidation resistance. - High protection performance: IP68 waterproof and dustproof when fully mated, adaptable to outdoor and industrial environments. - Stable and durable: Resistant to vibration, shock, oil and corrosion, with long service life and frequent plugging support. Electrical Parameters - Number of Pins: 2 pins - Rated Voltage: 300V AC/DC - Rated Current: 15A per pin - Insulation Resistance: ≥ 5000MΩ - Withstanding Voltage: 1500V AC / 1min - Contact Material: Copper alloy, gold-plated - Housing Material: PA66 high-strength engineering plastic - Protection Degree: IP67 (mated), if inject epoxy resin into the body shell , it can get IP68 - Operating Temperature: -40°C ~ +105°C - Mating Cycles: ≥ 3000 times Applications It is used in industrial automation, power supply modules, LED lighting, security equipment, automotive electronics, sensors and other power transmission scenarios.

Application Fit

Typical application directions

  • Control cabinets and equipment housings that require front-to-rear sealed interfaces
  • Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

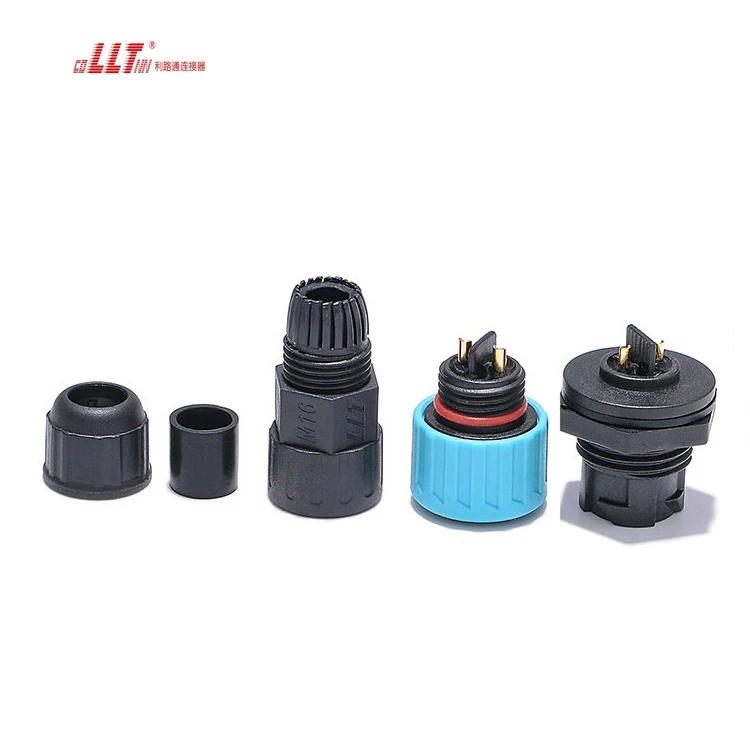

LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 1

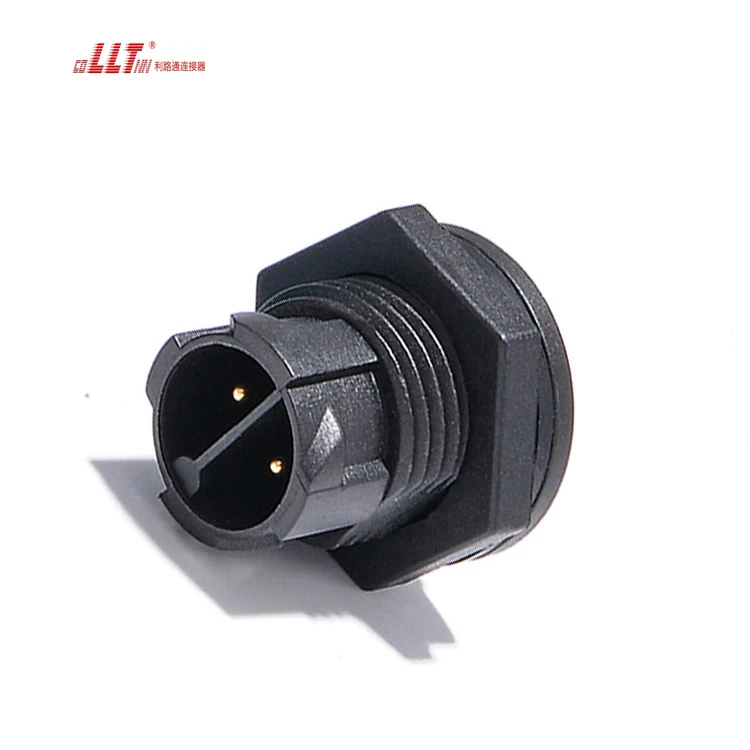

LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 2

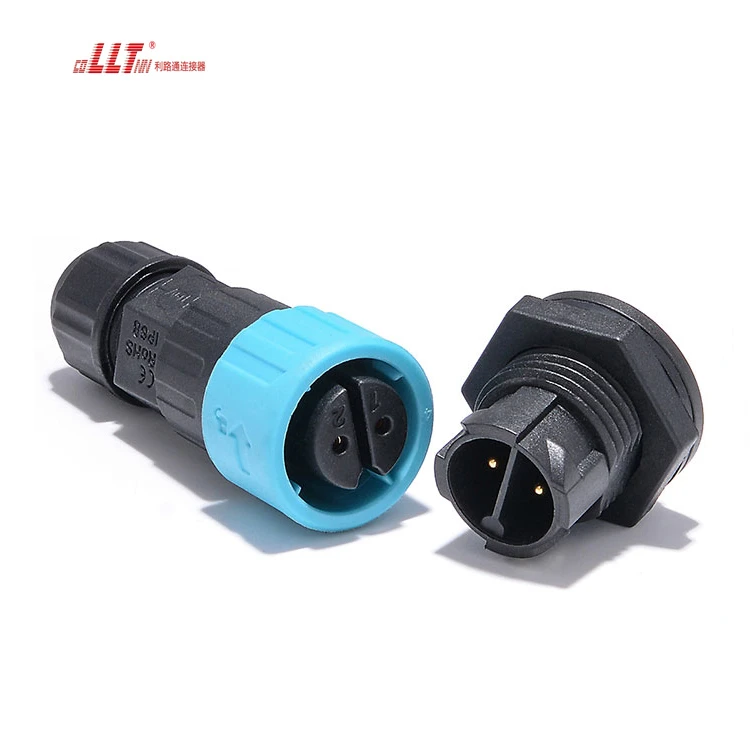

LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 3

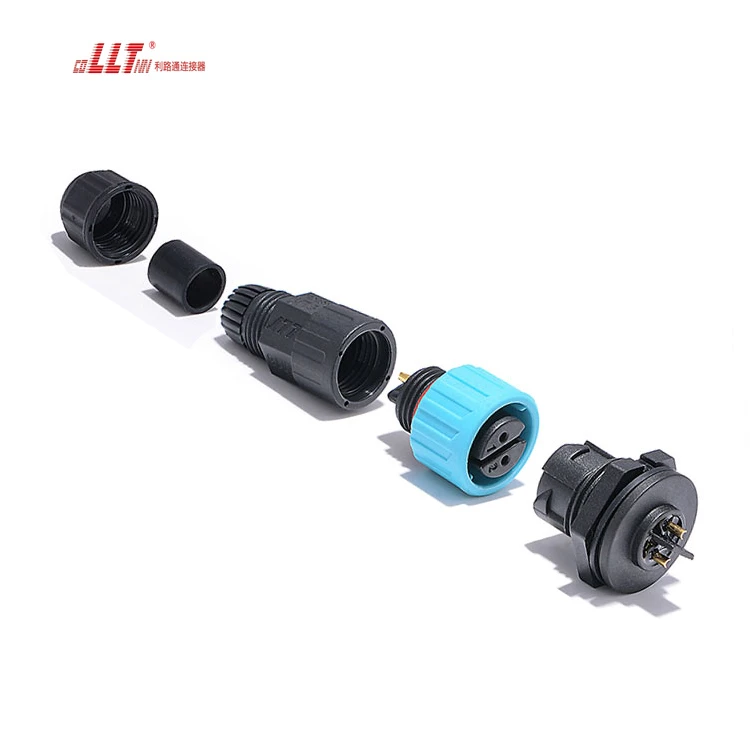

LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 4

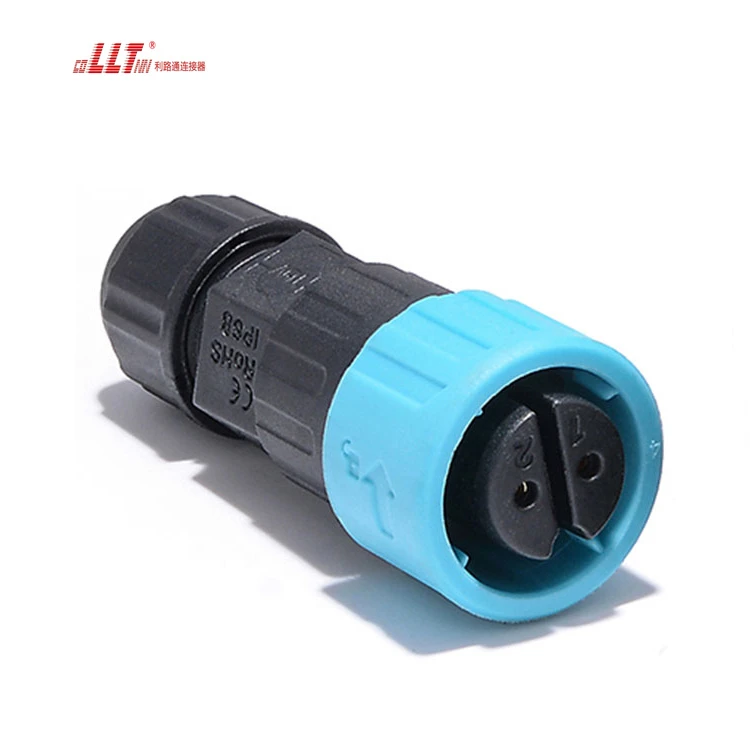

LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 5
LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector is currently configured around 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Electrical IP68 Waterproof Power 2pin M16 Push Lock Panel Mount Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
