LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP68, 10A current range, 2-12 pin layout. Termination direction is soldering, which should be checked against the actual harness build.

Waterproof Panel Mount Connector M12 Push-Lock Model: LLT-M12-10003M2841
M12 / Push-Lock LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 6.1mm

Pin

2-12

IP Rating

IP68

Rated Current

10A

Rated Voltage

250V

Product Series

M12

Wiring Type

Soldering

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

IP68 Waterproof Aviation Plug & Socket Connector • IP68 Waterproof & Dustproof – Ideal for harsh outdoor environments • 2-12Pin Male-Female Configurations – Flexible wiring solutions • Panel Mount with Front/Back Nut – Secure locking mechanism • Screw Terminal Wiring – Easy and reliable installation • Aviation-Grade Durability – Reinforced PA66 shell with copper contacts • Model: M12 Series • Pins: 2-12Pin (male/female pairs) • Rated Current: 10A • Rated Voltage: 250V AC/DC • Material: Flame-retardant PA66 + Copper terminals • IP Rating: IP68 (submersible up to 1m for 30 mins) • Mounting Type: Panel-mounted with stainless steel back nut • Temperature Range: -25°C to +85°C • Certification: CE, RoHS compliant

Application Fit

Typical application directions

  • Control cabinets and equipment housings that require front-to-rear sealed interfaces
  • Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

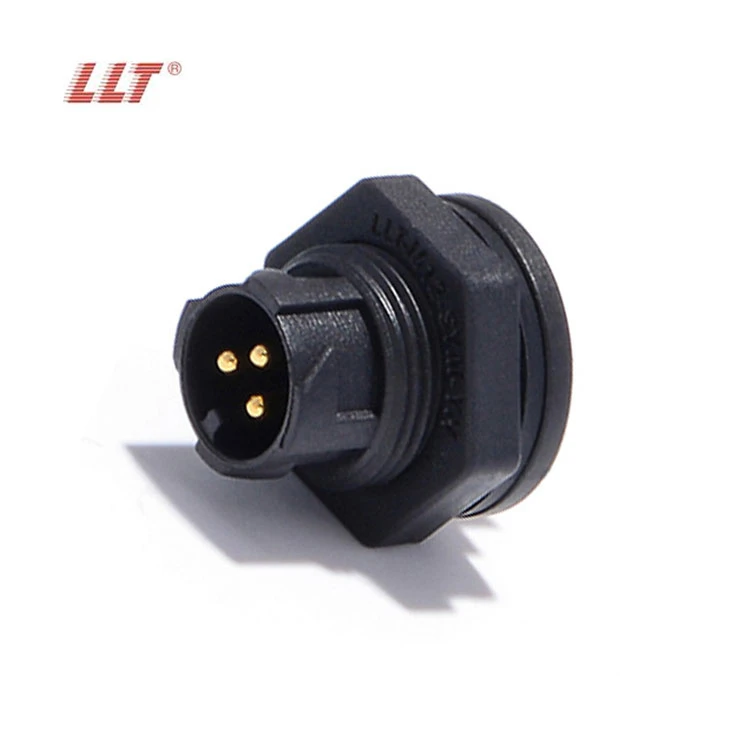

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 1

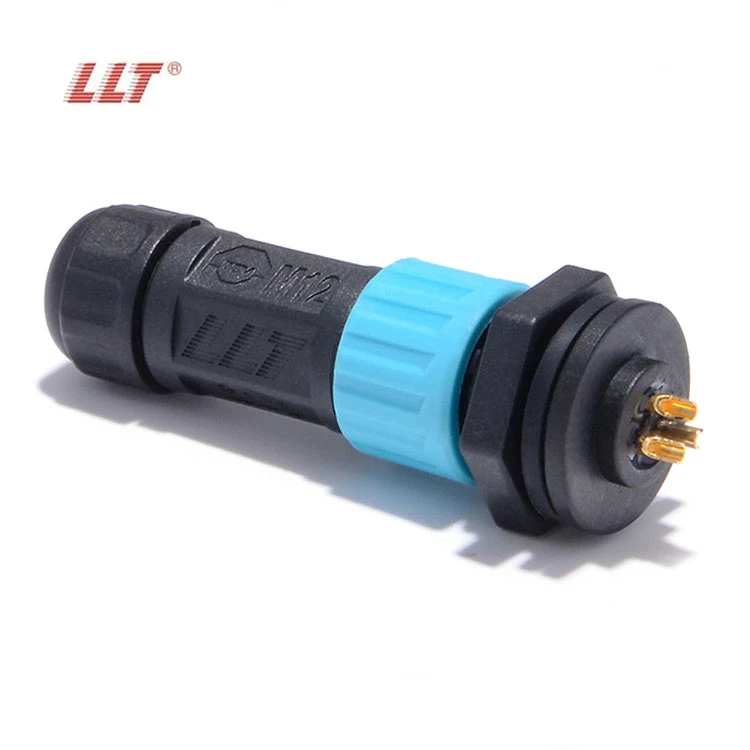

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 2

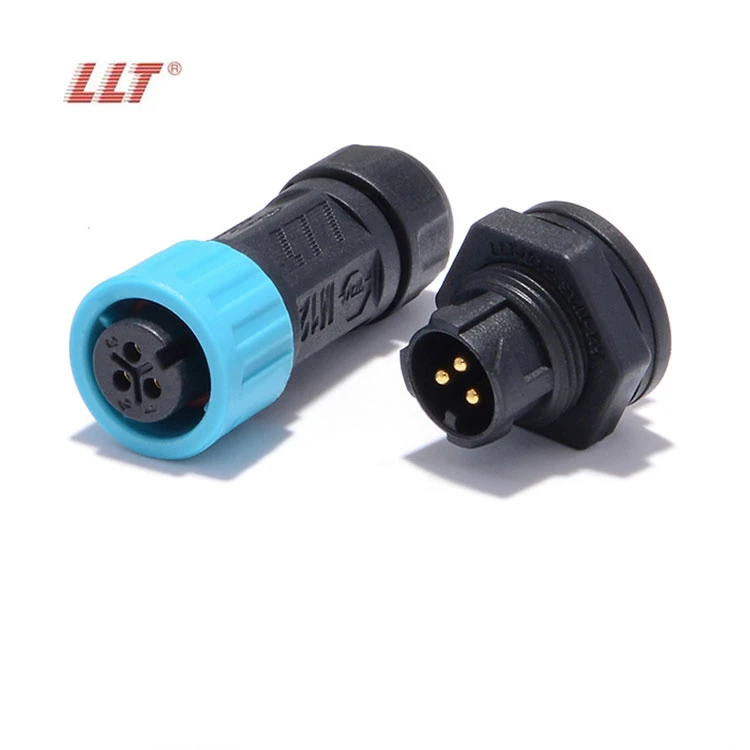

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 3

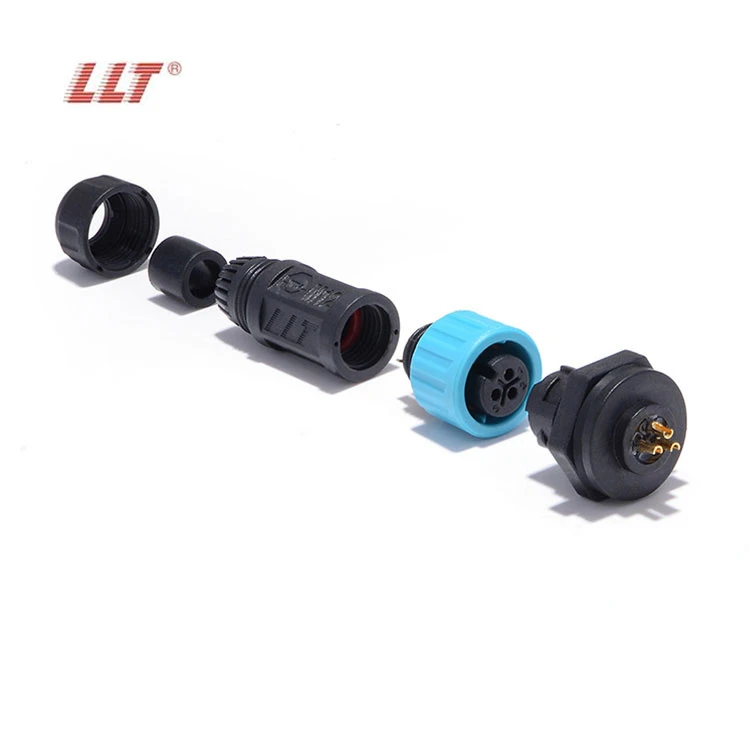

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 4

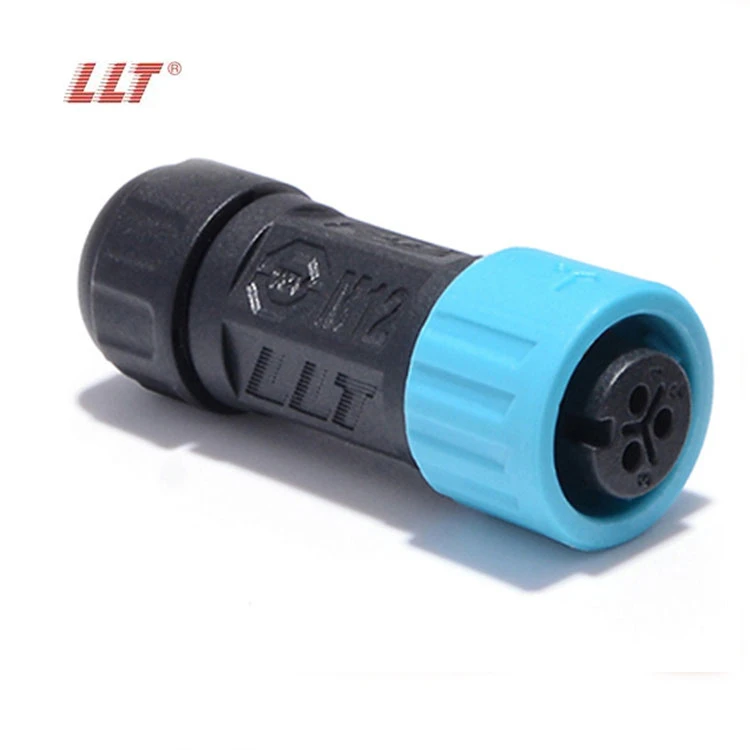

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 5

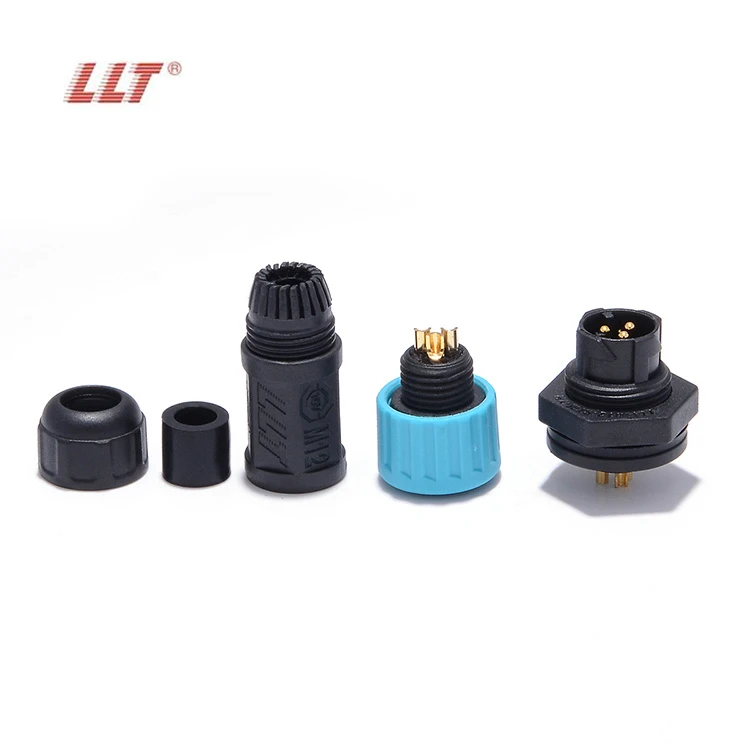

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 6

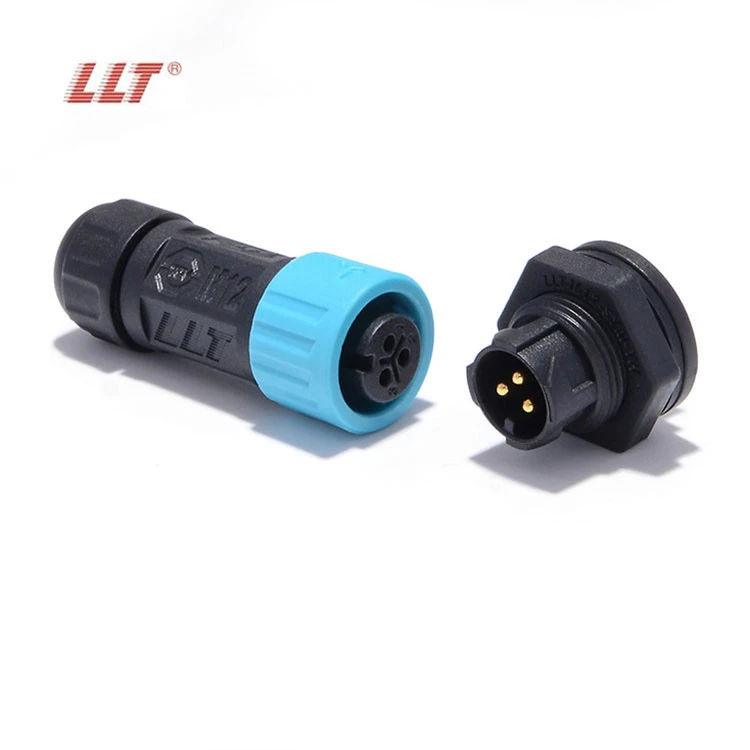

LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Factory Ip67 Connector M12 Panel Mount Socket Waterproof 2 3 4 5 6 7 8 Pin Panel Mounted Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.

Request Quote Open Waterproof Panel Mount Connector
