LLT M19 Plastic 3 Pin 20A Push Lock Waterproof Connectors Front Male Panel Mount 600V Voltage Rating
Push locking waterproof connector IP67 is the main feacture of LLT M19 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure,it is the perfect solution for outdoor LED lighting, marine electronics, and industrial automation systems.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 11mm
Pin
2-18 Pin
IP Rating
IP68
Rated Current
20A
Rated Voltage
600V
Product Series
M19
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Control cabinets and equipment housings that require front-to-rear sealed interfaces
- Outdoor boxes, inverter enclosures, and machine panels with repeat maintenance access
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A current requirements.
Technical Resources
Catalog and supporting references

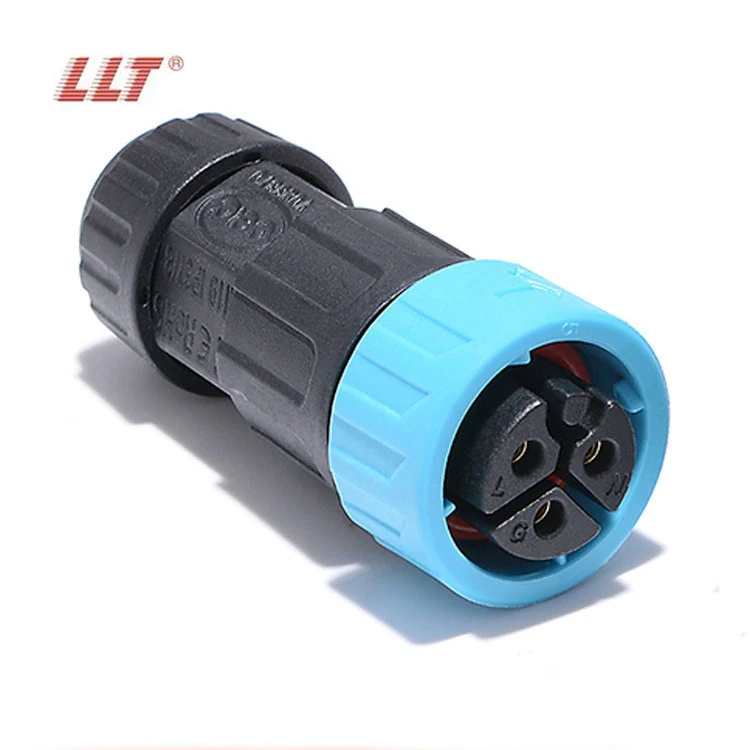

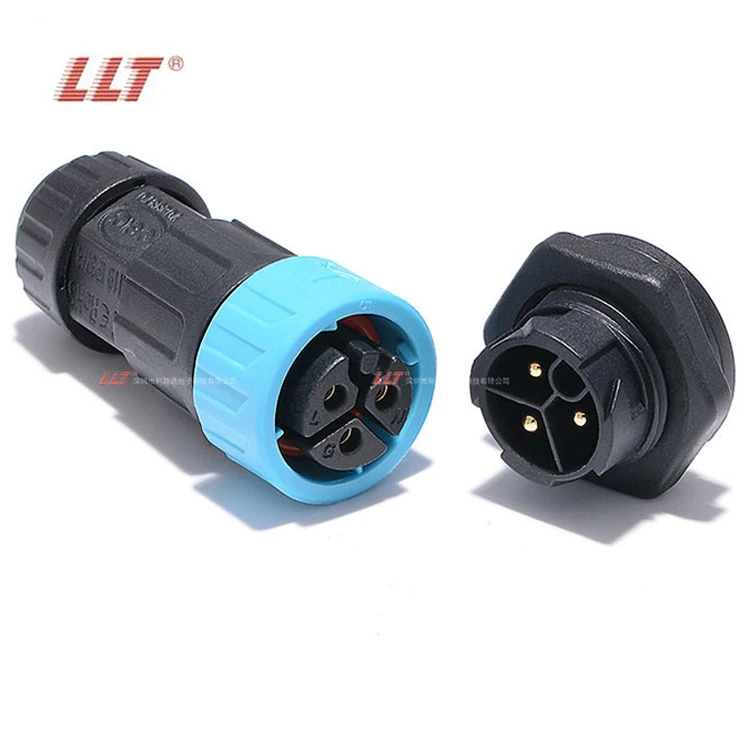

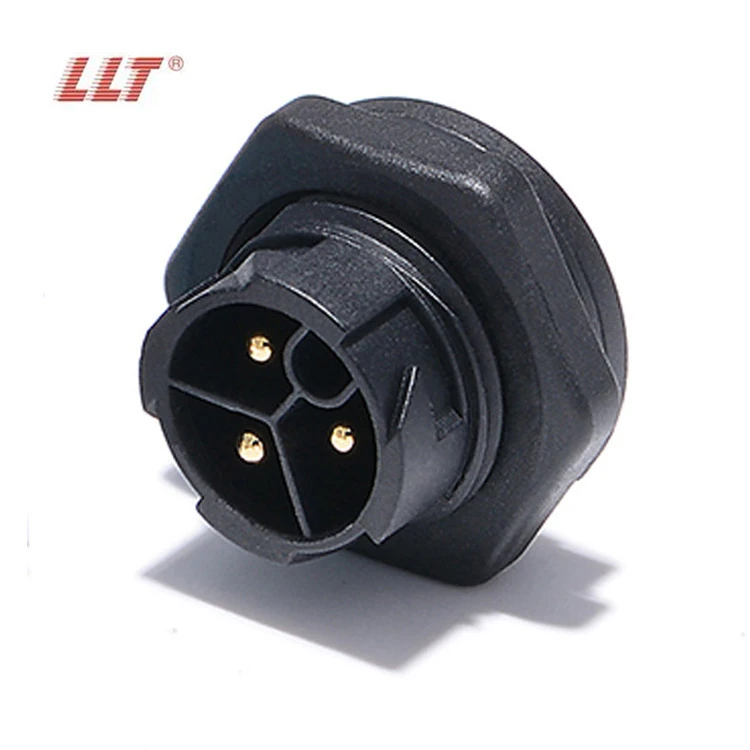

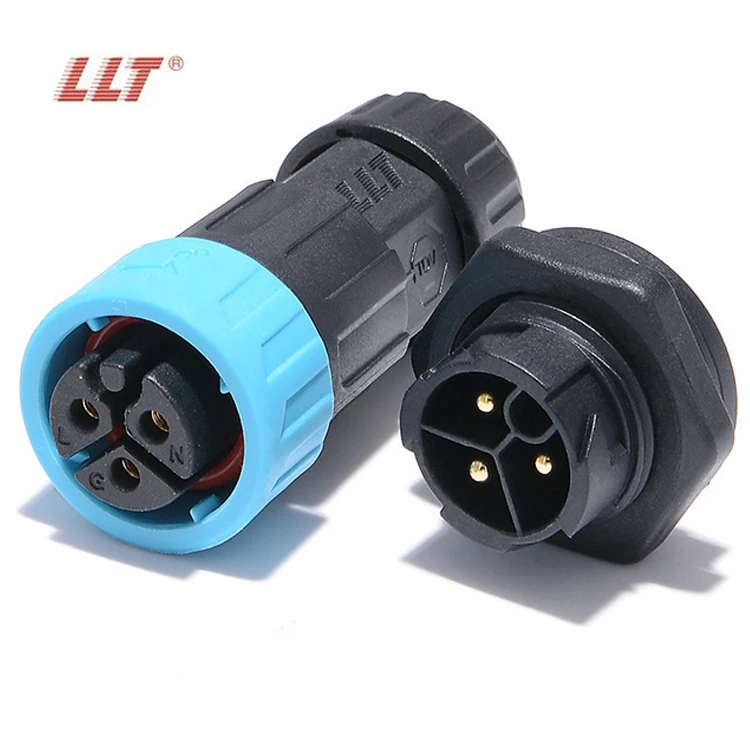

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M19 Plastic 3 Pin 20A Push Lock Waterproof Connectors Front Male Panel Mount 600V Voltage Rating?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M19 Plastic 3 Pin 20A Push Lock Waterproof Connectors Front Male Panel Mount 600V Voltage Rating?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
