LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector

LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector is a published reference for industrial ethernet links in outdoor or washdown-prone equipment. The visible configuration highlights sealing around IP65/IP67, 5A current range, 10pin pin layout, thread lock interface. Termination direction is by molding, which should be checked against the actual harness build.

Waterproof Data Connector M19 Threaded Model: LLT-M19-05010F3054
M19 / Threaded LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

10pin

IP Rating

IP65/IP67

Rated Current

5A

Rated Voltage

110V

Product Series

M19

Wiring Type

By molding

Interface Type

Thread lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-10pin molded cable connector can get IP65/ IP67 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through thread lock. It can mold the outer diameter less than 13mm PVC,Ruber cable.We can produce it with customized cable length following different requirement. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Industrial Ethernet links in outdoor or washdown-prone equipment
  • Control cabinets, gateways, and monitoring nodes that need ingress protection
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

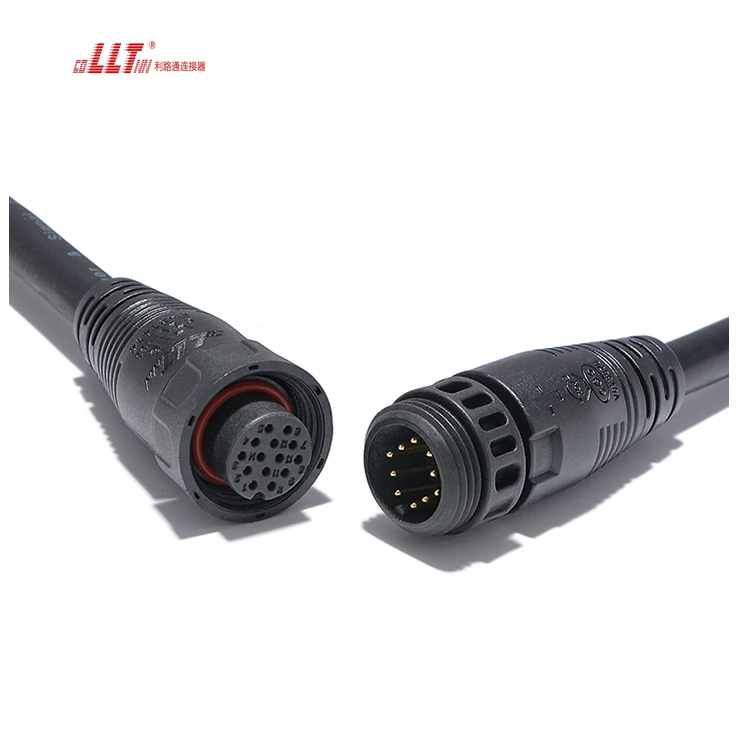

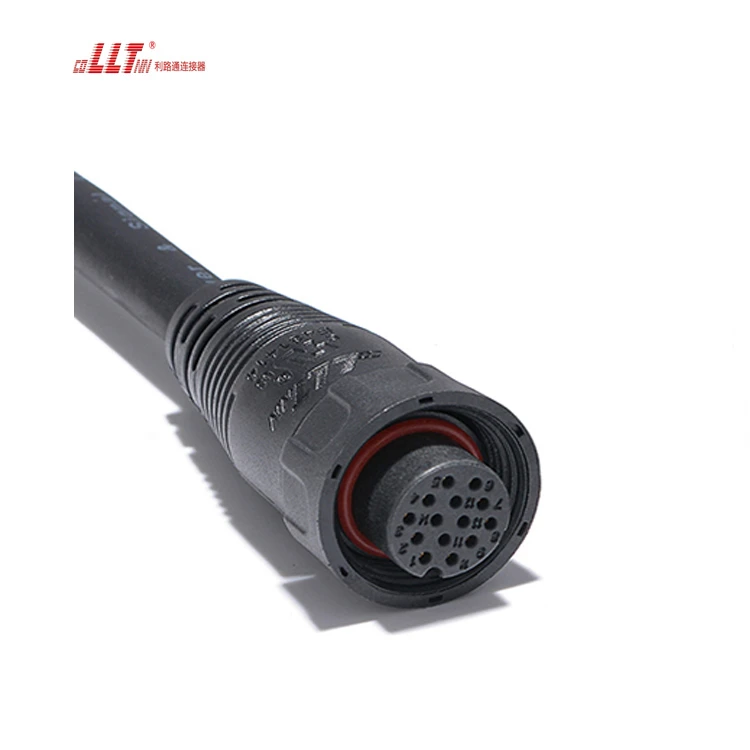

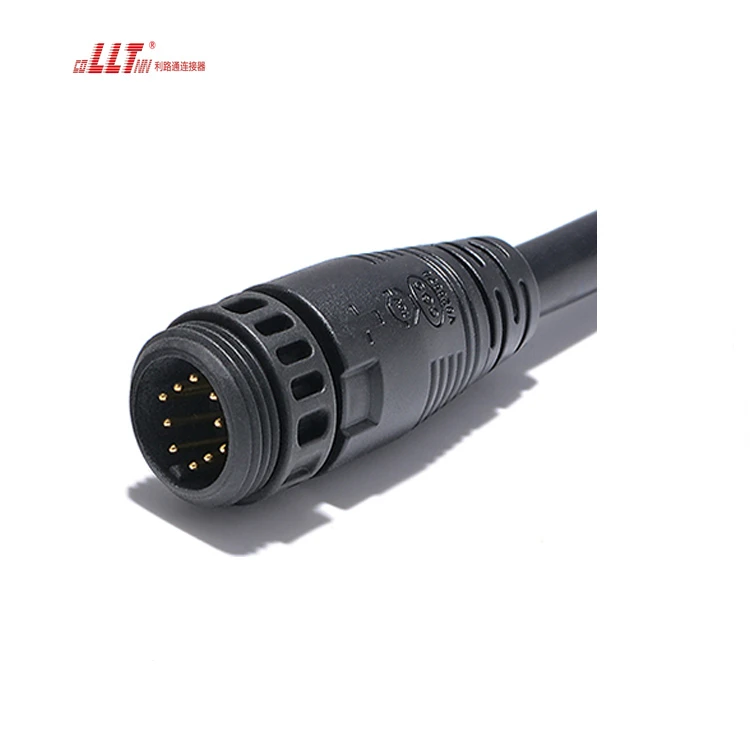

LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 1
LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 2
LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 3
LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 4
LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 5
LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M19 100V 5A Waterproof Connector Plug and Socket Data Wire Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
