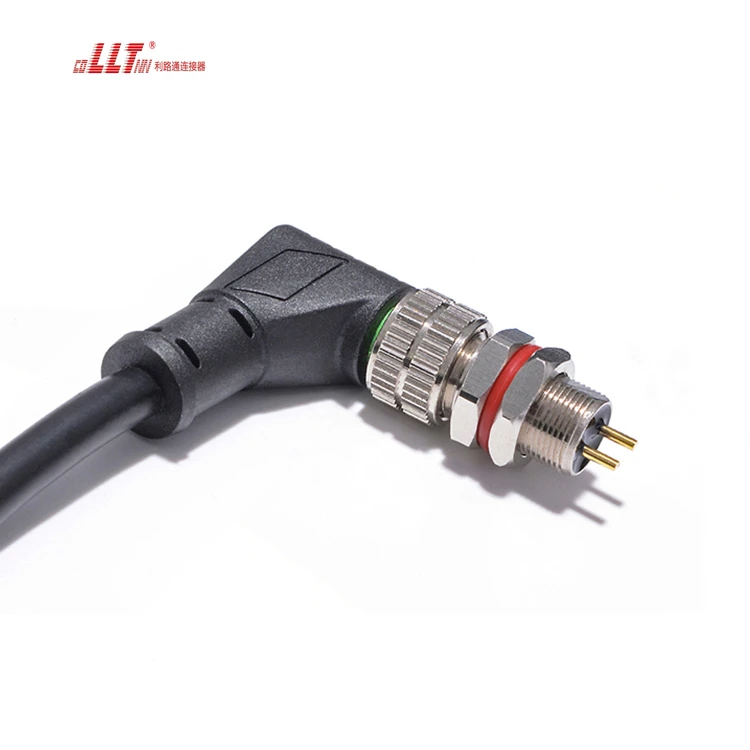

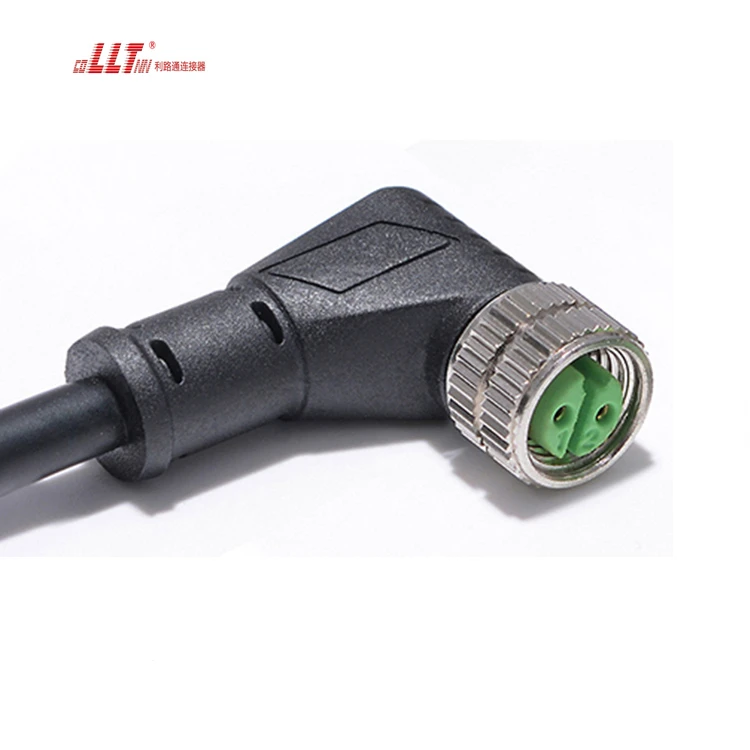

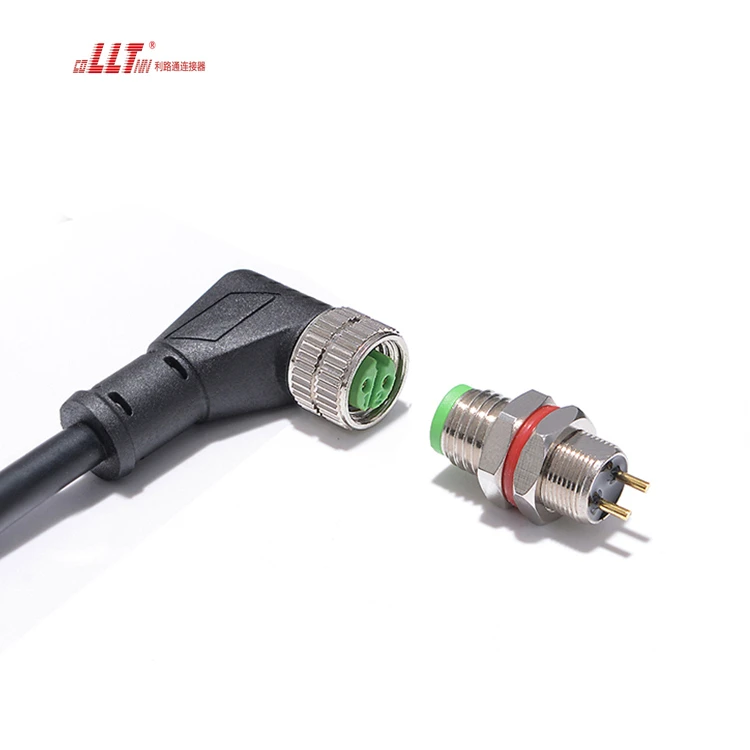

2pin M8 Right Angle Cable Metal Wire to Board Electrical Panel Cable Watertight Connector

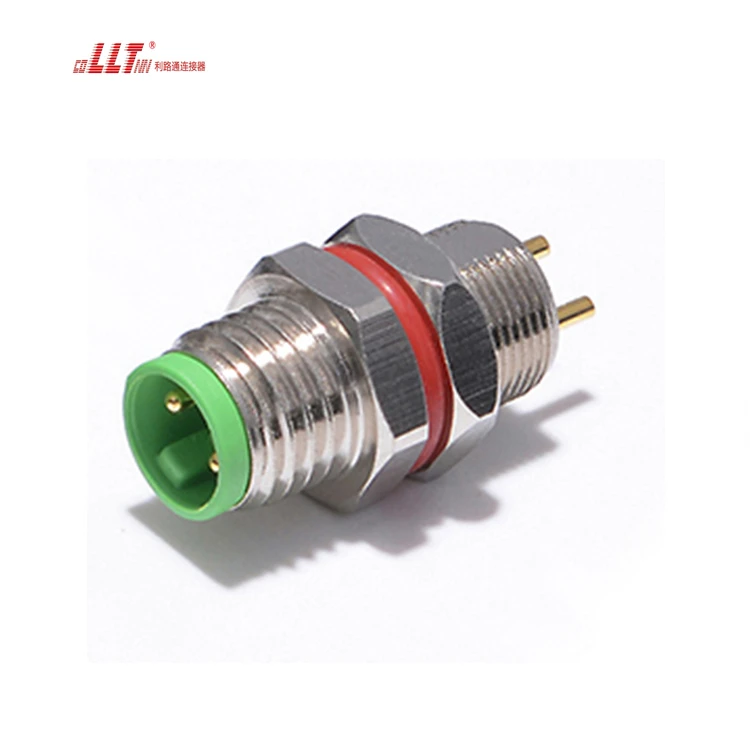

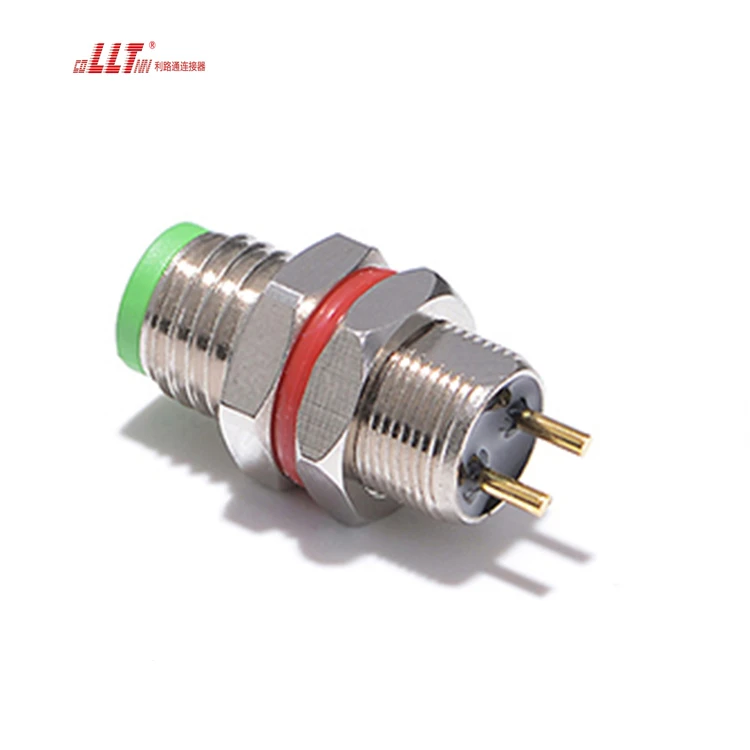

M8‑2Pin Right Angle Metal Front Panel Connector 1. Product Overview This M8‑2Pin right‑angle metal front panel connector is an L‑shaped industrial circular socket with metal housing, designed for front‑side panel mounting. The 90‑degree right‑angle outlet saves internal equipment space, avoiding wire bending stress. Equipped with screw‑locking structure and IP67 sealing performance, it delivers reliable connection for signal and low‑power power transmission in compact industrial devices. 2. General Specifications • Product Model: M8‑2Pin Right Angle Metal Front Panel Connector • Connector Type: Right‑angle circular panel‑mount socket • Mounting Method: Front panel mount (Front‑installation) • Locking Mechanism: Screw locking • Number of Contacts: 2‑pin • Reference Standard: IEC 61076‑2‑104 3. Electrical Characteristics • Rated Current: 5A (25℃) • Rated Voltage: 60V AC • Withstand Voltage: 1500V AC, 60s • Insulation Resistance: ≥1000 MΩ • Contact Resistance: ≤5 mΩ • Application: Signal & low‑power power connection 4. Mechanical Properties • Housing Material: Nickel‑plated brass (full metal) • Contact Material: Copper alloy, gold‑plated • Insulator Material: High‑performance PA66 • Sealing Element: O‑ring • Mating Cycles: ≥2000 times • Vibration Resistance: Compliant with IEC 60512‑6 5. Environmental Performance • Ingress Protection: IP67 (when fully mated) • Operating Temperature: ‑40℃ ~ +105℃ • Storage Temperature: ‑45℃ ~ +110℃ • Relative Humidity: 5%‑95% RH, non‑condensing • Pollution Degree: Level 3 6. Pin Assignment • Pin 1: Power / Signal Positive • Pin 2: GND / Signal Negative 7. Key Features 1. 90° right‑angle cable exit, optimizes internal space layout inside equipment 2. Nickel‑plated brass metal shell, high mechanical strength, anti‑corrosion and EMI shielding 3. Front‑panel mounting design, easy installation on device casing 4. Screw‑locking design prevents disconnection caused by vibration 5. Gold‑plated contacts for stable conductivity and anti‑oxidation 6. IP67 waterproof and dustproof, suitable for harsh industrial environments 7. Compact dimension, ideal for narrow installation space 8. Application Fields • Miniature industrial sensors • Automation control equipment • Instrumentation and measuring devices • Mechanical low‑voltage power wiring • Outdoor monitoring equipment • Horticulture lighting control systems
