High Quality Led Strip Plug 8pin M16 IP67 Waterproof Wire Data Cable Connector Manufacturing
High Quality Led Strip Plug 8pin M16 IP67 Waterproof Wire Data Cable Connector Manufacturing is a published reference for industrial ethernet links in outdoor or washdown-prone equipment. The visible configuration highlights sealing around IP65/IP67, 5A current range, 8pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is by molding, which should be checked against the actual harness build.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
8pin
IP Rating
IP65/IP67
Rated Current
5A
Rated Voltage
110V
Product Series
M16
Wiring Type
By molding
Interface Type
2-12pin/2+2/2+3/2+4/3+3/2+8pin
Mating Cycles
>=2000
Complies with product certification:
System certification:
Application Fit
Typical application directions
- Industrial Ethernet links in outdoor or washdown-prone equipment
- Control cabinets, gateways, and monitoring nodes that need ingress protection
- Projects targeting IP65/IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references

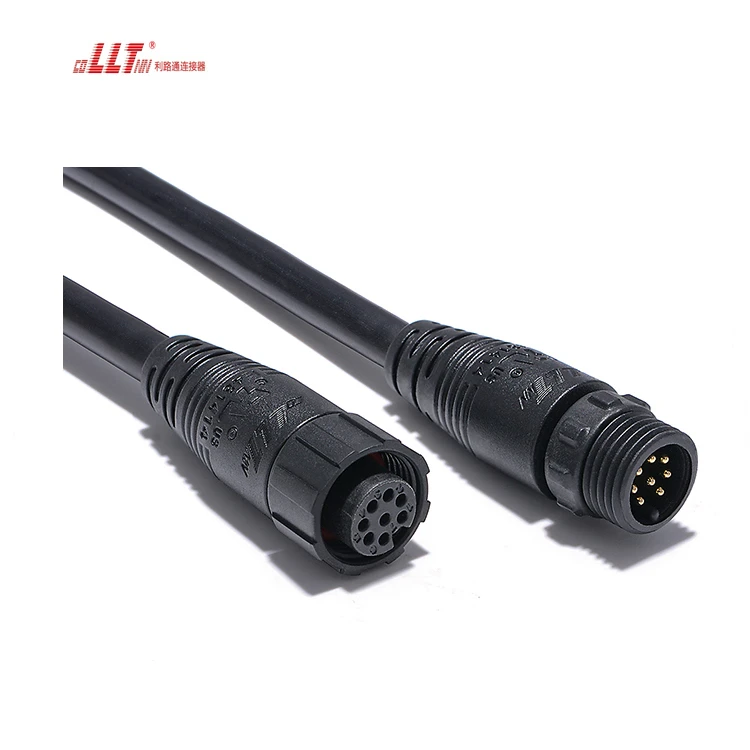

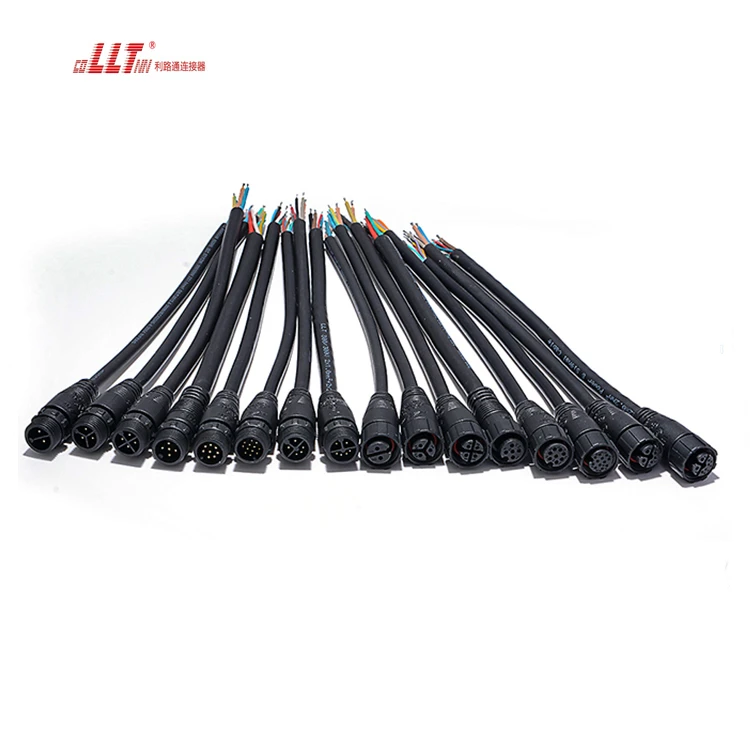

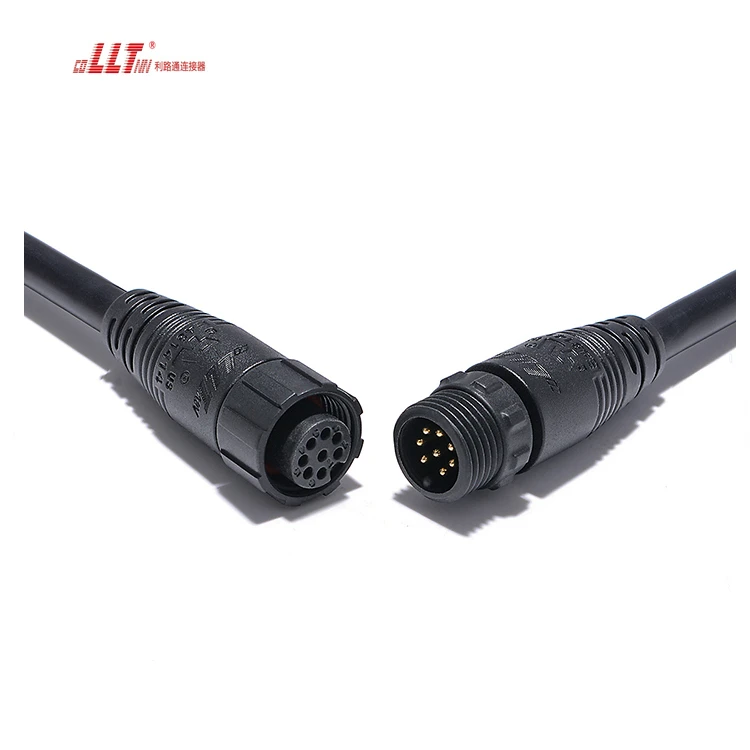

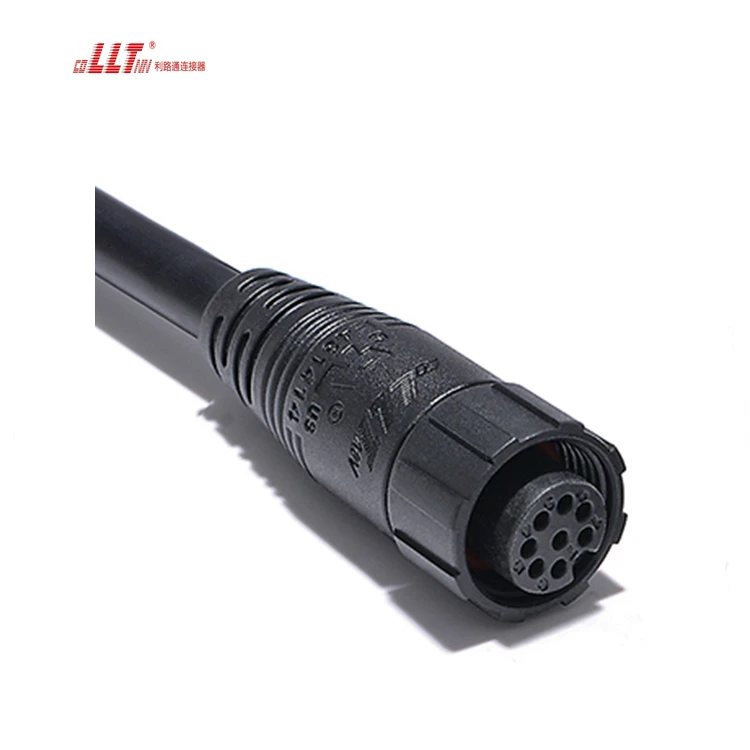

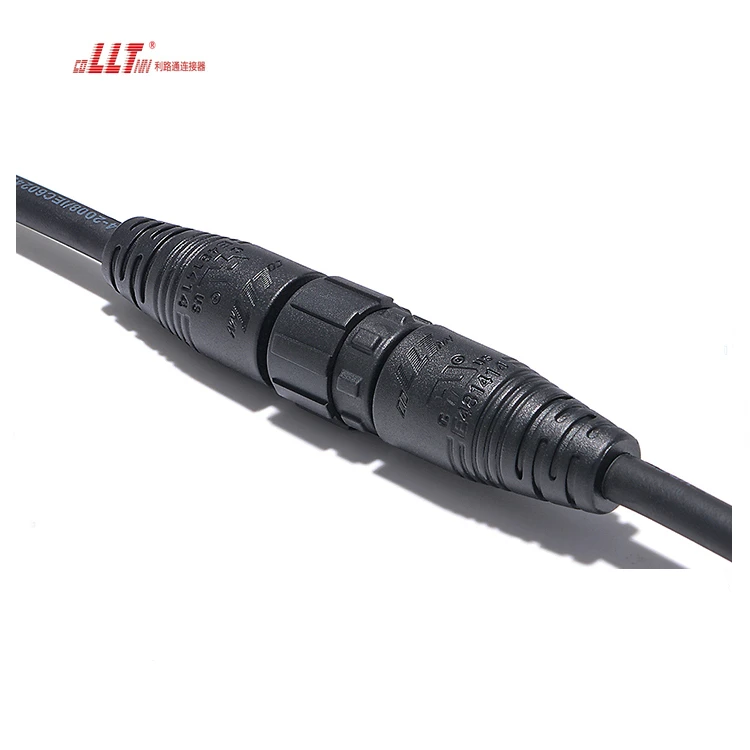

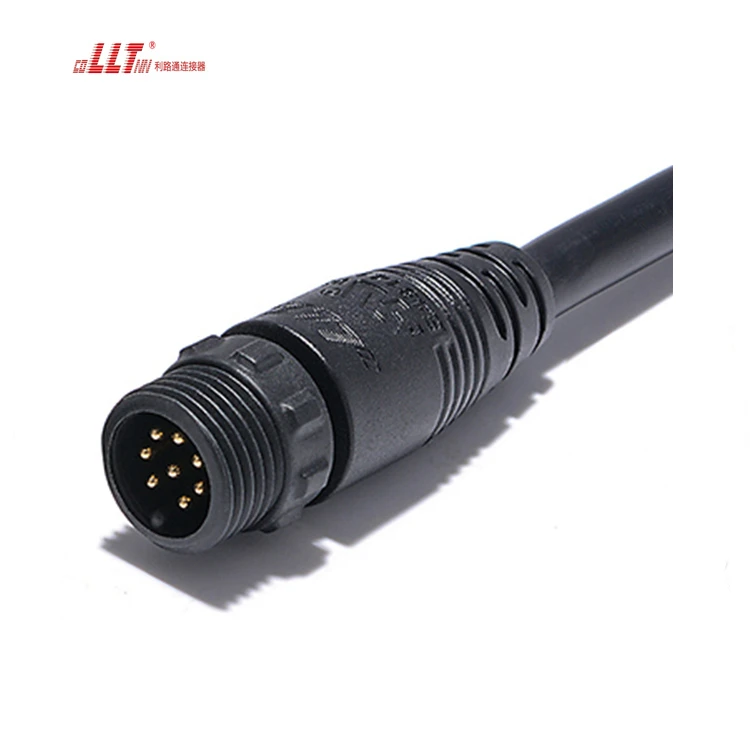

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting High Quality Led Strip Plug 8pin M16 IP67 Waterproof Wire Data Cable Connector Manufacturing?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. High Quality Led Strip Plug 8pin M16 IP67 Waterproof Wire Data Cable Connector Manufacturing is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for High Quality Led Strip Plug 8pin M16 IP67 Waterproof Wire Data Cable Connector Manufacturing?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
