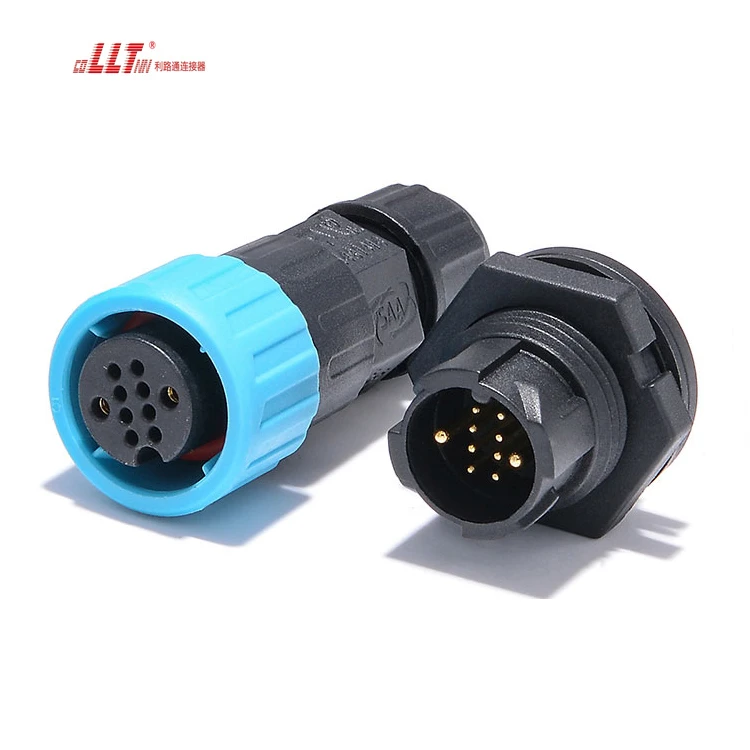

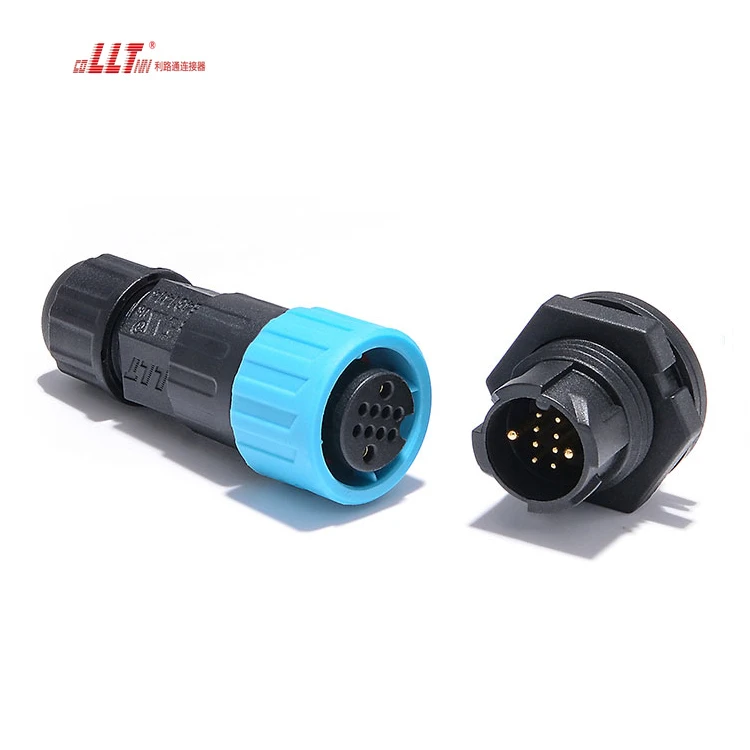

LLT Led Strip Lighting Ip68 Waterproof 2+8pin Male Female Panel Connector Free Sample

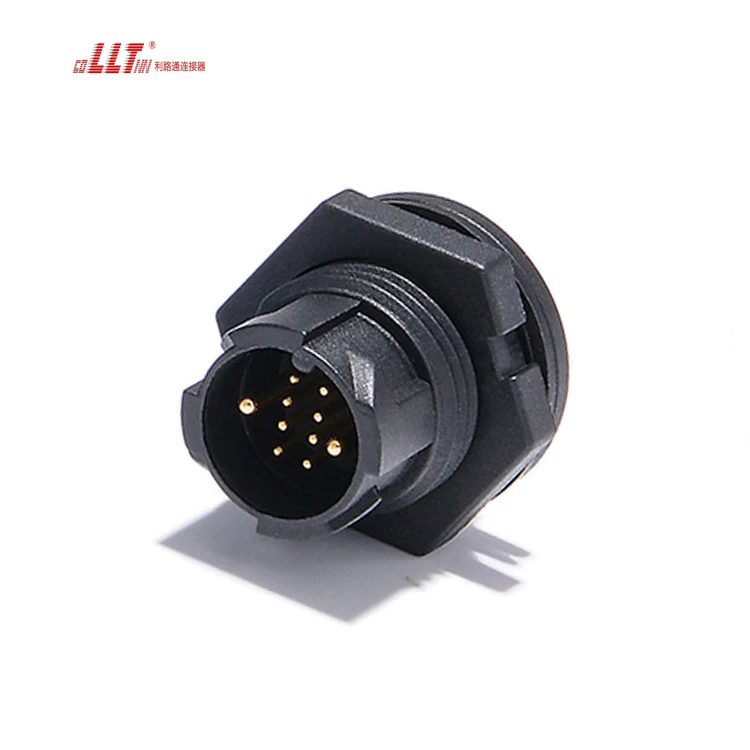

This M16 2+8-pin push lock panel connector is a high-density hybrid circular connector, specially designed for panel mounting. It integrates 2 power circuits and 8 signal circuits in one connector, realizing efficient transmission of power and multi-channel signals simultaneously. Key Functions & Features - 2+8 hybrid power & signal transmission Adopts 2 power pins + 8 signal pins hybrid design, supporting simultaneous transmission of high-current power and multi-channel control signals, effectively reducing wiring complexity and saving installation space. - Stable electrical performance Gold-plated contacts ensure low contact resistance, reliable transmission, oxidation resistance and long service life. The connector provides excellent insulation and anti-interference performance for stable signal and power delivery. - High protection and durability IP67 protection class when fully mated, waterproof and dustproof. Wide operating temperature range, resistant to oil, corrosion, shock and frequent plugging and unplugging. - Standard panel mount design Suitable for front or rear panel installation on equipment cabinets, control boxes and instruments, with good sealing performance and stable installation structure. Electrical Parameters - Number of Pins: 2+8 pins (2 power pins + 8 signal pins) - Rated Voltage: 300V+60V AC/DC - Rated Current: 15A (power pins); 5A (signal pins) - Insulation Resistance: ≥ 5000MΩ - Withstanding Voltage: 1500V AC / 1min - Contact Material: Copper alloy, gold-plated - Housing Material: PA66 high-strength engineering plastic - Protection Degree: IP67 (mated), If inject epoxy resin into the body shell , it can get IP68 - Operating Temperature: -40°C ~ +105°C - Mating Cycles: ≥ 3000 times
