LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68

Waterproof Data Connector M16 Push-Lock Model: LLT-M16-05008M2841
M16 / Push-Lock LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

8pin

IP Rating

IP67/IP68

Rated Current

5A

Rated Voltage

110V

Product Series

M16

Wiring Type

by Solder

Interface Type

2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

The M16-8pin push lock panel connector is a compact circular industrial connector dedicated to stable transmission of power and multi-channel signals, adopting a push-lock quick-connect structure and front/rear panel mounting design. Key Functions & Features 1. Push-Lock Quick Connect & Disconnect- Tool-free push-in self-locking design enables fast mating and secure connection. - Press the unlocking sleeve for simple disconnection, improving assembly and maintenance efficiency. - Strong anti-vibration and anti-pullout performance to avoid accidental loosening in harsh environments. 2. 8-Pin Multi-Channel Transmission- Supports 8 independent circuits for hybrid transmission of power and multiple analog/digital signals. - Gold-plated contacts ensure low contact resistance, stable transmission and high oxidation resistance. - Suitable for multi-signal sensor, actuator and control module wiring. 3. Environmental & Mechanical Performance- Protection grade up to IP67 when mated, dustproof and waterproof for outdoor and wet industrial environments. - Wide operating temperature range, resistant to oil, chemical corrosion and mechanical shock. - Durable housing material supports more than 3000 mating cycles. 4. Panel Mount Design- Standard panel mounting structure for stable installation on equipment cabinets, control boxes and device surfaces. - Good sealing performance to maintain protection level after installation. - Compact size to save installation space. Typical Applications It is used in industrial automation equipment, sensors, actuators, automotive electronics, security monitoring, LED lighting and other fields requiring multi-core, quick connection and reliable panel wiring.

Application Fit

Typical application directions

  • Industrial Ethernet links in outdoor or washdown-prone equipment
  • Control cabinets, gateways, and monitoring nodes that need ingress protection
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

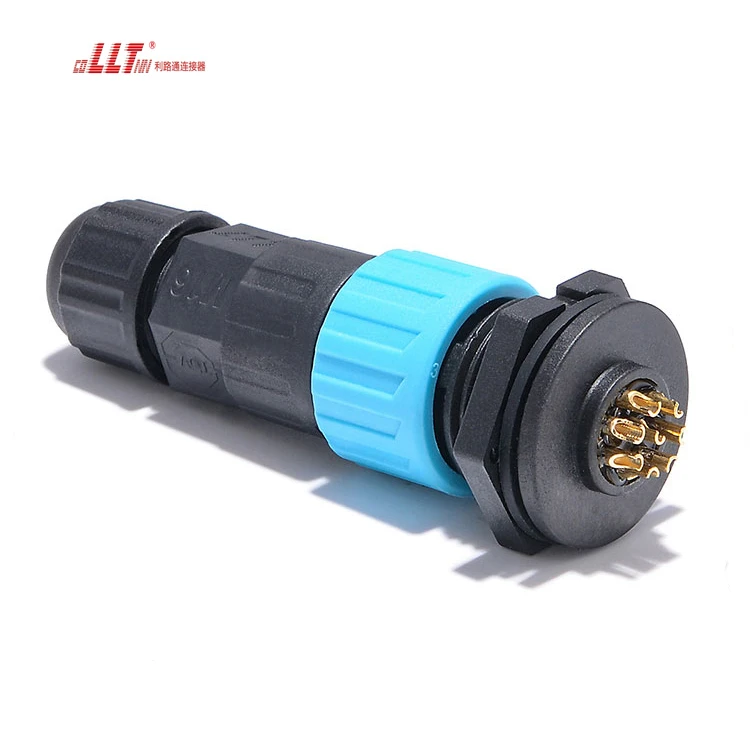

LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 1

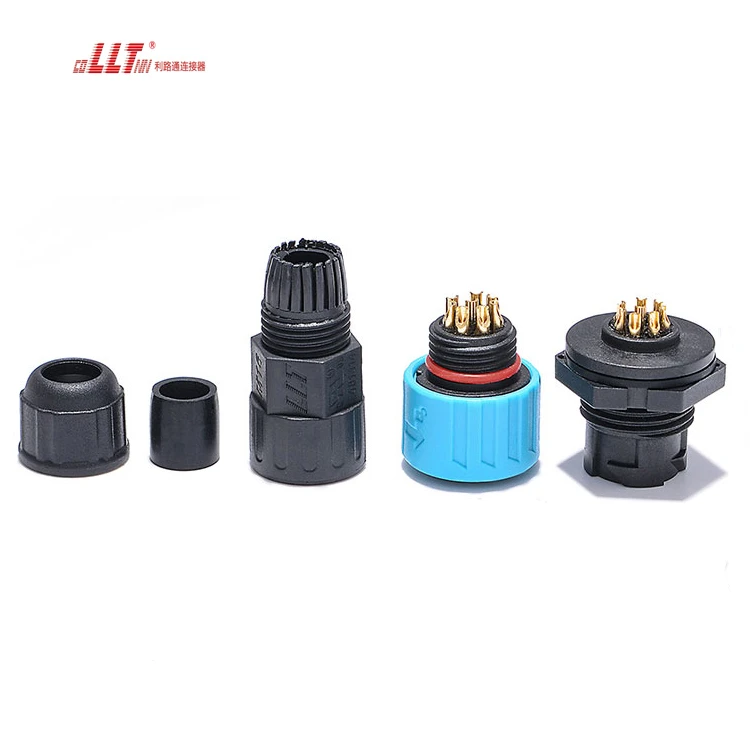

LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 2

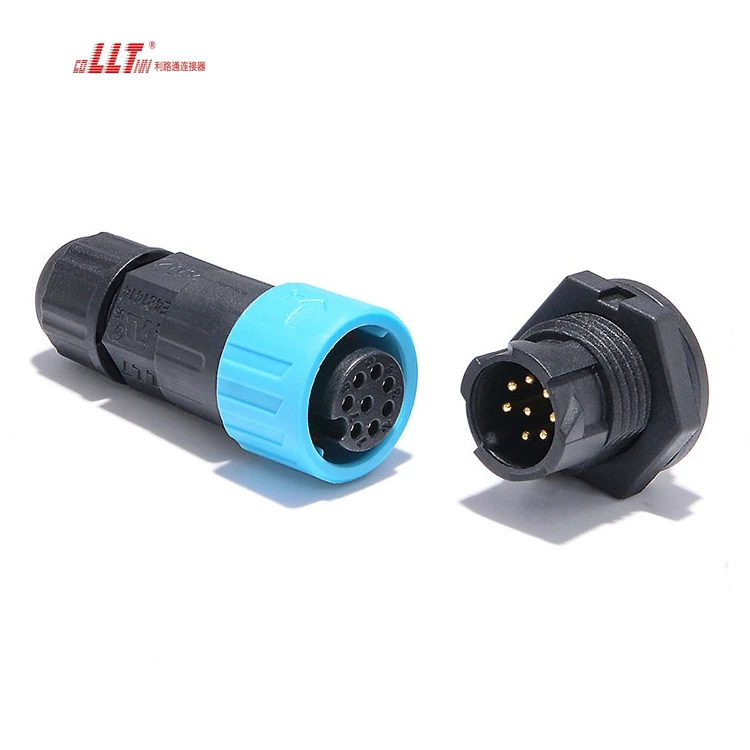

LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 3

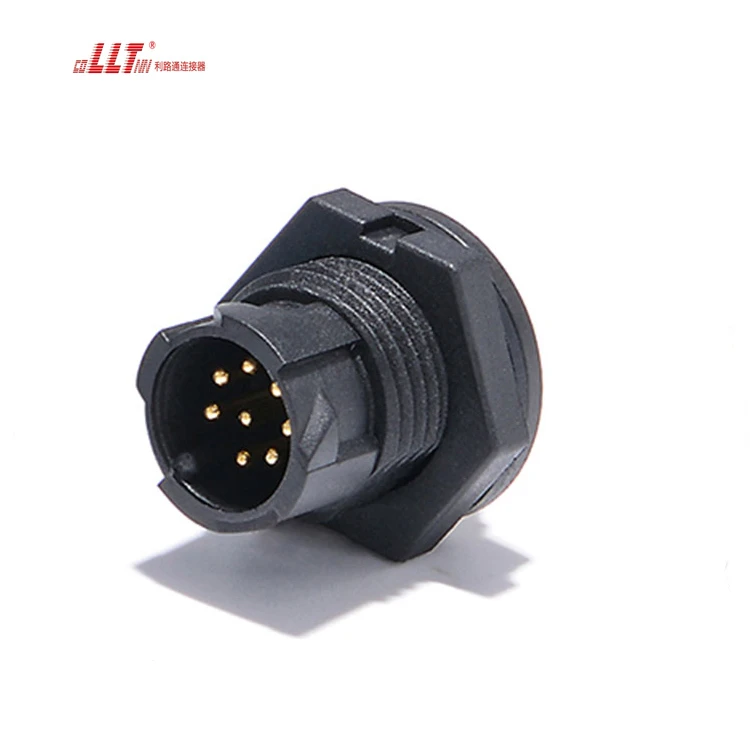

LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 4

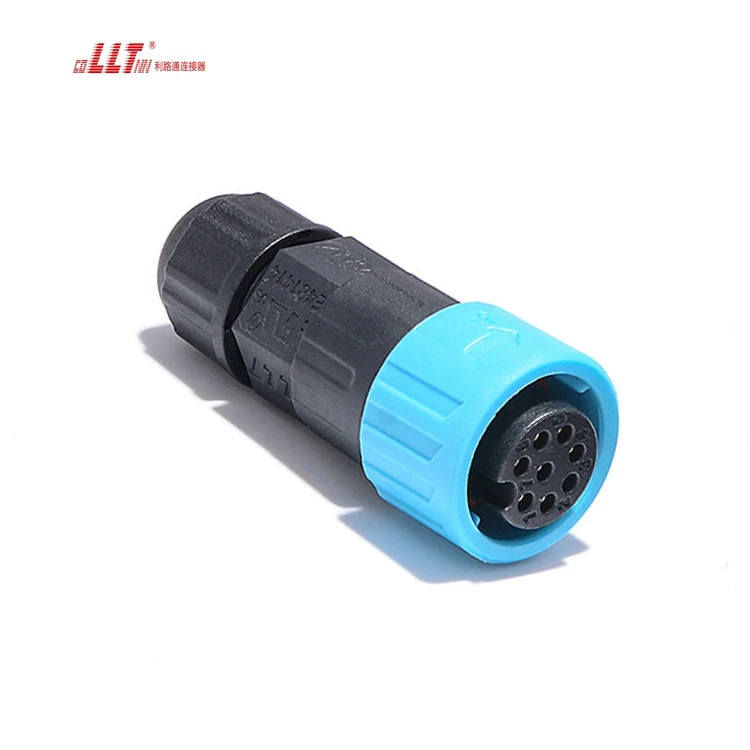

LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 5
LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 gallery image 6

Technical FAQ

What should be confirmed before selecting LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68 is currently configured around 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 8pin M16 Assembly Automotive Plastic Rear Panel Mount Waterproof Connector Ip68?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
