LLT 3+8 M25 Nylon Electrical Wire Outdoor Combined Power Signal Cable Connector

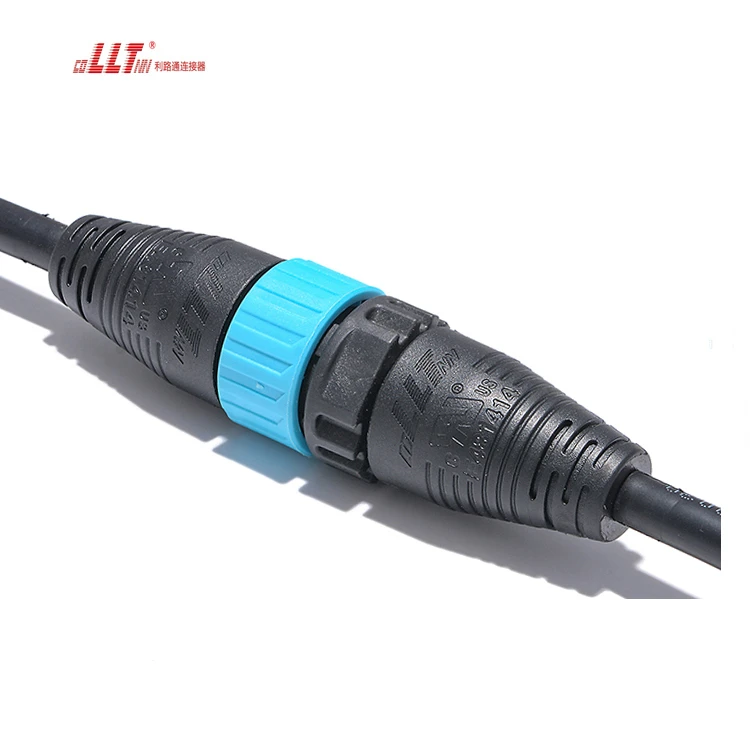

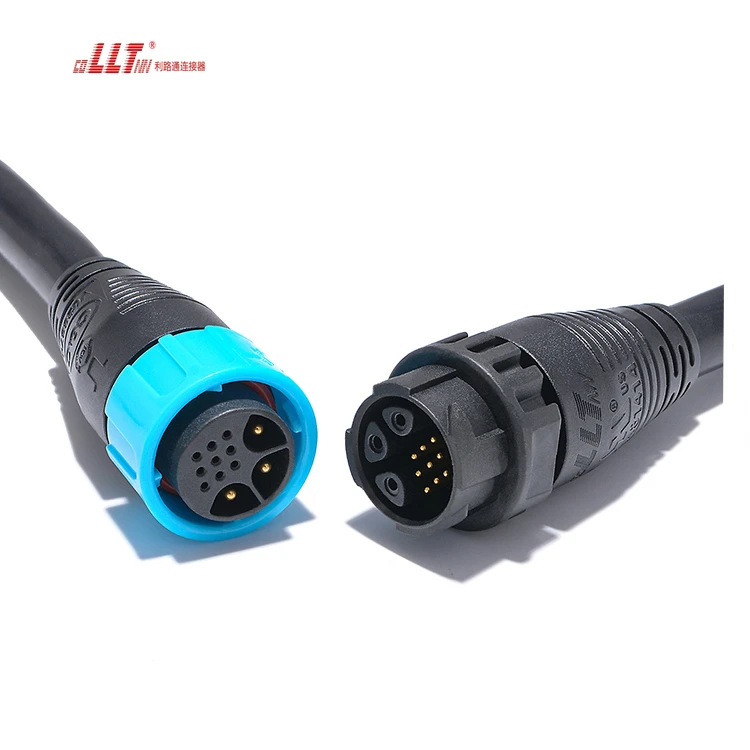

This M25 3+8pin molded cable connector can get IP65/ IP67 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble. The male mate female through push lock. It can mold the outer diameter less than 15mm PVC,Ruber cable.We can produce it with customized cable length following different requirement. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M25
Pin
3+8Pin
IP Rating
IP65/IP67
Rated Current
20A+5A
Rated Voltage
300V+110V
Product Series
M25
Wiring Type
By molding
Interface Type
Push lock
Mating Cycles
>=3000 times
Complies with product certification:
System certification:
Application Fit
Typical application directions
- Industrial Ethernet links in outdoor or washdown-prone equipment
- Control cabinets, gateways, and monitoring nodes that need ingress protection
- Projects targeting IP65/IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A+5A current requirements.
Technical Resources
Catalog and supporting references

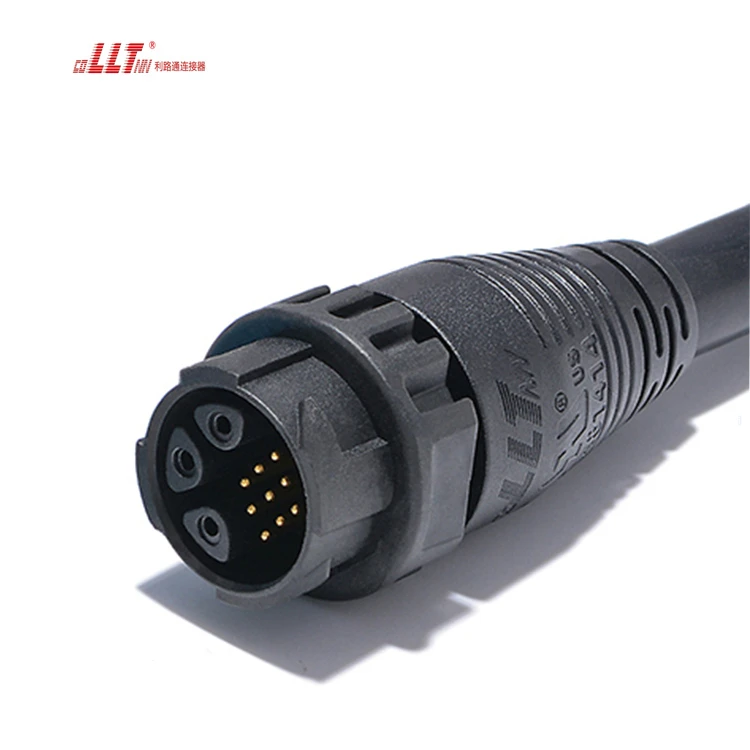

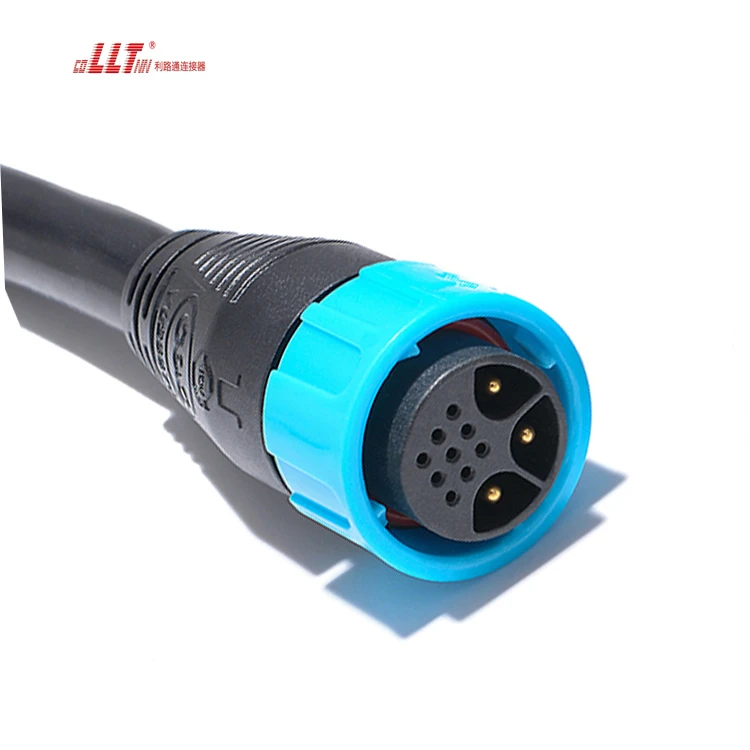

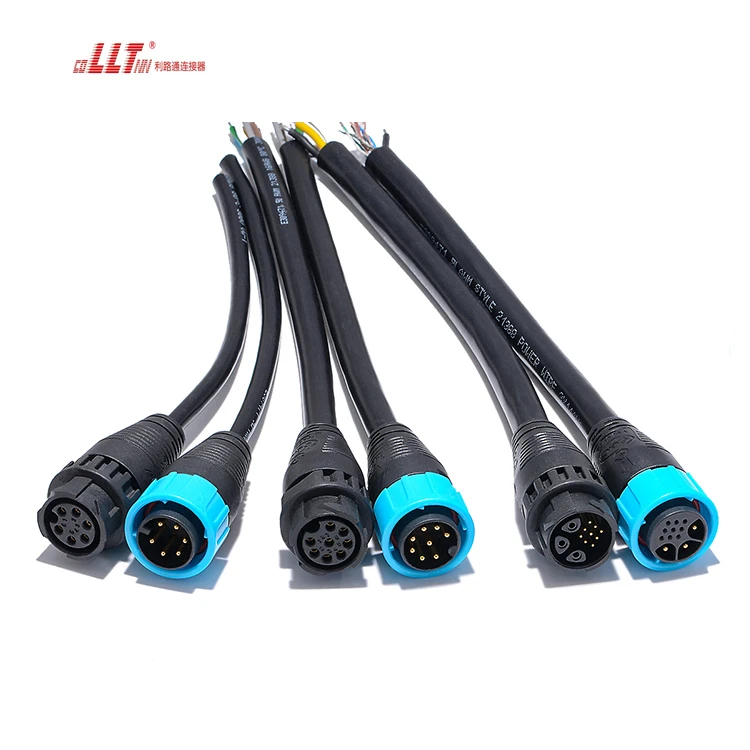

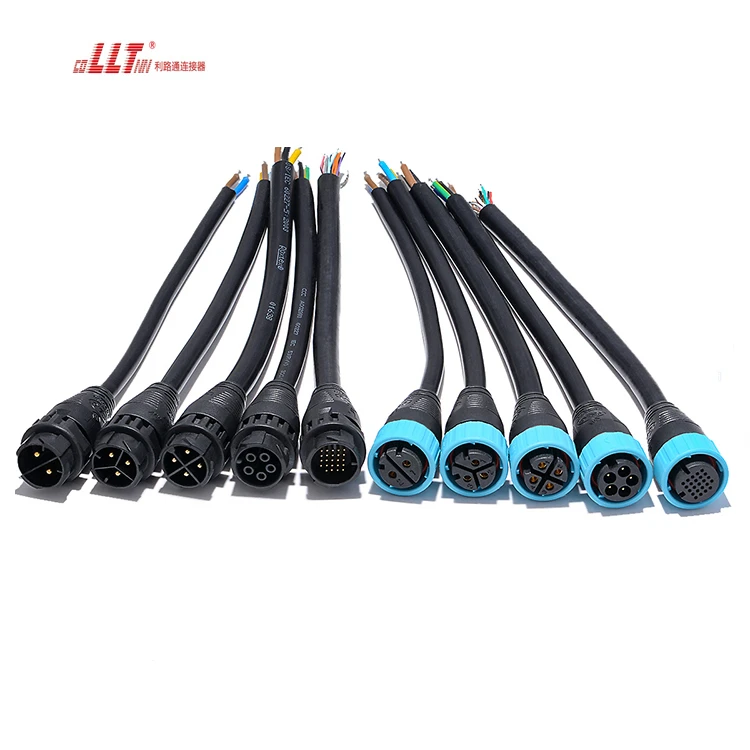

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT 3+8 M25 Nylon Electrical Wire Outdoor Combined Power Signal Cable Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 3+8 M25 Nylon Electrical Wire Outdoor Combined Power Signal Cable Connector is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 20A+5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT 3+8 M25 Nylon Electrical Wire Outdoor Combined Power Signal Cable Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
