electrical multi 12pin M16 waterproof data connector

Waterproof Data Connector M16 Push-Lock Model: LLT-M16-05012M2841
M16 / Push-Lock electrical multi 12pin M16 waterproof data connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

12pin

IP Rating

IP67/IP68

Rated Current

5A

Rated Voltage

60V

Product Series

M16

Wiring Type

by Solder

Interface Type

2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

The M16-12pin push lock panel connector is a high-density circular connector with a quick push-lock mechanism, specially designed for panel-mounted equipment that requires multi-channel power and signal transmission. It provides stable and reliable connections Electrical Parameters - Number of Pins: 12 pins - Rated Voltage: 60V AC/DC - Rated Current: 5A per contact - Insulation Resistance: ≥ 5000MΩ - Withstanding Voltage: 1500V AC / 1min - Contact Material: Copper alloy, gold-plated - Housing Material: PA66 high-strength engineering plastic - Protection Degree: IP67 (mated);if inject epoxy resin into the house body , it can get IP68 - Operating Temperature: -40°C ~ +85°C - Mating Cycles: ≥ 3000 times Applications It is used in industrial automation, sensors, robotics, automotive electronics, security equipment, LED control systems, instrumentation and other fields requiring multi-core, reliable panel connection.

Application Fit

Typical application directions

  • Industrial Ethernet links in outdoor or washdown-prone equipment
  • Control cabinets, gateways, and monitoring nodes that need ingress protection
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

electrical multi 12pin M16 waterproof data connector gallery image 1

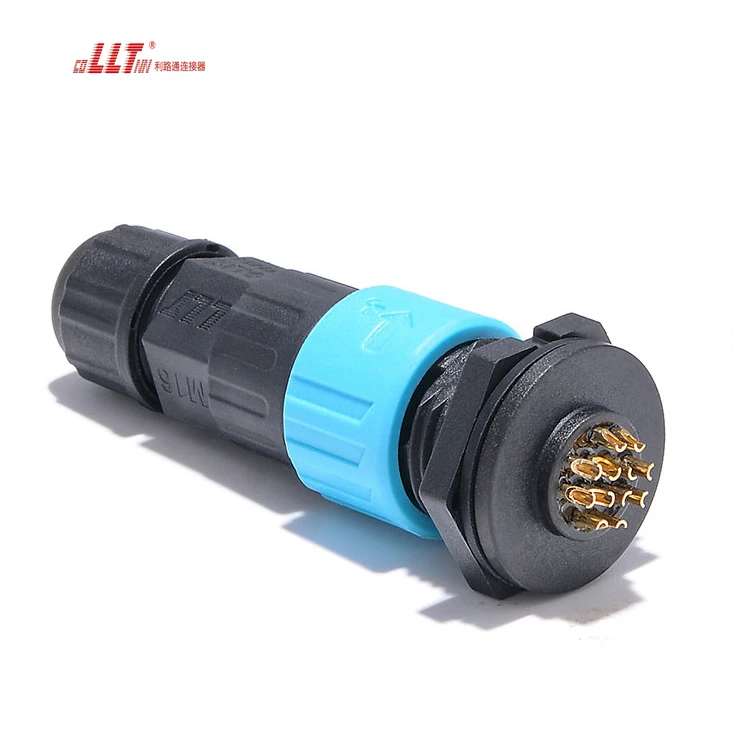

electrical multi 12pin M16 waterproof data connector gallery image 2

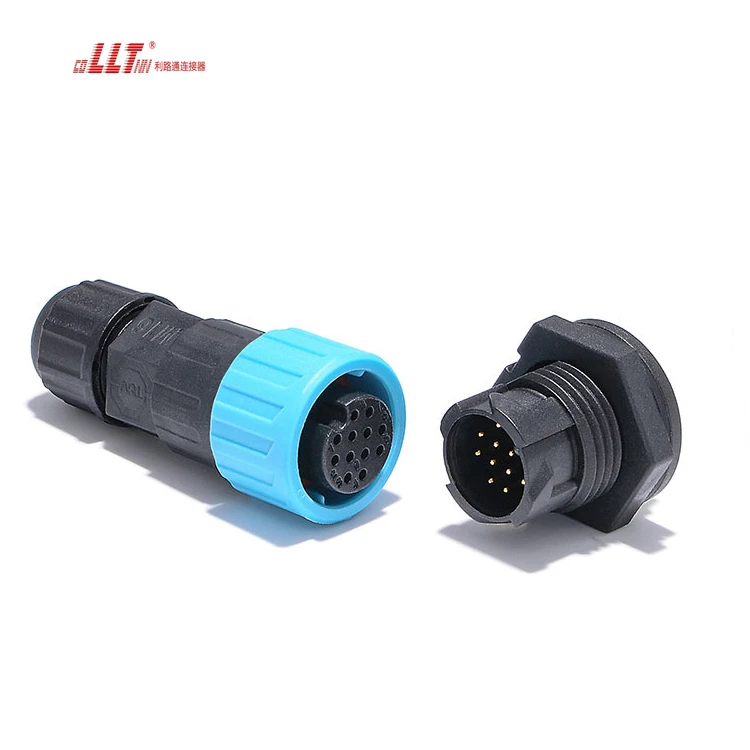

electrical multi 12pin M16 waterproof data connector gallery image 3

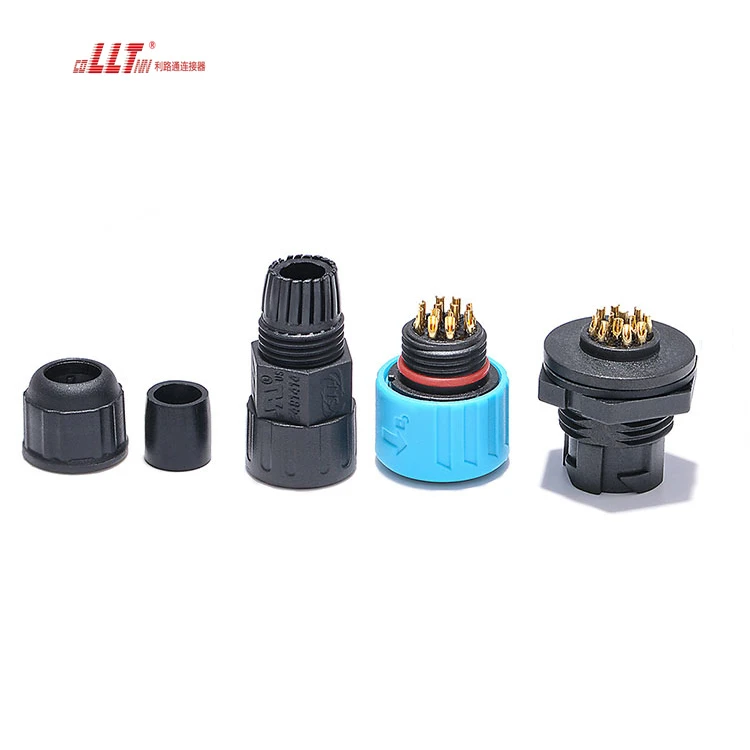

electrical multi 12pin M16 waterproof data connector gallery image 4

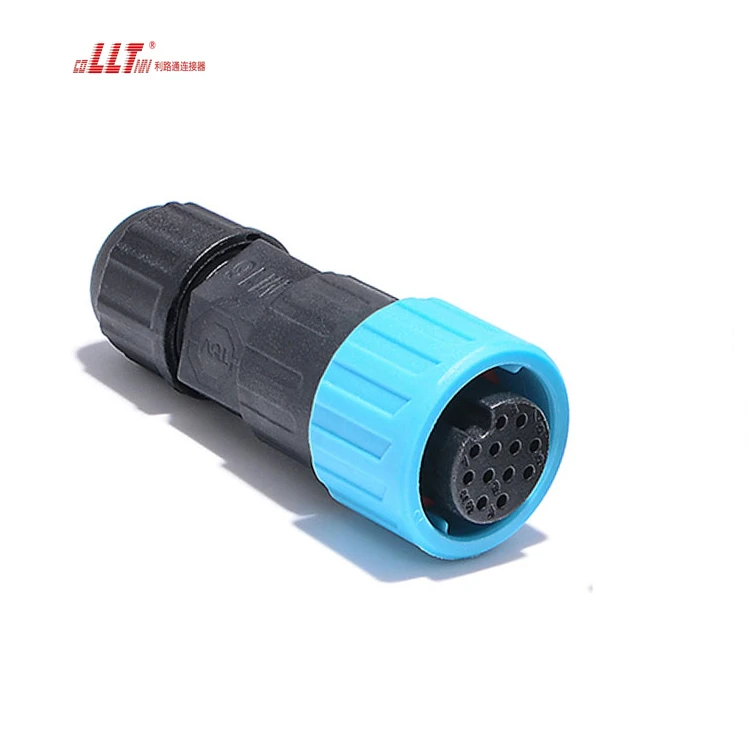

electrical multi 12pin M16 waterproof data connector gallery image 5

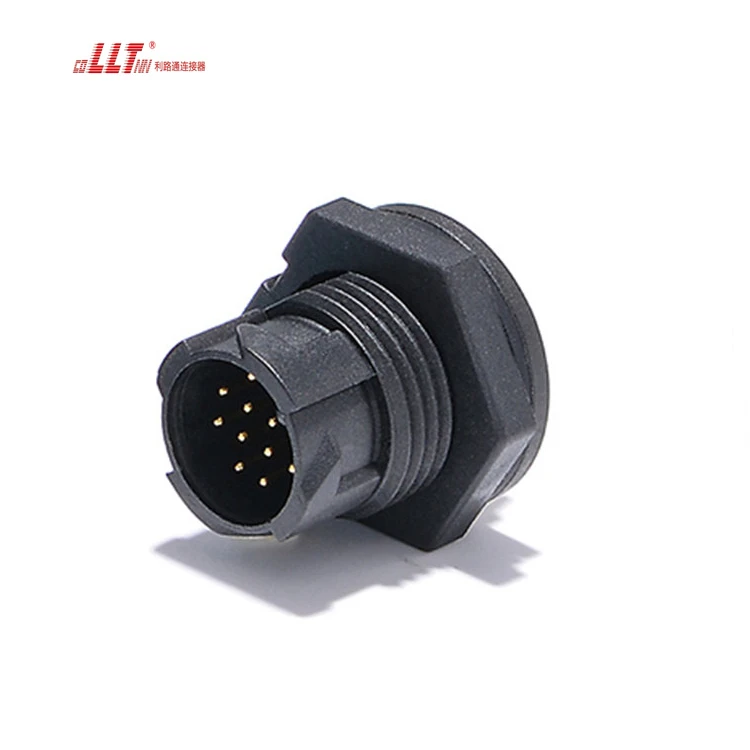

electrical multi 12pin M16 waterproof data connector gallery image 6

Technical FAQ

What should be confirmed before selecting electrical multi 12pin M16 waterproof data connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. electrical multi 12pin M16 waterproof data connector is currently configured around 2 to 12pin and 2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for electrical multi 12pin M16 waterproof data connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
