Waterproof Circular Connector | Bayonet Panel Mount | 6 Pin Signal Interface

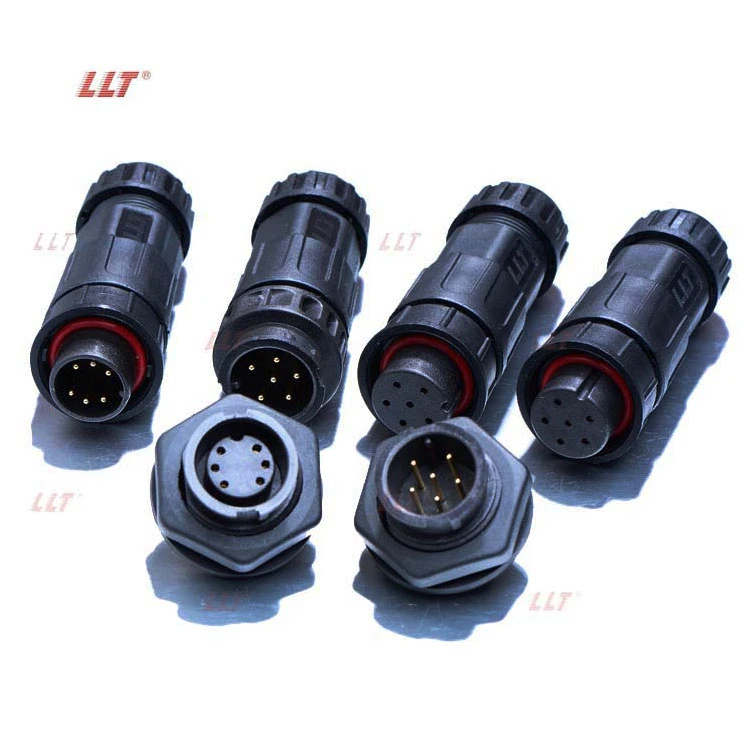

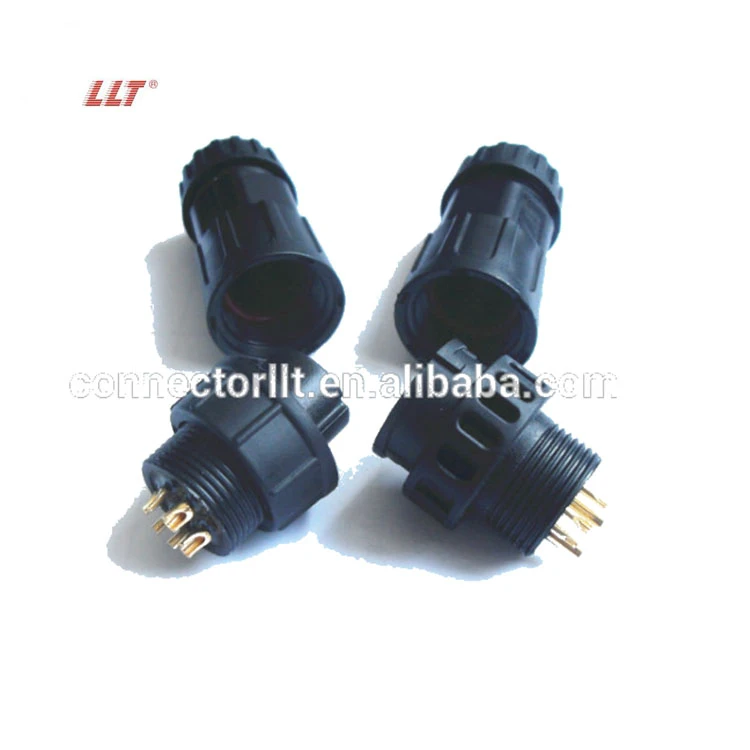

M19 6-Pin Bayonet Front Panel Waterproof Circular Connector for Encoder Feedback, 24V Signal Modules & RS-485/CAN Peripheral Interfaces

LLT-M19-05006M2881 (Front Panel Female Plug / Male Pin) + LLT-M19-05006F1071 (Male Plug / Female Pin)

LLT Connector’s M19 6-pin bayonet front panel connector is designed for compact outdoor equipment that needs a sealed, serviceable, and mechanically stable panel interface for low-voltage signal transmission. This 6-pin layout is especially suitable for encoder feedback heads, 24V sensor/actuator modules, compact control boxes, and communication peripherals that need more than a basic power + bus pair.

Why 6 Pins Matter in Real Industrial Designs

In industrial field wiring, 4 pins are often enough for simple power + differential communication. A 6-pin waterproof circular connector becomes more valuable when the OEM also needs auxiliary I/O, redundant signal channels, wake/alarm lines, or encoder-style feedback lines in the same compact connector.

That is why this M19 6-pin bayonet connector should be positioned not as a generic “communication connector,” but as a more targeted solution for:

• Incremental encoder and motion feedback interfaces
• Compact servo or drive peripheral modules
• 24V control modules with extra DI/DO lines
• Outdoor sensor hubs and smart actuator boxes
• Mobile equipment CAN/RS-485 peripherals with auxiliary control lines
• Inspection, security, measurement, and industrial vision submodules

Best-Fit Signal Architectures for an M19 6-Pin Connector

1) Encoder Feedback / Motion Signal Modules

One of the strongest use cases for a 6-pin waterproof connector is motion feedback. In practical OEM designs, 6 contacts can be used for power supply plus quadrature or auxiliary feedback lines, making this format highly relevant for compact encoders, speed feedback heads, actuator position modules, and drive-side peripheral units.

Typical target devices: incremental encoders, compact drive feedback units, servo peripheral modules, motion control subassemblies.

2) 24V Power + 4 Signal Composite Modules

Another highly practical 6-pin architecture is 2 power contacts + 4 signal contacts. This is a common integration logic when an outdoor device needs one connector for both supply and low-voltage signal exchange, reducing panel openings, cable count, and installation time.

Typical target devices: outdoor controller boxes, smart sensor nodes, compact gateway modules, industrial test equipment, field-mounted monitor units.

3) RS-485 / CAN Peripheral Nodes with Extra I/O

A pure RS-485 or CAN bus interface does not always require 6 contacts. However, when the device also needs local power, alarm, wake, shield-drain routing, or discrete input/output, 6 pins become a much more logical and sellable configuration than a basic 4-pin connector.

Typical target devices: AGV/AMR submodules, battery-side peripheral boards, mobile machine control nodes, smart lighting controls, outdoor automation accessories.

Reference Pin Mapping Concepts

The exact pin assignment should always follow the customer’s module architecture. The examples below are for positioning and engineering discussion only.

Reference Mapping A — Encoder Feedback

• Pin 1: +V
• Pin 2: 0V / GND
• Pin 3: A
• Pin 4: /A or B
• Pin 5: B or Z
• Pin 6: /B or auxiliary sync

Reference Mapping B — 24V + RS-485 with Auxiliary I/O

• Pin 1: +24V
• Pin 2: 0V
• Pin 3: RS-485 A
• Pin 4: RS-485 B
• Pin 5: DI / Alarm
• Pin 6: DO / Enable

Reference Mapping C — 24V + CAN with Wake / Status

• Pin 1: +24V
• Pin 2: 0V
• Pin 3: CANH
• Pin 4: CANL
• Pin 5: Wake / IGN
• Pin 6: Status / Alarm / Digital I/O

Why Choose an M19 Bayonet Front Panel Format

• Fast mating for service work: bayonet locking is easier and faster than fully threaded coupling in repeated connect/disconnect scenarios.
• Panel-side stability: front panel mounting helps the receptacle stay fixed on the enclosure wall for better field assembly control.
• Better anti-loosening behavior: suitable for equipment exposed to vibration, operator handling, and frequent maintenance.
• Compact but more integration-friendly than small-size sensor connectors: useful when the module needs signal expansion without jumping to oversized interfaces.
• Cleaner harness architecture: one sealed connector can replace multiple cable exits or mixed terminal blocks.

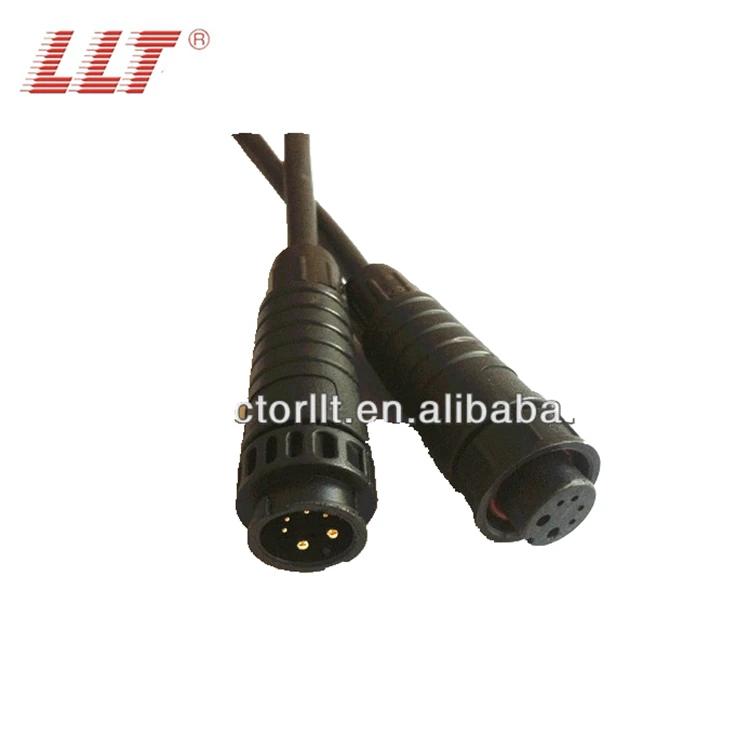

• OEM customization ready: pin assignment, overmolded cable harness, conductor spec, labeling, and panel interface can be tailored for the customer project.

Target Industries and OEM Buyers

Motion Control & Encoder Makers

Ideal for incremental encoder peripherals, compact servo accessories, actuator position heads, and motion sensing modules that need sealed panel I/O.

AGV, AMR & Mobile Equipment Control

Suitable for CAN or RS-485 side modules that also need supply and alarm/control lines in one connector.

Outdoor Sensor & Control Boxes

Well suited for environmental monitoring units, smart controller sub-boxes, lighting control peripherals, and outdoor instrumentation.

Security, Inspection & Industrial Vision

A strong fit for compact heads or side modules requiring stable low-voltage signal paths with better field serviceability than loose cable glands.

Battery, Energy & Utility Peripherals

Useful for low-voltage submodules, interface boards, and outdoor equipment requiring a sealed signal connector rather than a large mixed-power interface.

Automation Equipment Builders

Appropriate for machine peripheral boxes, tool-side modules, test fixtures, and serviceable low-voltage signal interfaces.

Product Summary

• Series: M19 Waterproof Circular Connector
• Configuration: 6 Pin
• Locking Style: Bayonet

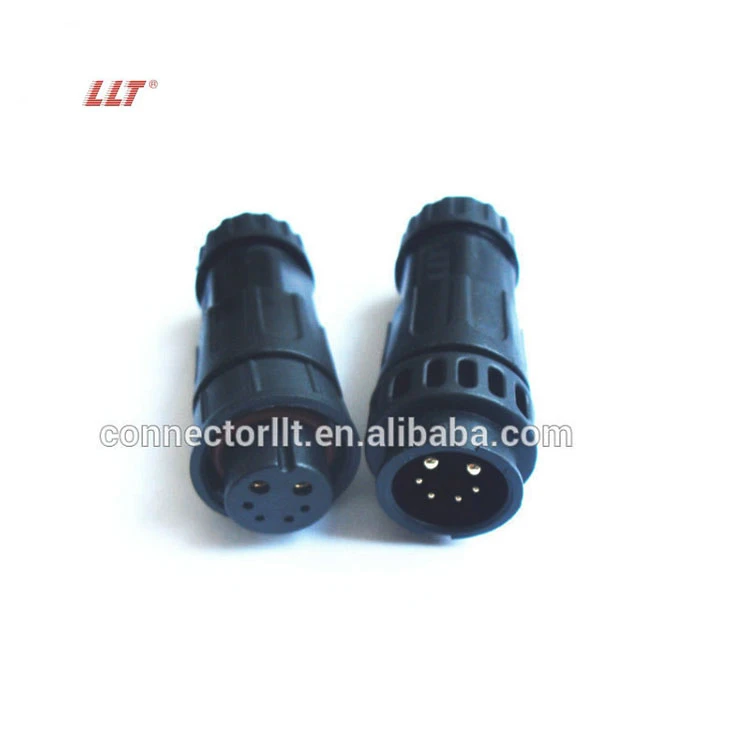

• Mounting Style: Front Panel Receptacle + Mating Plug

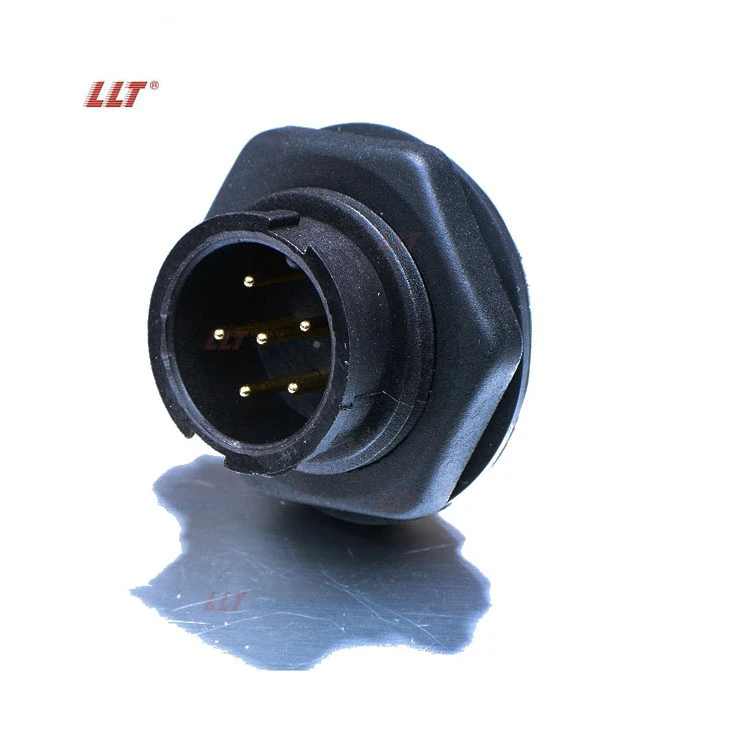

• Panel-Side Part No.: LLT-M19-05006M2881
• Mating Plug Part No.: LLT-M19-05006F1071
• Recommended Positioning: Encoder feedback, 24V signal modules, compact control nodes, RS-485/CAN peripheral interfaces with extra I/O
• Customization: Pin map, cable harness, wire spec, overmold, marking, and assembly configuration available

High-Authority Reference Links and Target Products

Comparable Connector Families / Target Products

• Amphenol LTW BBD-06PMMP-QC8002 — 06-pin front-fastened receptacle in the X-Lok family, useful as a benchmark for fast-lock sealed signal/hybrid panel connectors.
• Amphenol LTW BD-06PMMS-QC8001 — 06-pin front-fastened receptacle, solder style, useful when targeting OEMs already familiar with outdoor quick-lock circular connectors.
• Amphenol LTW CB-06PMMP-LC7001 — 06-pin front-fastened receptacle from the Ceres family, relevant for buyers comparing sealed circular panel interfaces.
• TE Connectivity 1445819-1 — 6-position sealed circular housing from TE’s Mini CPC family, relevant for OEMs looking for low-voltage signal-capable circular connectors.
• TE Connectivity Mini Circular Plastic Connectors — reference family page for sealed circular signal/power connectors used in wire-to-panel and wire-to-wire designs.

Application Reference Links That Help Customers Understand 6-Pin Demand

• SICK DFS2x Incremental Encoder — useful reference for buyers sourcing compact feedback/encoder connectors rather than generic low-pin communication plugs.
• Phoenix Contact 1429101 / SACCBP-M12FS-6CON-M16/1,0-970 — a 6-position connector example showing a 2-power + 4-signal cable concept, highly relevant for composite signal module positioning.
• TI SN65HVD485E RS-485 Physical Layer Reference — useful for customers defining low-speed industrial bus modules.
• TI Introduction to CAN — useful for OEMs defining CAN peripheral nodes that still need extra pins for power and auxiliary control.

FAQ

Is a 6-pin waterproof connector the same as a standard RS-485 connector?

Not exactly. RS-485 itself is a differential bus, so many simple devices do not need 6 contacts. A 6-pin connector becomes more valuable when the module also requires power, alarm, enable, wake, or additional I/O lines.

What is the most accurate market positioning for this M19 6-pin connector?

The strongest positioning is encoder feedback, servo peripheral modules, compact 24V control nodes, and RS-485/CAN side modules with auxiliary lines, rather than generic “communication connector” wording.

Why choose bayonet front panel instead of a threaded signal connector?

Bayonet locking usually offers faster field mating and more convenient maintenance, while a front panel receptacle helps the enclosure side remain fixed, repeatable, and easy to service.

Can LLT Connector customize the pin assignment and cable harness?

Yes. The connector can be adapted for project-specific pin mapping, cable specification, overmolded harness design, and equipment-side integration requirements.

Need a Custom 6-Pin Waterproof Connector for Your Module?

If your equipment requires a sealed M19 panel connector for encoder signals, 24V module I/O, or RS-485/CAN side interfaces with auxiliary lines, LLT Connector can support connector selection, pin assignment review, and cable harness customization for your project.
