Hybrid Waterproof Circular Connector | Self-Locking | Overmolded Daisy Chain Cable Assembly

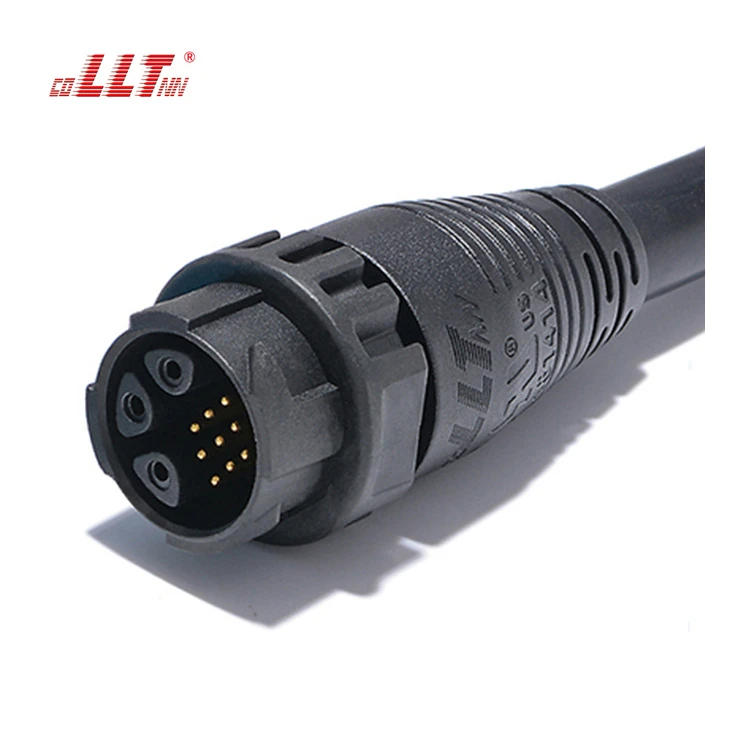

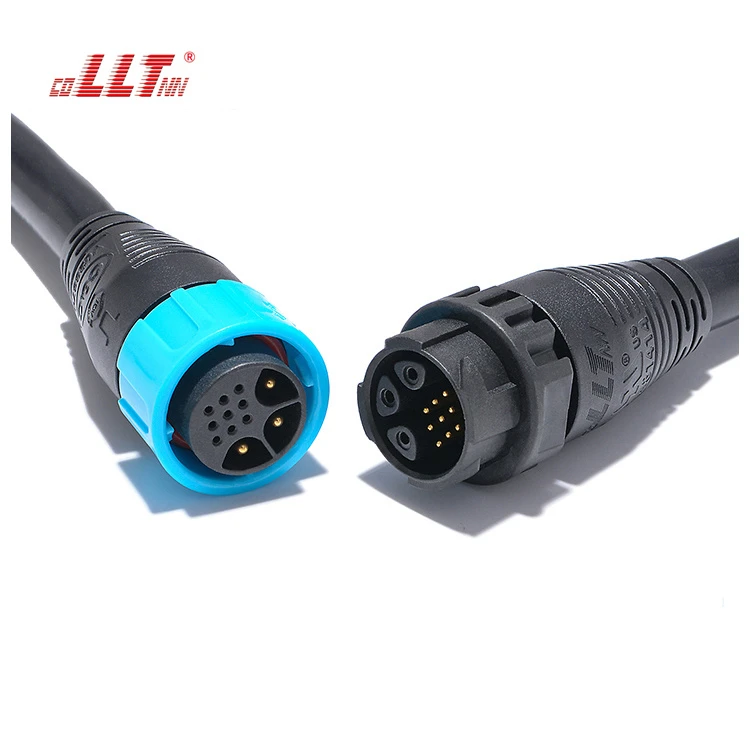

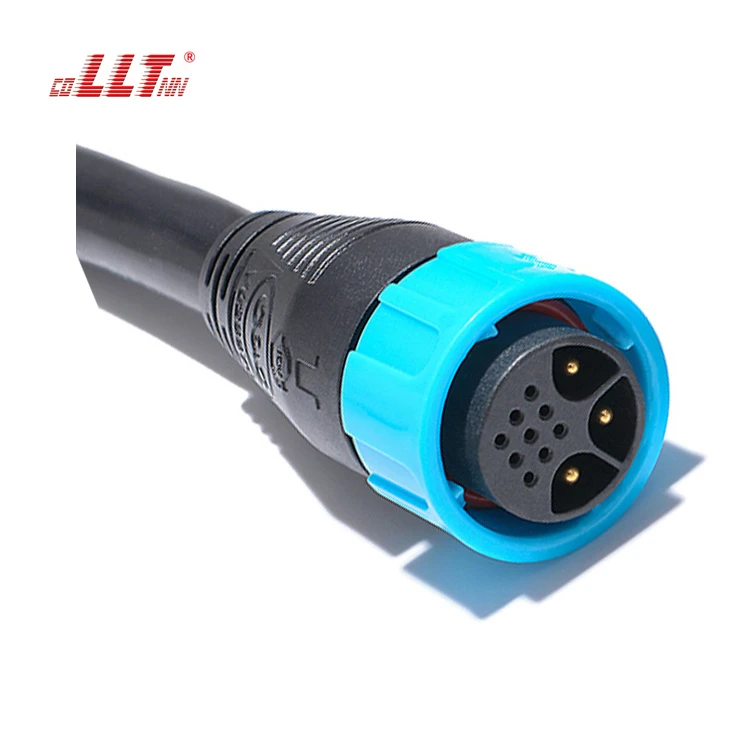

M25 3+9 Pin Self-Locking Hybrid Waterproof Daisy Chain Connector for 3-Phase Motor Power, Brake, Encoder Feedback & Distributed Motion Control

M25 3 Power + 9 Signal Hybrid Connector | Overmolded Inline / Daisy-Chain Solution for Servo, BLDC, Roller Motor and Decentralized Drive Modules

LLT Connector’s M25 3+9 pin self-locking overmolded daisy chain connector is designed for OEM equipment that needs to carry three-phase motor power and multiple low-current control or feedback circuits in one sealed, field-robust cable interface. Instead of using separate power, brake, encoder and control connectors, this hybrid format helps reduce cable count, simplify installation, and support compact motion-system architecture.

What a 3+9 Hybrid Connector Really Means in Industrial Equipment

This is not just a “12-pin waterproof connector.” A 3+9 hybrid architecture is most valuable when an OEM needs three motor power lines plus nine low-current contacts for motion feedback, brake control, thermal monitoring, differential communication, and auxiliary control I/O in the same connector.

That makes this product especially suitable for:

• Servo motor and BLDC motor modules
• Intelligent roller motors and smart conveyor zones
• Distributed drive systems and decentralized motion nodes
• AGV / AMR drive or steering modules
• Robotic joint modules and compact actuator assemblies
• Packaging, sorting, machine tool, and automation equipment

Best Market Positioning for This M25 3+9 Pin Connector

The most accurate positioning is:

Hybrid single-cable motor connector for three-phase power plus feedback, brake, temperature, communication and auxiliary control signals.

This positioning is much sharper than calling it a generic communication connector, because fieldbus standards such as RS-485 or CAN do not, by themselves, require nine separate signal contacts. In real OEM architectures, the extra contacts are usually reserved for brake, sensor supply, thermal feedback, differential data, home/limit/status lines, and customer-specific control logic.

Typical 9-Signal Use Cases Behind a 3+9 Hybrid Connector

1) Servo / BLDC Motor with Serial Feedback

A strong use case is compact motors that need three-phase power plus a serial encoder or feedback interface, brake control, temperature sensing, and extra status or enable lines.

• 3 power contacts: U / V / W
• 2 signal contacts: motor brake + / -
• 2 signal contacts: temperature sensor + / -
• 2 signal contacts: differential feedback pair (SSI / RS-485 / proprietary serial feedback)
• 3 signal contacts: enable / ready / alarm / home / spare, depending on customer architecture

2) Resolver / Motor Feedback Hybrid Interface

Another highly relevant use case is resolver-based feedback. In that case, six low-current contacts may be assigned to resolver signals, two contacts to motor temperature sensing, and one contact to a spare, ID, or auxiliary status function.

• 3 power contacts: U / V / W
• 6 signal contacts: resolver reference and SIN/COS channels
• 2 signal contacts: temperature sensor
• 1 signal contact: spare / status / OEM-defined function

3) Decentralized Conveyor / Roller Motor / AGV Module

In smart conveyors and decentralized drive architectures, one connector often has to carry motor power together with communication and local control lines. In these systems, a 3+9 layout can support:

• 3 power contacts: motor phase power
• 2 signal contacts: brake control
• 2 signal contacts: CAN or RS-485 differential pair
• 2 signal contacts: temperature sensor
• 3 signal contacts: DI / DO / enable / fault / home / limit

Why an Overmolded Daisy Chain Format Makes Sense

• Fewer cables and faster installation: combine motor power and control/feedback wiring in one connector family.
• Better modularity: ideal for line-topology equipment, distributed motion nodes, and repeatable OEM harness platforms.
• Reduced assembly error risk: one sealed interface is easier to standardize than multiple separate connectors.
• Higher field reliability: self-locking coupling and overmolded strain relief help improve retention in vibration-prone equipment.
• Cleaner cable routing: especially useful in conveyors, moving axes, compact machinery, and robotic subassemblies.
• Customization-ready: cable length, branch direction, wire gauge, jacket, pin assignment, labeling, and daisy-chain topology can be adapted to the project.

Connector Design Priorities for Hybrid Power + Signal Applications

For hybrid motor and feedback applications, the connector and cable assembly should be designed to protect signal integrity while carrying power in the same harness. In practical terms, this means paying attention to:

• physical separation between power and signal contacts
• stable shielding continuity
• twisted differential pairs for communication or feedback lines
• proper overmolded strain relief for dynamic cable movement
• clear pin assignment and consistent wire-color documentation
• application-specific validation for drag-chain, vibration, washdown, or outdoor use

Who Is Most Likely to Buy This Kind of Connector

Servo Motor Manufacturers

OEMs building compact servo motors or BLDC motors that need one sealed connector for power, brake, and feedback-related circuits.

Smart Conveyor & Roller Motor OEMs

Manufacturers of conveyor zones, sortation systems, and decentralized motion modules requiring hybrid power + control interfaces.

Robotics & Actuator Companies

Robotic joints, end-of-arm tools, compact actuators, and modular mechatronic units with combined power and low-current control circuits.

AGV / AMR Integrators

Drive-wheel, steering, and auxiliary actuator submodule makers who need sealed harnesses with motor power plus control and feedback lines.

Packaging, Machine Tool & Automation Builders

Equipment makers using decentralized drives, servo technology, and high-IP cable assemblies in harsh industrial environments.

High-Authority Benchmark Products OEM Buyers Also Search

Amphenol / Motion Hybrid References

• Amphenol Sine MB5CKN1500H00-S1 — M23 hybrid quick-lock connector, 15 positions (5+6+4), used as a benchmark for hybrid motion connectors.
• Amphenol Sine MB5RJN15H01 — M23 hybrid receptacle, 15 positions (5+6+4), relevant for servo, robotics, and distributed motion architectures.
• Amphenol Sine MB1YSN8H00 — M23 hybrid receptacle, 8 positions (3+1+4), useful as a nearby benchmark for power + signal/data hybridization.
• Amphenol Sine MB1WSN8H00 — M23 hybrid plug, 8 positions (3+1+4), another common search target in compact hybrid motion interfaces.

TE Connectivity / INTERCONTEC References

• TE Connectivity BSTA460NN0009100B000 — 912 Speedtec plug, 10 positions, 4 power + 6 signal, a strong reference for compact sealed hybrid motor connectivity.
• TE Connectivity BKUA461NN0009100B000 — 912 extension, 10 positions, 4 power + 6 signal, relevant for cable-to-cable hybrid architectures.
• TE Connectivity BEDA462NN0000100B000 — 912 panel receptacle, 10 positions, 4 power + 6 signal, often referenced by OEMs evaluating compact hybrid interfaces.
• TE Connectivity INTERCONTEC Hybrid Connectors — official hybrid connector family reference for servo motors, conveyors, and decentralized motion systems.

Phoenix Contact Hybrid References

• Phoenix Contact 1621528 — M23 hybrid cable connector, 8+4+PE.
• Phoenix Contact 1621568 — M23 hybrid front-mount device connector, 8+4+PE.

Application / Interface References

• HEIDENHAIN – Encoders for Servo Drives / HMC 6 — reference for single-cable motor + encoder + brake architectures.
• SICK – HIPERFACE DSL® Motor Drive Cable & Connector Whitepaper — reference for hybrid motor cable shielding, connector layout, and signal integrity.

FAQ

Is this mainly an RS-485 or CAN connector?

Not exactly. RS-485 and CAN themselves do not require nine signal contacts. This connector is better positioned as a hybrid motor and control interface where the bus is only one part of the total signal set.

What is the most accurate use case for the 9 signal pins?

Brake, temperature, encoder or resolver feedback, differential communication, and auxiliary machine-control lines are the most realistic and commercially relevant uses.

Why is this a better fit for motion systems than for generic sensors?

Because the 3 power contacts naturally match three-phase motor power or similarly structured actuator power circuits, while the 9 signal contacts support the kind of feedback and control wiring commonly found in motion subsystems.

Can this connector be customized for customer-specific pin assignments?

Yes. For OEM projects, the signal allocation should be defined around the customer’s motor, brake, feedback, communication, and auxiliary control architecture rather than copied from a generic pinout.

Need a Custom M25 Hybrid Daisy Chain Connector for Your Motion System?

LLT Connector can customize the M25 3+9 pin self-locking overmolded connector for motor power, brake, encoder feedback, resolver signals, RS-485/CAN wiring, and project-specific daisy-chain harness architecture.
