LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP67/IP68, 20A current range, 3pin pin layout, 2-18pin/2+4/2+5/3+5pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Waterproof Circular Connectors M19 Bayonet Model: LLT-M19-20003F2881
M19 / Bayonet LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

Fit max cable OD 10.5mm

Pin

3pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

by Solder

Interface Type

2-18pin/2+4/2+5/3+5pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Model: M19-3pin female panel connector Structure: Circular panel-mount female socket, 3-contact layout, rear/front panel installation available Lock type: Quick Lock Electrical Parameters Rated Voltage: 600V AC Rated Current: 20A per pin Contact Material: Solid copper with 0.8μm gold plating Contact Resistance: ≤5mΩ Insulation Resistance: ≥1000MΩ Withstand Voltage: 1500V AC for 1min Mating Cycles: ≥2000 times Mechanical & Environmental Protection Class: IP67 (mated state) Housing Material: Flame-retardant PA66 nylon Sealing: High elasticity silicone rubber gasket Operating Temp: -40℃ ~ +105℃ Cable Range: 14–22 AWG, screw terminal wiring Certification & Application Compliance: RoHS, CE, UL certified Applications: Horticulture LED grow lights, industrial automation, solar equipment, outdoor power modules, monitoring fixtures

Application Fit

Typical application directions

  • Outdoor automation modules, lighting systems, and distributed control boxes
  • Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 1

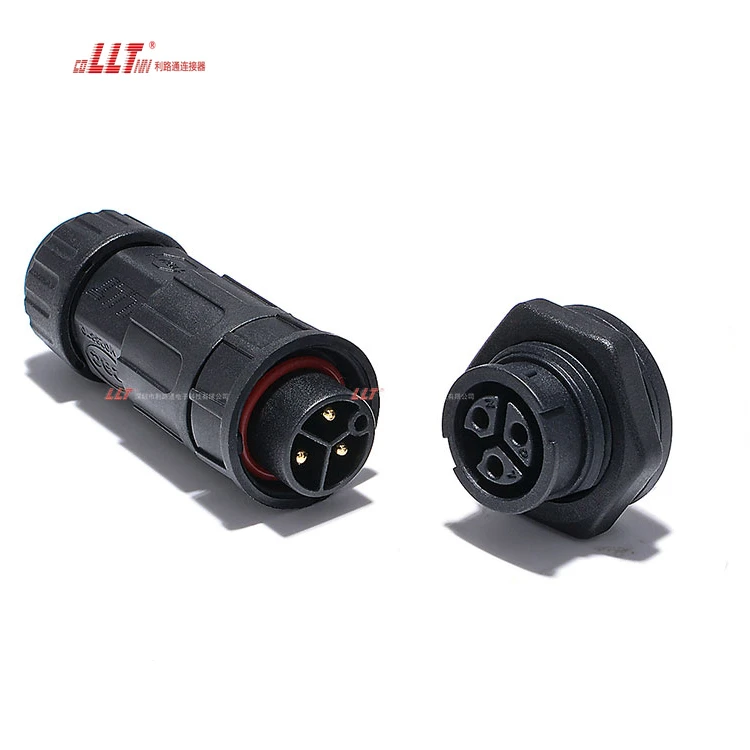

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 2

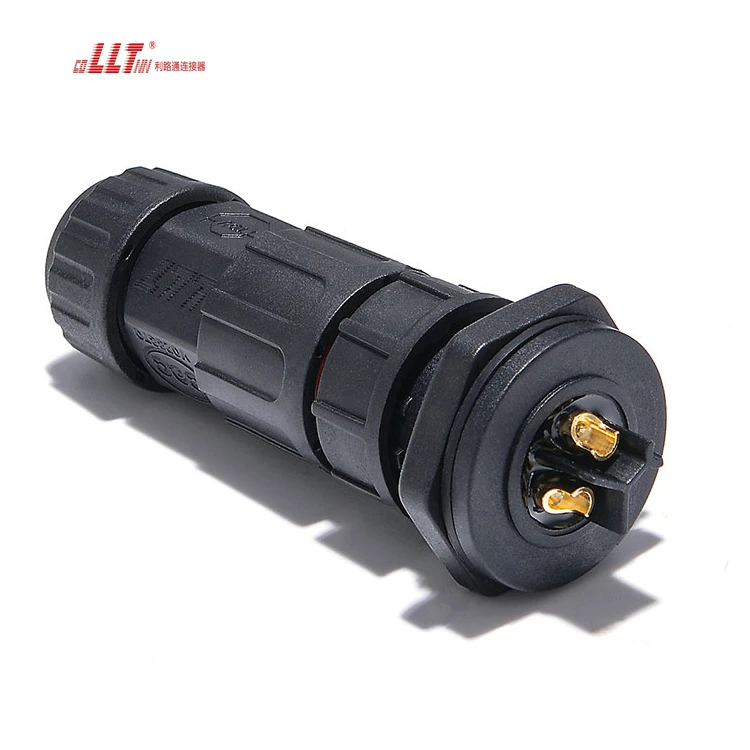

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 3

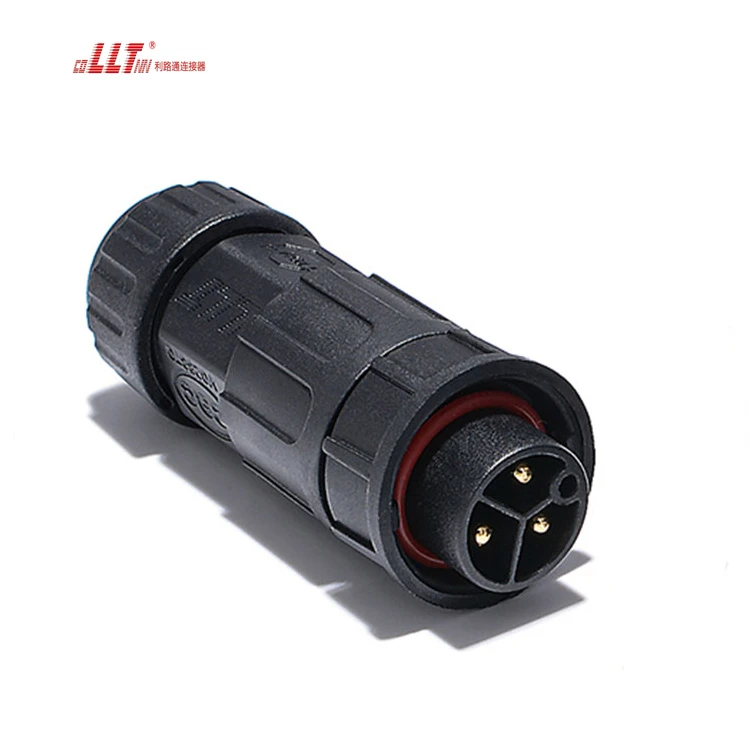

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 4

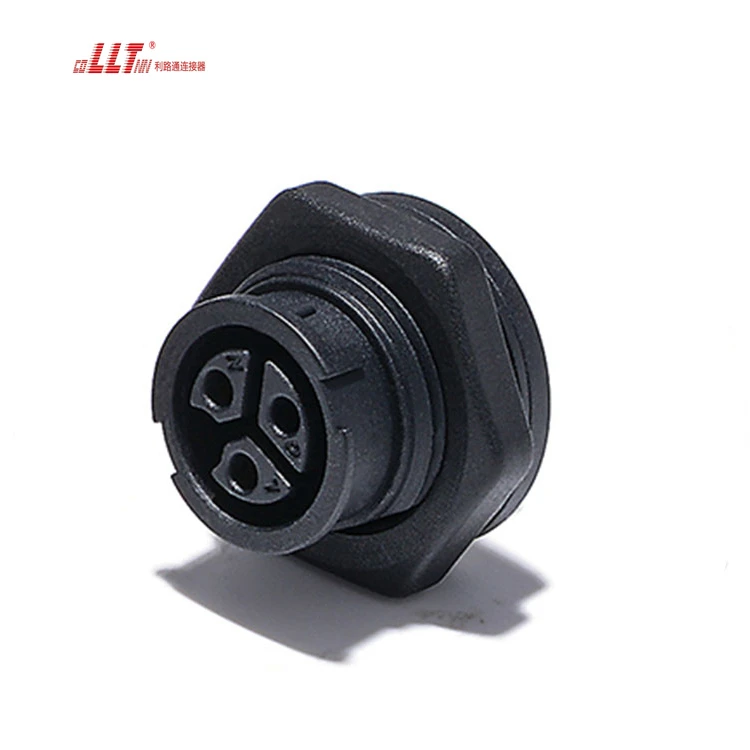

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 5

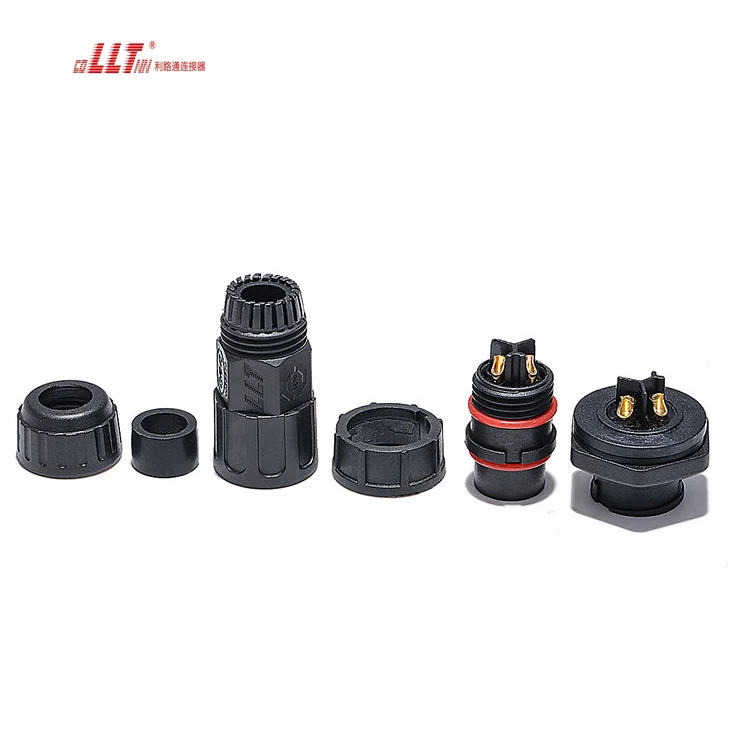

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 6

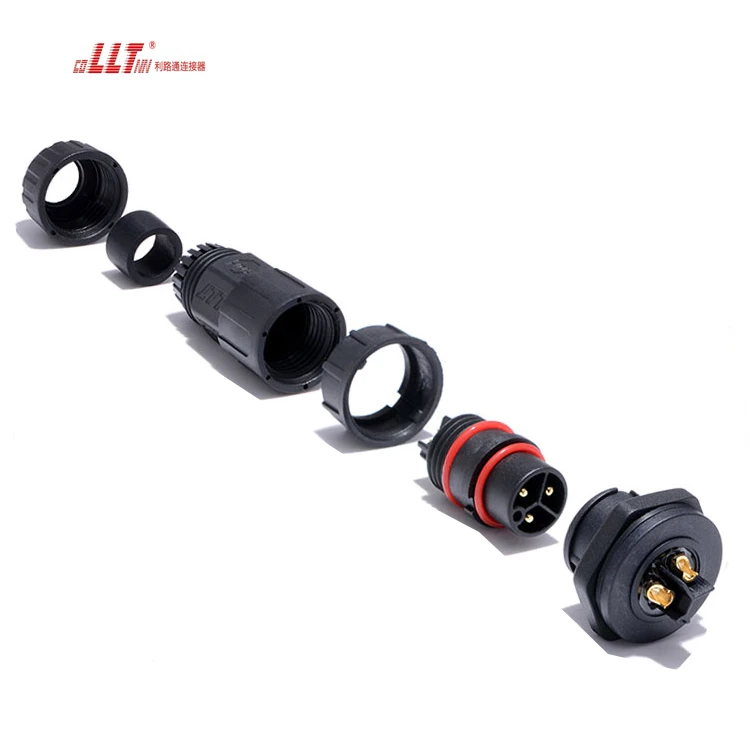

LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket gallery image 7

Technical FAQ

What should be confirmed before selecting LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket is currently configured around 2-18pin/2+4/2+5/3+5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Connector 3pin female panel mount M19 led light outdoor waterproof socket?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
