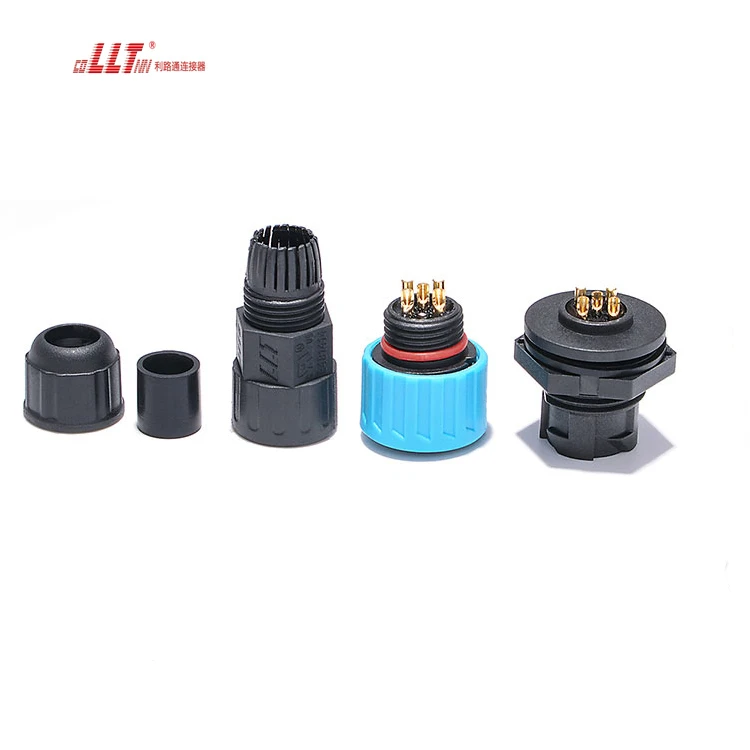

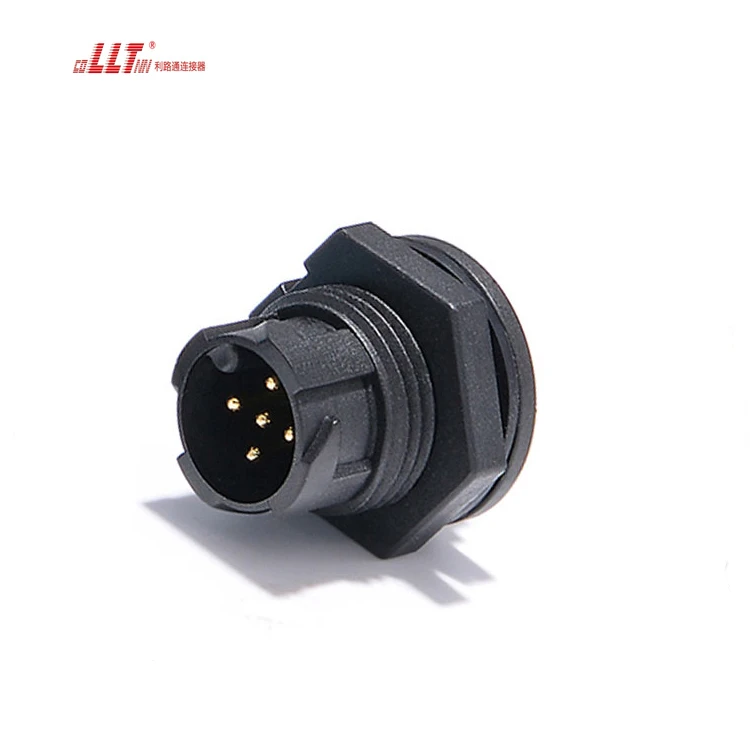

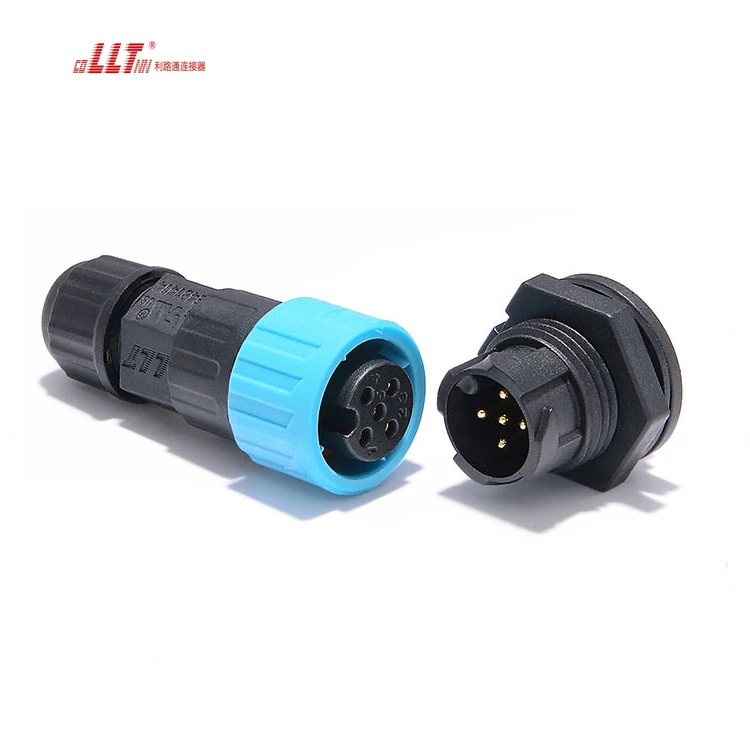

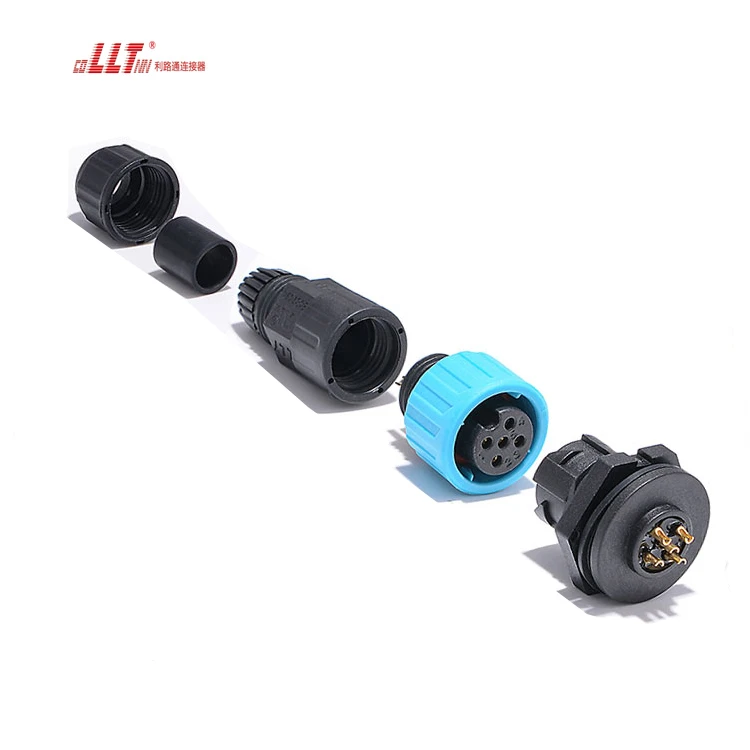

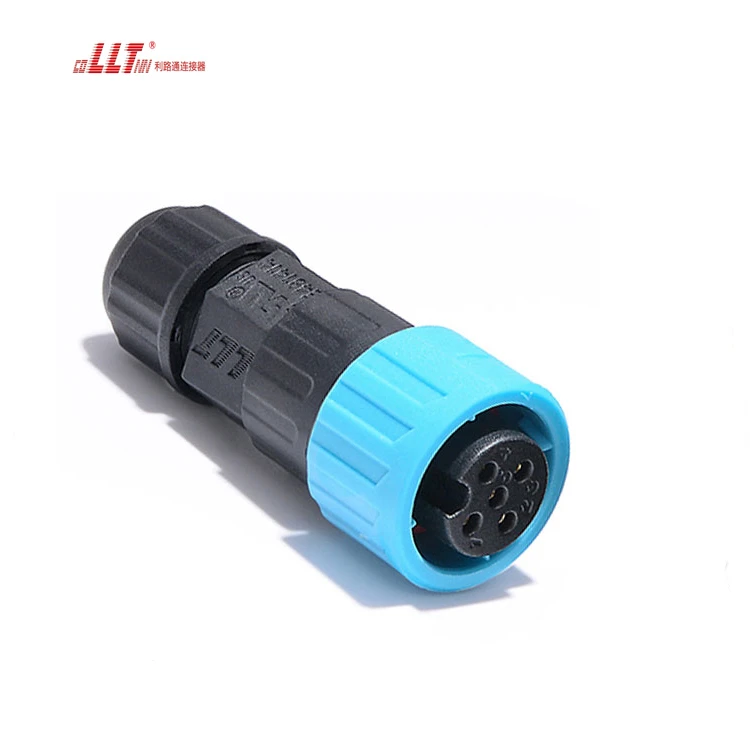

LLT 5pin M16 Circular Led IP68 Waterproof Panel Mount Wire Watertight Connector

M16-5pin Push Lock Panel Connector is a 5-pin circular industrial connector with a push-lock (quick-connect) mechanism, designed for panel mounting and reliable power/signal transmission Key Functions & Features 1. Push-Lock Connection System - One-step insertion: Simply push the plug into the socket for automatic locking. - Quick release: Press the release button to disconnect (no tools needed). - Secure retention: Resists vibration, shock, and pull-out forces. 2. Electrical Performance (5-Pin Configuration) - Pin 1 (Power+): Positive power supply. - Pin 2 (Signal 1): Control/sensor signal. - Pin 3 (Signal 2): Secondary signal (data/communication). - Pin 4 (Ground): Electrical ground reference. - Pin 5 (Shield/NC): Shielding (EMI protection) or spare. - Rated Voltage:110V–300V AC/DC. - Rated Current: 5A–8A per pin. - Insulation Resistance: ≥10¹⁰ Ω . 3. Environmental Protection - IP68 Rating: Dust-tight and waterproof (temporary immersion) . - Material: PA66 housing; gold/silver-plated contacts. - Resistance: Oil, coolant, chemicals, and corrosion. 4. Mechanical & Mounting - Panel Mount: Front/rear mounting for cabinet/equipment panels. - Mating Cycles: >500 insertions . - Cable Gland: Sealed for 4–8mm cables . Applications - Industrial Automation: Sensors, actuators, PLCs. - Robotics: Joints, motors, control systems. - Automotive: Vehicle electronics, lighting, cameras. - Outdoor Equipment: Lighting, signage, telecom. - Medical Devices: Diagnostic/monitoring equipment.
