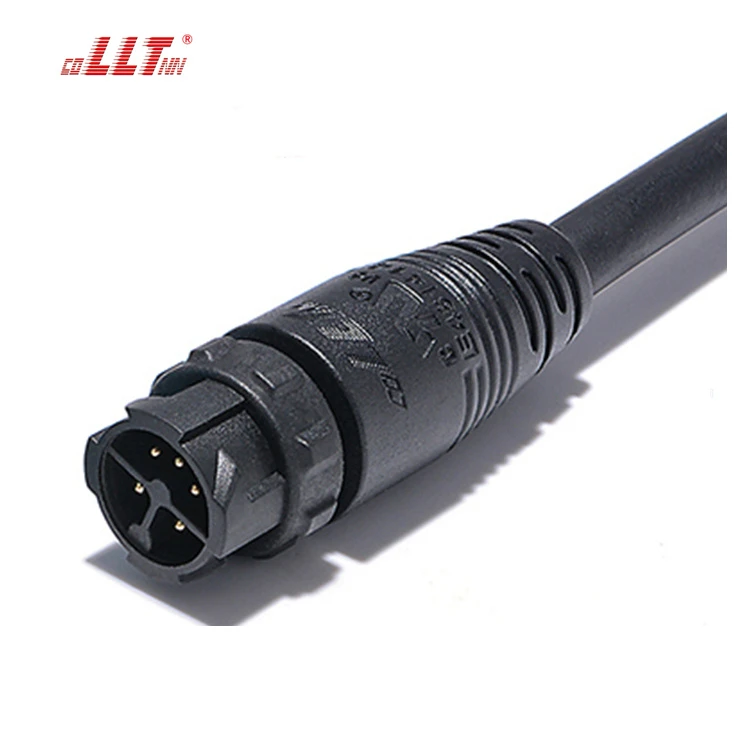

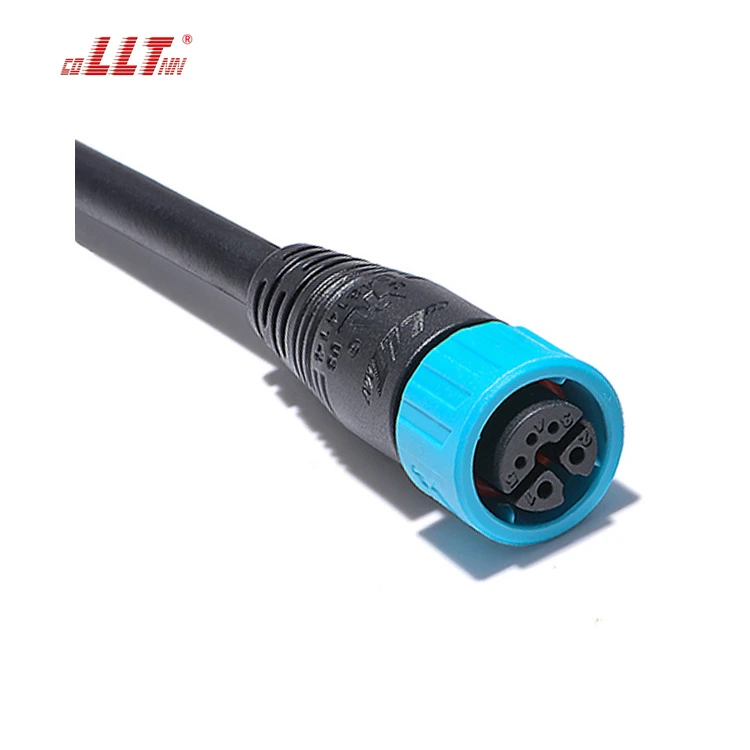

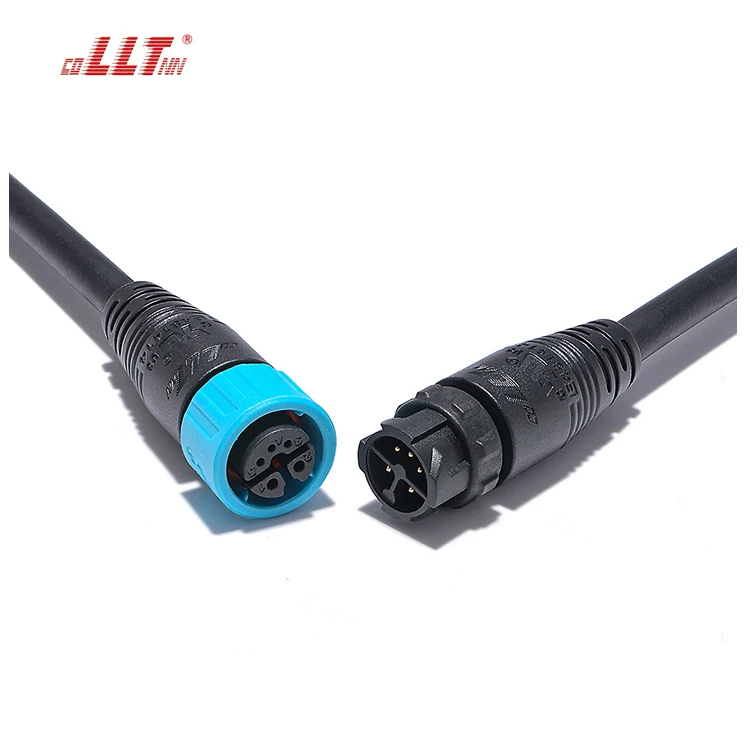

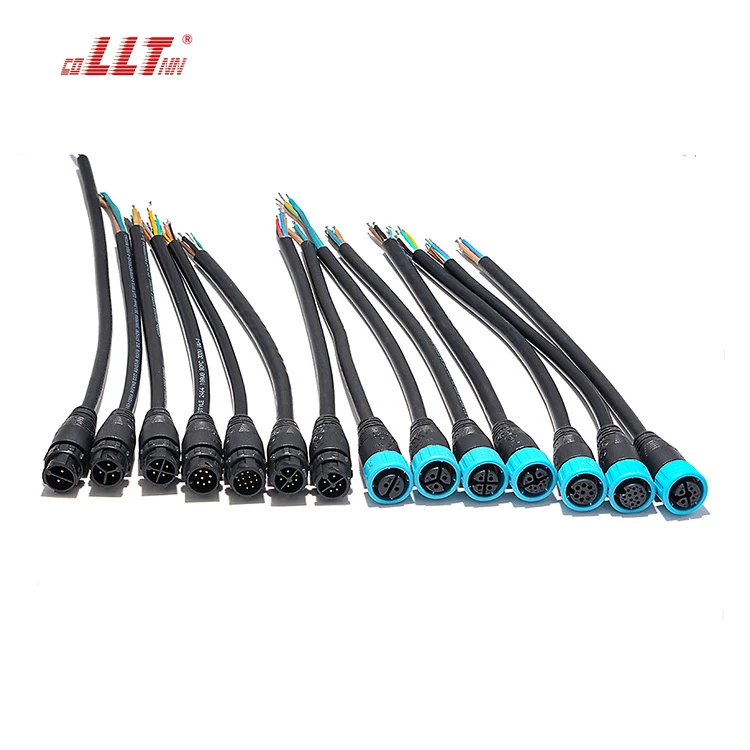

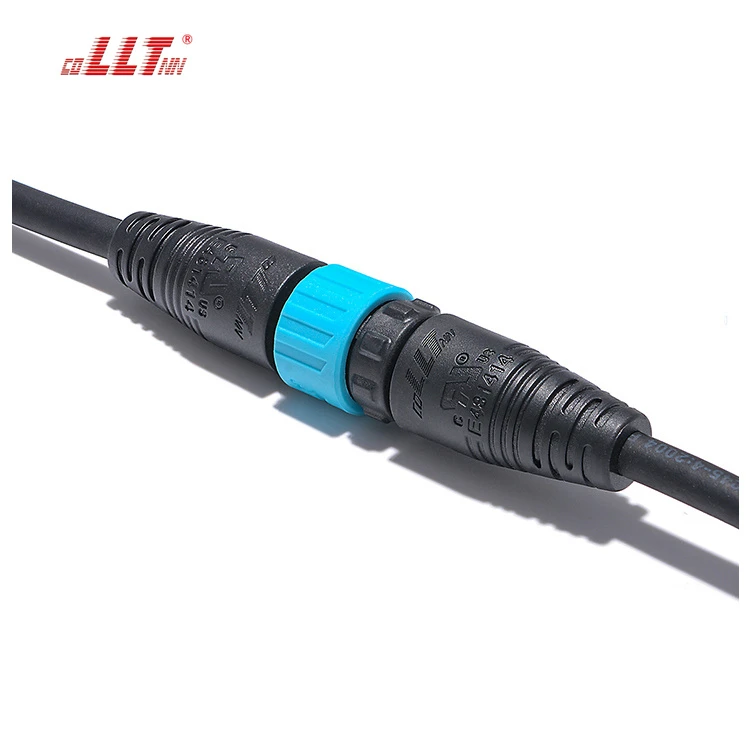

LLT M16 2+3 pin push lock waterproof cable connector
Waterproof Connectors: 1. We have almost all the pins from 2 to 24 pin, they can transmit power and signals. 2. Good quality, they are certificated by UL,CE,TUV,CQC,RoHS,IP67/IP68. Its quality can pass other certification standards if you want to do it. 3. Both push locking and screw locking are optional. 4. Plenty of options, field assembly connector(straight through & 90 degrees), molded with cable connector(straight through, 90 degrees and T connector), USB and RJ45 connector, 2/3/4 way field assembly connector, circular/square/rhombus socket. 5. Free combination, connect them by male female or panel mount as you like. 6. OEM & ODM are always welcome
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
2-12 Pin
IP Rating
IP67
Rated Current
10A
Rated Voltage
250V
Product Series
M16
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 10A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 2+3 pin push lock waterproof cable connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 2+3 pin push lock waterproof cable connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
