LLT M19 RJ45 Assembled Panel Mount Connector

Name: LLT M19 RJ45 Assembled Panel Mount Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M19-RJ45-151201

RJ45 Waterproof Connector RJ45 Threaded Model: LLT-M19-RJ45-151201

RJ45 / Threaded LLT M19 RJ45 Assembled Panel Mount Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This RJ45 assembled panel mount connector provides a reliable, field-installable Ethernet connection solution for equipment cabinets, control panels, and industrial devices. Designed for easy on-site assembly, it supports fast termination without specialized tools while ensuring stable Gigabit Ethernet transmission. Key Features - Field assembly design for quick on-site wiring and maintenance - Panel mount installation with nut locking, stable and firm - Category 5e / Category 6 performance supports high-speed Ethernet transmission - Robust metal or plastic housing for anti-interference and long service life - Standard RJ45 interface compatible with common Ethernet cables - IP-rated sealing option available for dustproof and waterproof applications - Suitable for solid or stranded Ethernet wires Applications Widely used in industrial control equipment, communication cabinets, security systems, outdoor monitoring devices, network servers, and various panel-mounted Ethernet wiring scenarios. Advantages Flexible assembly, strong compatibility, stable signal transmission, and durable construction make it an ideal choice for professional network wiring and industrial communication applications.

Application Fit

Typical application directions

Industrial Ethernet links in outdoor control systems and exposed monitoring equipment
Cabinets, gateways, and communication nodes that need RJ45 access without losing enclosure sealing
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 2A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

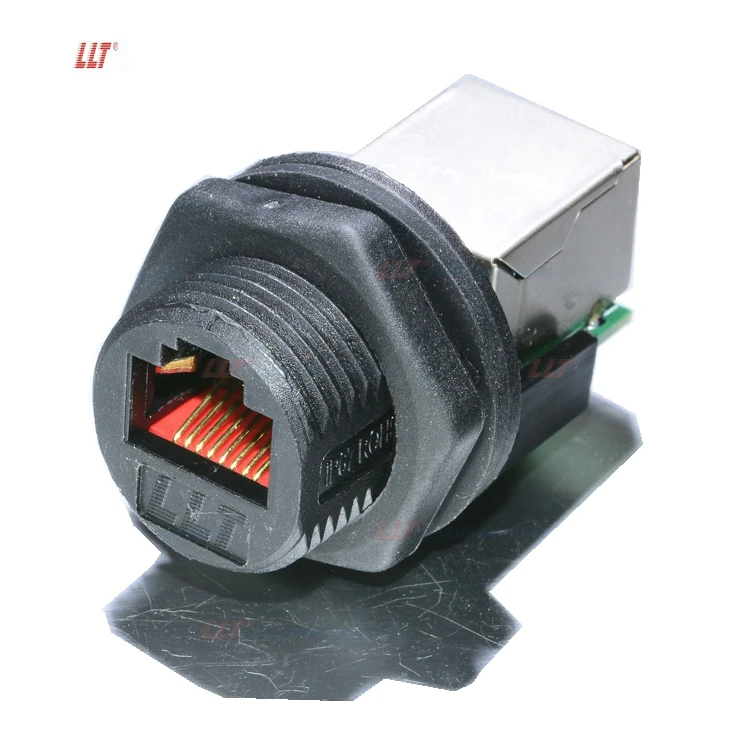

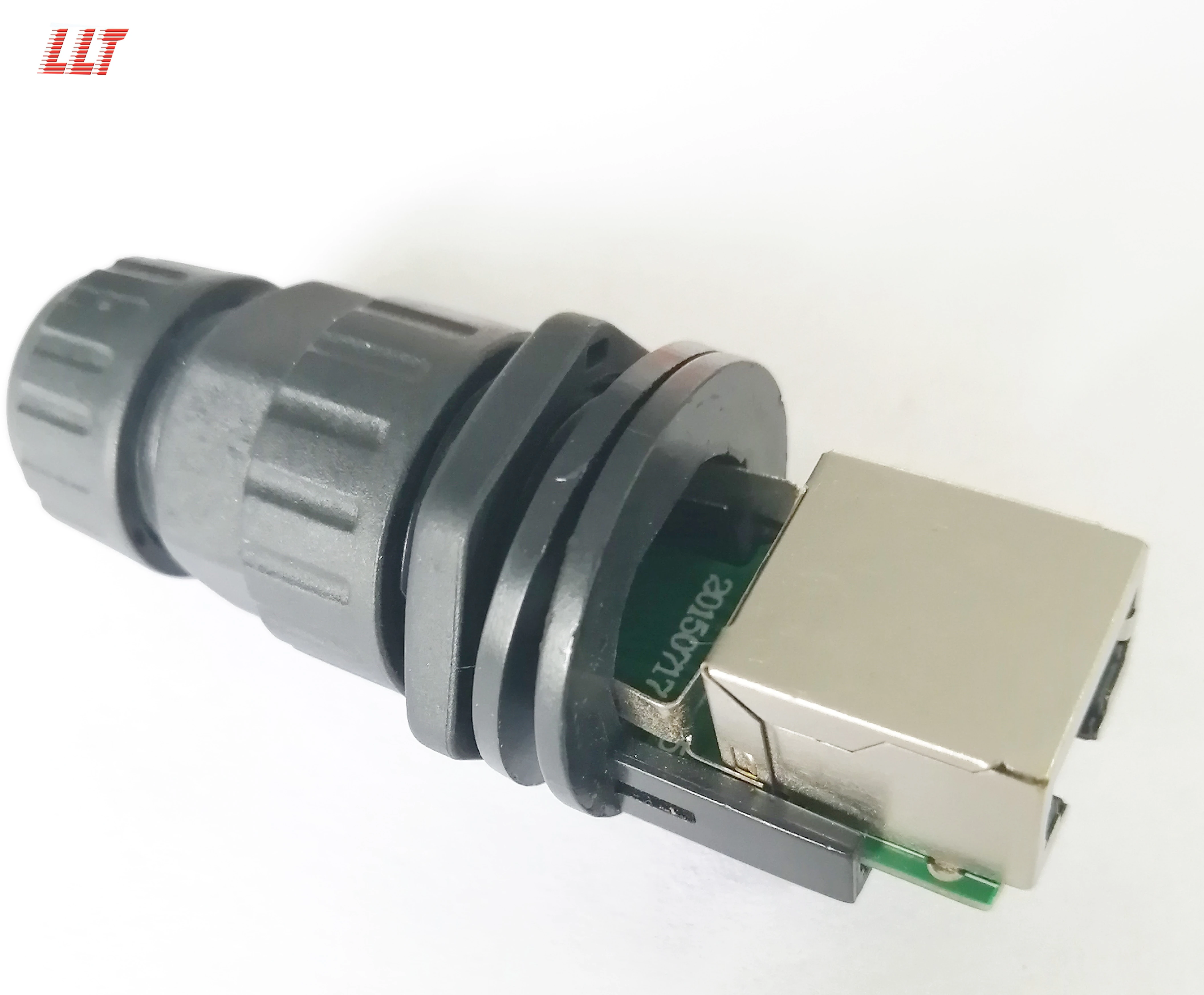

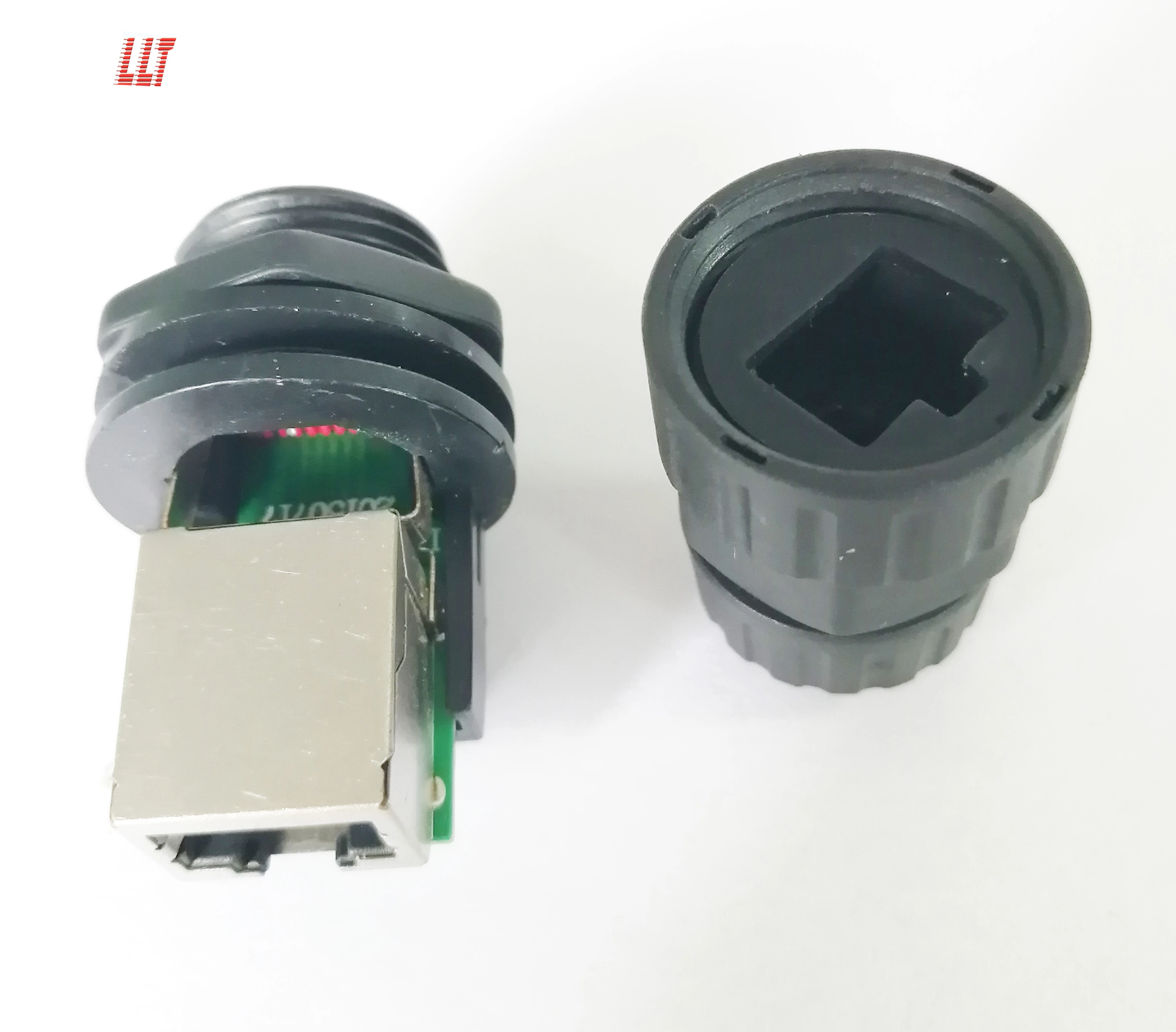

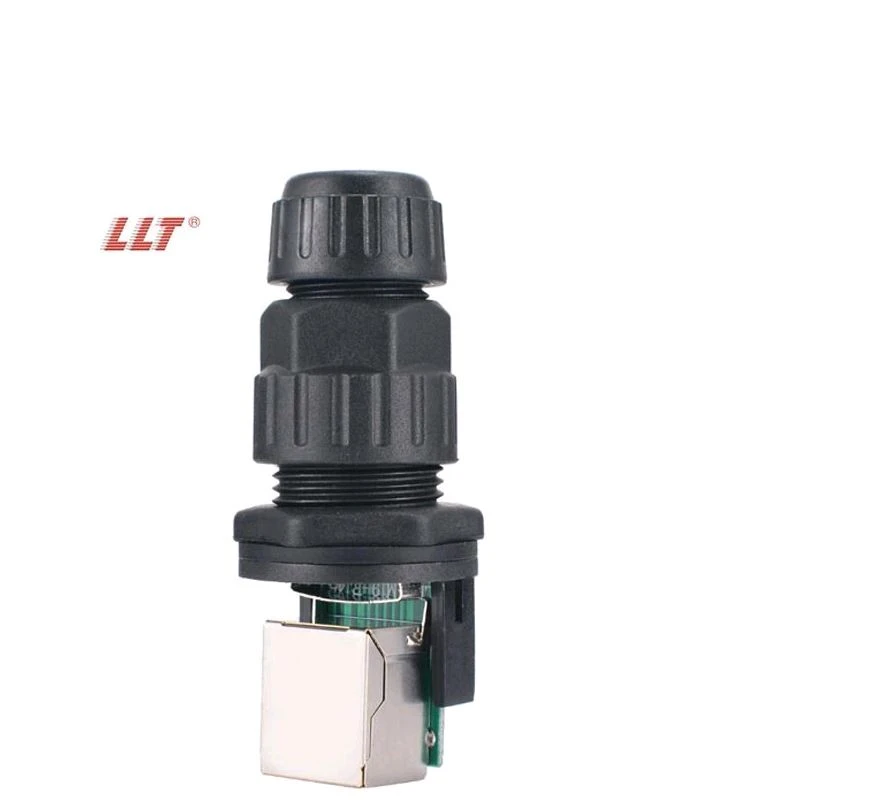

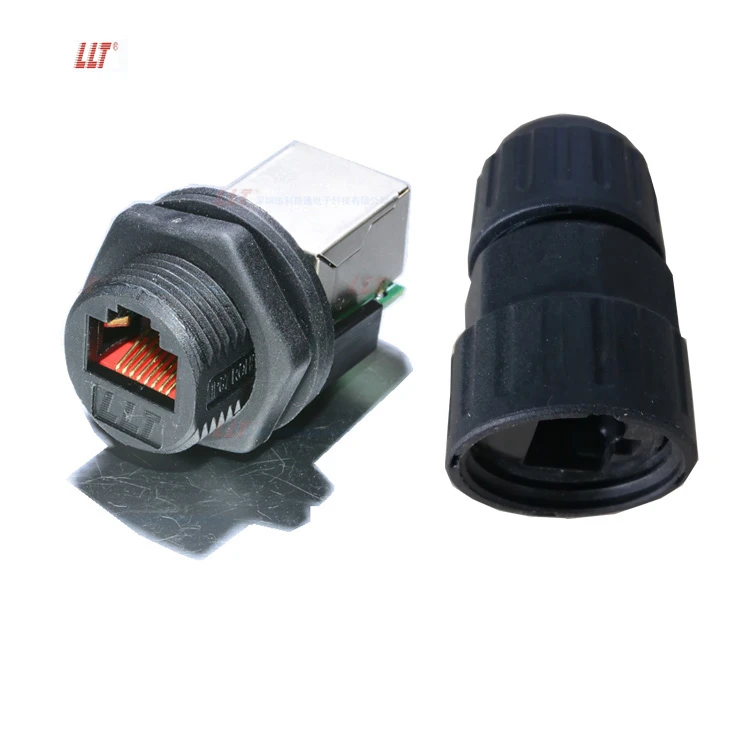

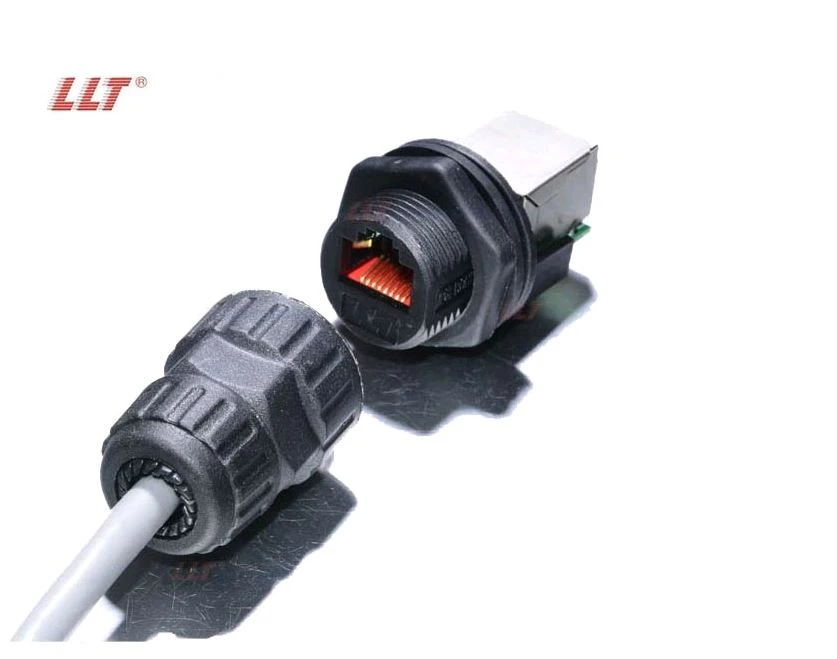

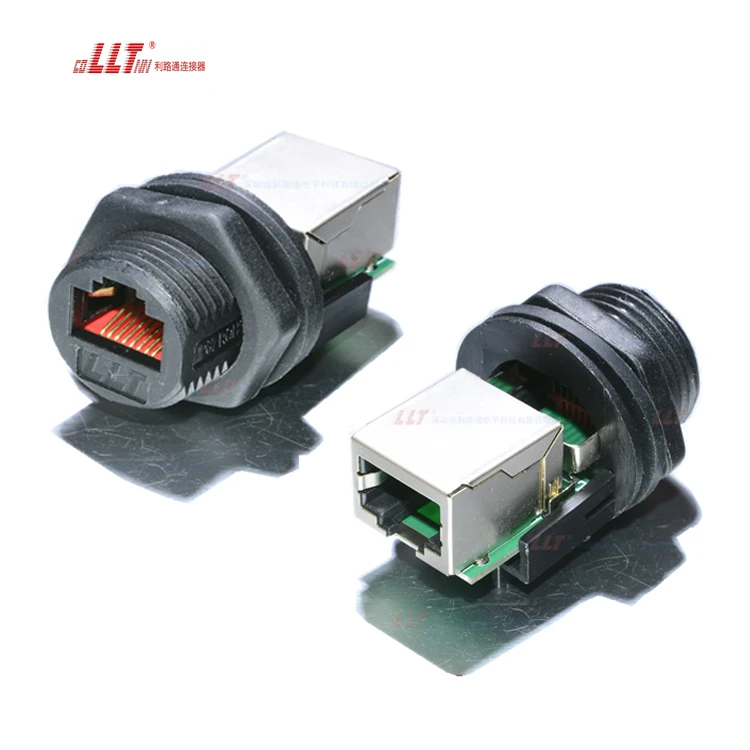

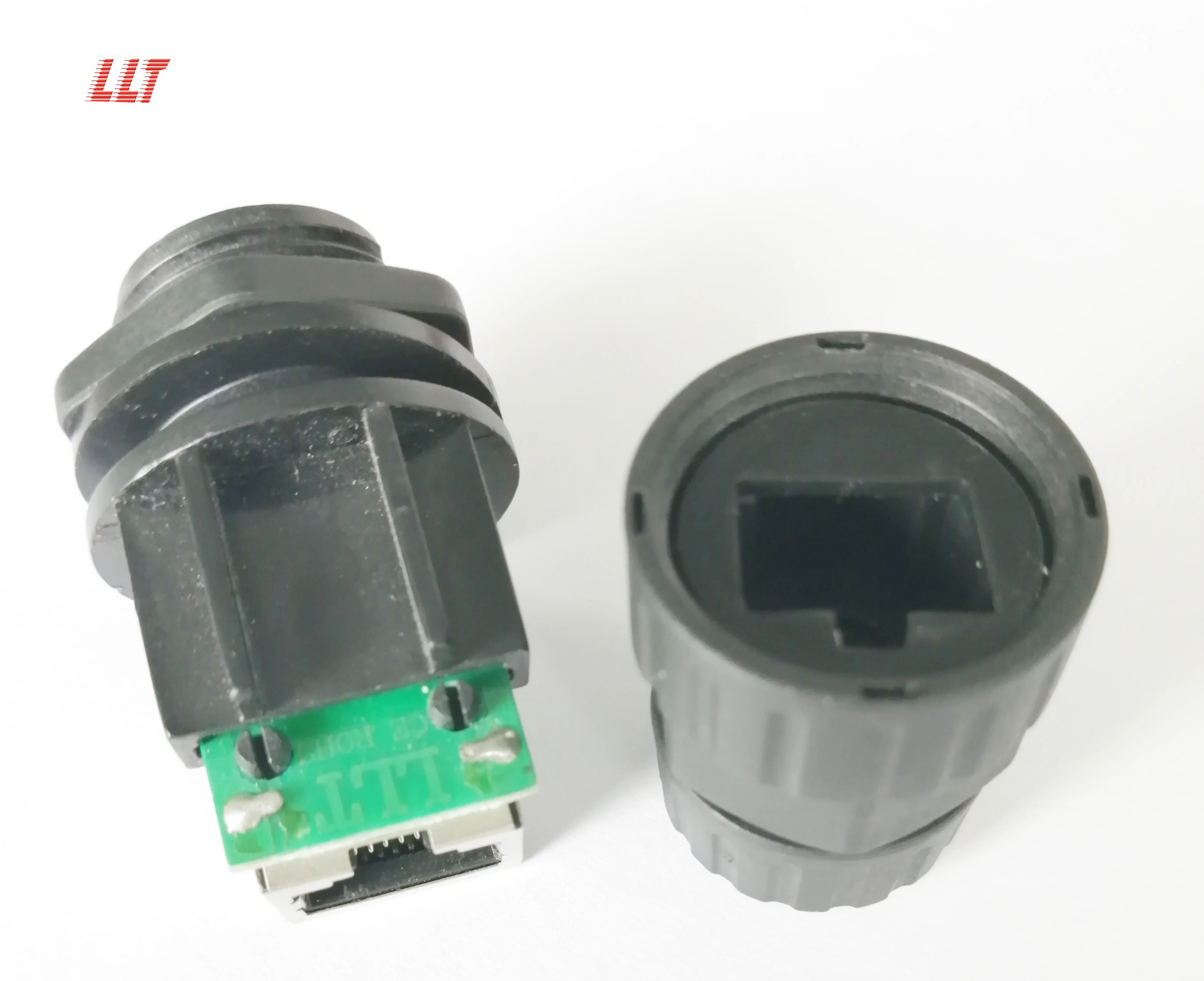

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 1

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 2

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 3

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 4

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 5

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 6

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 7

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 8

LLT M19 RJ45 Assembled Panel Mount Connector gallery image 9

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Waterproof Data Connector 18 published products Waterproof USB Connector 3 published products Data Connector 5 published products Waterproof Panel Mount Connector 26 published products

Technical FAQ

What should be confirmed before selecting LLT M19 RJ45 Assembled Panel Mount Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M19 RJ45 Assembled Panel Mount Connector is currently configured around 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 2A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M19 RJ45 Assembled Panel Mount Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
