Lilutong M19 RJ45 Panel Mount Connector with Cable

Name: Lilutong M19 RJ45 Panel Mount Connector with Cable
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M19-RJ45-152501

RJ45 Waterproof Connector RJ45 Threaded Model: LLT-M19-RJ45-152501

RJ45 / Threaded Lilutong M19 RJ45 Panel Mount Connector with Cable

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This RJ45 panel mount connector with pre-assembled cable provides a ready-to-use, high-reliability wired Ethernet solution for industrial equipment, cabinets, and external communication interfaces. It integrates a standard RJ45 port, sturdy panel mounting structure, and integrated cable assembly to ensure stable data transmission and convenient installation. Key Features - Pre-wired design for plug-and-play use, greatly reducing on-site assembly time - Standard RJ45 interface supports Cat5e/Cat6 high-speed Ethernet transmission - Rugged panel mount construction with locking nut for secure and stable installation - High-quality stranded cable with good flexibility, anti-interference and wear resistance - Excellent shielding performance to minimize signal interference in industrial environments - Compact structure, suitable for limited installation space - Available with different cable lengths to meet various application requirements Applications Widely used in industrial control systems, communication equipment, security monitoring, outdoor electrical boxes, intelligent terminals, network servers, and various devices requiring fixed panel Ethernet connection. Advantages Ready-to-use, time-saving installation, stable signal transmission, strong anti-interference ability, and long service life make it an ideal choice for industrial and commercial network wiring.

Application Fit

Typical application directions

Industrial Ethernet links in outdoor control systems and exposed monitoring equipment
Cabinets, gateways, and communication nodes that need RJ45 access without losing enclosure sealing
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 2A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 1

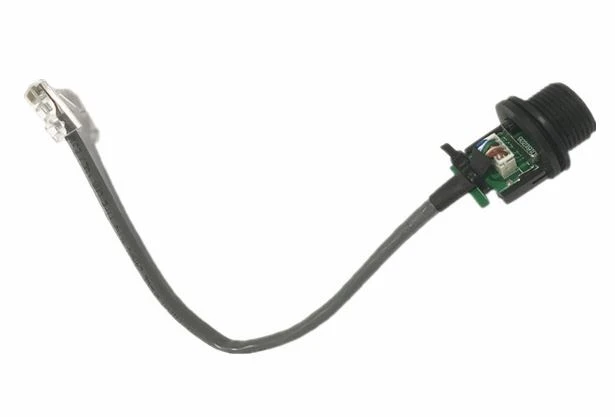

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 2

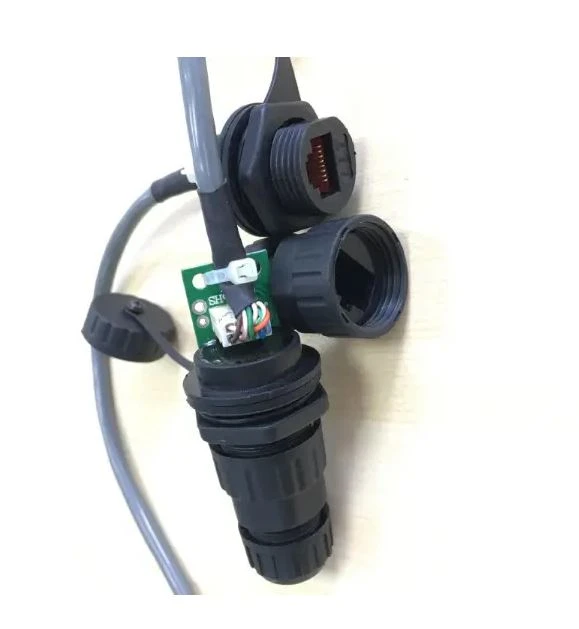

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 3

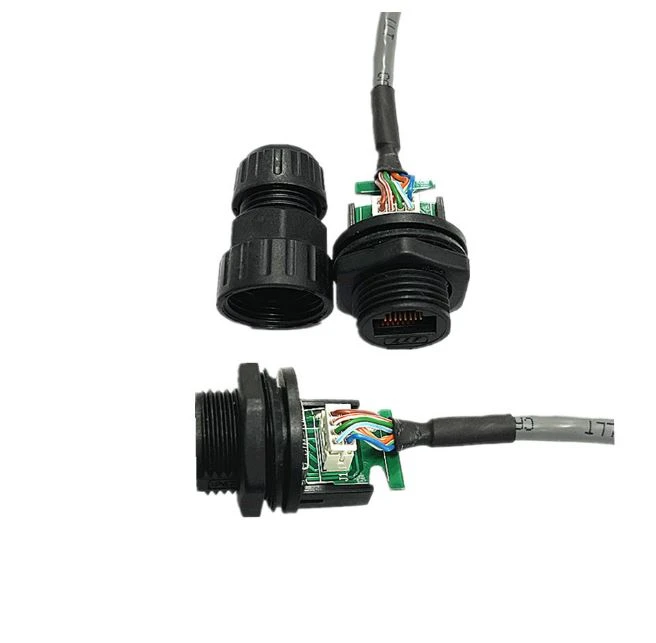

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 4

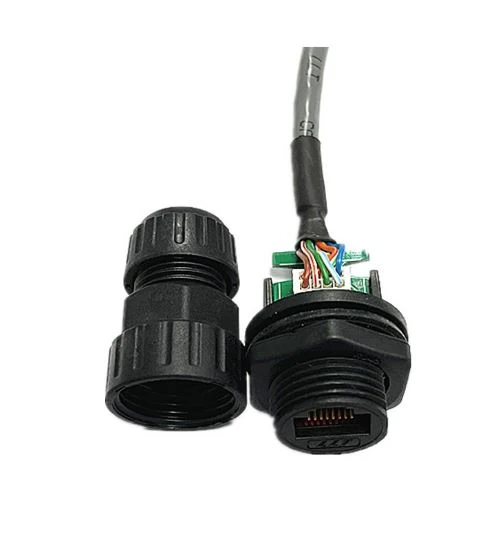

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 5

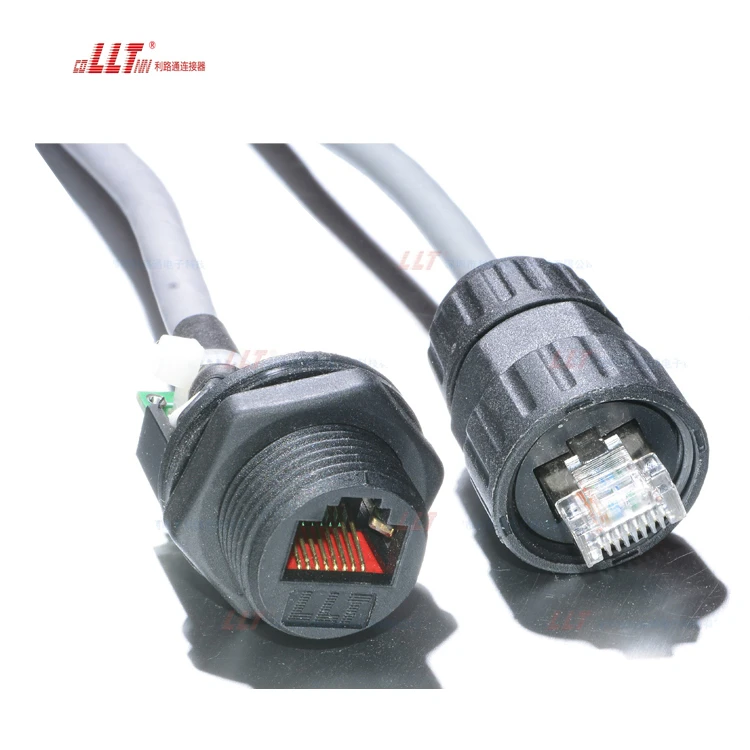

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 6

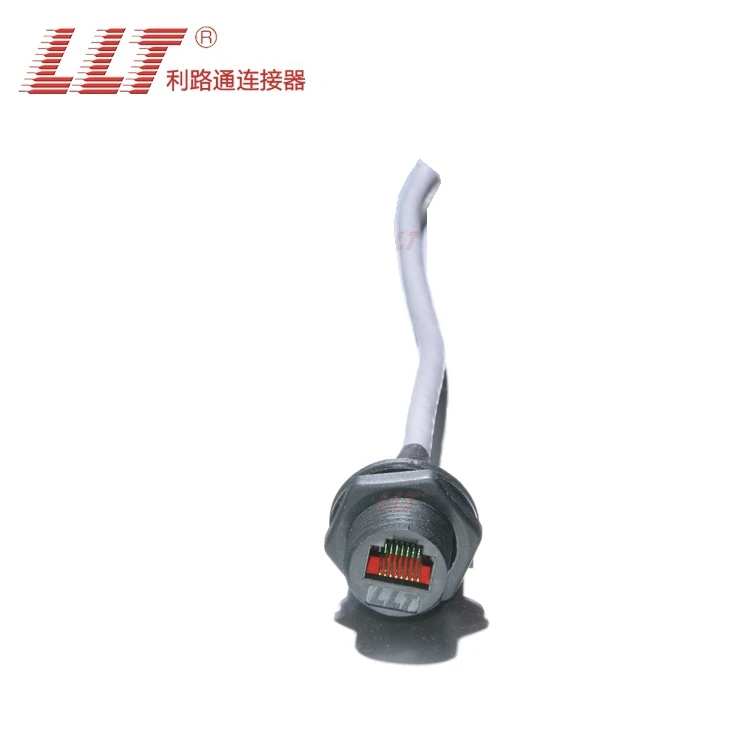

Lilutong M19 RJ45 Panel Mount Connector with Cable gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Waterproof Data Connector 18 published products Waterproof USB Connector 3 published products Data Connector 5 published products Waterproof Panel Mount Connector 26 published products

Technical FAQ

What should be confirmed before selecting Lilutong M19 RJ45 Panel Mount Connector with Cable?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. Lilutong M19 RJ45 Panel Mount Connector with Cable is currently configured around 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 2A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for Lilutong M19 RJ45 Panel Mount Connector with Cable?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
