LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector

RJ45 Waterproof Connector RJ45 Threaded Model: LLT-RJ45-M19-02
RJ45 / Threaded LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19-RJ45

Pin

8pin

IP Rating

IP67/IP68

Rated Current

2A

Rated Voltage

36V

Product Series

M19-RJ45

Wiring Type

by RJ45 terminal

Interface Type

8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

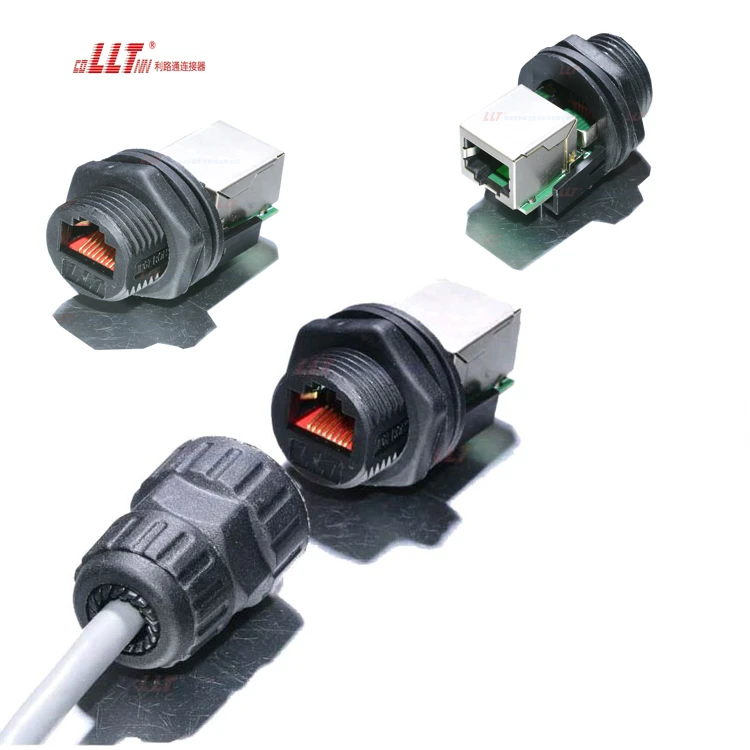

This M19‑RJ45 front panel mount assembled connector integrates industrial M19 circular structure with standard RJ45 Ethernet interface, specially designed for front‑mount installation on equipment panels. It supports on‑site assembly and provides stable, high‑speed network connection in harsh working environments. Key Features - Front panel mount design for easy installation and maintenance from outside the cabinet - M19 circular threaded locking structure, high mechanical strength and strong vibration resistance - Standard RJ45 interface, compatible with Cat5e / Cat6 Ethernet cables - Field assembly type, supports on‑site wiring without pre‑crimping - Excellent shielding performance to resist electromagnetic interference - High waterproof and dustproof level, suitable for outdoor and industrial environments - Compact and durable structure, long service life Advantages Stable performance, convenient assembly, strong environmental adaptability and reliable long‑term connection make it an ideal choice for industrial Ethernet interconnection in harsh environments.

Application Fit

Typical application directions

  • Industrial Ethernet links in outdoor control systems and exposed monitoring equipment
  • Cabinets, gateways, and communication nodes that need RJ45 access without losing enclosure sealing
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 2A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

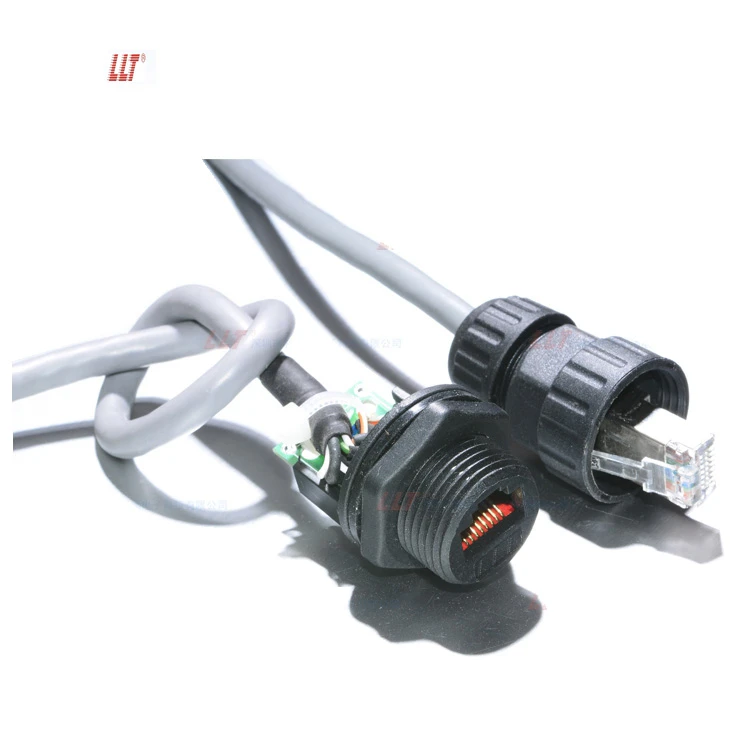

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 1

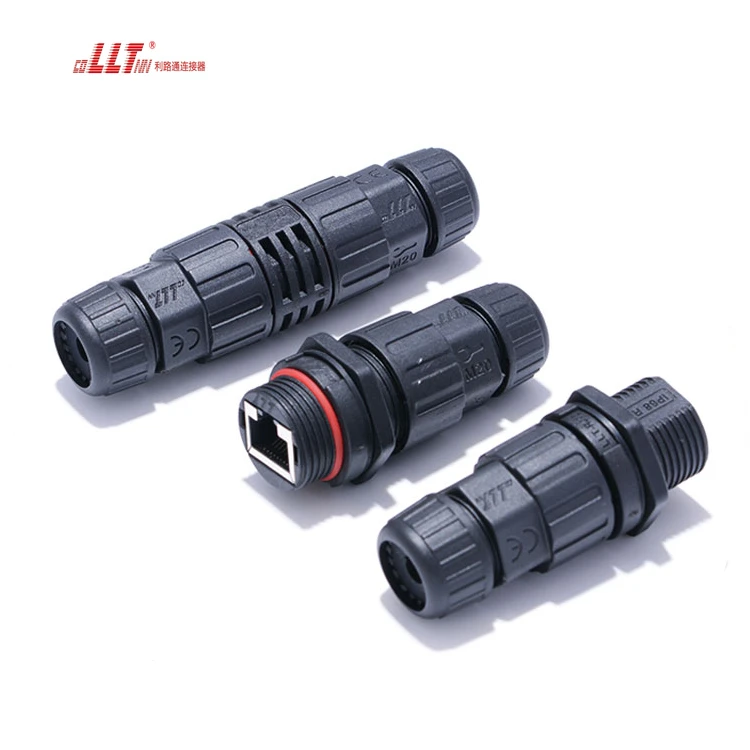

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 2

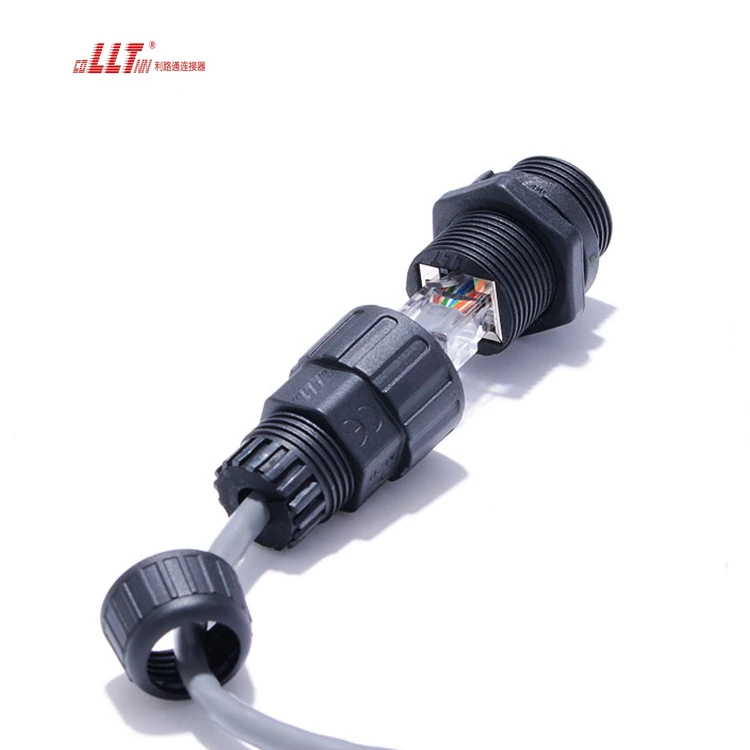

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 3

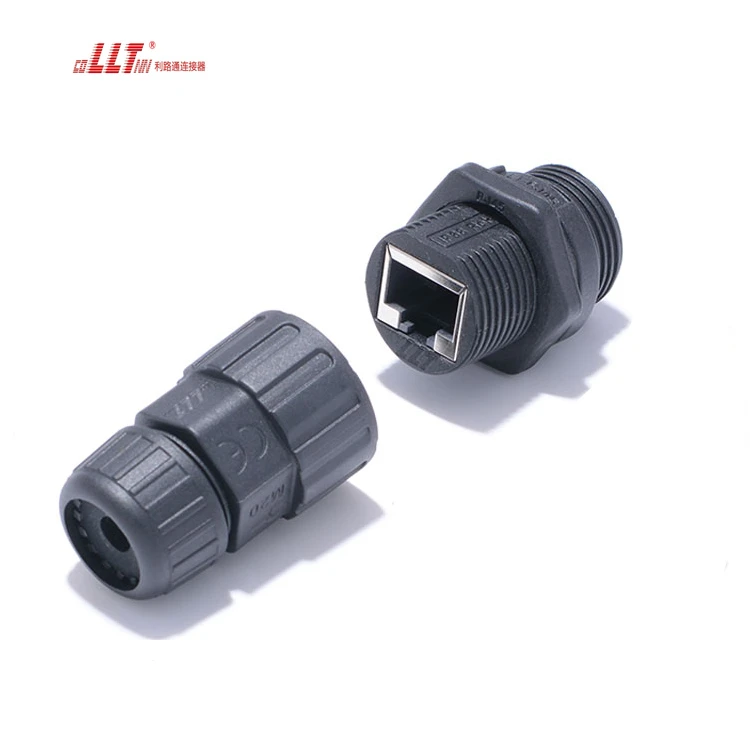

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 4

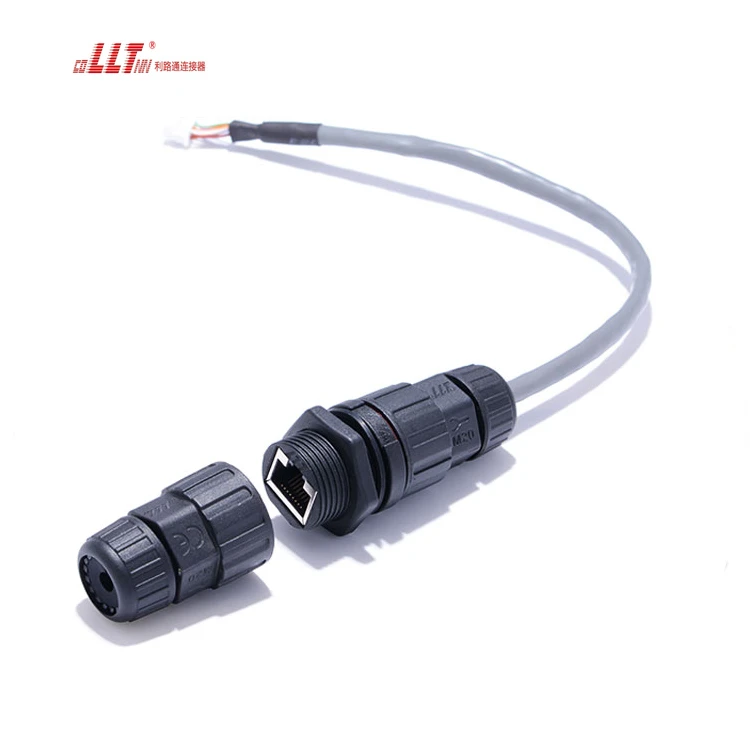

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 5

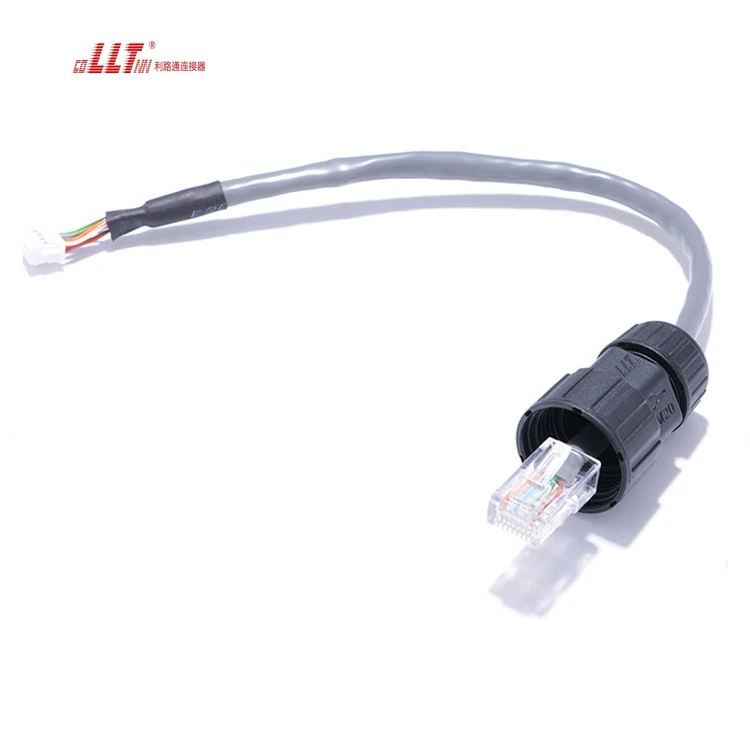

LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector is currently configured around 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 2A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT IP67 IP68 M19 Front Panel Ethernet RJ45 Waterproof CCTV Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
