LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector

LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 2pin pin layout, push lock interface. Termination direction is soldering, which should be checked against the actual harness build.

Lighting Connector M19 Push-Lock Model: LLT-M19-20002F1031
M19 / Push-Lock LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

2pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering

Interface Type

Push lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-2pin field assembly connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through push lock. attach cable by solder.We have 4.2/6.3/7.8/8.5/9/10/11mm grommet can fit your different diameter cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

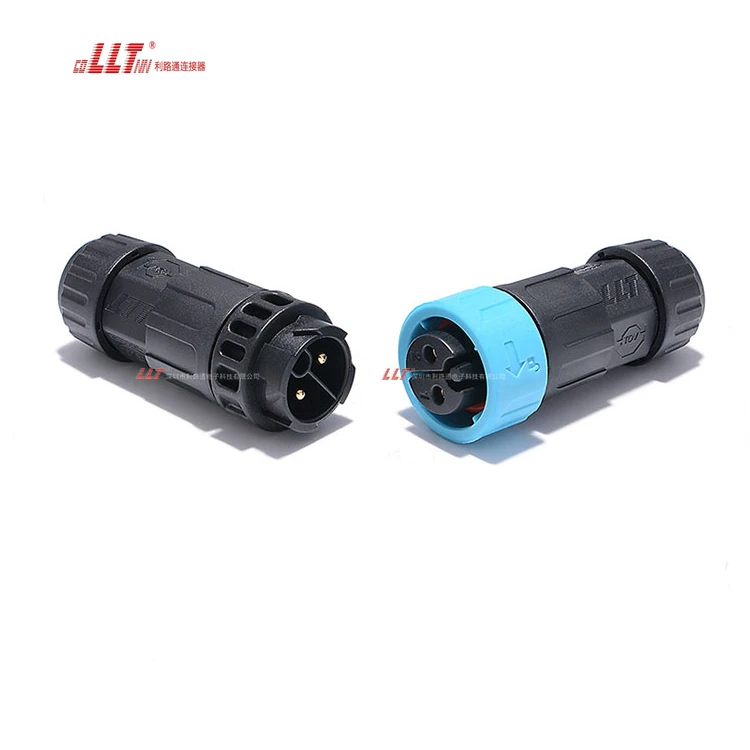

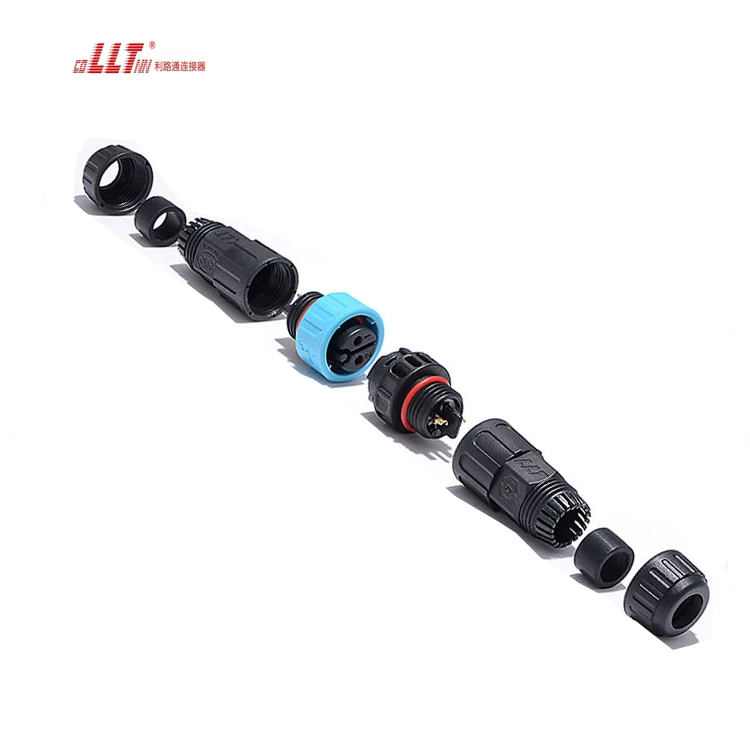

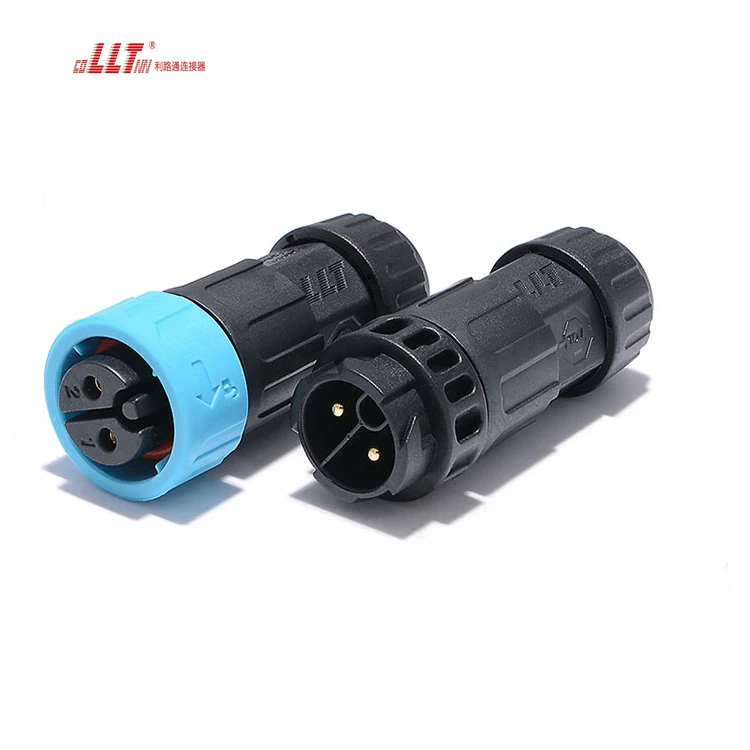

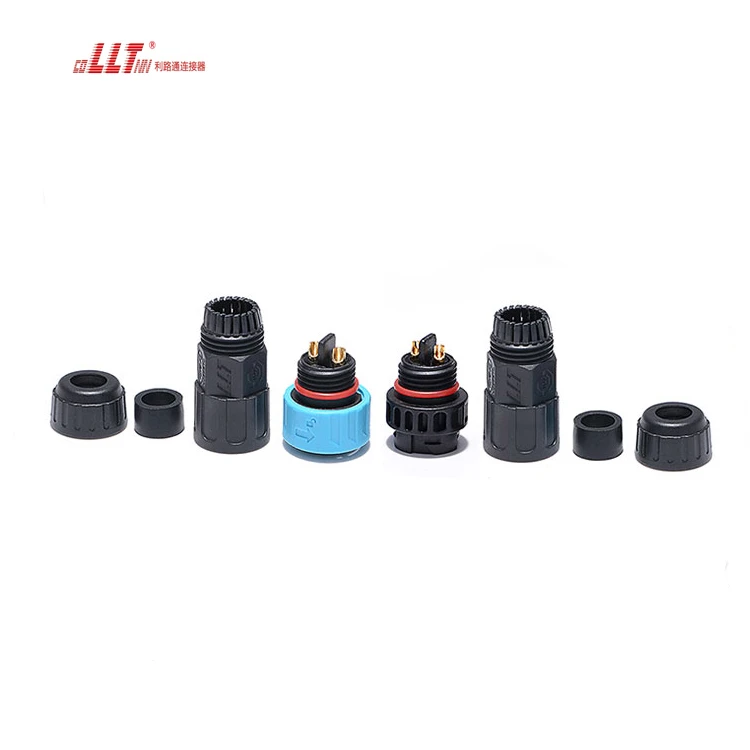

LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 1
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 2
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 3
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 4
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 5
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 6
LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Connector M19 600V 20A 2Pin Assembly Connector Male Female Waterproof LED Outdoor Lighting Power Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
