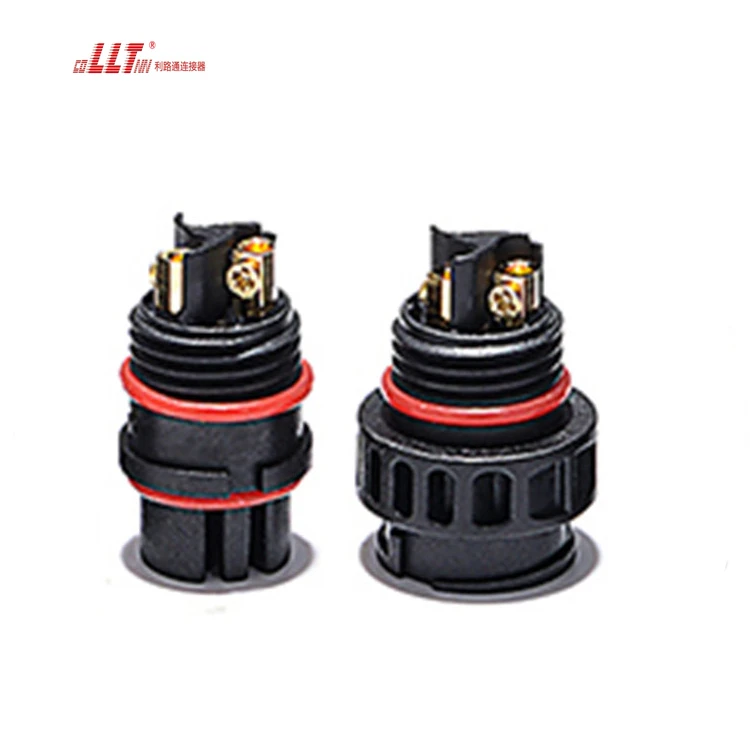

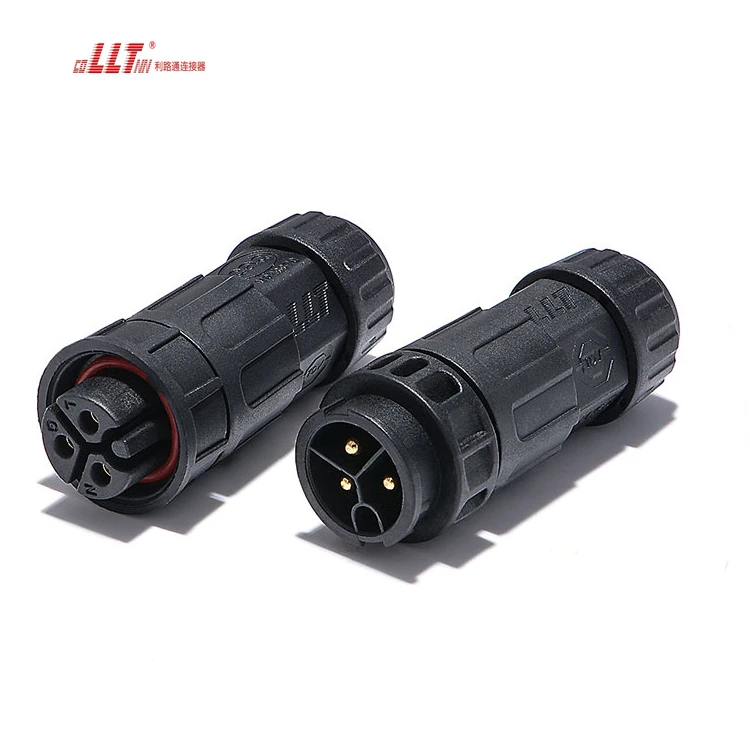

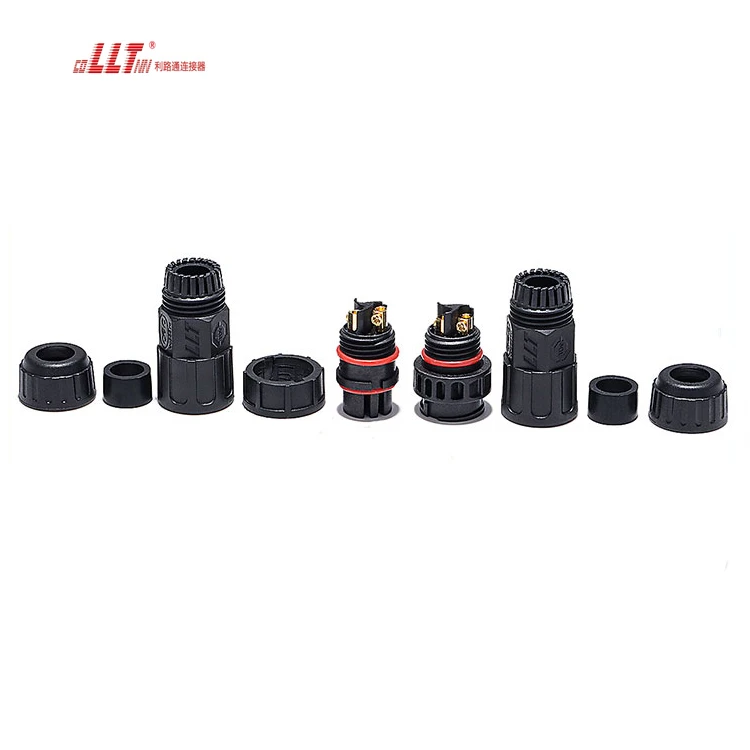

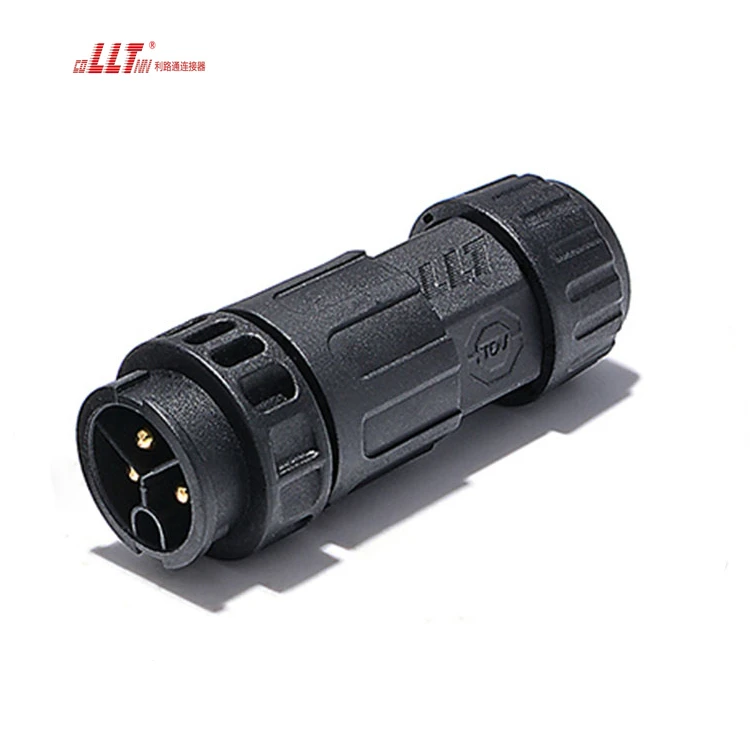

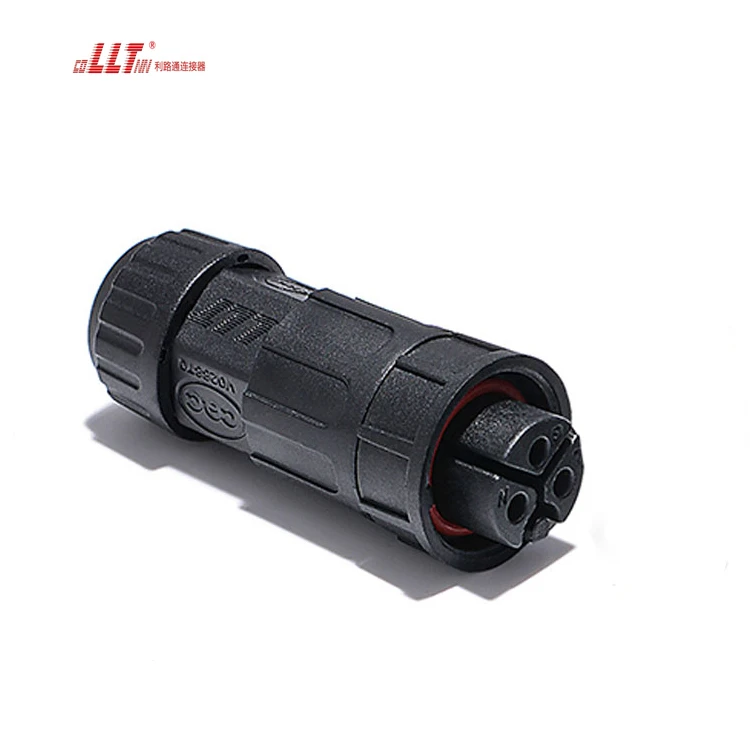

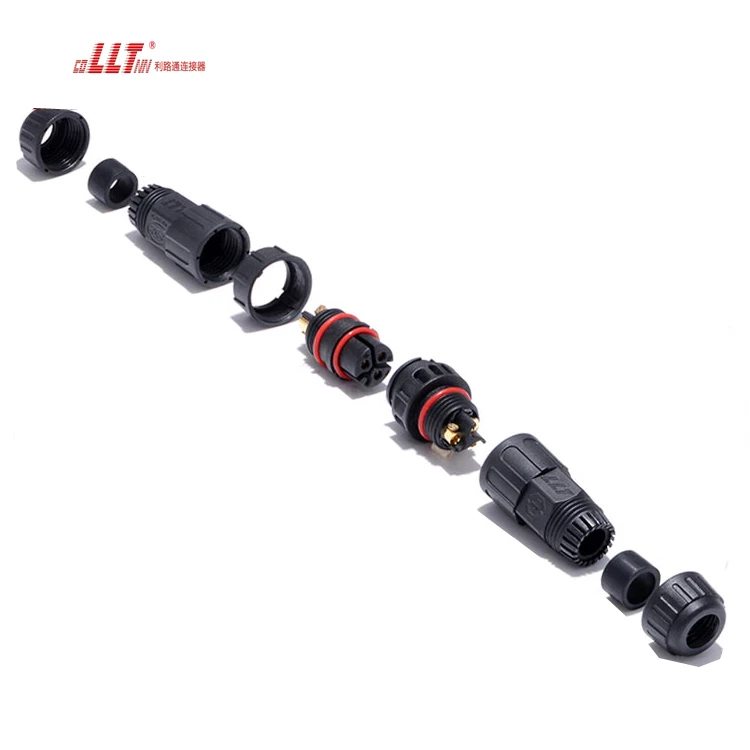

LLT Male Female M19 Plug IP68 Bayonet Lock Screw Wire Power 3pin Waterproof Connector

M19-3Pin Bayonet Lock Screw Wire Connector Specification 1. Basic Information • Model: M19-3P Bayonet Circular Connector (Male + Female) • Locking Style: Quarter-turn bayonet twist lock, anti-vibration quick locking • Wiring Type: Screw-clamp terminal (no soldering needed, fast field wiring) • Pin Count: 3 power pins • Mount Type: Wire-to-wire / Panel rear mount optional 2. Electrical Parameters • Rated Voltage: 600V AC/DC • Rated Current: 20A per contact • Withstand Voltage: 1500V AC / 5s no breakdown • Contact Resistance: ≤5mΩ (gold-plated pin) • Insulation Resistance: ≥1500MΩ @ DC500V • Applicable Wire Cross-section: 0.3~2.5mm² (24AWG~12AWG) • Matching Cable OD: Φ3.0~Φ11mm 3. Mechanical & Environmental Data • Ingress Protection: IP68 fully waterproof & dustproof after full mating • Working Temperature: -40℃ ~ +105℃ • Mating Lifespan: ≥1500 bayonet plug/unplug cycles • Shell Material: PA66 UL94-V0 flame-retardant nylon • Contact Material: H62 brass + 0.8μm hard gold plating (anti-corrosion & oxidation) • Available Color: Black / Blue optional 4. Core Advantages 1. Bayonet 1/4-turn quick lock, efficient on-site installation, anti-loose under vibration 2. Screw-clamp wiring, convenient for on-site cable connection without welding equipment 3. Double silicone O-ring sealing, IP68 waterproof for rainy, damp and occasional underwater environment 4. Gold-plated contacts guarantee stable large-current transmission, long service life 5. RoHS & CE certified, environmental friendly raw material 5. Typical Application Outdoor LED landscape lamp, solar power equipment, industrial automation wiring, e-bike power connection, surveillance power supply, irrigation equipment, marine small electrical devices
