LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP67/IP68, 20A current range, 2pin pin layout, 2-18pin/2+4/2+5/3+5pin interface. Termination direction is soldering, which should be checked against the actual harness build.

Lighting Connector M19 Bayonet Model: LLT-M19-20002F1071
M19 / Bayonet LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

2pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering

Interface Type

2-18pin/2+4/2+5/3+5pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

M19-2Pin Male & Female Bayonet Circular Connector Product Specification 1. Basic Info • Model: M19-2P Bayonet Lock Connector (Male Plug + Female) • Lock Mode: Bayonet quick twist-lock (anti-loosening) • Pin Quantity: 2 Power Contacts • Mount Options: Cable-to-cable / Panel rear mount optional • Termination: Screw clamp terminal / Soldering terminal dual available 2. Electrical Parameters • Rated Voltage: 600V AC/DC • Rated Current: 20A per pin • Withstand Voltage: 1500V AC (5s no breakdown) • Contact Resistance: ≤5mΩ (gold plated pin) • Insulation Resistance: ≥1500MΩ @ DC1500V • Wire Range: 0.3~2.0mm² / 18AWG~14AWG; Max cable outer diameter ≤11mm 3. Mechanical & Environmental Spec • Protection Grade: IP68 waterproof & dustproof (silicone O-ring sealing) • Operating Temp: -40℃ ~ +105℃ • Mechanical Lifespan: ≥1500 bayonet mating/unmating cycles • Shell Material: PA66 Nylon, UL94-V0 flame retardant • Contact Material: H62 brass body + 0.8μm hard gold plating (anti-oxidation & corrosion) • Available Color: Black / Blue shell optional 4. Core Product Advantages 1. Bayonet quarter-turn quick lock, fast plug-in without thread screwing, reliable anti-vibration connection 2. IP68 full waterproof, adapt outdoor rainy, damp, underwater working environment 3. Gold-plated solid pins, low contact resistance, stable large-current transmission 4. RoHS, CE, UL certified, eco-friendly raw material 5. Typical Application Outdoor LED lighting, solar equipment, industrial automation, e-bike power connection, landscape lamp, surveillance power, marine small equipment wiring

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 1

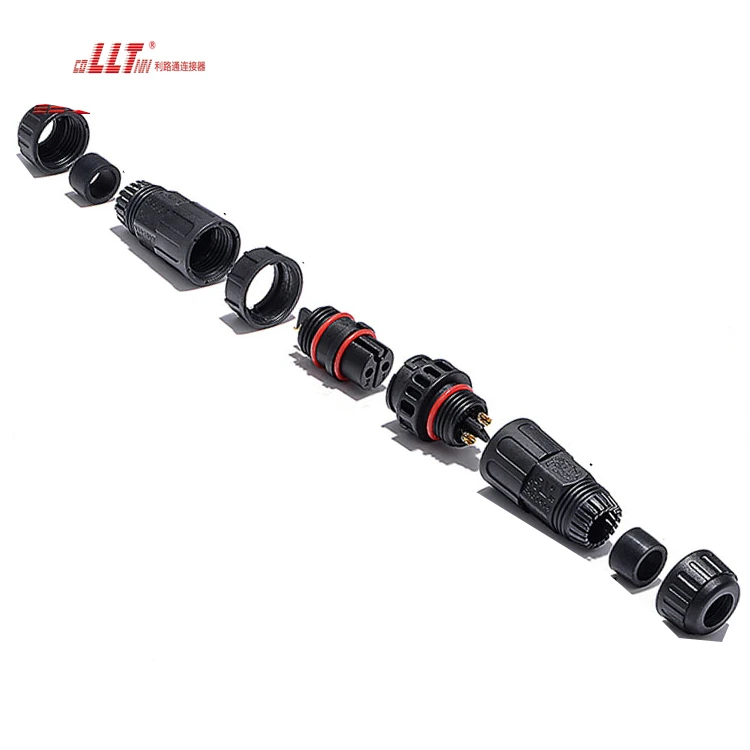

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 2

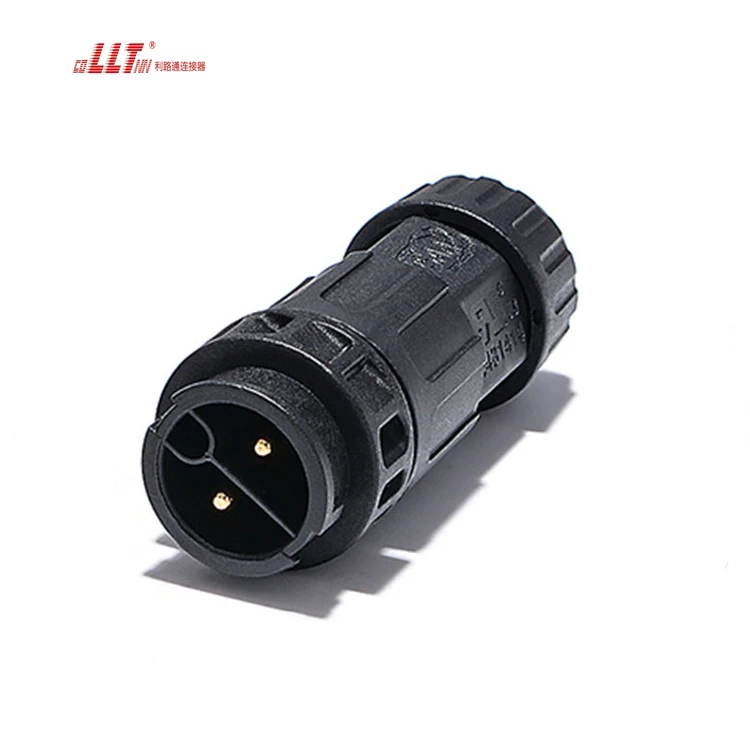

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 3

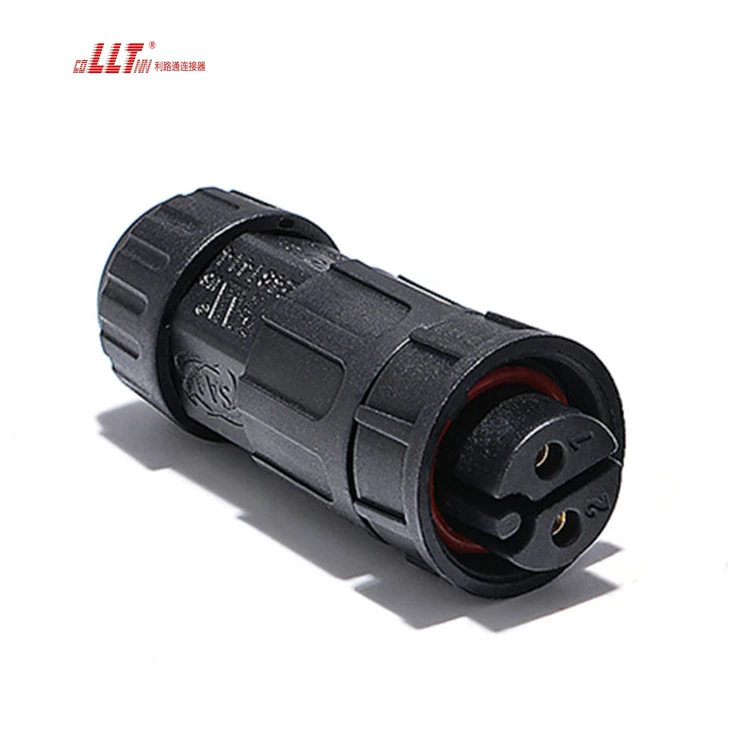

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 4

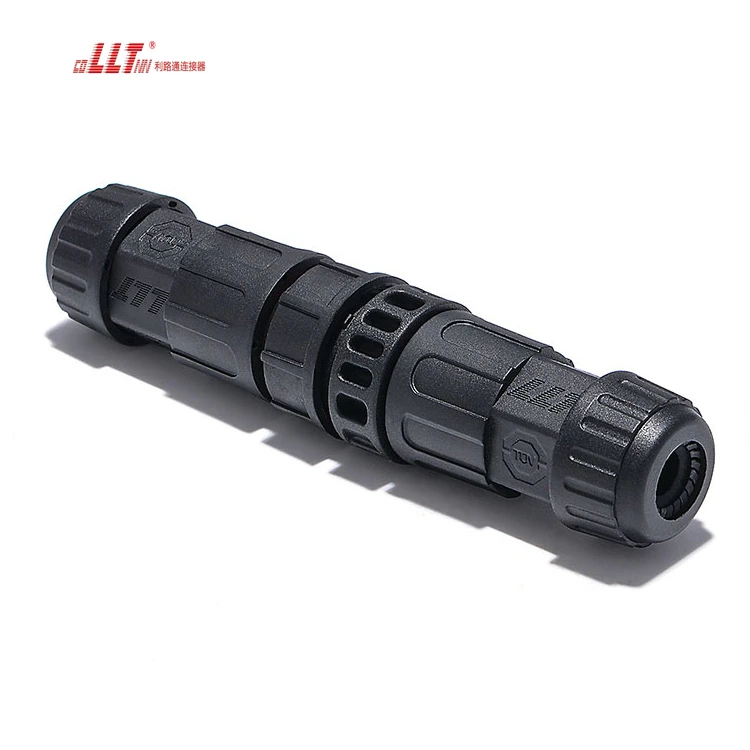

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 5

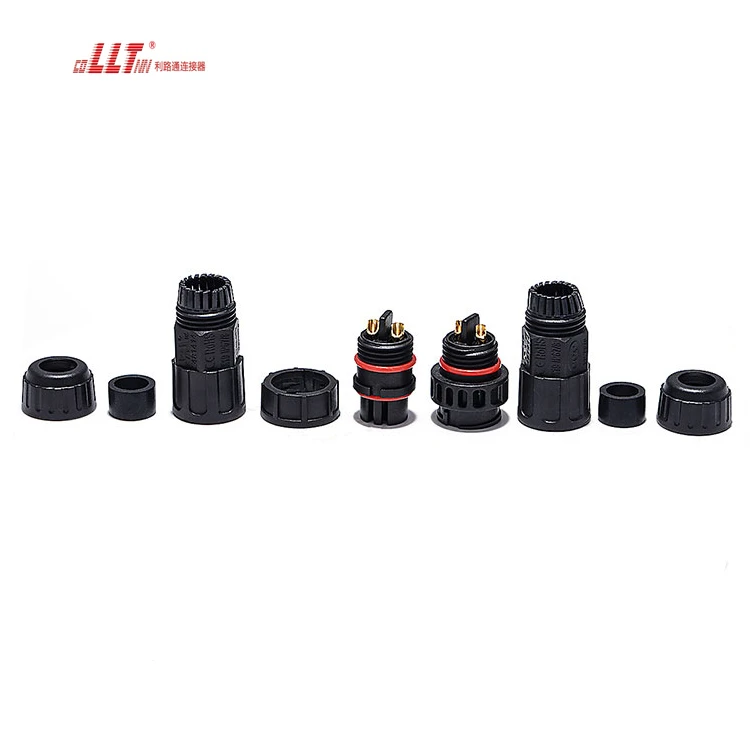

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 6

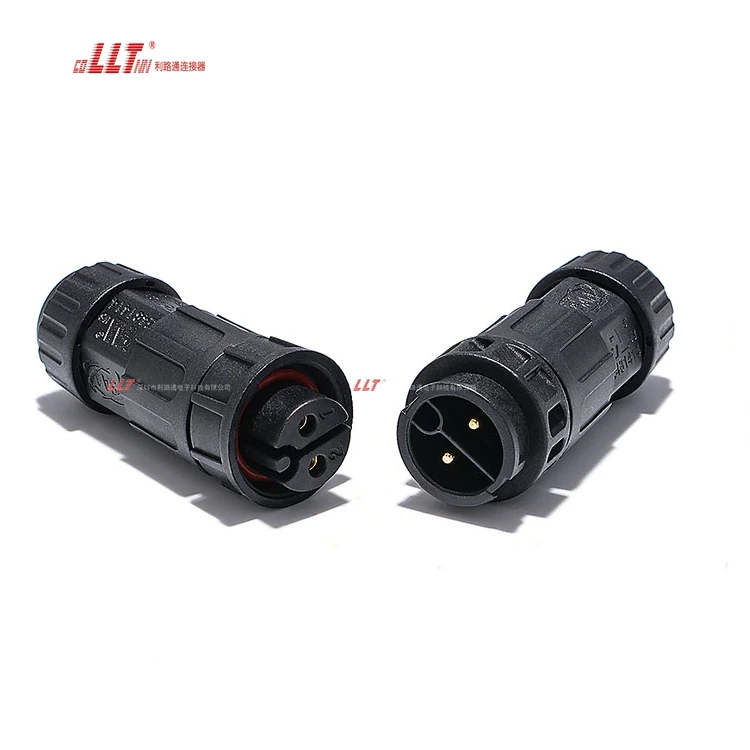

LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector is currently configured around 2-18pin/2+4/2+5/3+5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Connector 2pin M19 IP68 Electrical Cable Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
