LLT Factory M16 8pin Circular Multipin Screw Wire IP68 Waterproof Data Connector
LLT Factory M16 8pin Circular Multipin Screw Wire IP68 Waterproof Data Connector is a published reference for industrial ethernet links in outdoor or washdown-prone equipment. The visible configuration highlights sealing around IP67/IP68, 5A current range, 8pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is soldering, which should be checked against the actual harness build.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
8pin
IP Rating
IP67/IP68
Rated Current
5A
Rated Voltage
110V
Product Series
M16
Wiring Type
Soldering
Interface Type
2-12pin/2+2/2+3/2+4/3+3/2+8pin
Mating Cycles
>=3000 times
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Industrial Ethernet links in outdoor or washdown-prone equipment
- Control cabinets, gateways, and monitoring nodes that need ingress protection
- Projects targeting IP67/IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references

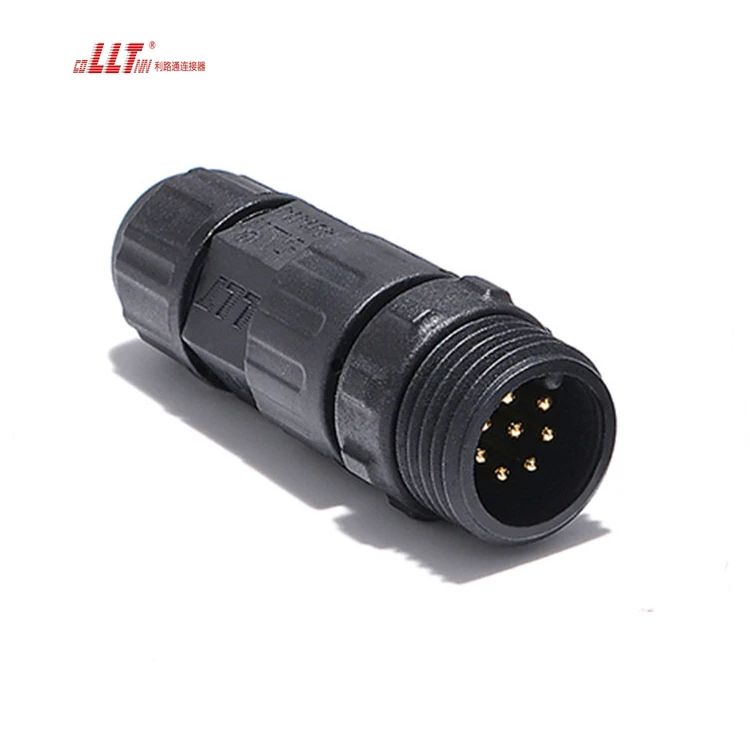

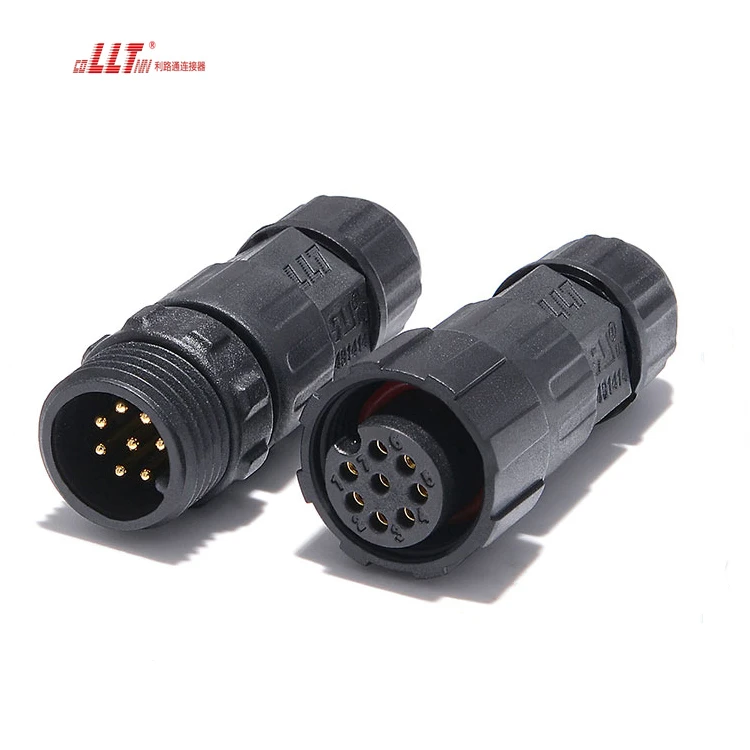

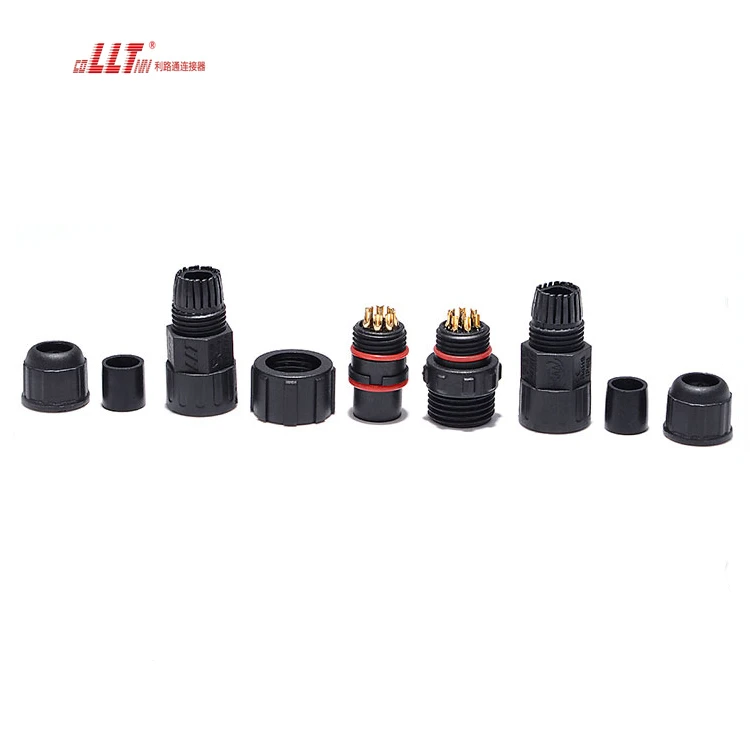

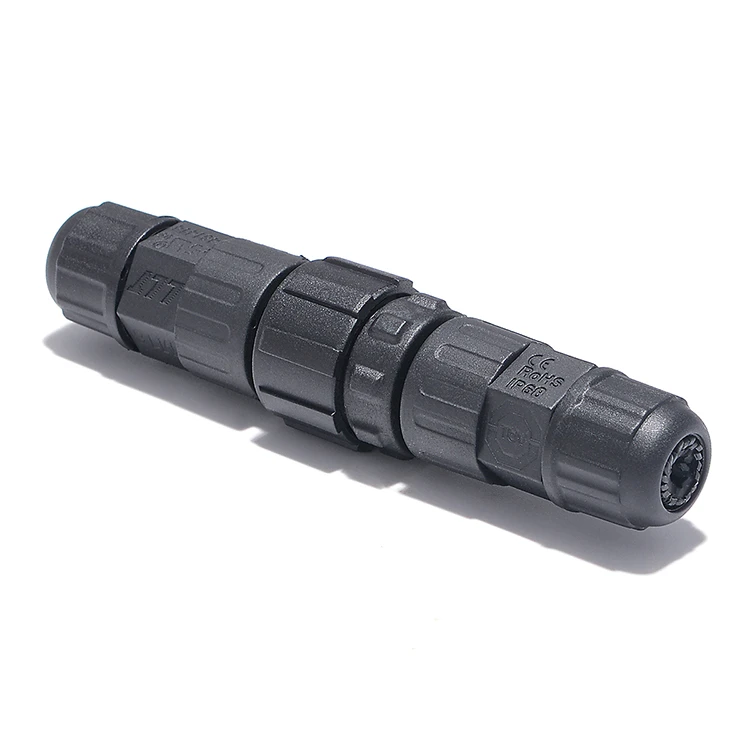

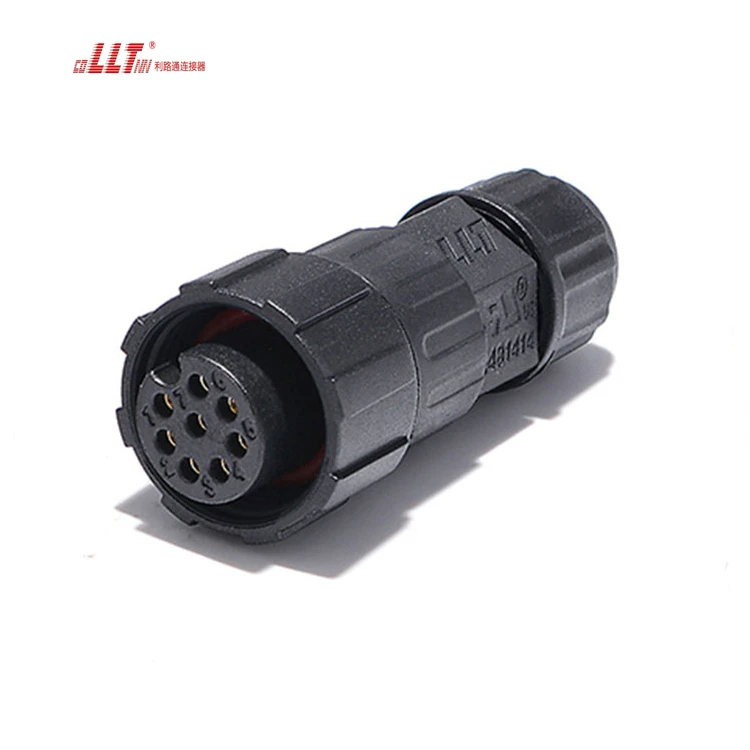

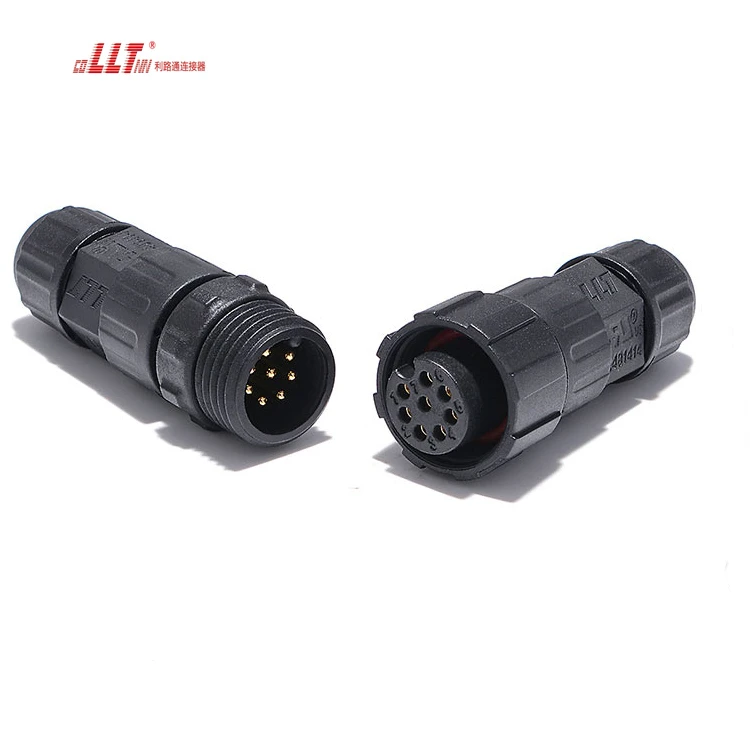

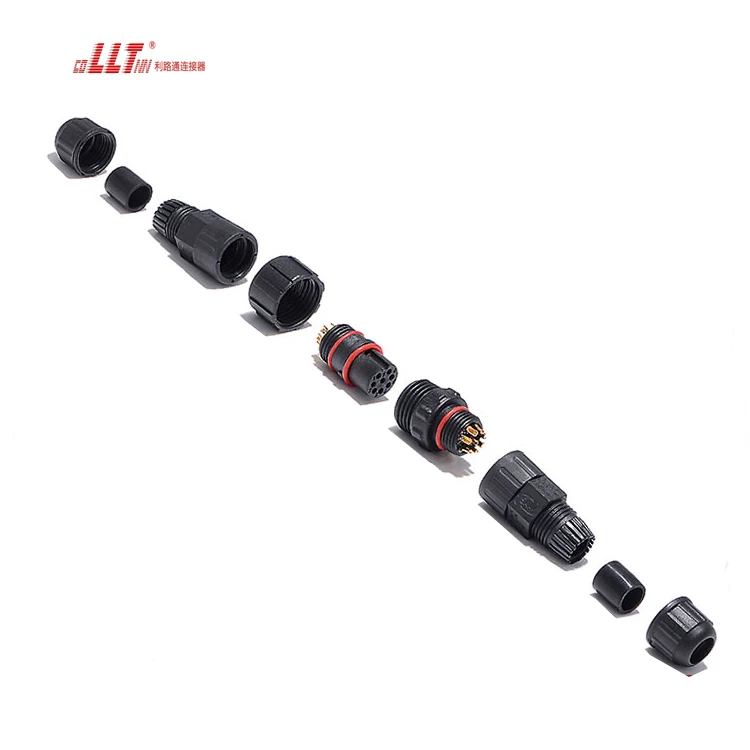

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT Factory M16 8pin Circular Multipin Screw Wire IP68 Waterproof Data Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Factory M16 8pin Circular Multipin Screw Wire IP68 Waterproof Data Connector is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT Factory M16 8pin Circular Multipin Screw Wire IP68 Waterproof Data Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
