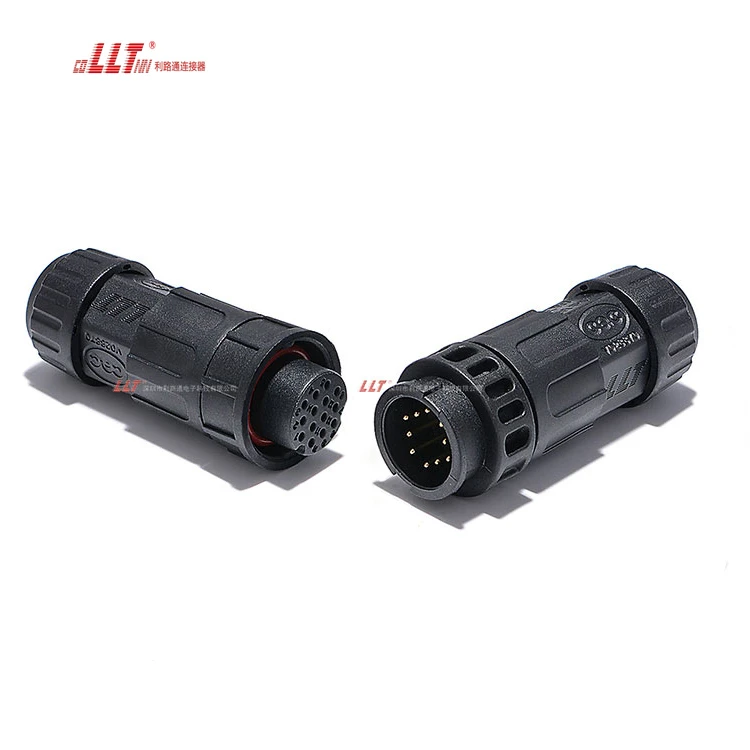

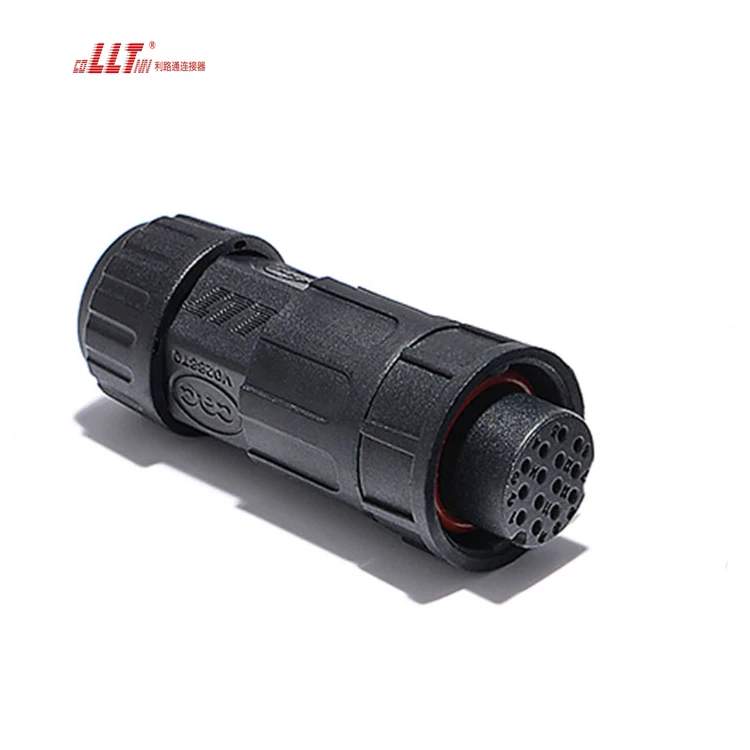

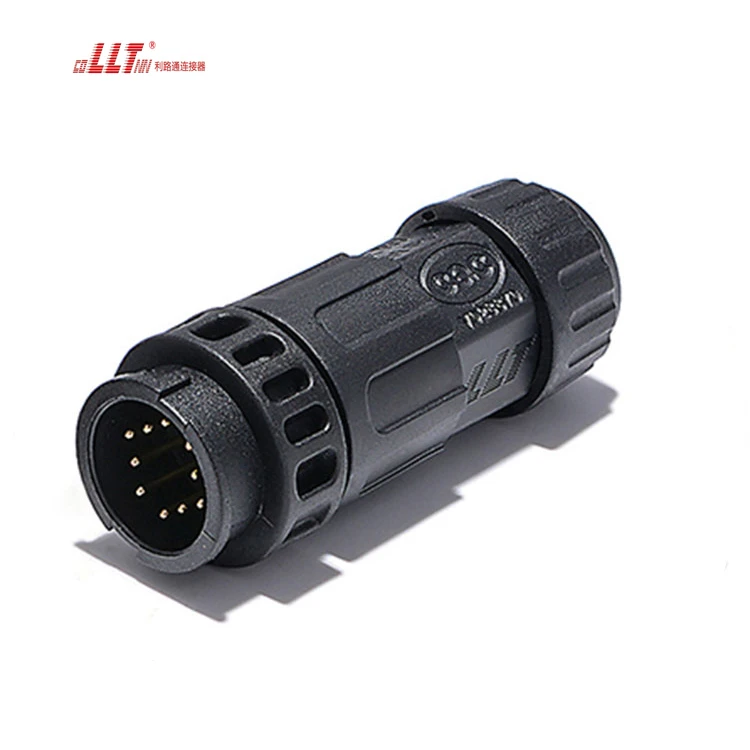

LLT 10pin M19 Male Female Electrical Wire IP68 Waterproof Data Connector

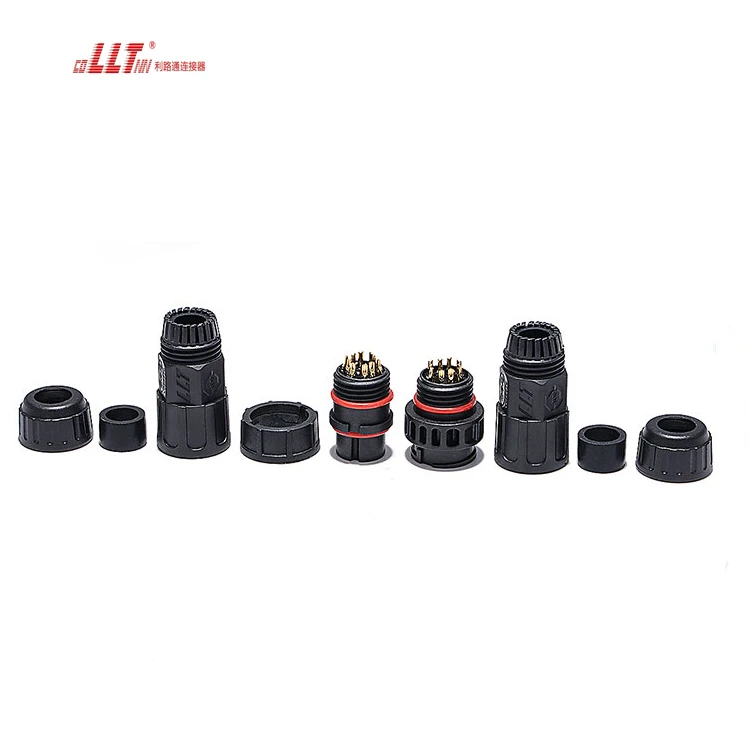

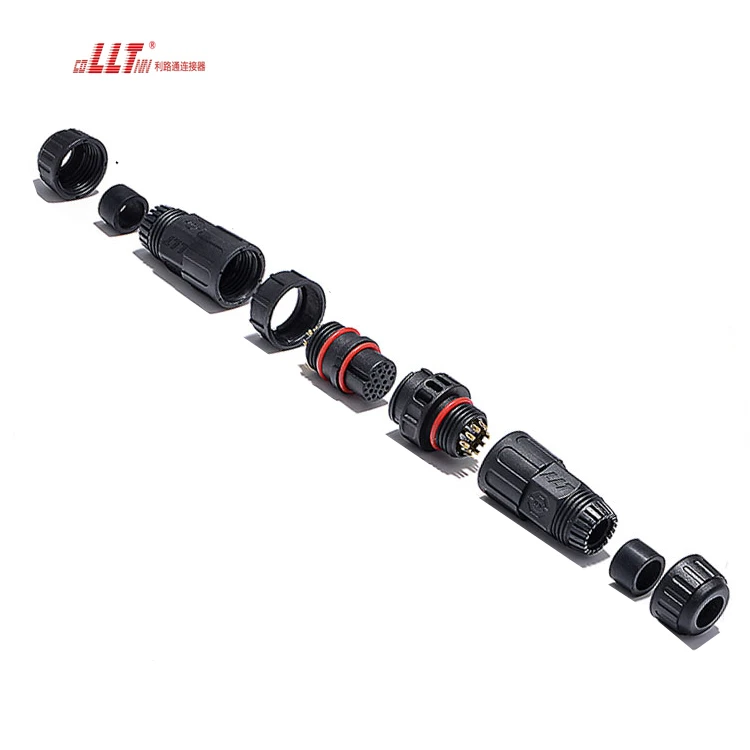

1. Product Overview The M19-10pin bayonet lock data connector is a field-assembled circular industrial multi-core signal connector with 19mm outer diameter, customized for multi-channel data & low-power hybrid transmission. Featuring classic quarter-turn bayonet twist locking design, it enables rapid plugging without tools, supporting inline cable-to-cable butt joint and front/rear panel mounting, widely deployed for industrial data acquisition, sensor bus and outdoor control signal wiring, compliant with CE, RoHS standards. 2. Core Features • Bayonet Quick Lock Structure: 90° quarter-turn bayonet locking achieves instant secure connection; anti-vibration latch prevents loose disconnection under mechanical shake, superior to threaded or push-pull locking for field maintenance. • High-Stability Data Transmission: 10 full gold-plated brass contacts, rated 5A per pin for signal circuit, ultra-low contact resistance ≤5mΩ to avoid signal attenuation & interference, ideal for digital bus, RS485 and low-voltage analog data transmission. • Field Solder Assembly: Split housing allows on-site soldering termination without pre-molded cables; compatible cable outer diameter: 3.5–11mm, wire cross-section 0.3–1.0mm² for fine multi-core data wire. • Harsh Environment Resistance: PA66 UL94-V0 flame-retardant shell + integrated silicone sealing ring, IP67/IP68 dustproof & waterproof; operating temperature range: -40℃ ~ +105℃, adapts to outdoor damp, dusty and temperature-fluctuating working conditions. • Long Service Life: ≥1500 stable mating cycles for frequent plug-and-unplug industrial scenarios. 3. Key Technical Parameters • Pin count: 10P (all signal pins) • Rated voltage: 250V AC • Rated current: 5A per contact • Lock type: Bayonet twist lock (quarter turn) • Termination: Manual solder assembly • Ingress protection: IP67 / IP68 (mated status) • Mount options: In-line cable joint / front & rear panel mount • Mechanical lifespan: ≥1500 insertions & extractions 4. Typical Applications Industrial automation control modules, multi-channel sensor array, outdoor surveillance data line, intelligent agriculture controller, servo encoder signal cable, stage lighting control bus, new energy equipment internal data connection. Short Marketing Copy (≈100 words for catalog) M19-10pin bayonet data connector adopts quick quarter-turn bayonet locking for easy field solder assembly. Ten gold-plated pins deliver stable multi-channel data transmission at 5A/110V with low signal loss. IP68 waterproof PA66 housing works stead
