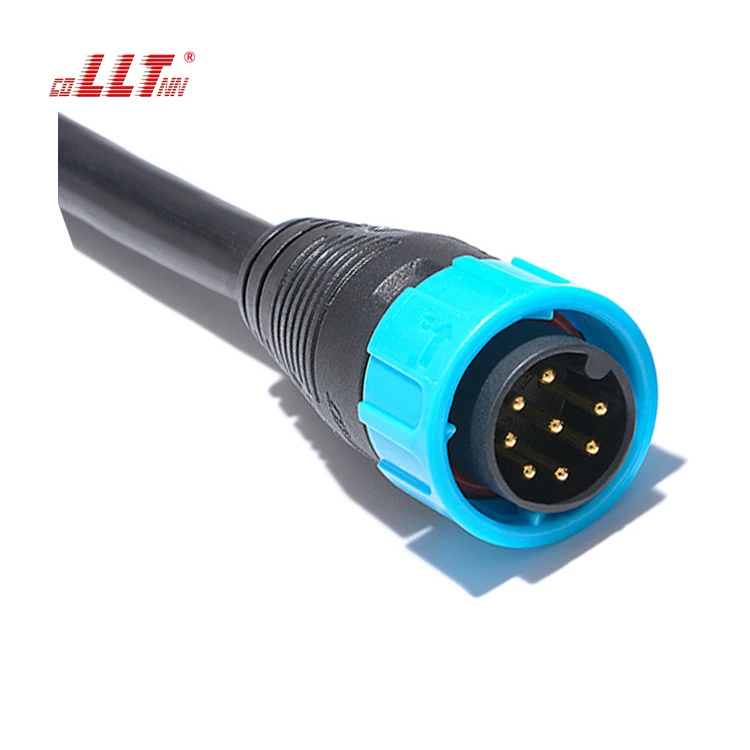

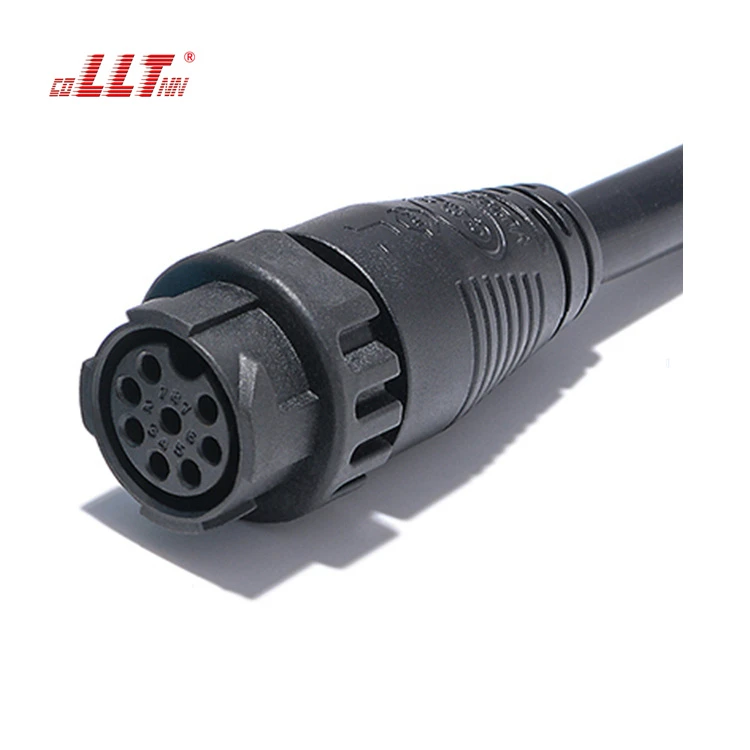

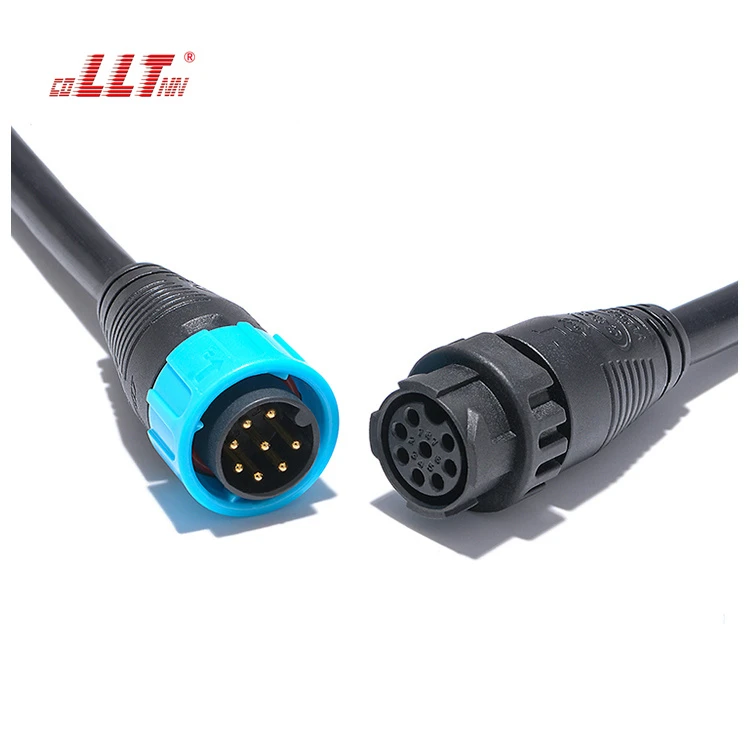

M25 8 Pin Self-Locking Waterproof Daisy Chain Connector with Overmolded Cable for RS485, CAN Bus, Encoder Feedback, and Distributed I/O

LLT Connector’s M25 8 pin self-locking overmolded daisy chain connector is not just a generic waterproof circular connector. It is designed as a system-level cable interface for distributed control nodes, encoder feedback loops, robotic end effectors, energy storage systems, PV field communication networks, and outdoor industrial equipment. For OEMs that require 8-core signal transmission, vibration-resistant locking, waterproof cable-to-cable connection, fast field installation, and customized daisy chain harness architecture, this connector provides a more integrated and reliable solution than loose connectors and on-site manual wiring.

Why an M25 8 Pin Waterproof Connector Matters

In industrial equipment, an 8 pin connector usually means much more than “two extra wires.” It often corresponds to higher-value signal architectures such as differential encoder output, SSI absolute feedback, 24V digital I/O, RS485 communication, CAN bus, and project-specific control lines. That is why this product should be positioned as a rugged waterproof circular connector for distributed signal and communication networks, rather than as a generic 8 pin plug.

Who Is Most Likely to Use This M25 8 Pin Daisy Chain Connector?

1. Encoder, Motion Control, and Servo Feedback Equipment Manufacturers

In this segment, 8 pin interfaces are commonly used for incremental encoder feedback, differential ABZ signals, SSI communication, direction setting, and zero-point programming. If the equipment operates in harsh environments such as outdoor machinery, mobile platforms, oil-contaminated areas, drag-chain routing, or high-vibration systems, a larger M25 self-locking overmolded connector can be more robust and practical than smaller-format interfaces.

Typical end-use products include AGV drive modules, servo motor feedback harnesses, industrial encoder systems, automatic doors, lifting platforms, and conveyor automation equipment.

• Baumer EN380.IL-B – Example of an 8 pin incremental encoder application.
• Baumer GM400 – Example of an 8 pin SSI absolute encoder application.
• Rockwell 2090-CFBM7DD-CEAA20 – Reference product for servo feedback cable systems.

2. Robotic End Effector, Electric Gripper, and Smart Actuator Manufacturers

For robotic grippers, electric actuators, and intelligent end-effectors, an 8 pin interface often represents 24V power, ground, digital inputs, digital outputs, status signals, enable signals, and alarm feedback. These customers are usually not looking for a loose connector only. They want a fully overmolded cable assembly that can go directly into the BOM of the machine, reducing assembly complexity, field wiring errors, and waterproofing risks.

• SCHUNK Co-act EGP-C 40-N-N-M1013 – Reference application for 24V plus digital I/O style 8 pin interface design.

3. Energy Storage, Solar, Outdoor Controller, and Environmental Monitoring Equipment Manufacturers

In energy storage systems, PV trackers, environmental sensors, and distributed outdoor control units, the real value of a daisy chain connector is not just connection—it is stable RS485 or CAN communication, compact 24V power distribution, simplified field wiring, fast replacement, and long-term outdoor sealing reliability.

This is one of the most commercially relevant target markets for an M25 8 pin self-locking overmolded daisy chain connector.

• SolarEdge ONE Controller – Target scenario for RS485-based environmental or controller daisy chain networks.
• Growatt SPH / SPA Series – Target scenario involving RS485 and CAN communication in energy systems.
• Applied Motion 3004-385 – Direct daisy chain cable reference for RS485 / CANopen applications.

What Does an 8 Pin Signal Connector Actually Mean?

A. 8 Pin for Differential Incremental Encoder Feedback

In one common architecture, 8 pins are used for A+, A-, B+, B-, Z+, Z-, power supply, and ground. This is not simple low-level switching. It is a higher-value signal interface intended for noise-resistant, long-cable, motion-related feedback transmission.

Common industries include AGV drive wheels, servo systems, motor control modules, positioning devices, automated transport systems, and precision motion machinery.

B. 8 Pin for SSI or Absolute Encoder Communication

Another typical 8 pin signal architecture is GND, UB, Clock+, Clock-, Data+, Data-, Zero Set, and Direction Set. In this case, the connector is not just carrying “signals”; it is part of an absolute position feedback interface for motion or orientation control.

Typical equipment includes rotary tables, gimbal systems, motorized actuators, outdoor electromechanical positioning modules, and industrial motion control units.

C. 8 Pin for 24V Power + RS485/CAN + Auxiliary Control

For distributed field devices, an 8 pin arrangement can also combine 24V positive, 24V negative, ground, RS485 A/B, CAN_H, CAN_L, and spare control or identification lines into a single sealed harness interface.

For customers in solar, storage, smart equipment, and outdoor control systems, this is highly attractive because it simplifies cable architecture, reduces field assembly time, minimizes miswiring, and supports cleaner daisy chain topologies.

Why 8 Pin Instead of 6 Pin?

A 6 pin connector is often used for more basic signal structures such as A, B, Z, power, and ground. It is suitable for simpler control logic, shorter cable runs, or applications where differential transmission and functional expansion are not critical.

An 8 pin connector provides more room for differential encoder signals, SSI interfaces, 24V plus digital I/O, 24V plus RS485/CAN, spare lines, and project-specific signal mapping. In commercial terms, 8 pin usually means better integration flexibility, stronger anti-interference capability, and more scalable system architecture.

That is the right way to market this product: not simply as “more pins,” but as better signal definition, cleaner wiring architecture, and easier system integration.

Why Choose an M25 Self-Locking Structure?

• Better suited for overmolded cable assemblies: The M25 form factor allows more design freedom for sealing, shielding transitions, branch routing, and project-specific overmold structure.
• More robust in outdoor and vibration-heavy equipment: Compared with smaller interfaces, M25 is better positioned as a rugged machine-level cable interface.
• More suitable for daisy chain topology: Especially for one-in one-out, one-in two-out, trunk-plus-branch, and customized harness layouts.
• More attractive to OEMs purchasing complete assemblies: Customers often prefer a connector + cable + overmold + pin mapping solution rather than loose connector parts only.

Why OEMs Prefer Overmolded Daisy Chain Cable Connectors

• Reduces on-site stripping, soldering, crimping, and assembly labor.
• Improves overall sealing reliability by reducing intermediate joints and manual wiring errors.
• Supports cleaner RS485, CAN bus, and distributed I/O field wiring.
• Makes maintenance and field replacement easier and faster.
• Supports project-specific coding, color identification, branch marking, and anti-mismatch design.

Customization Options from LLT Connector

• M25 self-locking male / female mating structure customization.
• 8 pin signal definition for encoder, SSI, RS485, CAN bus, or digital I/O architecture.
• Single-ended, double-ended, one-in one-out, Y-type, small-Y, big-Y, and trunk-plus-branch daisy chain cable layouts.
• Cable material customization including PUR, PVC, drag-chain cable, oil-resistant cable, weather-resistant cable, and shielded cable.
• Overmold structure, branch length, labels, colors, coding, and anti-error mating features.
• Project-specific sealing, vibration resistance, and machine interface optimization.

Best-Fit Customer Segments for This Product

• Industrial encoder and servo feedback cable assembly manufacturers.
• AGV / AMR drive module and electric steering system manufacturers.
• Robotic gripper, electric actuator, and smart end-effector manufacturers.
• Energy storage controller, PV tracker, inverter peripheral, and outdoor sensor network manufacturers.
• Mobile machinery, agricultural equipment, outdoor cabinet, and distributed industrial control system manufacturers.

FAQ

Is this M25 8 pin connector mainly for power transmission?

No. This model should primarily be positioned as a signal, communication, and distributed I/O waterproof circular connector, rather than as a high-current power connector.

What are the best SEO keywords for this product page?

Recommended core keywords include: waterproof connector, circular connector, 8 pin connector, self-locking connector, daisy chain connector, overmolded cable assembly, RS485 connector, CAN bus connector, encoder connector, distributed I/O connector.

What is the real commercial value of this product?

The value is not just the connector itself. The real value is a ready-to-integrate machine-level cable interface for 8-core signal architecture, outdoor sealing, and system-friendly daisy chain wiring.

Looking for a rugged M25 8 pin waterproof circular connector for encoder feedback, RS485 communication, CAN bus, or distributed I/O daisy chain systems? LLT Connector can customize the connector structure, cable specification, overmold design, branch architecture, and project-specific pin assignment for your equipment platform.
