LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector

Circular Connector L20 Threaded Model: LLT-L20-15004X0001
L20 / Threaded LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

L20

Pin

4pin

IP Rating

IP68

Rated Current

15A

Rated Voltage

300V

Product Series

L20

Wiring Type

Screw

Interface Type

2 to 4 pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

LLT L20-X 4pin waterproof connector is perfect for outdoor LED lighting, security equipment, industrial automation, agricultural machinery, communications devices, and various wiring projects requiring stable and waterproof connections. Sturdy structure, easy installation, excellent sealing performance, and long‑term reliability make it the preferred connector for professional engineering and mass production applications. - X‑shaped quick‑lock design for easy, secure, and tool‑free assembly - High‑precision gold‑plated contacts for low resistance, stable transmission, and long service life - Durable flame‑retardant housing with strong resistance to impact, aging, and temperature changes - Wide operating temperature range supports long‑term reliable performance indoors and outdoors

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector gallery image 1

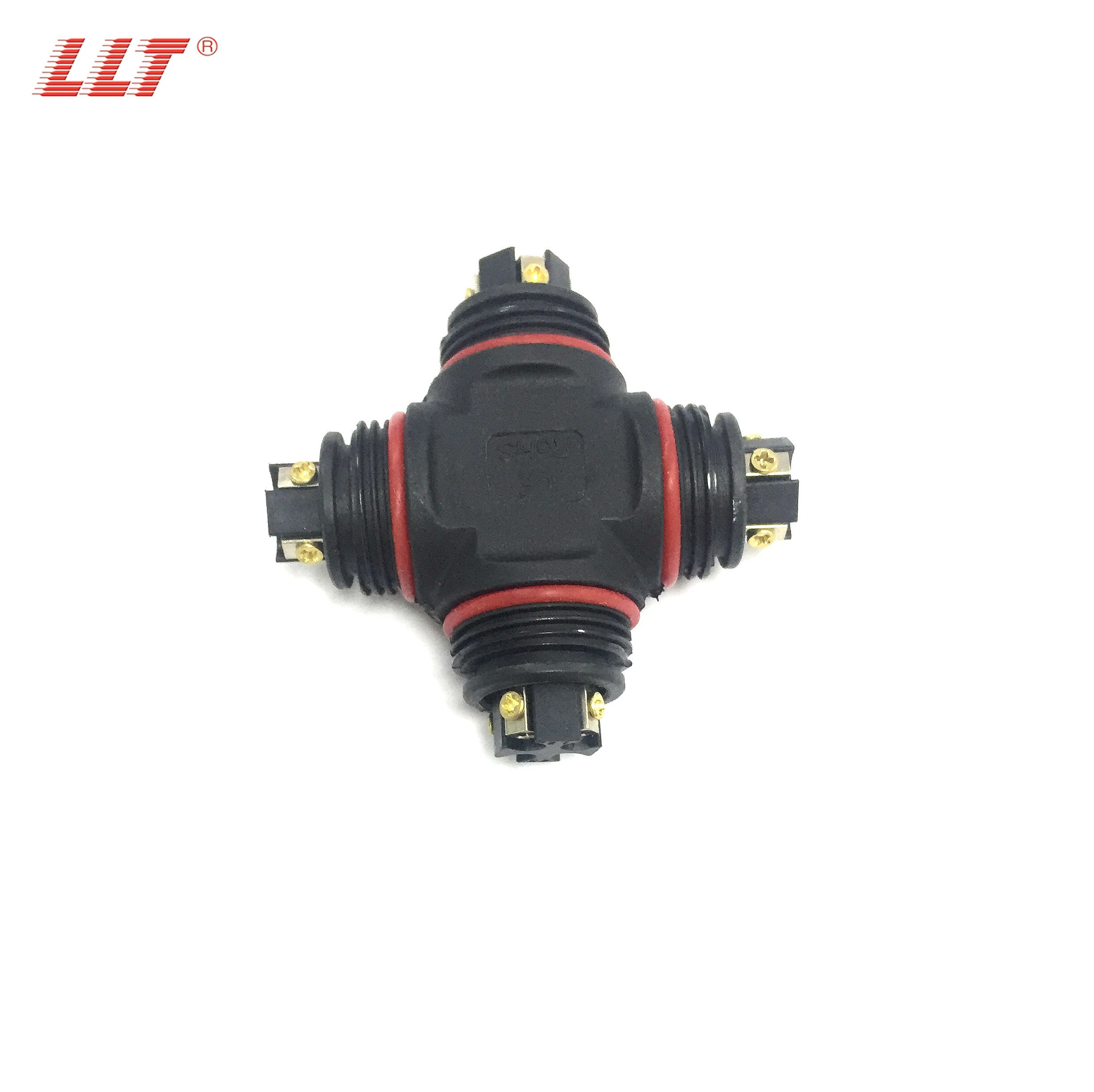

LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector gallery image 2

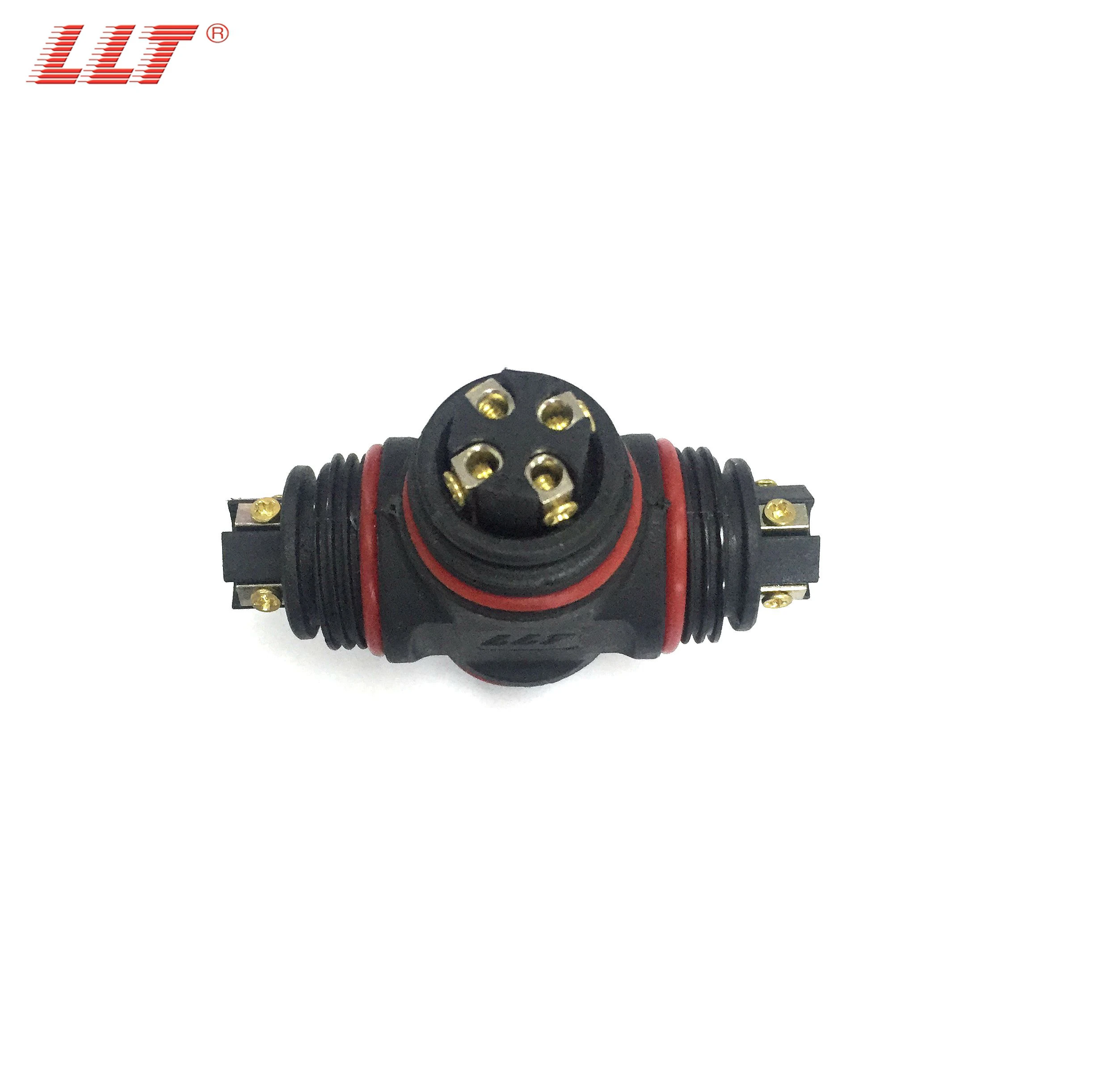

LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector gallery image 3

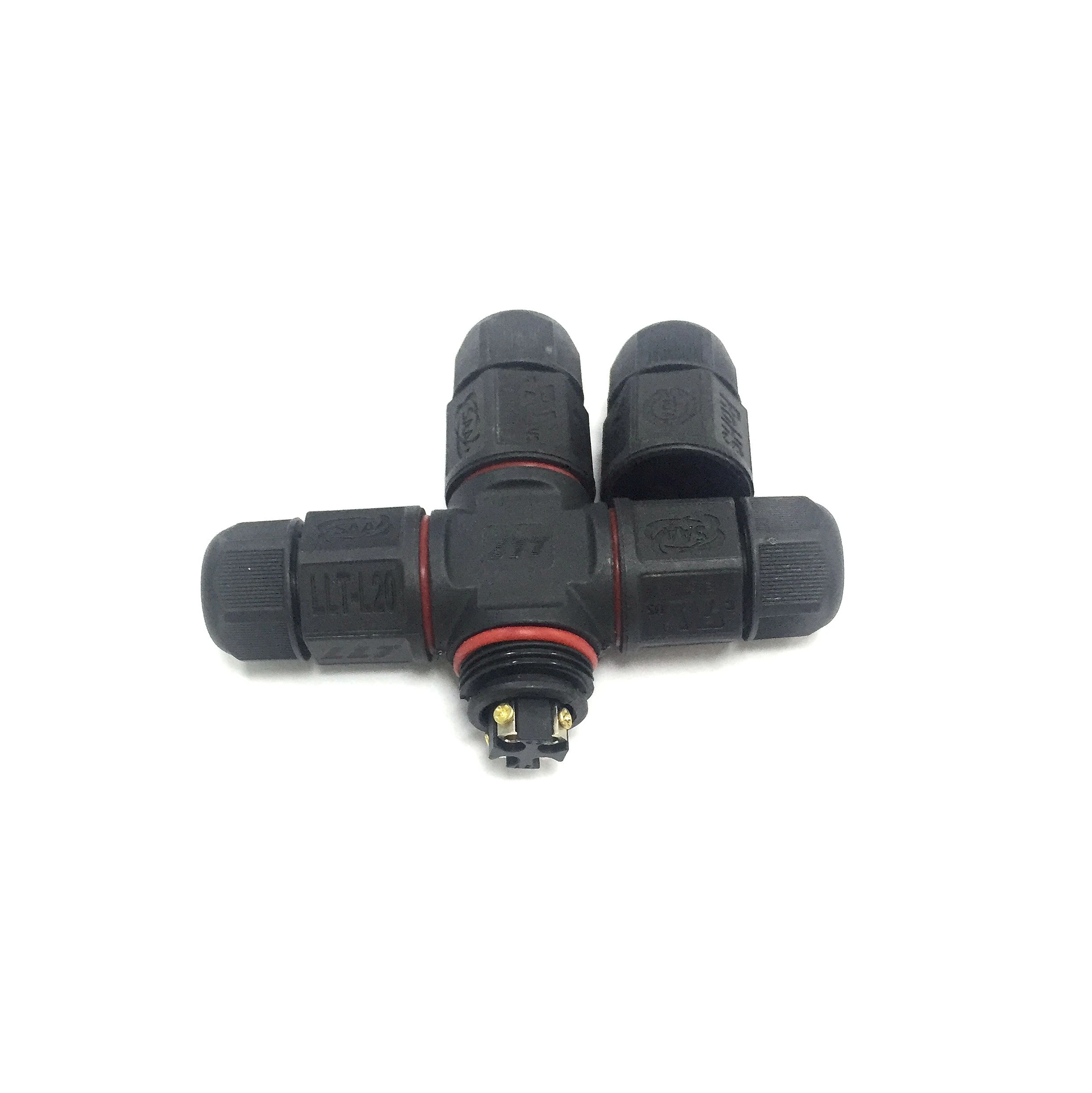

LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector gallery image 4

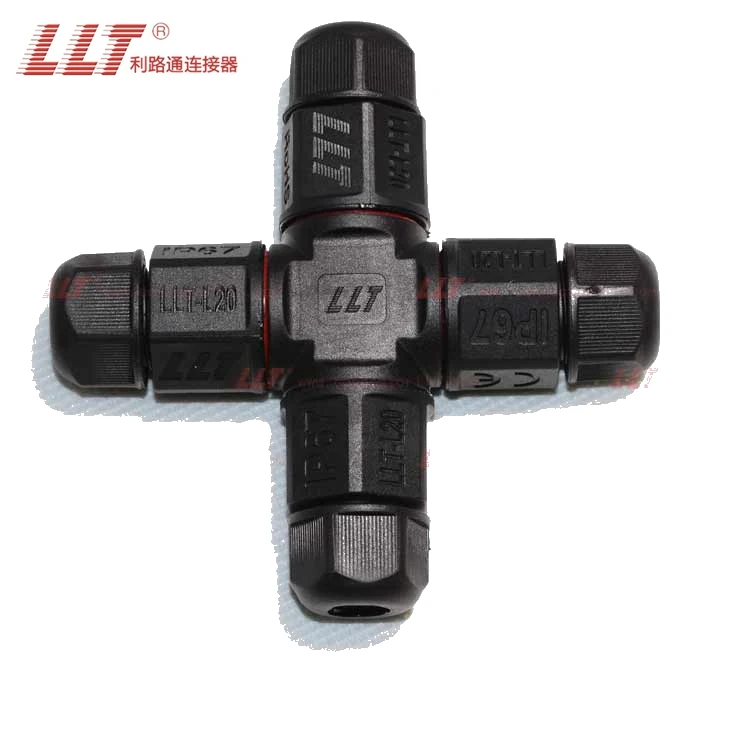

LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector gallery image 5

Related Products

Compare nearby references in this family

M19 3+5 Pin Threaded Field-Wireable Waterproof Connector | 20A Hybrid Circular Connector for BLDC Servo Motors, Robot Joints & 48V Drive Modules
M19 3+5 Pin Threaded Field-Wireable Waterproof Connector | 20A Hybrid Circular Connector for BLDC Servo Motors, Robot Joints & 48V Drive Modules M19 / Threaded
M25 8 Pin Self-Locking Waterproof Daisy Chain Connector with Overmolded Cable for RS485, CAN Bus, Encoder Feedback, and Distributed I/O
M25 8 Pin Self-Locking Waterproof Daisy Chain Connector with Overmolded Cable for RS485, CAN Bus, Encoder Feedback, and Distributed I/O M25 / Push-Lock
LLT 600V 35A IP68 2Pin M25 thread lock Electrical Waterproof Power Panel Mount Connector
LLT 600V 35A IP68 2Pin M25 thread lock Electrical Waterproof Power Panel Mount Connector M25 / Threaded
LLT 8pin M25 Electrical Strip Led Plug IP67 Waterproof Push Cable Connector for Solar Inverter
LLT 8pin M25 Electrical Strip Led Plug IP67 Waterproof Push Cable Connector for Solar Inverter M25 / Push-Lock

Technical FAQ

What should be confirmed before selecting LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector is currently configured around 2 to 4 pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 4way 4pin L20 Electrical Screw Wire IP68 Waterproof Power Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
