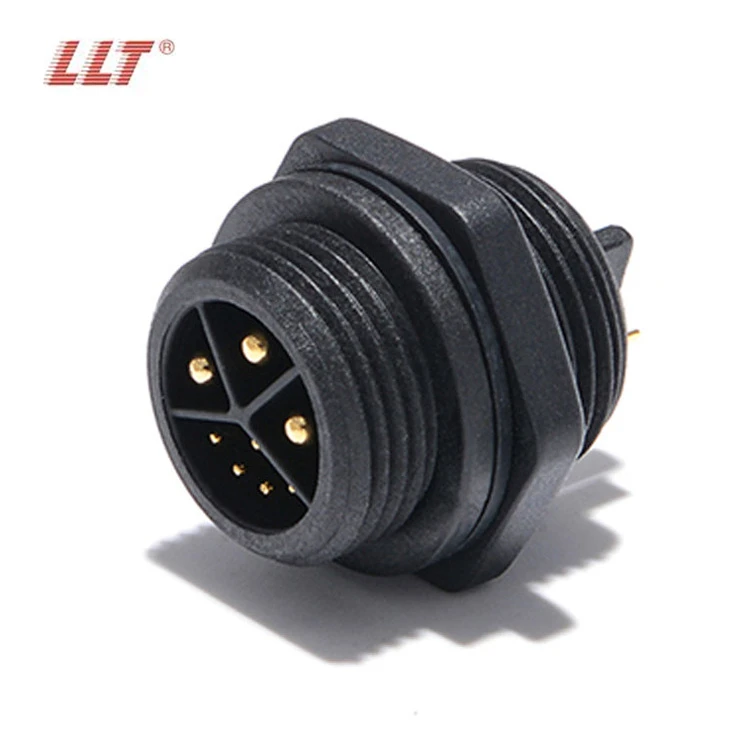

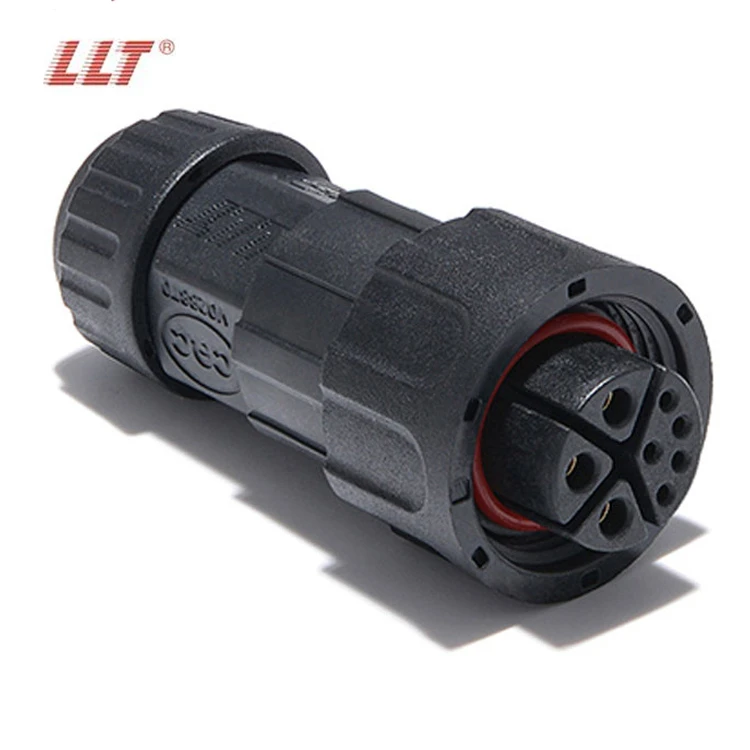

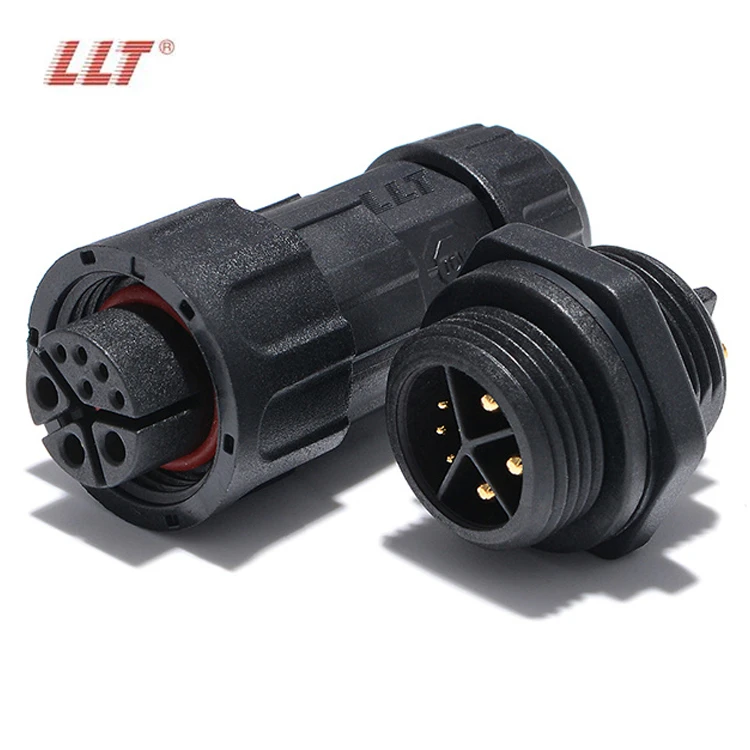

M19 3+5 Pin Threaded Field-Wireable Waterproof Connector | 20A Hybrid Circular Connector for BLDC Servo Motors, Robot Joints & 48V Drive Modules

The LLT M19 3+5 pin threaded waterproof connector is a field-wireable circular connector designed for applications that need three power contacts for motor drive and five low-voltage contacts for sensor feedback, communication, or safety signals. It is especially well aligned with compact BLDC/PMSM drive modules, robot joint actuators, AGV/AMR drive wheels, pumps, fans, valves, and other sealed outdoor electromechanical nodes.

Why 3 Power + 5 Signal Is a High-Value Pin Layout

A 3+5 hybrid layout is not a random pin count. In real electromechanical products, it often maps directly to one of the following wiring architectures:

This makes the connector highly suitable for customers who want to replace two interfaces (a motor power plug + a small signal plug) with one sealed circular connector.

Most Precise Target Applications for This M19 3+5 Pin Waterproof Connector

1) Embodied AI and Robot Joint Actuators

This is one of the strongest target sectors. Humanoid robots, quadrupeds, dexterous mobile platforms, and compact joint modules all need dense interconnects for motor power, position feedback, temperature sensing, and communication. A threaded, field-wireable M19 connector is attractive when customers want:

• sealed cable-to-module connection in dusty or damp industrial environments,
• fast field maintenance without overmolded harness replacement,
• one compact connector for motor phase + low-voltage signal integration,
• more robust retention than loose JST-style signal plugs in moving assemblies.

2) AGV / AMR Drive Wheels and Mobile Robot Motion Modules

Another highly relevant segment is the 24V to 48V drive ecosystem used in AGV/AMR wheel modules, compact servo drives, mobile robot traction nodes, and warehouse automation chassis. In these products, the connector often needs to carry: three motor phases plus hall feedback, encoder support, RS485/CAN communication, temperature monitoring, or brake-related logic.

3) Pumps, Fans, Valves, and Outdoor Mechatronic Subassemblies

For liquid cooling loops, outdoor pump stations, smart ventilation modules, thermal management units, and intelligent valve actuators, a 3+5 hybrid circular connector is often more practical than a large pure-power connector. It helps combine motor drive conductors and low-voltage control lines while keeping the installation waterproof and serviceable.

4) Better Fit for ESS Peripheral Motion Modules Than Battery Main Power Interfaces

For energy storage and power electronics customers, this connector is better positioned for coolant pumps, fan modules, electric valves, outdoor tracking actuators, or other sealed low-voltage three-phase motion nodes, rather than for cell-level or pack-level high-current main power interconnection.

What the 5 Signal Pins Usually Carry

Customers searching for a 3+5 pin waterproof connector are usually not looking for “five random signals”. They are looking for a connector that matches a real electromechanical control topology.

Why Choose a Threaded Field-Wireable Version

Unlike overmolded cable assemblies, this M19 connector is built for customers who prefer to solder their own cable in-house and keep control over cable type, wire gauge, shielding strategy, and field servicing.

• Flexible cable sourcing: match the exact motor cable, robot cable, drag-chain cable, TPU/PUR cable, or shielded signal cable required by the project.
• Lower prototype cost: ideal for early-stage motion module development and custom equipment integration.
• Faster maintenance: replace or re-terminate damaged cables on site instead of replacing a full overmolded harness.
• Better localization: useful for OEMs and research teams that assemble motors, gearboxes, and controllers in-house.

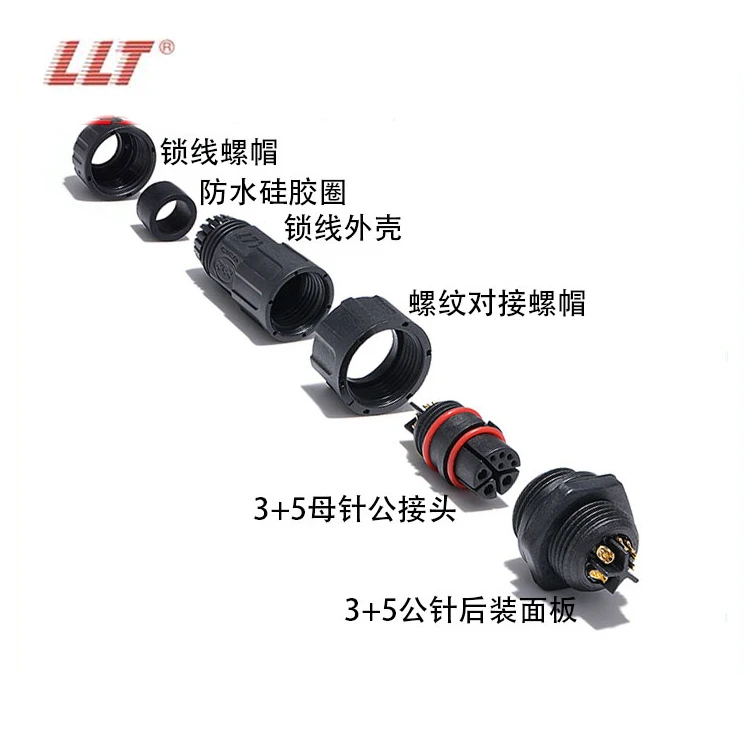

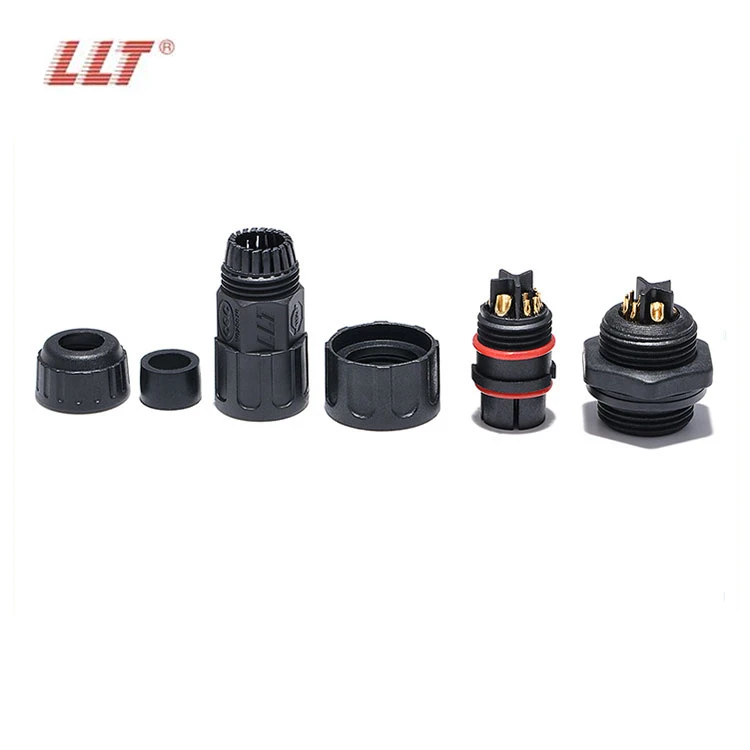

Recommended Cable Lock Silicone Seal Selection

For a threaded assembly waterproof connector, the cable lock silicone seal should be selected by actual cable jacket outer diameter, not just by conductor cross-section. As a practical engineering rule, choose a seal whose bore is slightly smaller than the real cable OD so the rear compression structure forms stable radial sealing.

Final seal selection should always be confirmed against the connector’s rear assembly dimensions, cable jacket hardness, and the customer’s required ingress protection target.

Why This Connector Matters to Target Customers

Customers in robotics, motion control, and intelligent equipment are not only buying a waterproof connector. They are buying:

• a cleaner motor-and-signal interconnect architecture,
• a more serviceable field wiring solution,
• a more compact interface for distributed motion nodes,
• and a more reliable threaded sealing interface for outdoor or contamination-prone environments.

That is why this product should be marketed as a hybrid power + signal circular connector for sealed motion systems, not as a generic 8-pin industrial connector.

Official Example Platforms and Potential Target Customers

The following official links are included to help B2B buyers immediately understand the type of motion systems, robot platforms, and drive modules this connector aligns with. These are target customer references, not connector competitor links.

• Unitree GO-M8010-6 Joint Motor — integrated robot joint motor platform
• Unitree H1 Humanoid Robot — multi-joint humanoid robot platform
• Unitree G1 Humanoid Robot — compact embodied AI humanoid platform
• UBTECH Walker S1 — industrial humanoid robot platform
• AGIBOT D1 Pro — quadruped robot with precision joint motors
• MOONS' MSD Driving Wheel — AGV/AMR drive module family, including model MSD150-10-040-20GSL-B
• maxon EC frameless DT 85 L (PN 783327) — integrated frameless BLDC motor for high-integration motion systems
• Nidec 5700 Brushless DC Motor Series — pumps, valves, automation, robotics, and motion subsystems

Suggested Short Positioning Statement

LLT M19 3+5 Pin is a threaded, field-wireable waterproof circular connector built for three-phase motor power + five-channel low-voltage feedback/communication. It is an excellent fit for robot joint actuators, AGV drive wheels, BLDC pumps and fans, and sealed 24V/48V motion modules that need a compact, maintainable, and application-driven hybrid interconnect.
