M12 Front Panel 3Pin Push Lock Connector

M12 Front Panel 3Pin Push Lock Connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP68, 10A current range, 3 Pin pin layout. Termination direction is soldering, which should be checked against the actual harness build.

Waterproof Circular Connectors M12 Push-Lock Model: LLT-M12
M12 / Push-Lock M12 Front Panel 3Pin Push Lock Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

φ12.8

Pin

3 Pin

IP Rating

IP68

Rated Current

10A

Rated Voltage

300V

Product Series

M12

Wiring Type

Soldering

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Feature: * Multi pin optional: 2~24pin * IP67 rating, ensure your safety (waterproof & shockproof & dustproof) * Certificated by UL, CE, TUV, CQC, RoHS * PA66 material, suitable for harsh environment (antiflaming & antioxidant) * Free combination, field assembly or molded with cable, male/female/socket. * After-sale guarantee, 1 years warranty * Quality guarantee, full inspection of incoming materials, and at least 3~6 full inspections during the production process according to field assembly series or molded with cable series

Application Fit

Typical application directions

  • Outdoor automation modules, lighting systems, and distributed control boxes
  • Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

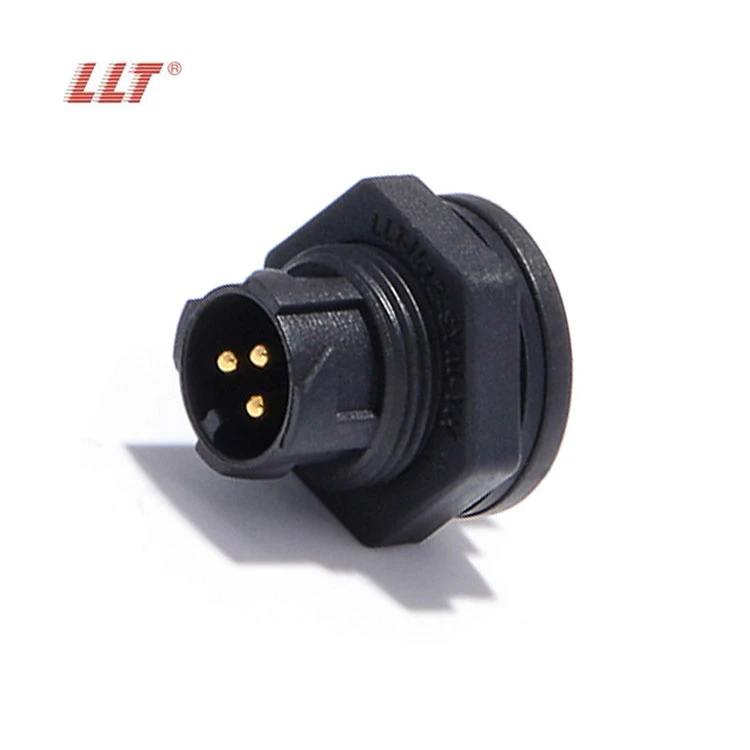

M12 Front Panel 3Pin Push Lock Connector gallery image 1

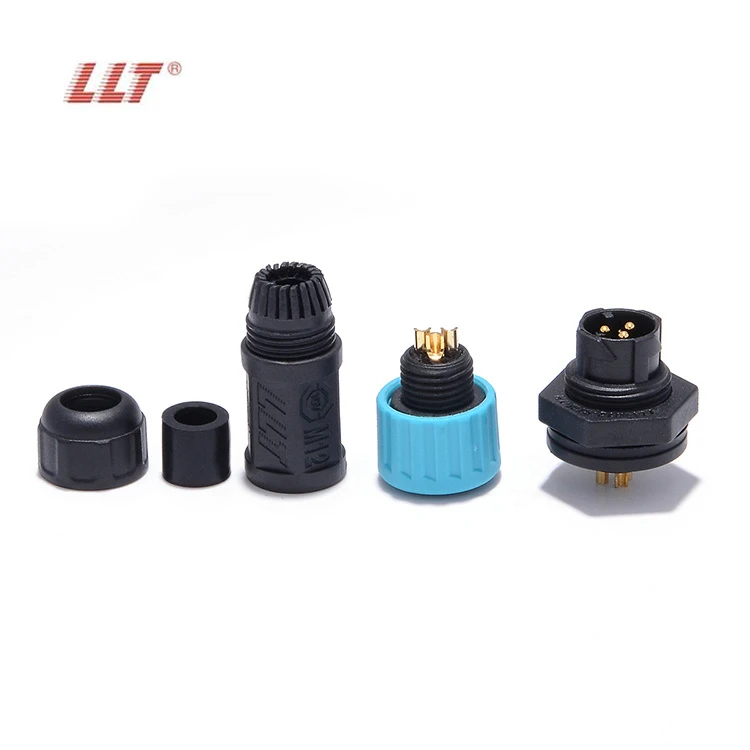

M12 Front Panel 3Pin Push Lock Connector gallery image 2

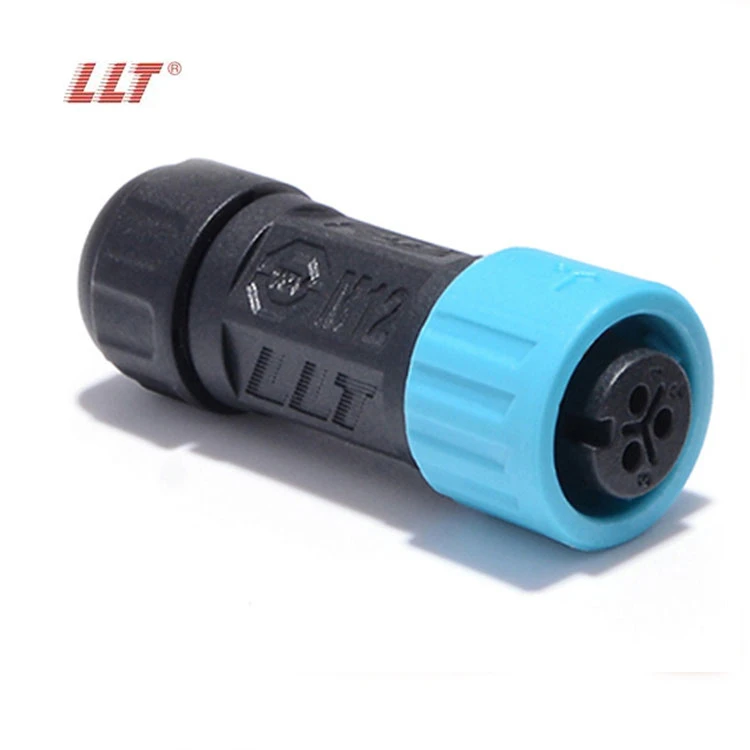

M12 Front Panel 3Pin Push Lock Connector gallery image 3

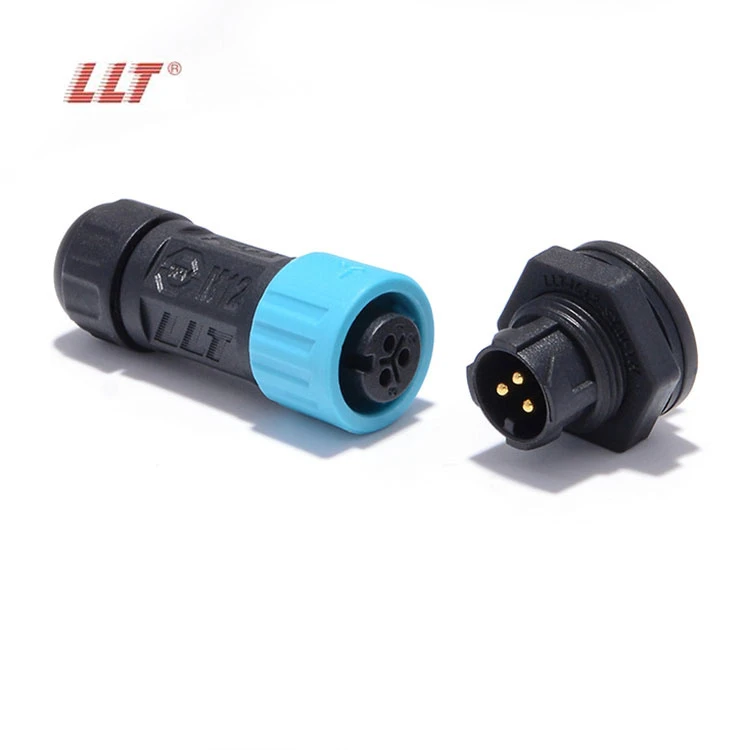

M12 Front Panel 3Pin Push Lock Connector gallery image 4

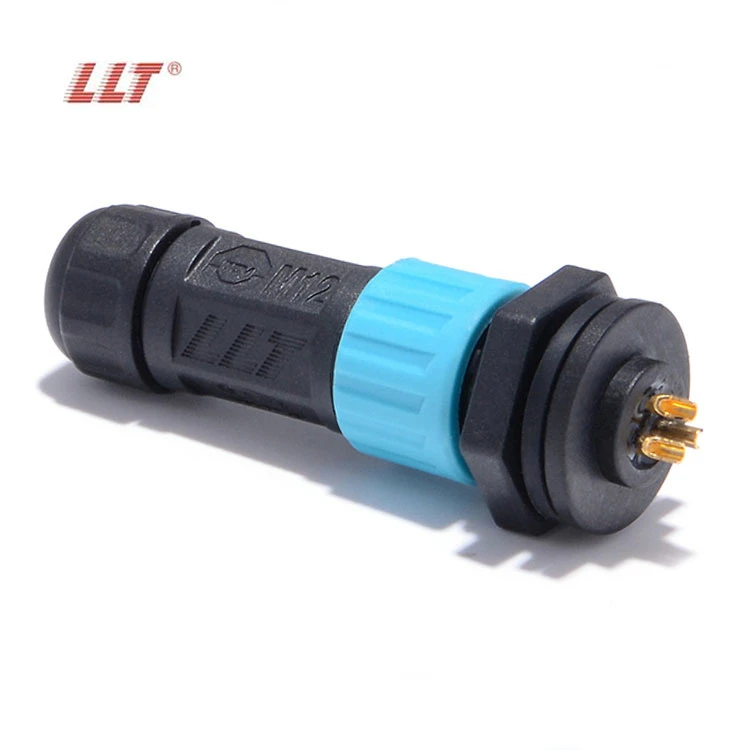

M12 Front Panel 3Pin Push Lock Connector gallery image 5

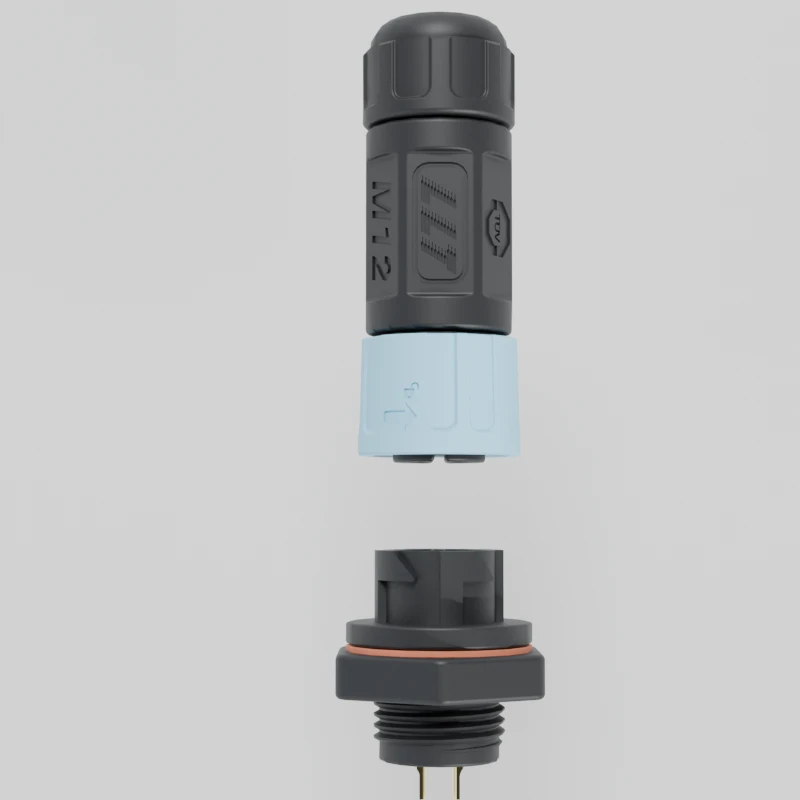

M12 Front Panel 3Pin Push Lock Connector gallery image 6
M12 Front Panel 3Pin Push Lock Connector gallery image 7
