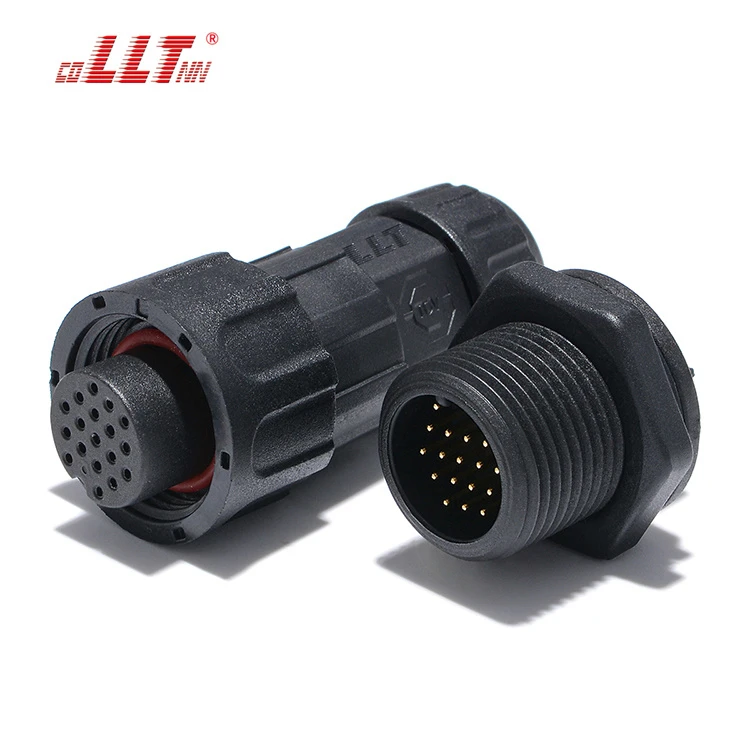

LLT M19 Power Signal Waterproof Circular Connectors 18 Pin For Outdoor Electronic Distribution
18 pin waterproof data connectors not only could be used for led application, also can be a good option for industrial equipment, control box,automatic signal transmission,stage lighting equipment etc. Cable to cable and Panel mount type connector are optional.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 11mm
Pin
2-18 Pin
IP Rating
IP68
Rated Current
5A
Rated Voltage
100V
Product Series
M19
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references

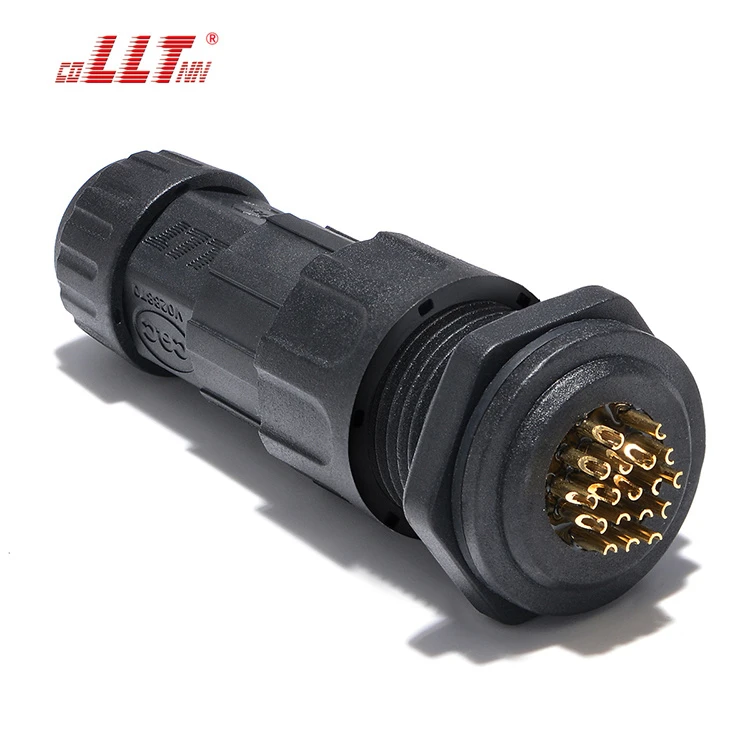

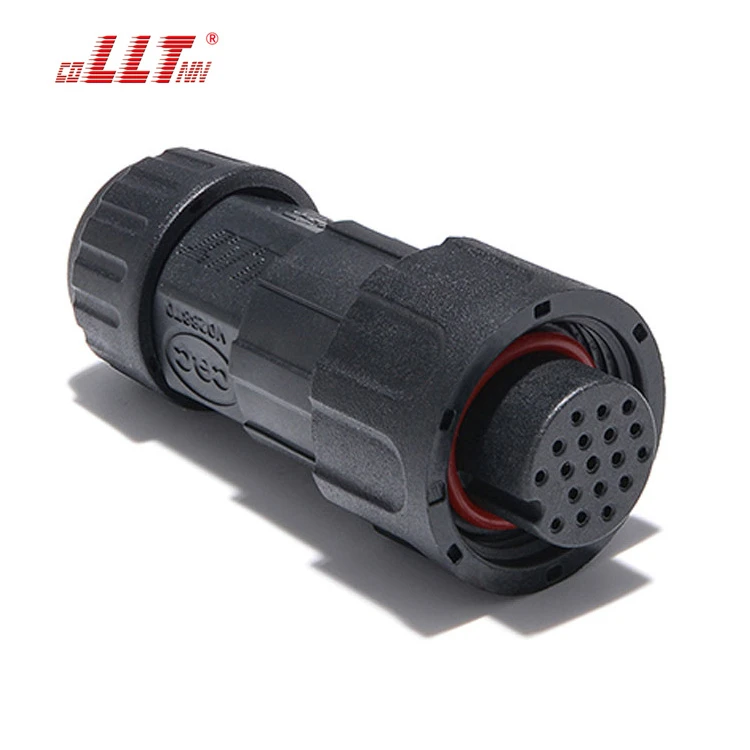

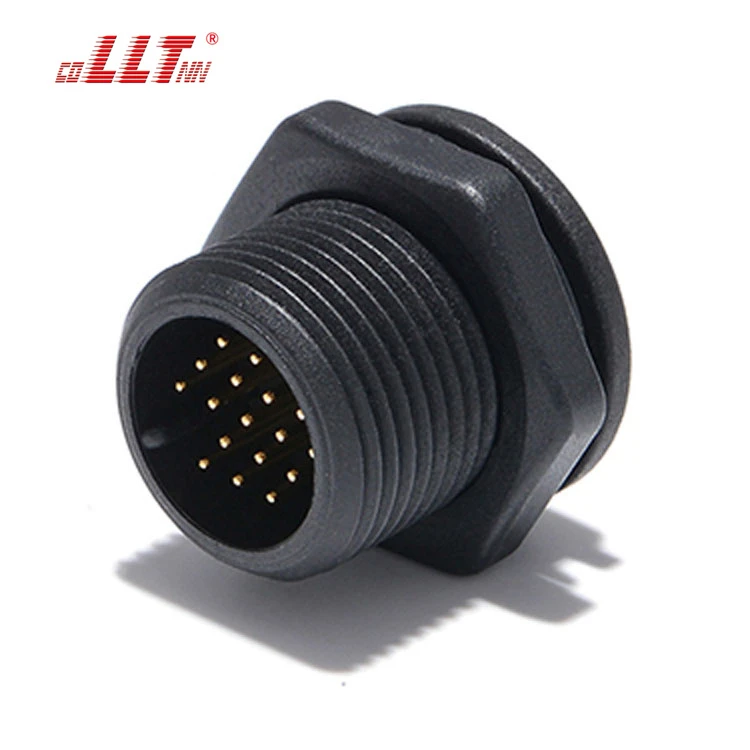

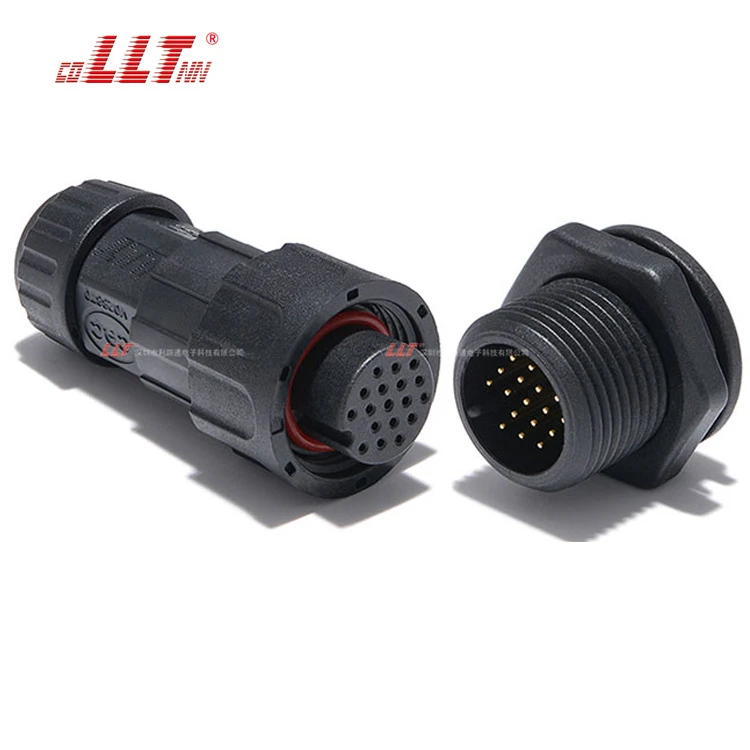

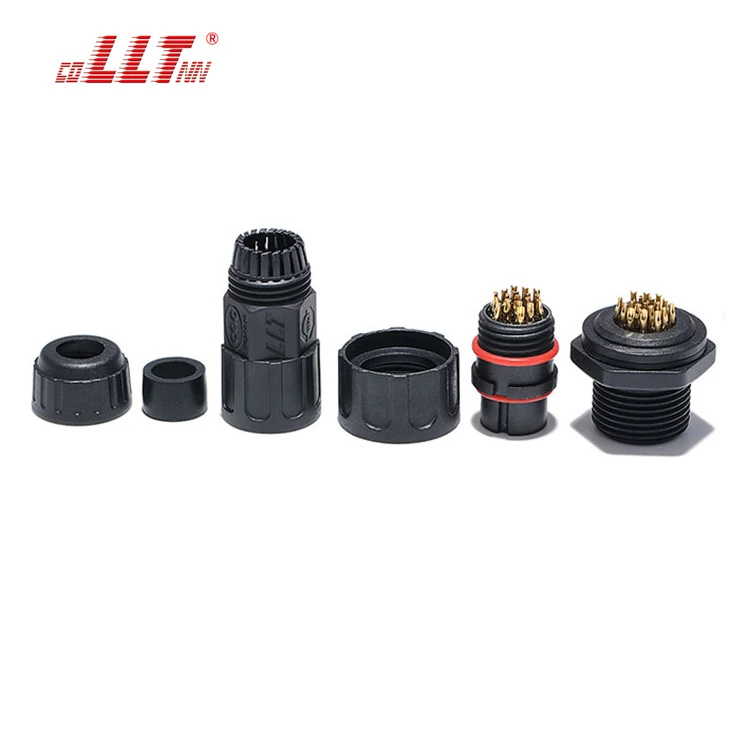

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M19 Power Signal Waterproof Circular Connectors 18 Pin For Outdoor Electronic Distribution?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M19 Power Signal Waterproof Circular Connectors 18 Pin For Outdoor Electronic Distribution?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
