LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light

Key Features Weatherproof Reliability: achieve IP68 waterproof rating, ensuring stable power delivery in harsh outdoor and industrial environments. High-Current Capacity: Supports up to 20A/600V, making it ideal for high-power LED drivers and outdoor lighting systems. Secure Screw Locking: Designed with a reliable screw-lock mechanism to prevent accidental disconnection from vibration or tension. Solderless Installation: Includes easy-to-use screw terminals for quick field assembly without the need for specialized soldering tools. Universal Fitment: Accommodates a wide range of cable diameters from 5.3mm to 11mm for maximum project versatility.

Waterproof Circular Connectors M19 Threaded Model: LLT-M19-20003F1051
M19 / Threaded LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light

Connector Gallery

Get My Contact

Click to reveal the dedicated contact linked to this product page.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 11mm

Pin

2-18

IP Rating

IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering or screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Description LLT M19 Waterproof Connector solves the common problem of power instability in outdoor lighting and industrial machinery. By providing a sealed IP68 connection, it protects your circuits from water ingress, dust, and corrosion, extending the lifespan of your expensive LED drivers and power supplies. Built for performance, this 2-4 Pin aviation plug set handles a robust 20A current and 600V voltage. The kit includes both male and female connectors with a high-precision screw-locking system. Technical versatility is a priority, as the connector supports multiple cable gland sizes ranging from φ6.3mm to φ11mm, ensuring a snug, watertight fit for various wire gauges. Model: M19 Series Connection Type: Male Plug/Female Socket Pair Cable wiring Method: Soldering type or Screw type Material: High-performance engineering plastic with gold-plated contacts Cable grommet: φ6.3, φ7.8, φ8.5, φ9.0, φ10.0,φ11 specifications for choice

Visual Gallery

Product details, interface geometry, and cable integration views

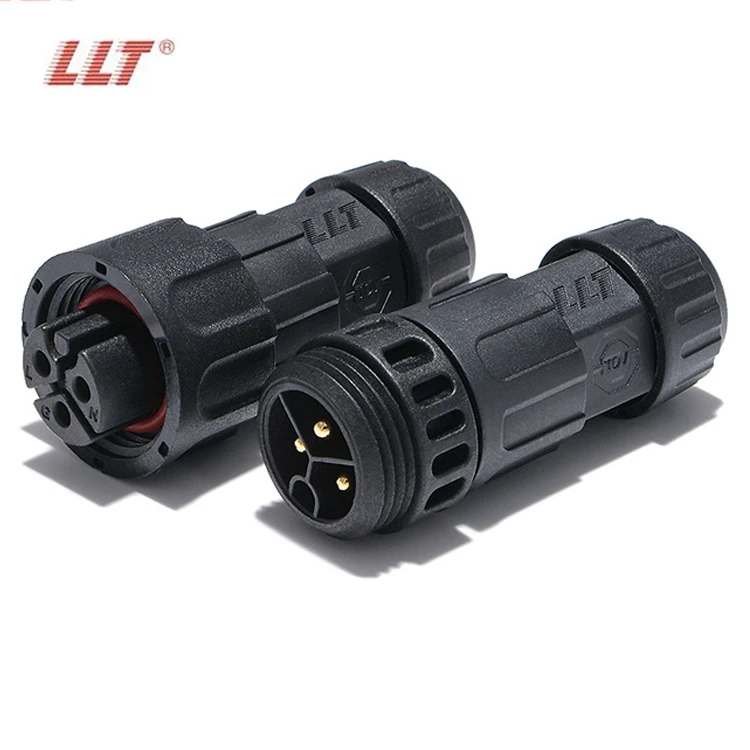

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 1

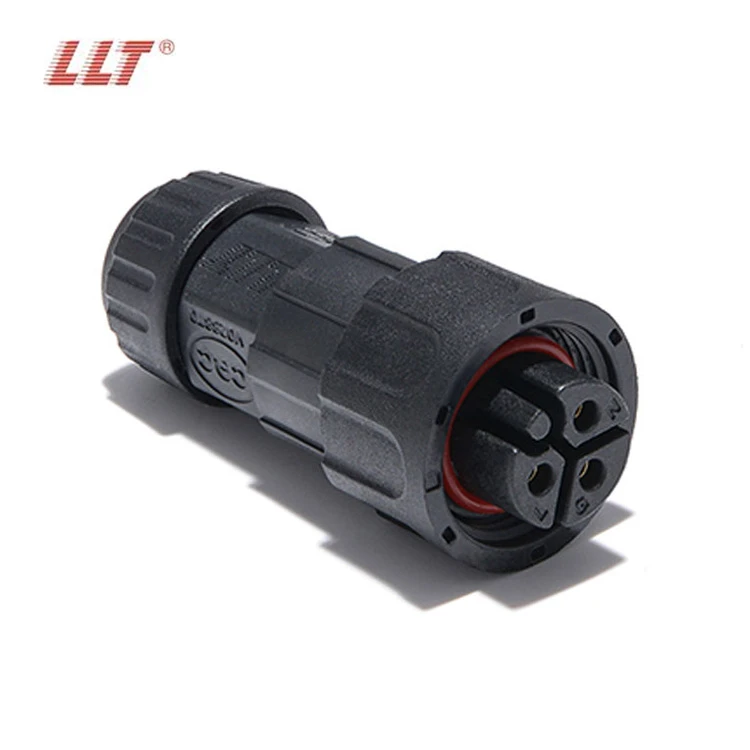

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 2

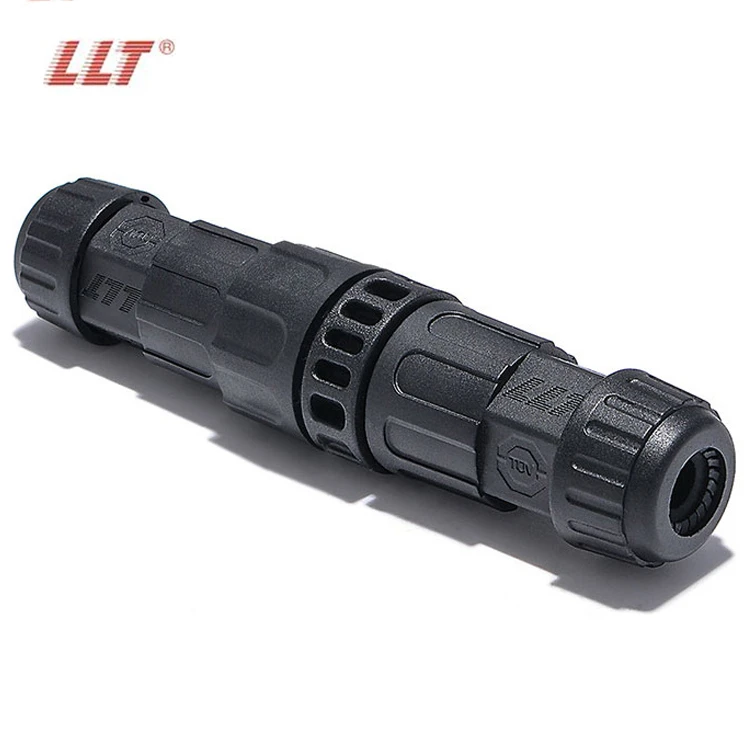

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 3

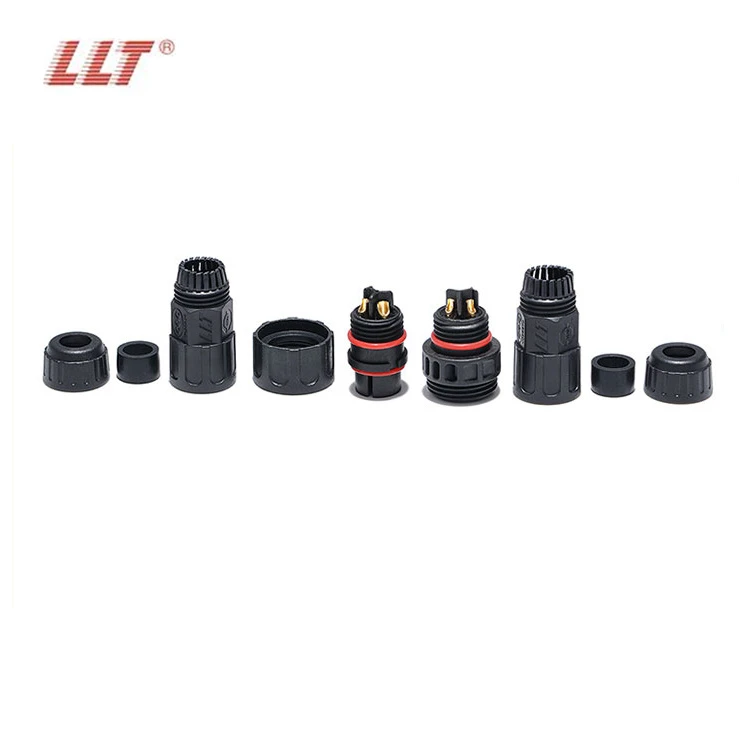

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 4

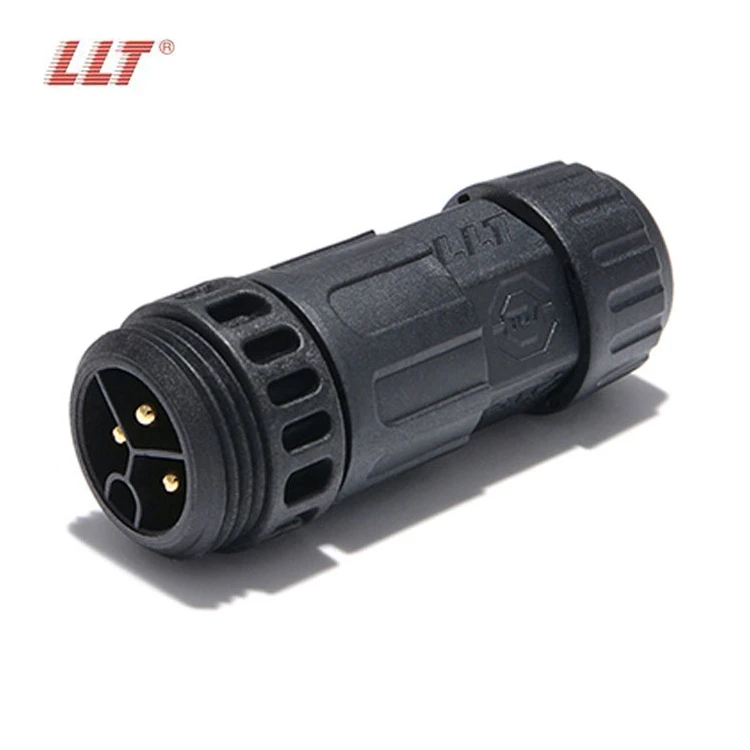

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 5

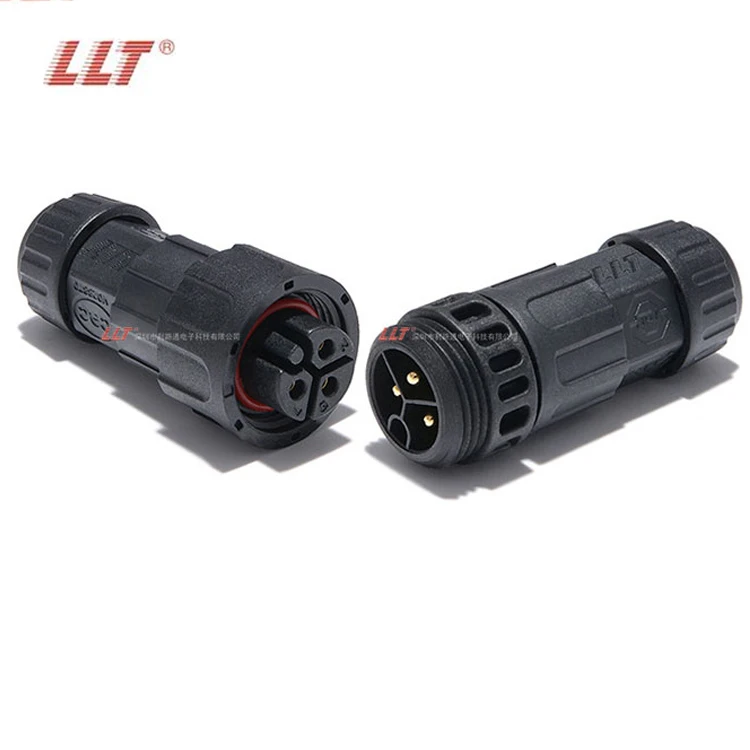

LLT M19 Circular Electrical Wire 2Pin 3 Pin Waterproof Male and Female Cable Connector for Led Garden Light gallery image 6
