LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector

Key Features Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in harsh outdoor, marine, or industrial environments. Solderless Installation: Features a convenient screw locking mechanism for quick field assembly without the need for specialized welding tools. High-Power Capacity: Engineered to handle up to 600V and 20A, making it ideal for high-demand LED lighting and industrial machinery. Extreme Durability: Constructed with high-quality PA66 Nylon and gold-plated brass contacts for superior corrosion resistance and conductivity. Versatile Cable Fit: Compatible with multiple cable diameters ranging from 6.3mm to 11mm via adjustable locking nut sizes.

Waterproof Circular Connectors M19 Bayonet Model: LLT-M19-20003F1071
M19 / Bayonet LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector

Connector Gallery

Get My Contact

Click to reveal the dedicated contact linked to this product page.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 11mm

Pin

2-4 Pin

IP Rating

IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering or screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Description Stop worrying about moisture-related short circuits in your outdoor electrical projects. The M19 Waterproof Aviation Connector provides a secure, industrial-grade seal for 3-pin power connections. Designed for ease of use, the solderless screw terminal design allows you to create professional-grade, weatherproof connections in minutes, saving significant time during field installations and repairs. This robust connector set is built for performance and longevity. It features a high-strength PA66 Nylon shell and gold-plated brass hardware to ensure optimal signal and power transmission. With an IP68 waterproof rating and a wide operating temperature range of -40°C to 105°C, it is the perfect solution for outdoor LED lighting, marine electronics, and industrial automation systems. Voltage/Current: 600V / 20A Pin Configuration: 2-18Pin (Male/Female set) Materials: PA/Nylon Housing, Gold-Plated Brass Pins Cable Range: Φ6.3mm to Φ11mm Interface: AC/DC Compatible

Visual Gallery

Product details, interface geometry, and cable integration views

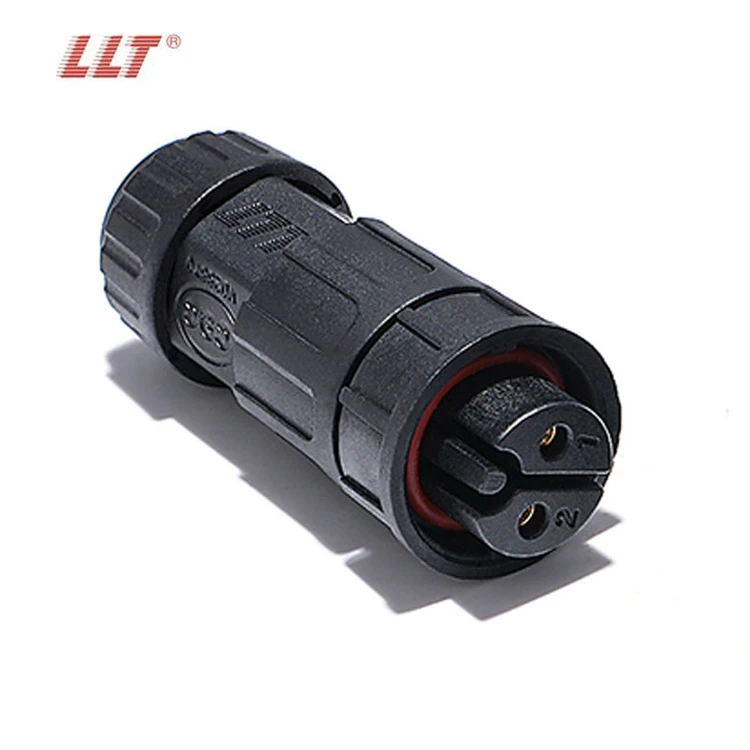

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 1

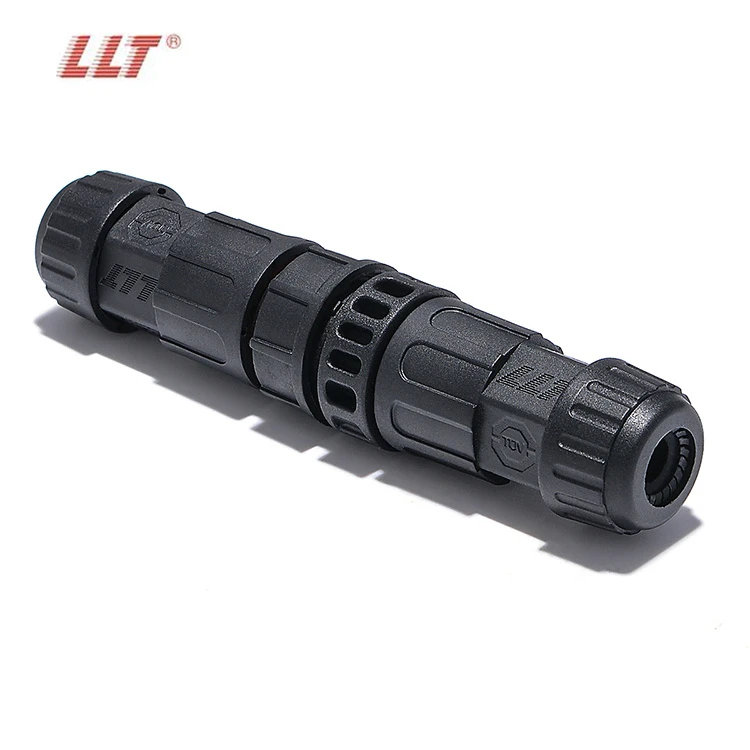

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 2

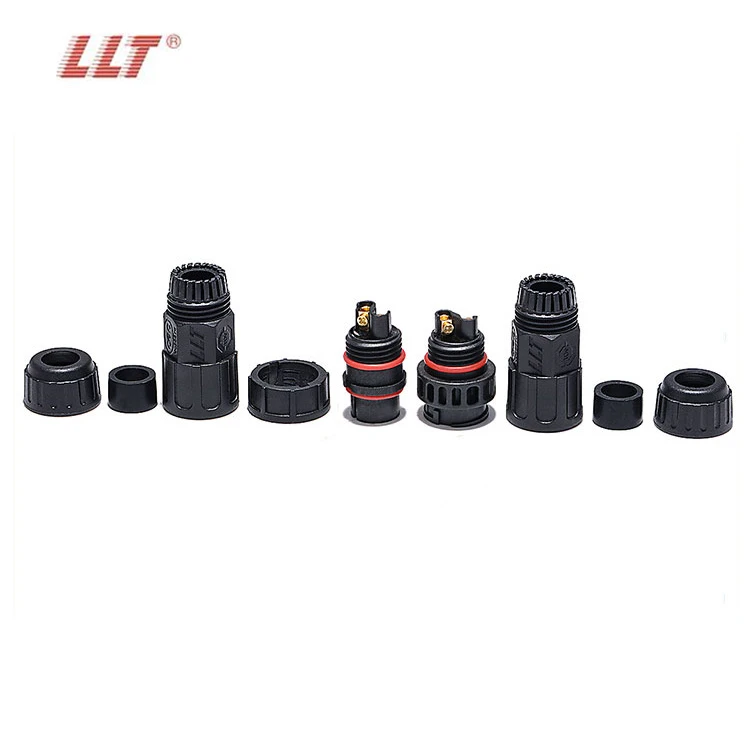

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 3

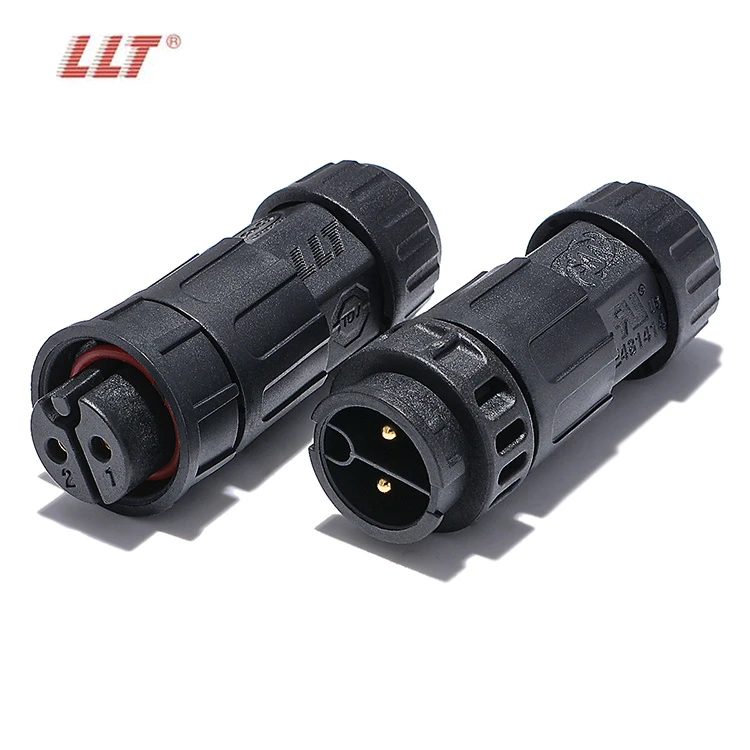

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 4

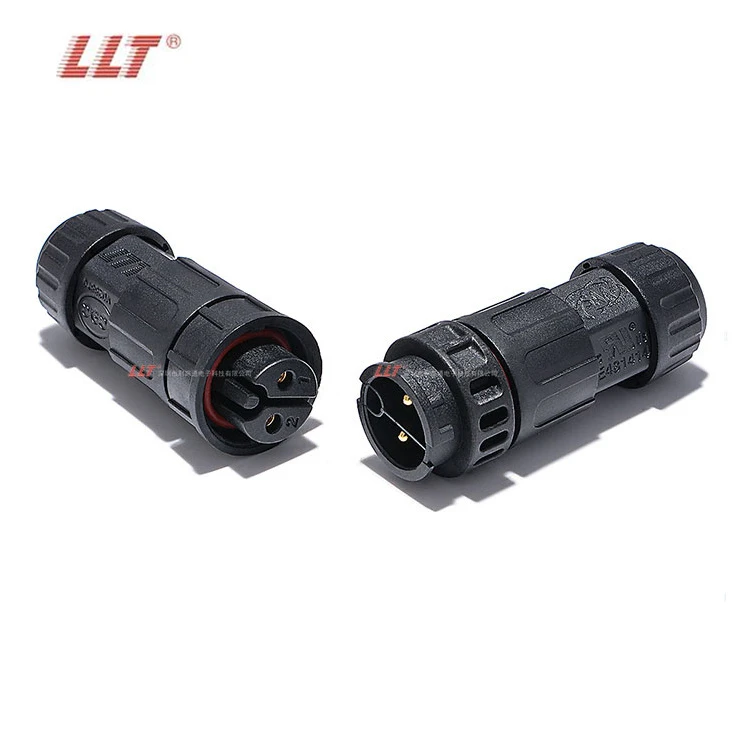

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 5

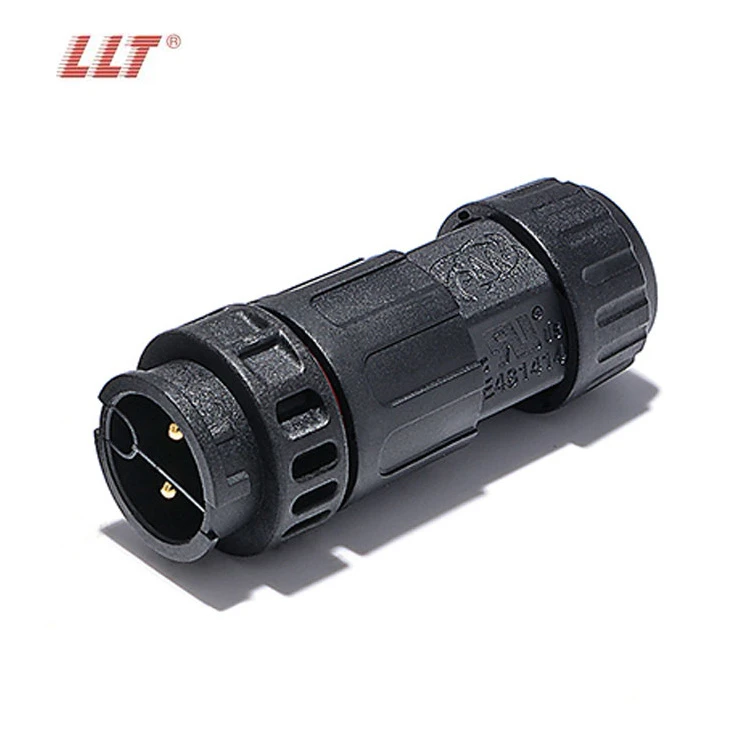

LLT M19 600V 20A Waterproof Aviation Connector 2 Pin Male & Female Plug Solderless Screw Terminal IP68 Weatherproof AC/DC Power Connector gallery image 6
