LLT M19 2 3 4 Pin Waterproof Connector IP68 Field Screw/Soldering Industrial Male Female Wire Plug
This waterproof connector have thread lock,bayonet and push lock,soldering cup and screw fixed for choice,have good waterproof performance up to IP68, the body material is nylon PA66,conductor material is brass gold plated. suitable for outdoor LED lighting,power,signal transfer, precision automation machinery, and so on
M19 / Bayonet
Get My Contact
Click to reveal the dedicated contact linked to this product page.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 11mm
Pin
2-4 Pin
IP Rating
IP68
Rated Current
20A
Rated Voltage
600V
Product Series
M19
Wiring Type
Soldering or screw fixed
Complies with product certification:
UL
TUV
CQC
CE
RoHS
REACH
System certification:
IATF 16949
ISO 13485
ISO 9001
ISO 14001
ISO 50001
ISO 45001
Product Overview
Connector application and structure details
Description
Stop worrying about moisture-related short circuits in your outdoor electrical projects. The M19 Waterproof Aviation Connector provides a secure, industrial-grade seal for 3-pin power connections. Designed for ease of use, the solderless screw terminal design allows you to create professional-grade, weatherproof connections in minutes, saving significant time during field installations and repairs.
This robust connector set is built for performance and longevity. It features a high-strength PA66 Nylon shell and gold-plated brass hardware to ensure optimal signal and power transmission. With an IP68 waterproof rating and a wide operating temperature range of -40°C to 105°C, it is the perfect solution for outdoor LED lighting, marine electronics, and industrial automation systems.
Voltage/Current: 600V / 20A
Pin Configuration: 2-18Pin (Male/Female set)
Materials: PA/Nylon Housing, Gold-Plated Brass Pins
Cable Range: Φ6.3mm to Φ11mm
Interface: AC/DC Compatible

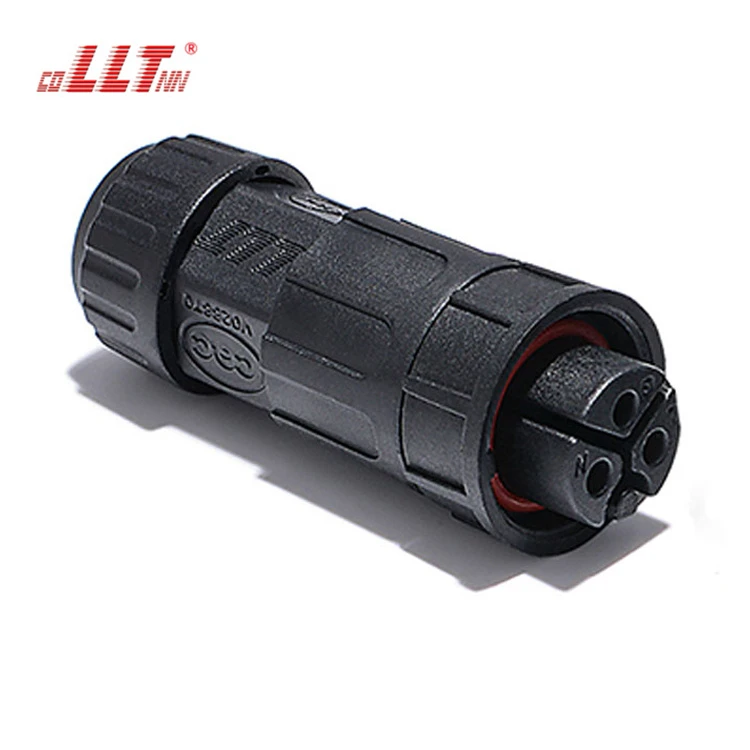

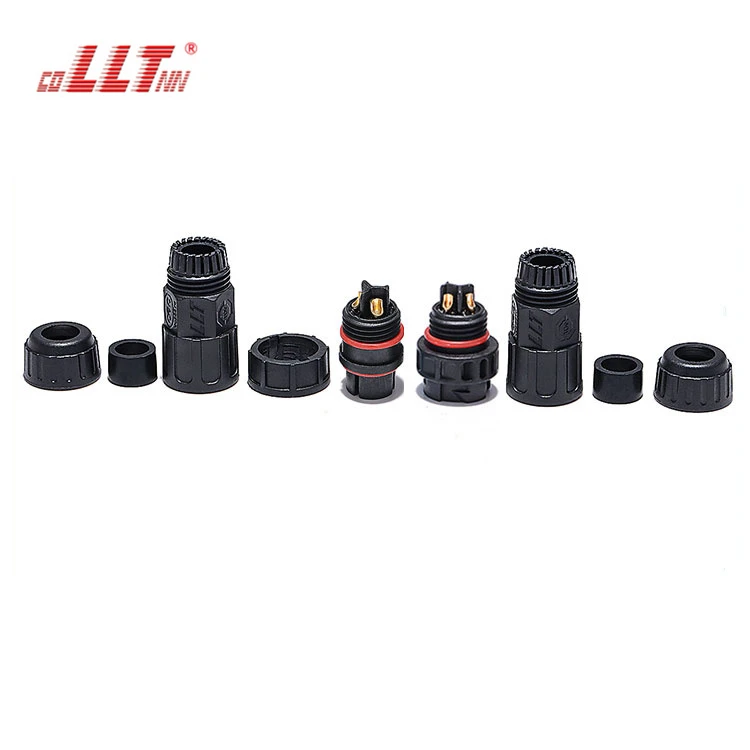

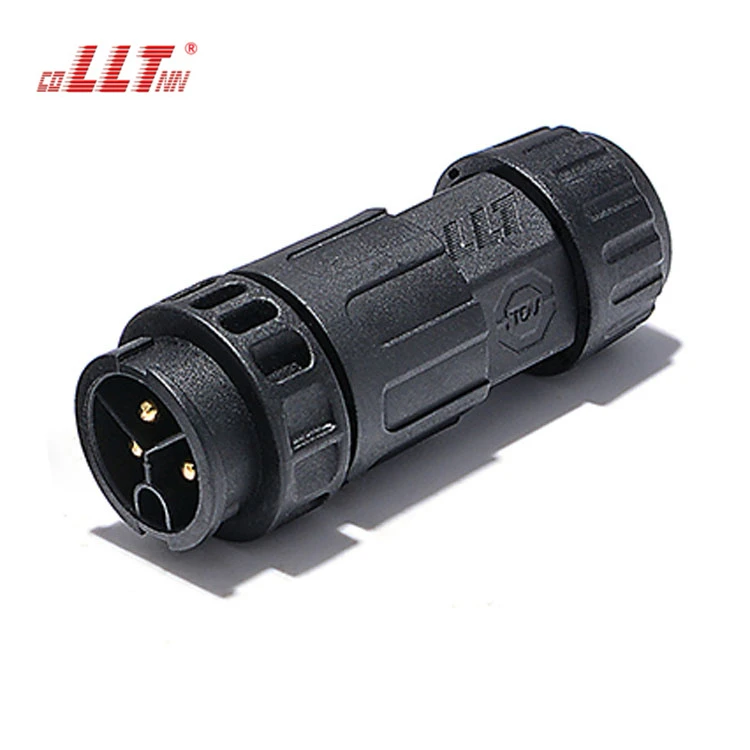

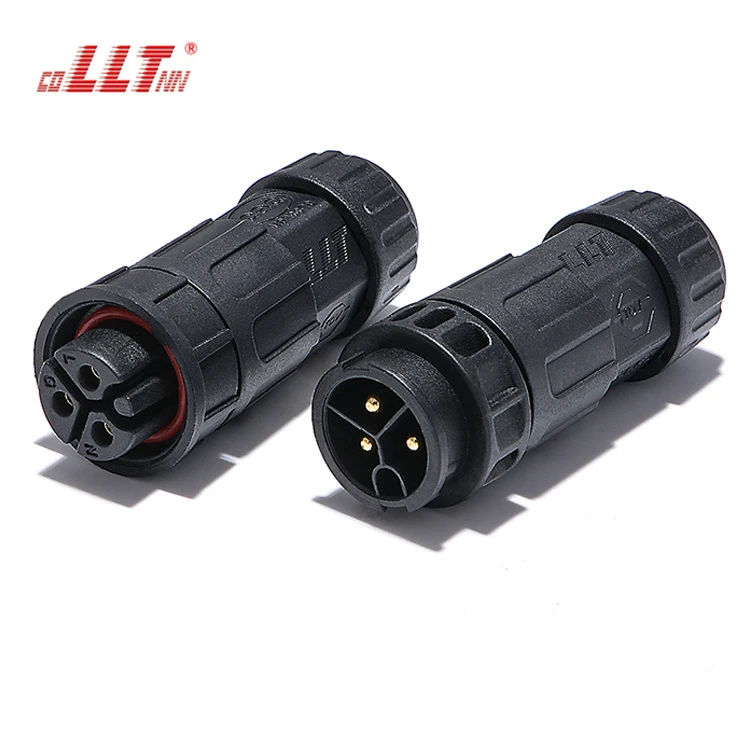

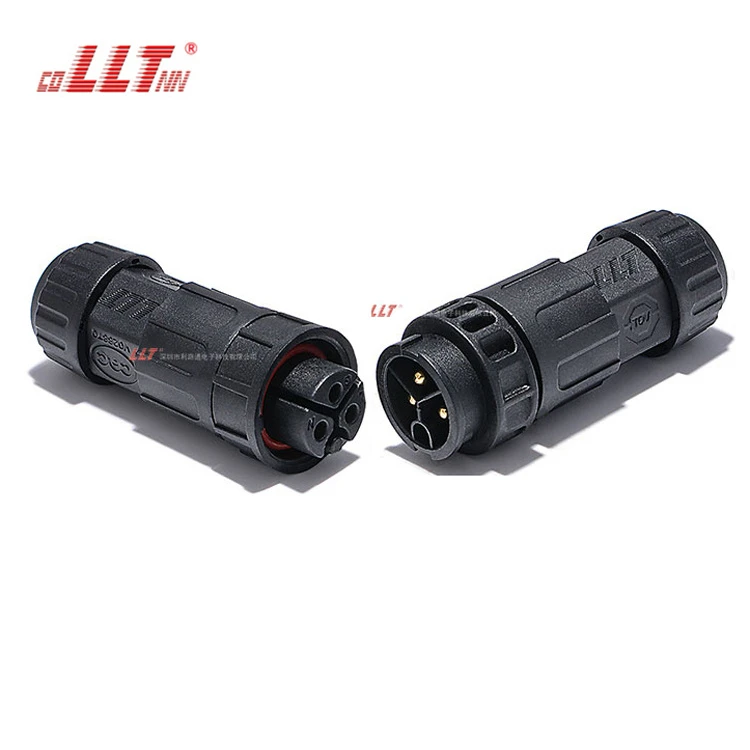

Visual Gallery
Product details, interface geometry, and cable integration views
