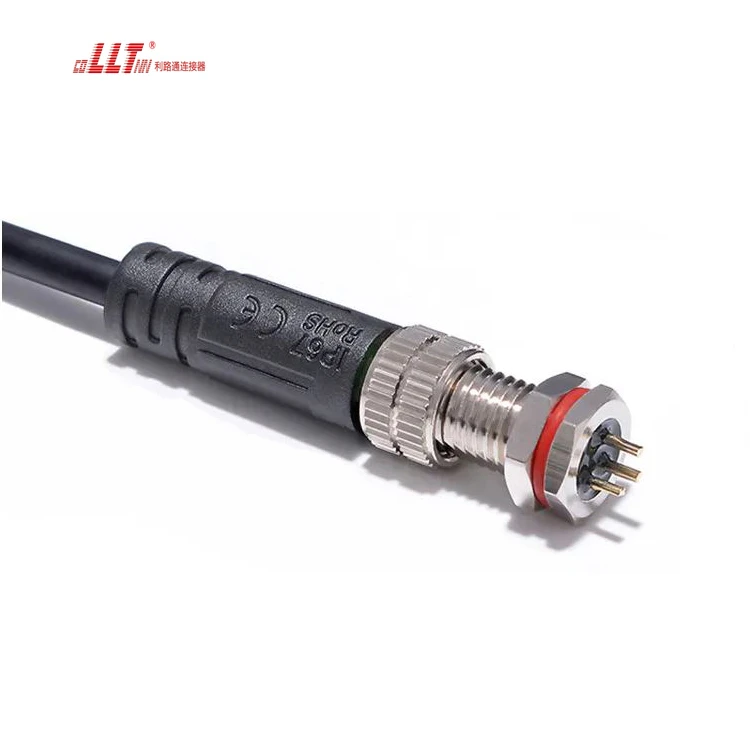

LLT Competitive Price M8 3pin Metal Panel Mount DC AC Converter Aviation Cable Connector
LLT Competitive Price M8 3pin Metal Panel Mount DC AC Converter Aviation Cable Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 5A current range, 3pin pin layout, thread lock interface. Termination direction is solder, which should be checked against the actual harness build.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M8
Pin
3pin
IP Rating
IP68
Rated Current
5A
Rated Voltage
60V
Product Series
M8
Wiring Type
Solder
Interface Type
Thread lock
Mating Cycles
>=2000
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references

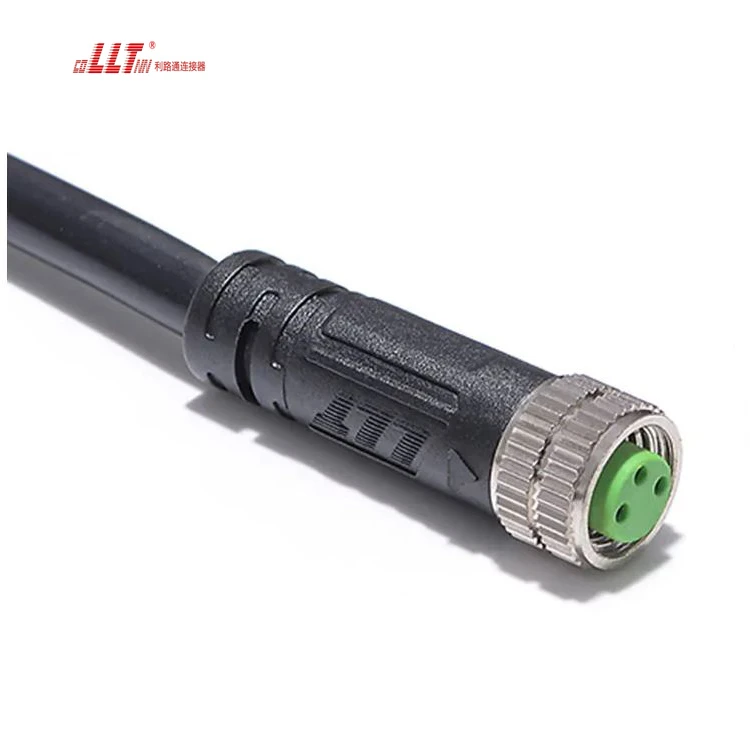

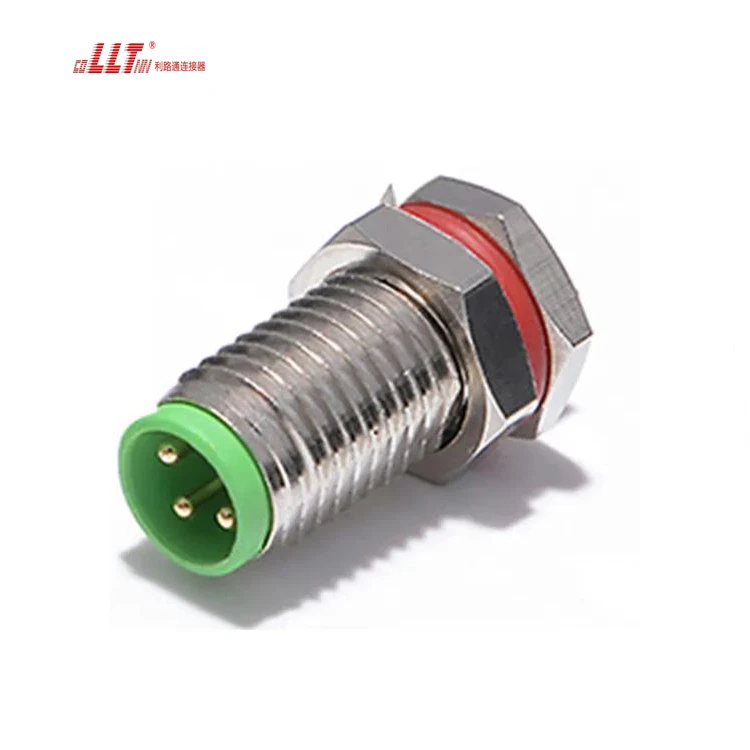

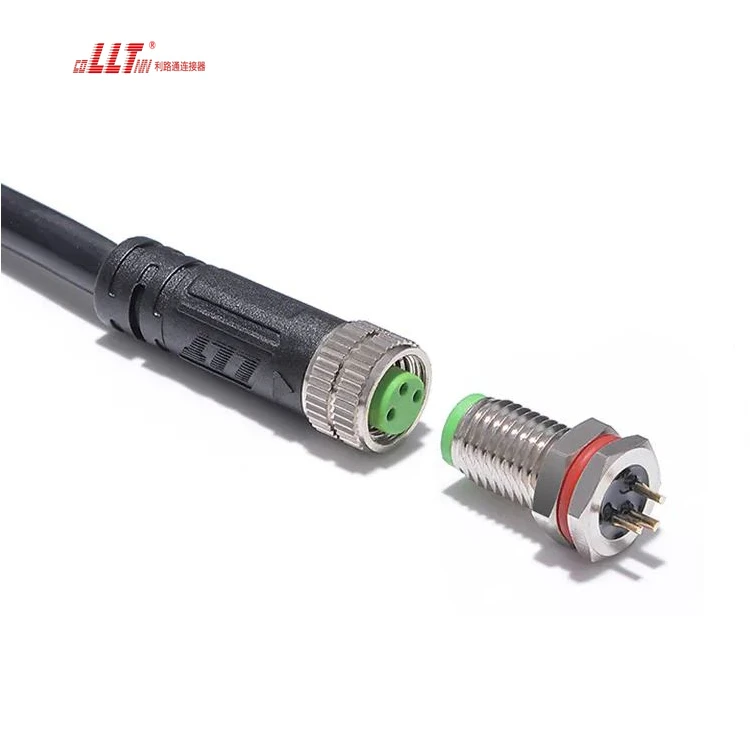

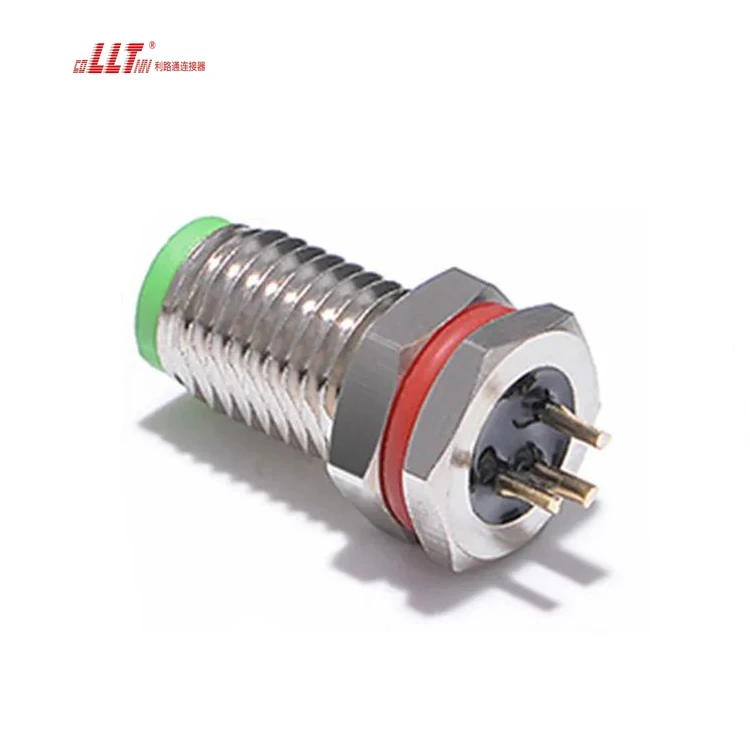

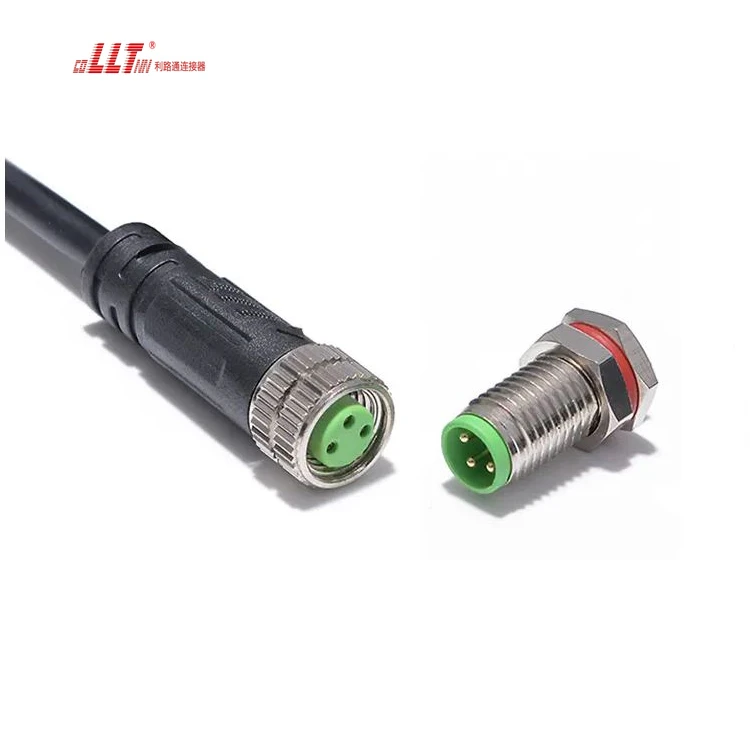

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT Competitive Price M8 3pin Metal Panel Mount DC AC Converter Aviation Cable Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Competitive Price M8 3pin Metal Panel Mount DC AC Converter Aviation Cable Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT Competitive Price M8 3pin Metal Panel Mount DC AC Converter Aviation Cable Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
