LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector

LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 20A current range, 5 pin pin layout. Termination direction is screw fixed, which should be checked against the actual harness build.

Waterproof Circular Connectors L25 Threaded Model: L25 rear panel junction box
L25 / Threaded LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 16mm

Pin

5 pin

IP Rating

IP68

Rated Current

20A

Rated Voltage

250V

Product Series

L25

Wiring Type

Screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Key Features Reliable Weatherproofing: IP67/IP68 rated protection ensures stable performance in harsh outdoor, marine, or industrial environments. Solderless Installation: Features a convenient screw locking mechanism for quick field assembly without the need for specialized welding tools. High-Power Capacity: Engineered to handle up to 600V and 20A for 5 pin, making it ideal for high-demand LED lighting and industrial machinery. Extreme Durability: Constructed with high-quality PA66 Nylon and gold-plated brass contacts for superior corrosion resistance and conductivity.

Application Fit

Typical application directions

  • Outdoor automation modules, lighting systems, and distributed control boxes
  • Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

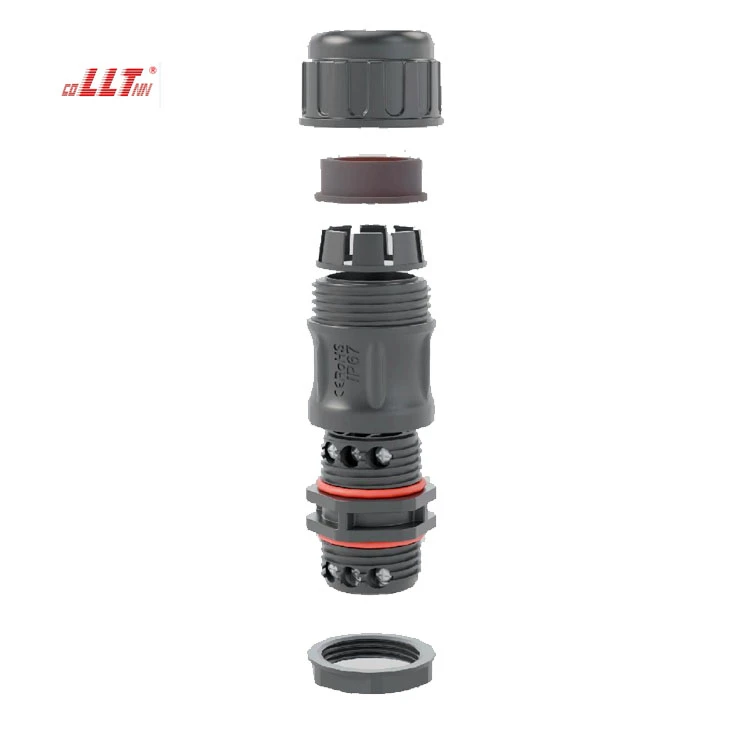

LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector gallery image 1

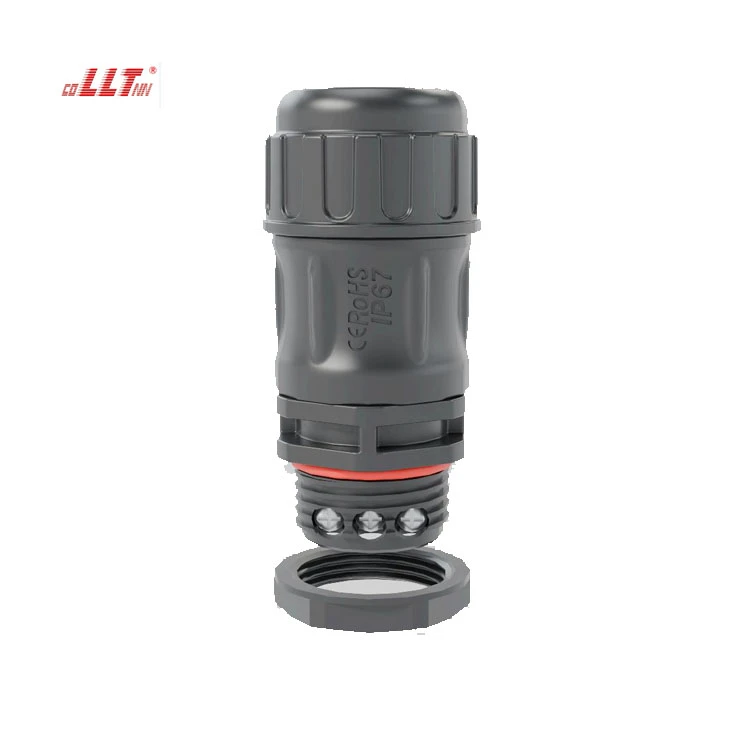

LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector gallery image 2

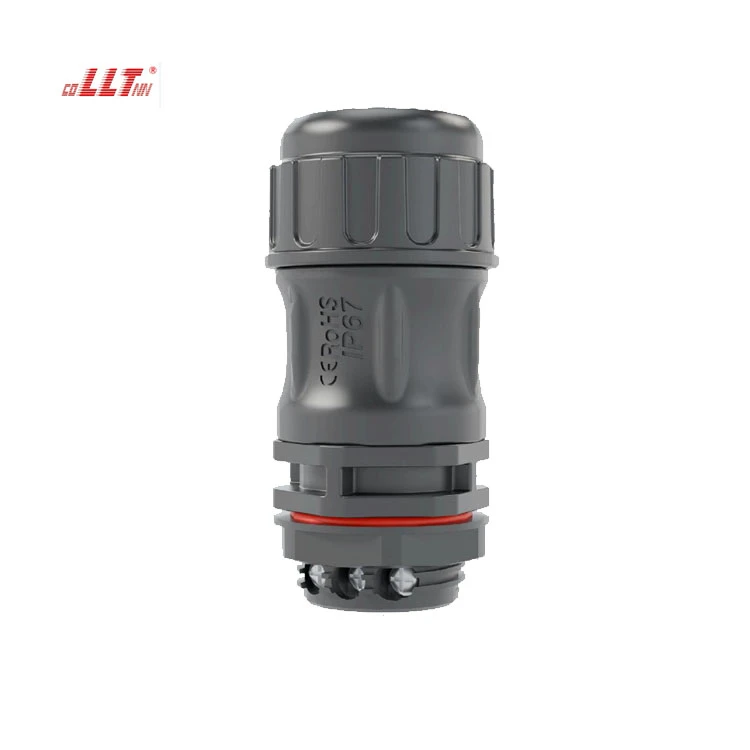

LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector gallery image 3

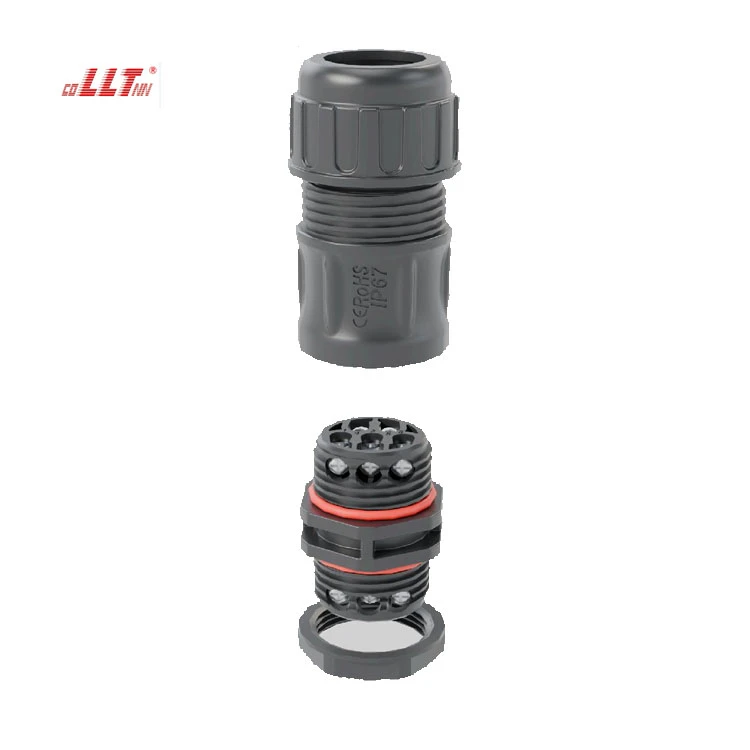

LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector gallery image 4

Related Products

Compare nearby references in this family

LLT M16 2+3 pin push lock waterproof cable connector
LLT M16 2+3 pin push lock waterproof cable connector M16 / Push-Lock
LLT 5pin M16 Circular Led IP68 Waterproof Panel Mount Wire Watertight Connector
LLT 5pin M16 Circular Led IP68 Waterproof Panel Mount Wire Watertight Connector M16 / Push-Lock
M25 3+9 Pin Self-Locking Hybrid Waterproof Daisy Chain Connector for 3-Phase Motor Power, Brake, Encoder Feedback & Distributed Motion Control
M25 3+9 Pin Self-Locking Hybrid Waterproof Daisy Chain Connector for 3-Phase Motor Power, Brake, Encoder Feedback & Distributed Motion Control M25 / Push-Lock
M19 6-Pin Bayonet Front Panel Waterproof Circular Connector for Encoder Feedback, 24V Signal Modules & RS-485/CAN Peripheral Interfaces
M19 6-Pin Bayonet Front Panel Waterproof Circular Connector for Encoder Feedback, 24V Signal Modules & RS-485/CAN Peripheral Interfaces M19 / Bayonet

Technical FAQ

What should be confirmed before selecting LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
