LLT 12pin Multiple Pin Low Ampere 5A 60V Electrical Waterproof Panel Mount Screw Connector

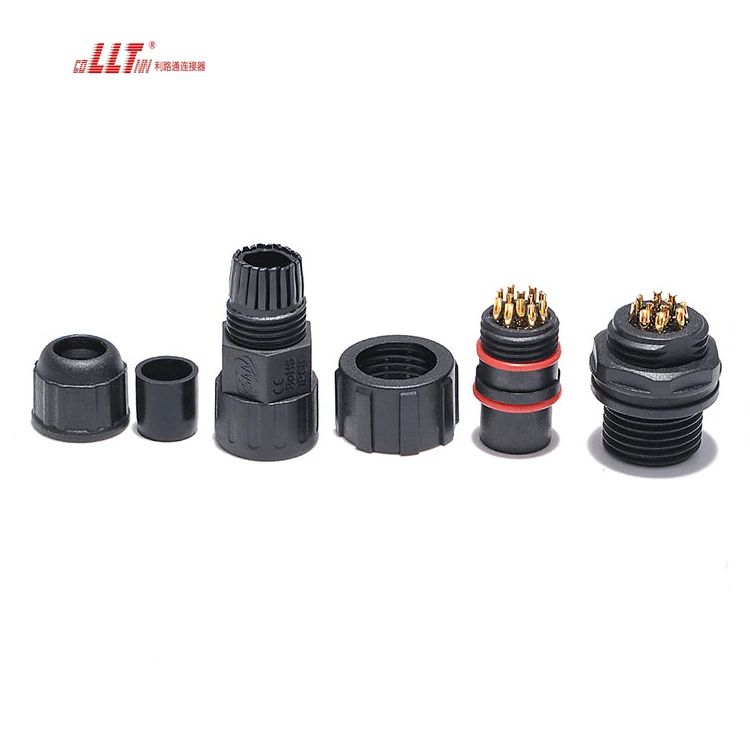

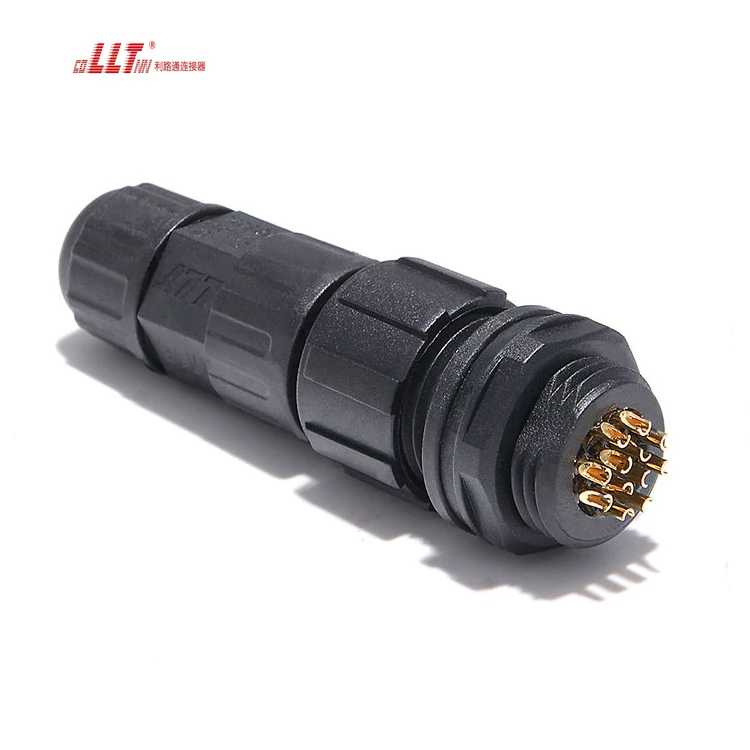

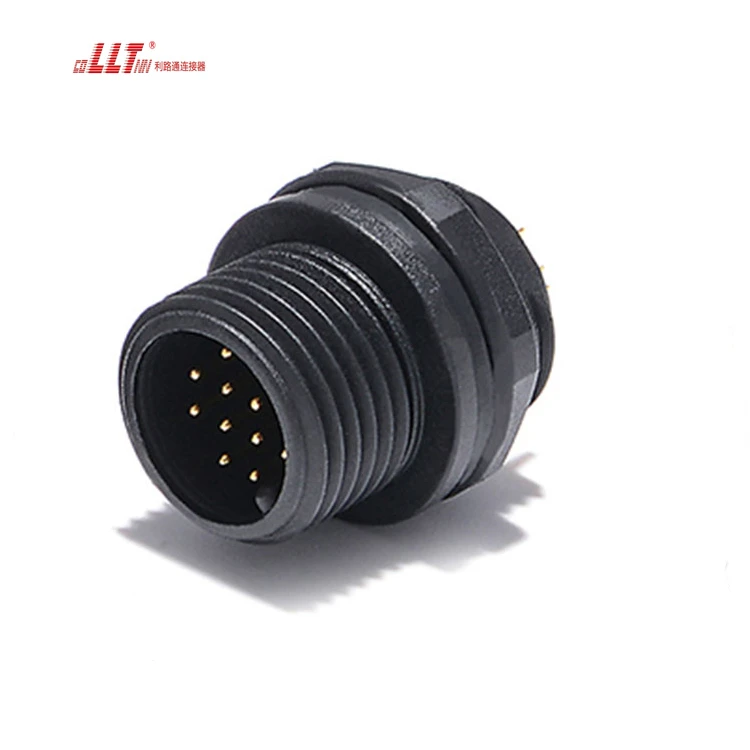

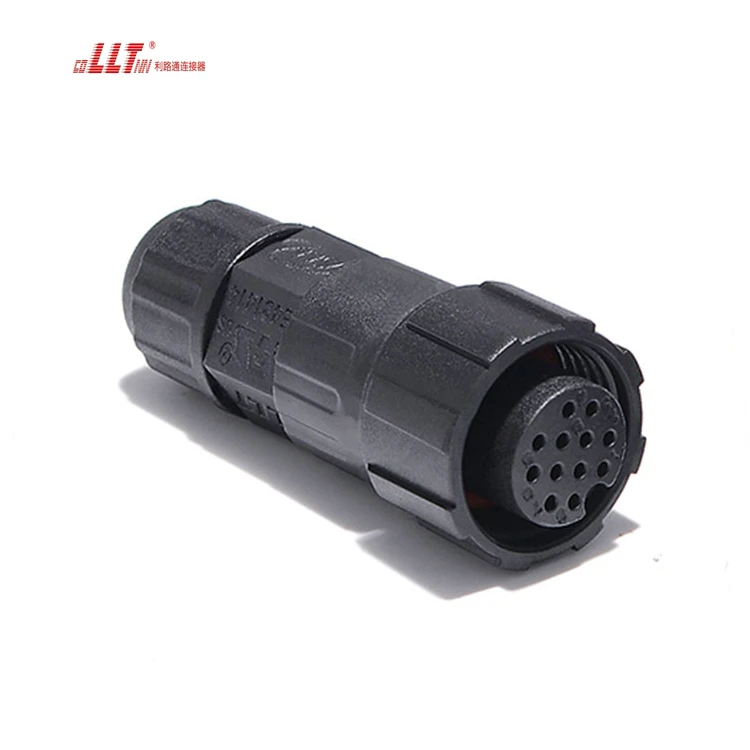

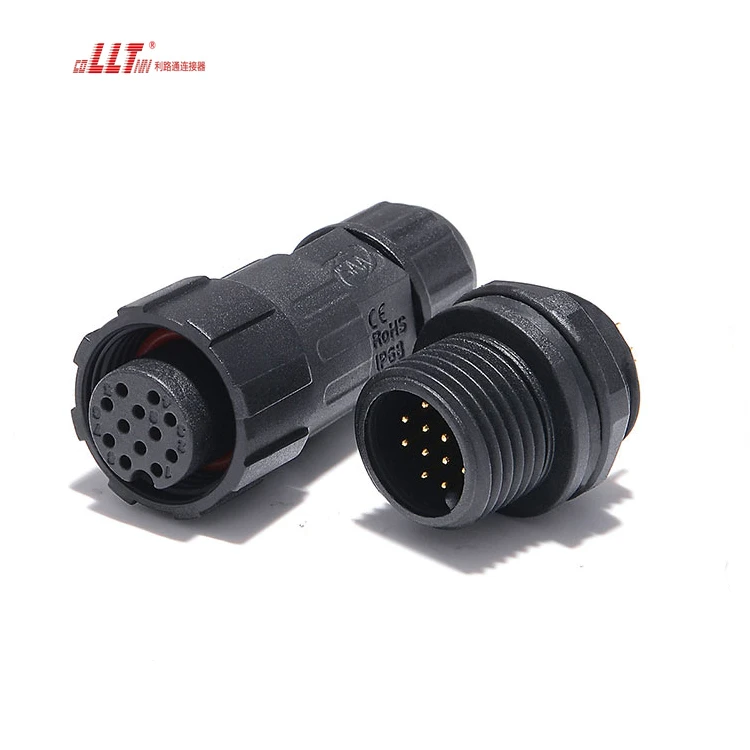

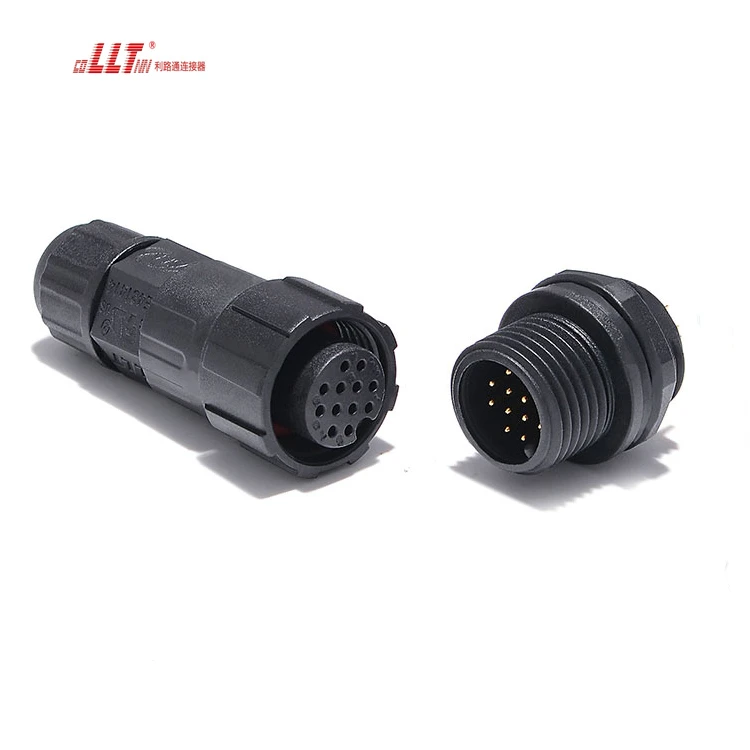

This M16-12pin field assembly panel connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through thread lock. attach cable by solder.We have 5.5/6.5/7.2/8.5mm grommet can fit your different diameter cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: TonyTang
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
12pin
IP Rating
IP67/IP68
Rated Current
5A
Rated Voltage
60V
Product Series
M16
Wiring Type
Soldering
Interface Type
Thread lock
Mating Cycles
>=3000 times
Complies with product certification:
System certification:
Application Fit
Typical application directions
- Outdoor automation modules, lighting systems, and distributed control boxes
- Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
- Projects targeting IP67/IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT 12pin Multiple Pin Low Ampere 5A 60V Electrical Waterproof Panel Mount Screw Connector?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 12pin Multiple Pin Low Ampere 5A 60V Electrical Waterproof Panel Mount Screw Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT 12pin Multiple Pin Low Ampere 5A 60V Electrical Waterproof Panel Mount Screw Connector?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
