5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector

5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP65/IP67, 15A current range, 5pin pin layout, thread lock interface. Termination direction is by molding, which should be checked against the actual harness build.

Waterproof Circular Connectors M19 Threaded Model: LLT-M19-15005F3054
M19 / Threaded 5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

5pin

IP Rating

IP65/IP67

Rated Current

15A

Rated Voltage

300V

Product Series

M19

Wiring Type

By molding

Interface Type

Thread lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-5pin molded cable connector can get IP65/ IP67 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through thread lock. It can mold the outer diameter less than 13mm PVC,Ruber cable.We can produce it with customized cable length following different requirement. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Outdoor automation modules, lighting systems, and distributed control boxes
  • Machine-mounted cable interfaces exposed to vibration, spray, dust, or washdown
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

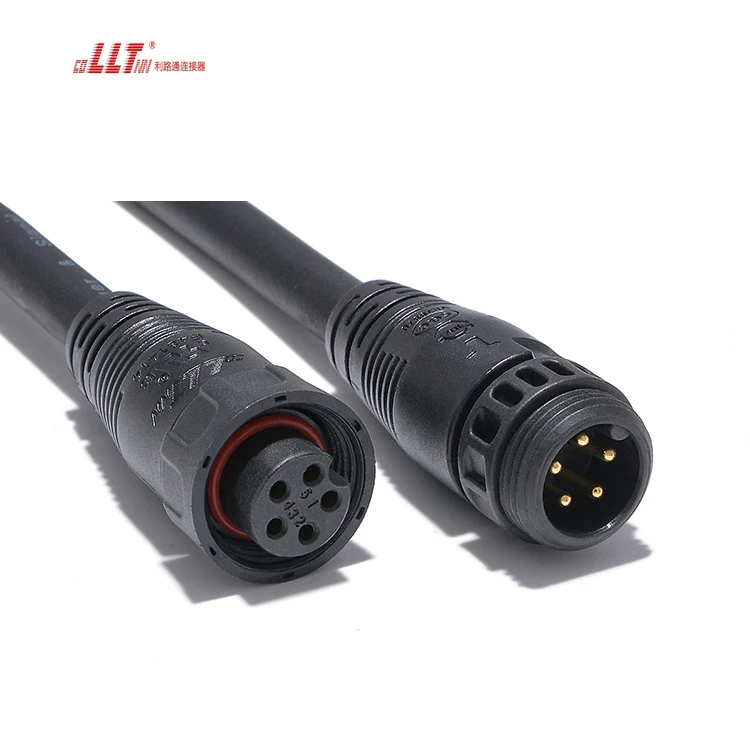

5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 1
5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 2

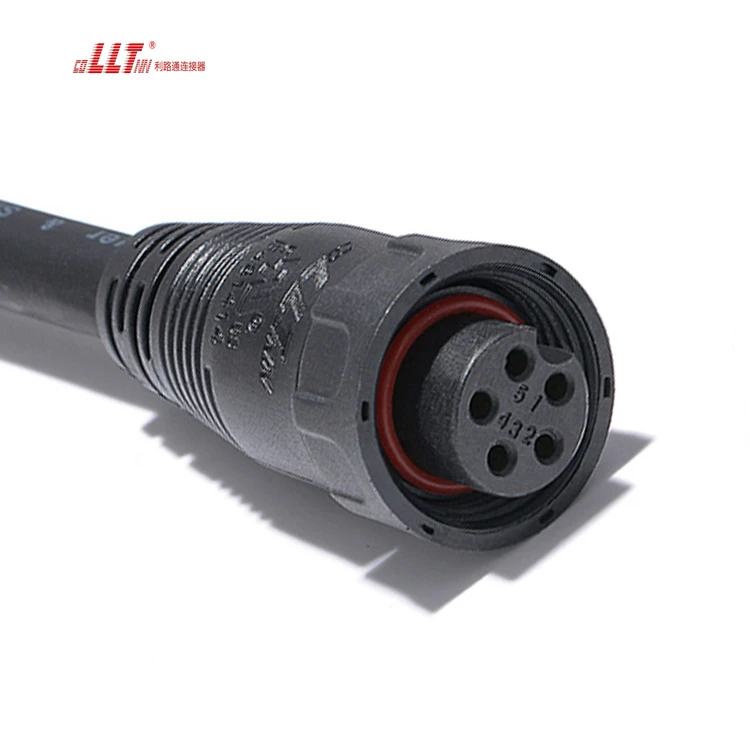

5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 3
5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 4

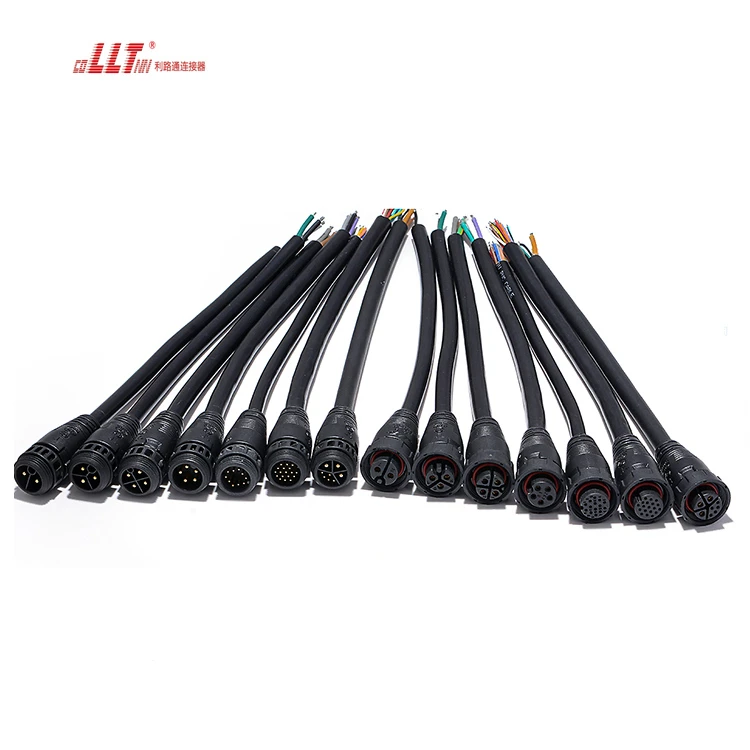

5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 5
5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector gallery image 6

Related Products

Compare nearby references in this family

LLT 5pin M16 Circular Led IP68 Waterproof Panel Mount Wire Watertight Connector
LLT 5pin M16 Circular Led IP68 Waterproof Panel Mount Wire Watertight Connector M16 / Push-Lock
M25 3+9 Pin Self-Locking Hybrid Waterproof Daisy Chain Connector for 3-Phase Motor Power, Brake, Encoder Feedback & Distributed Motion Control
M25 3+9 Pin Self-Locking Hybrid Waterproof Daisy Chain Connector for 3-Phase Motor Power, Brake, Encoder Feedback & Distributed Motion Control M25 / Push-Lock
M19 6-Pin Bayonet Front Panel Waterproof Circular Connector for Encoder Feedback, 24V Signal Modules & RS-485/CAN Peripheral Interfaces
M19 6-Pin Bayonet Front Panel Waterproof Circular Connector for Encoder Feedback, 24V Signal Modules & RS-485/CAN Peripheral Interfaces M19 / Bayonet
LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector
LLT 5 pin L25 Plastic Circular Led Strip Screw Wire Waterproof connector L25 / Threaded

Technical FAQ

What should be confirmed before selecting 5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. 5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for 5pin M19 IP67 Waterproof Indoor Outdoor Power Cord Led Cable Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
