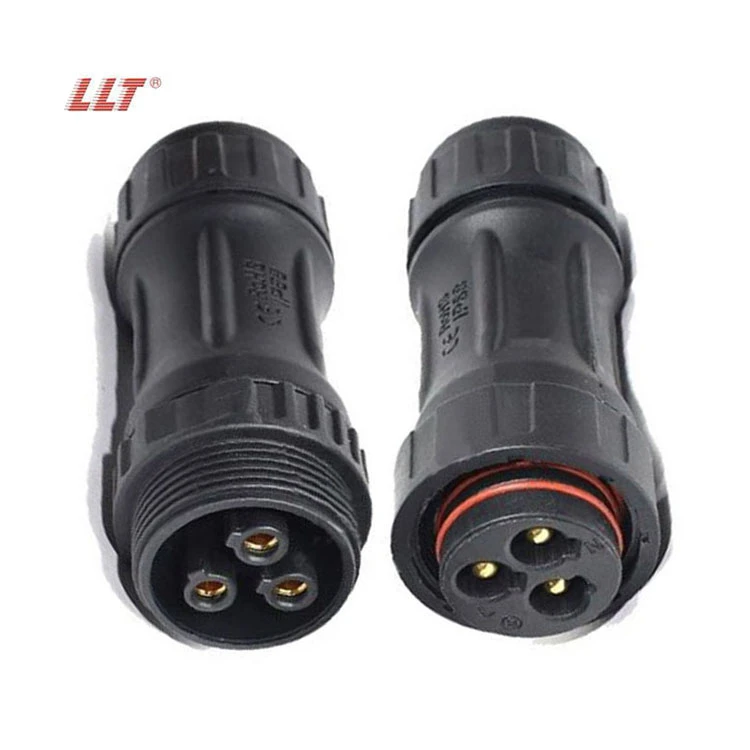

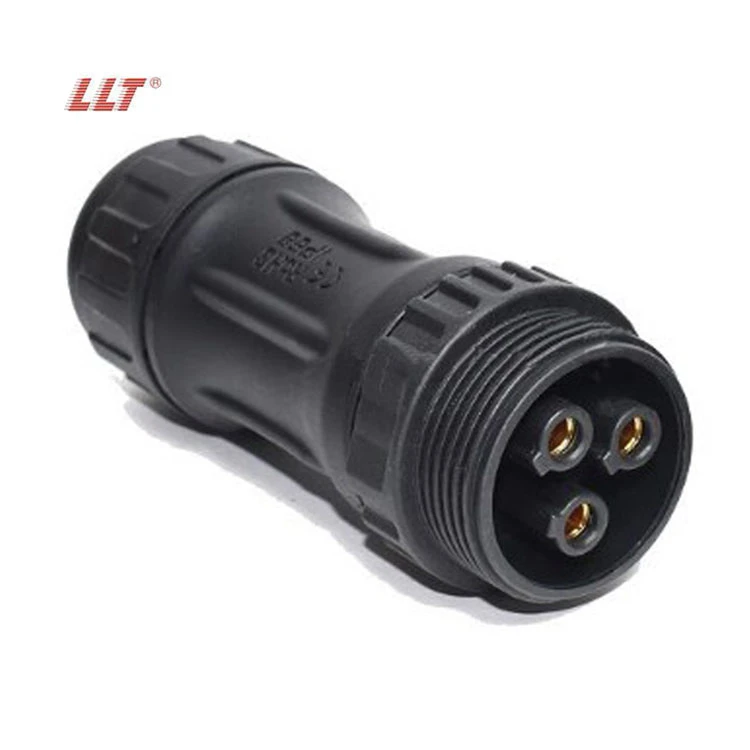

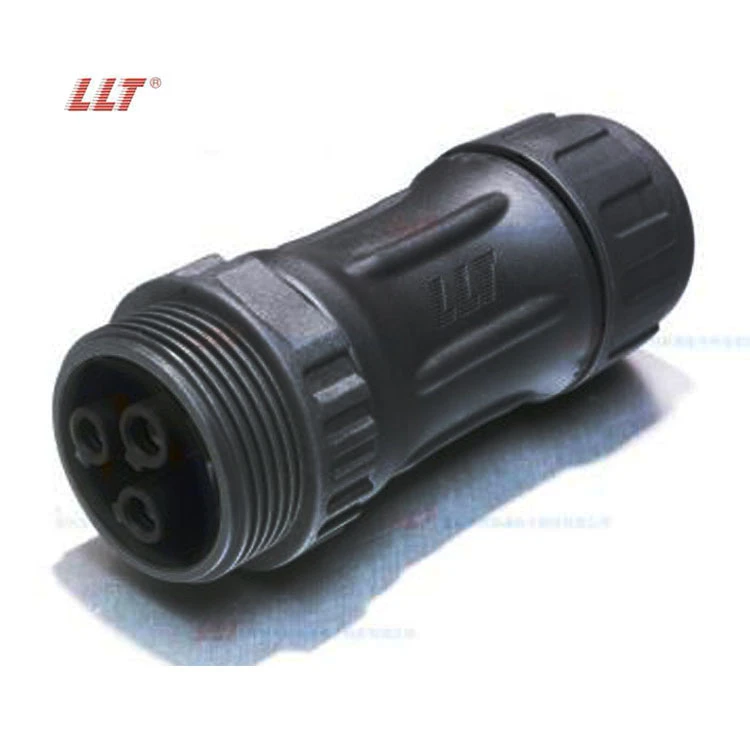

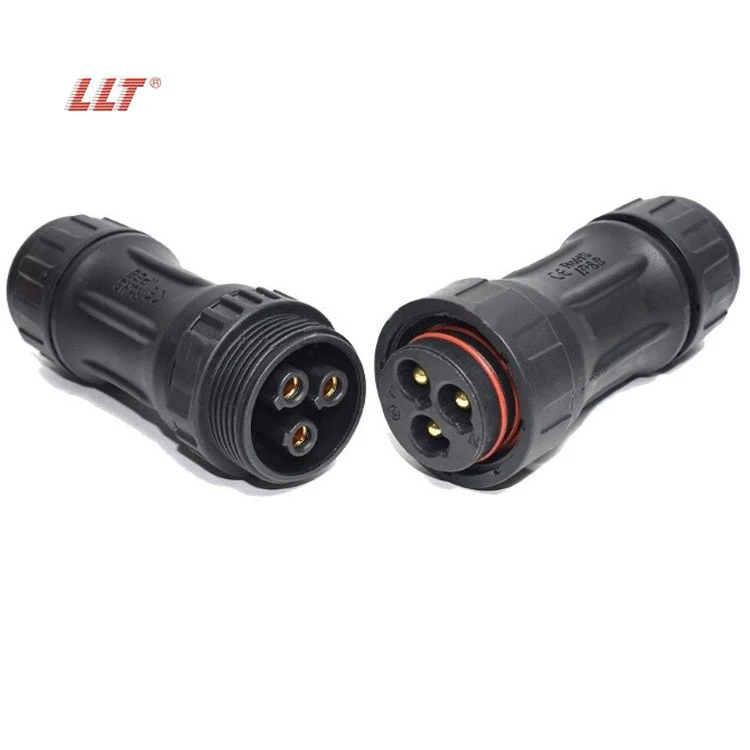

LLT M45 3 Pin High Current Waterproof Connectors For Base Station Communication Equipment

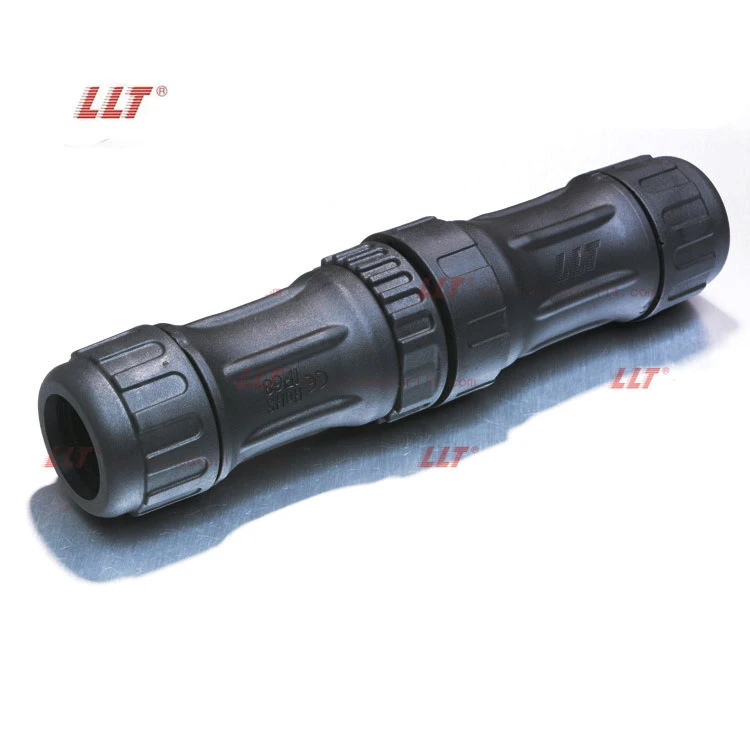

Description This M45 waterproof power Connector has a waterproof rating of IP67.Its is very popular in New 5G Base station Application. To assemble the M45 Outdoor Waterproof Connector,only a Philips Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements. Once assembled, the M45 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close when screwed together.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 27mm
Pin
3 Pin
IP Rating
IP68
Rated Current
80A
Rated Voltage
600V
Product Series
M45
Wiring Type
Screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
- Outdoor electrical equipment where high current and sealing reliability must be handled together
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 80A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M45 3 Pin High Current Waterproof Connectors For Base Station Communication Equipment?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 80A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M45 3 Pin High Current Waterproof Connectors For Base Station Communication Equipment?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
