LLT 50A Panel Mount M29 Electrical Ip68 Waterproof 3pin Connector

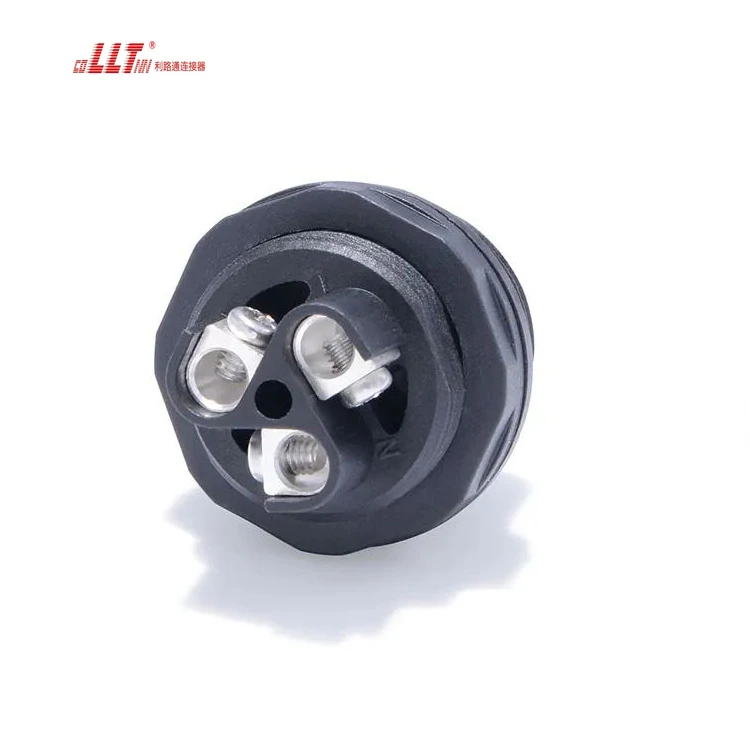

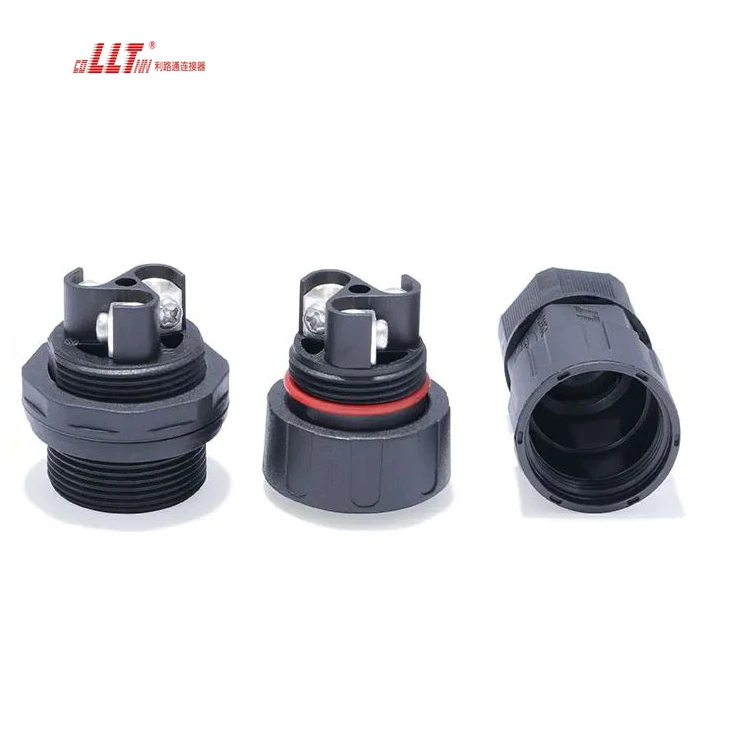

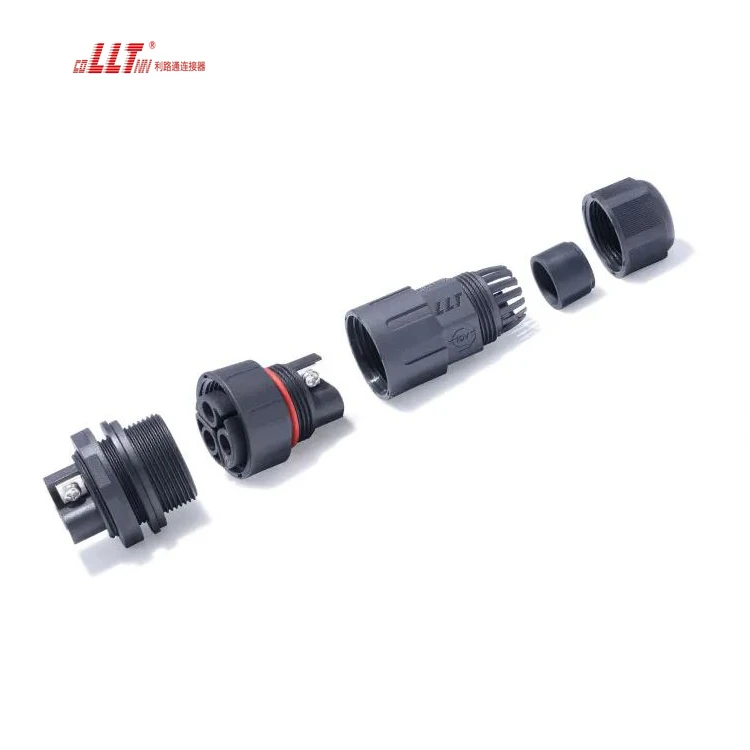

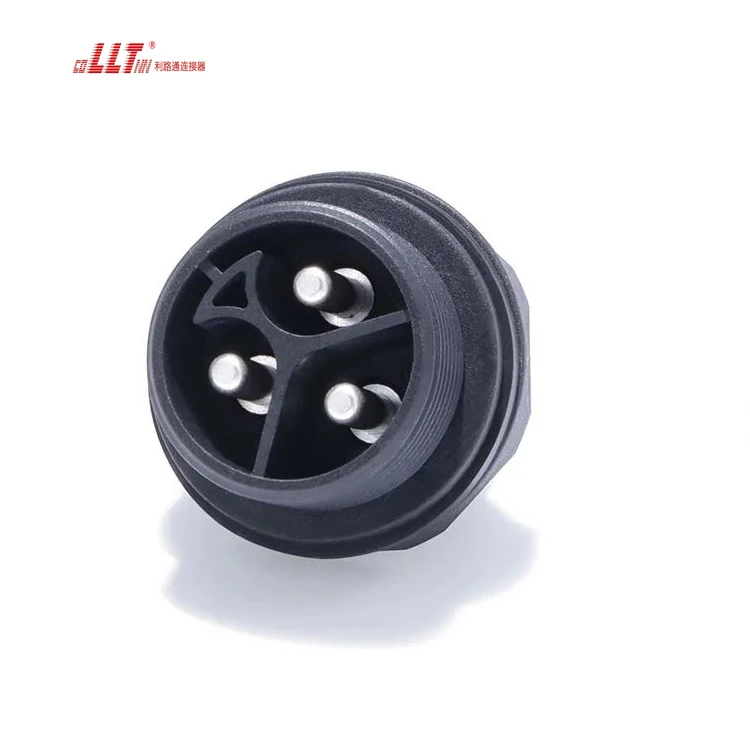

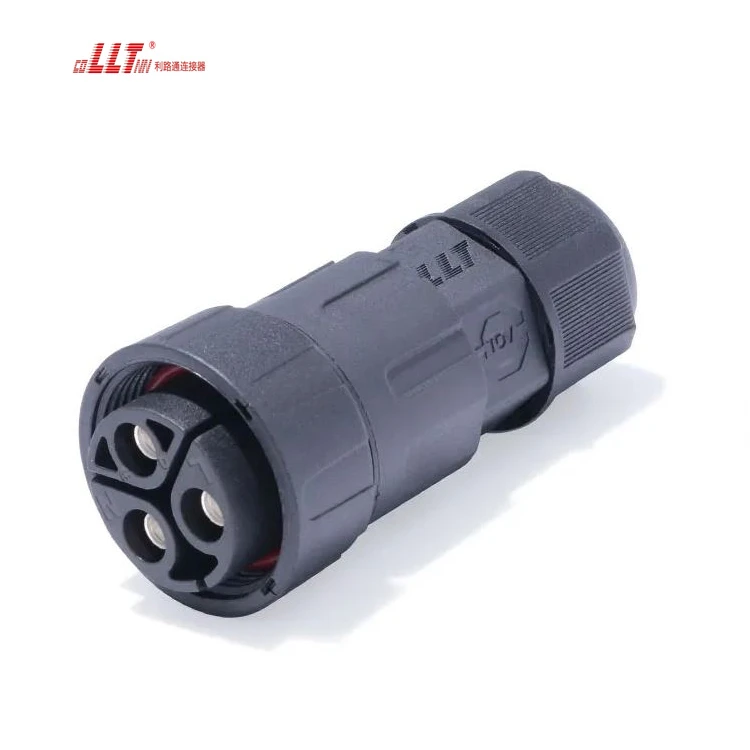

Model: M29-3pin 50A Wire to Board IP68 Waterproof Connector Structure Combination: 1. Cable-side plug: In-line cable assembly connector with screw wiring terminals Pin Layout: 3 dedicated high-current power pins, perfectly matching L+N+G single-phase power or three-phase low-power wiring for equipment main control boards Core Product Advantages 1. Stable 50A High-Current Load Performance Oversized solid brass contacts with heavy gold plating, contact resistance ≤10mΩ. Sustains continuous 50A full-load operation with minimal heat buildup and voltage drop, fully compliant with high-power battery management systems and industrial board power input, rated up to 600V AC/DC. 2. IP68 Multi-Layer Harsh Environment Protection Three-stage silicone rubber sealing system: cable inlet clamping seal, mating interface compression gasket and panel integrated O-ring. Fully blocks deep water immersion, dust, oil mist and humid workshop conditions, preventing short circuits caused by liquid intrusion. 3. Integrated Wire-to-Board One-Step Connection Unique PCB solder tail structure eliminates intermediate wiring terminals between cables and circuit boards, cutting assembly steps and reducing loose connection risks inside equipment cabinets. Standard M29 thread outer ring locks firmly on cabinet panel walls for reinforced fixing. 4. Flame-Retardant & Wide Temperature Shell Housing material: PA66+30% glass fiber reinforced nylon, UL94-V0 flame retardant grade, UV-resistant, shockproof and anti-aging. Maintains stable electrical performance under extreme operating temperature of -40℃ ~ +105℃. 5. Convenient Assembly & Long Service Life • Cable end: Screw terminal wiring, no professional crimp tools required for quick on-site wiring and maintenance • Mechanical lifespan ≥3000 reliable plug-unplug cycles; anti-reverse insertion keyway avoids mis-mating and short-circuit hazards • High insulation resistance ≥1000MΩ (DC500V), withstand 1500V dielectric voltage for 1 minute to eliminate electric leakage risks Complete Technical Specifications • Model: M29-3pin 50A Wire to Board IP68 Waterproof Connector • Rated Current: 50A per contact • Rated Voltage: 600V AC/DC • Waterproof Grade: IP68 • Housing Material: Glass-filled PA66 flame retardant nylon (UL94-V0) • Contact Material: Solid brass with thick gold plating • Applicable Cable Outer Diameter: 7–15mm • Mechanical Mating Cycles: ≥3000 times • Operating Temperature: -40℃ ~ +105℃ • Certifications: CE, RoHS, TUV, SAA • Insulation Resistance: ≥1000MΩ @ DC500V • Dielectric Withstand Voltage: 1500V / 1min
