LLT Large Power M45 4pin Screw Wire 80A 600V 2pin 3pin 4pin Electrical Assembly Connector

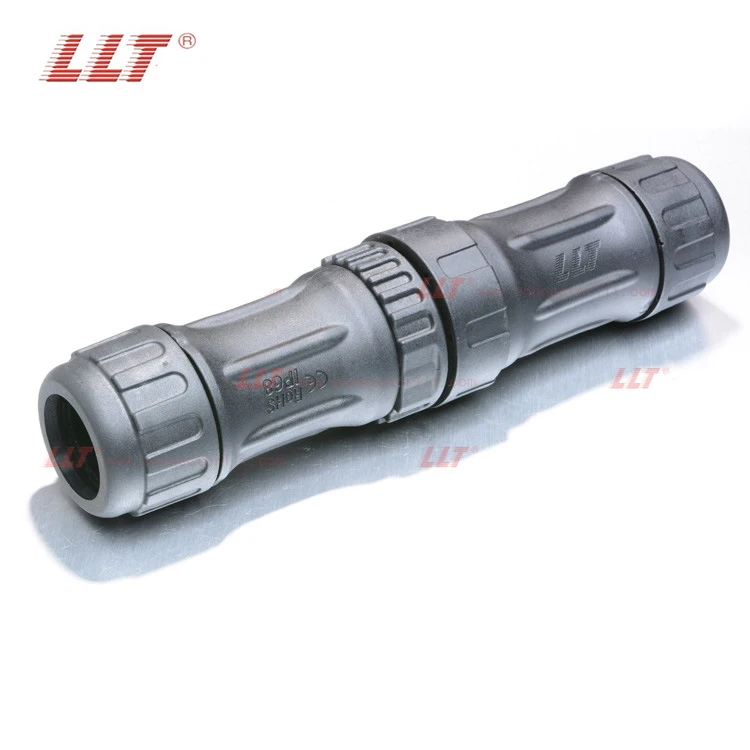

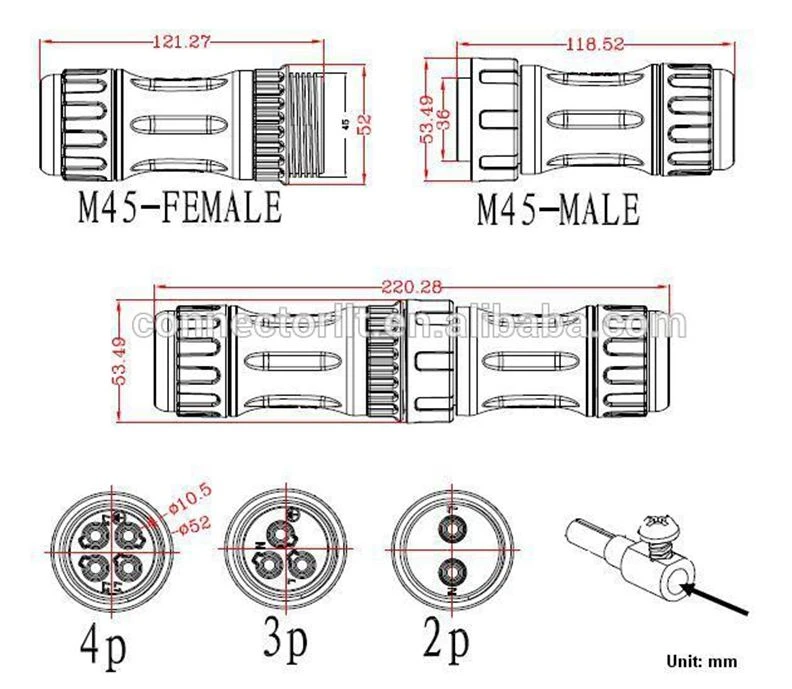

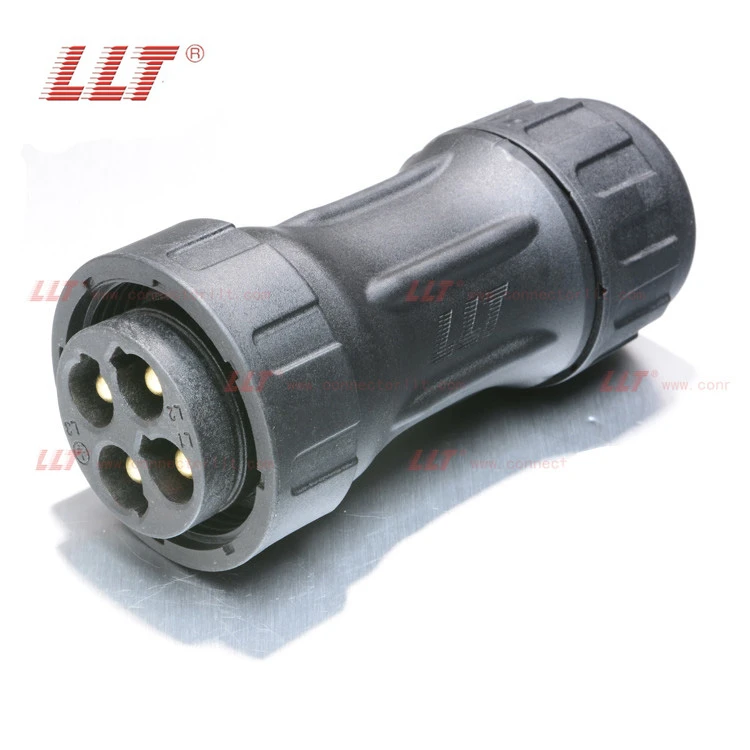

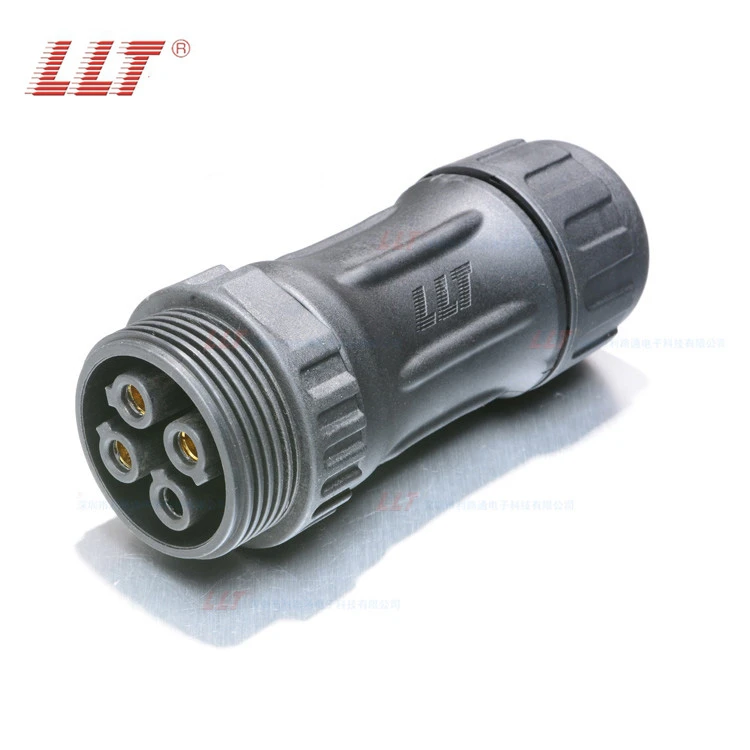

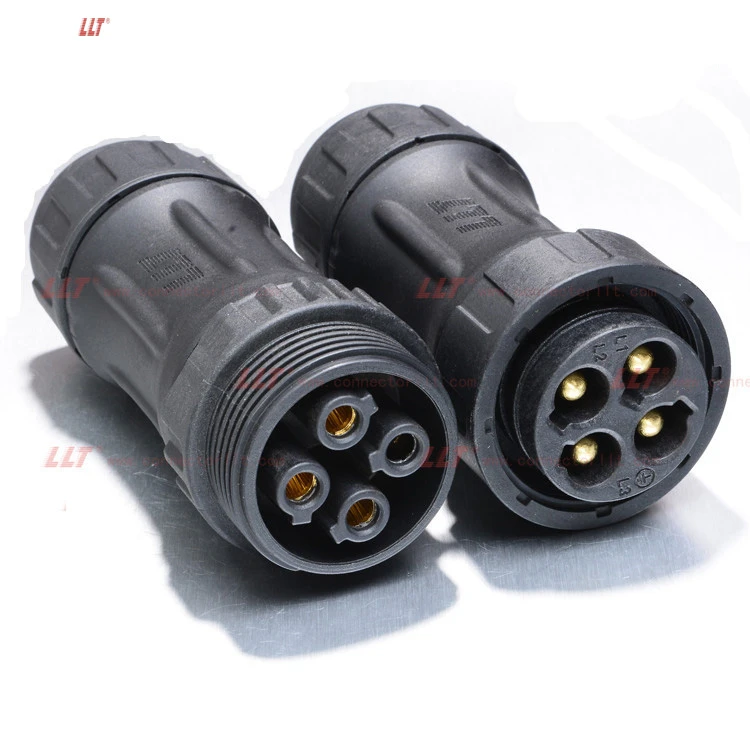

Model: M45-4pin 80A Waterproof Assembly Circular Connector Available types: In-line cable-to-cable coupler, panel mount bulkhead receptacle Layout: 4 independent high-current pins, flexible for 3-phase power + ground or dual power + dual signal layout Core Product Advantages 1. Ultra-High 80A Single-Pin Current Capacity Oversized solid brass contacts with thick gold plating, contact resistance ≤8mΩ. Stable continuous 80A loading with minimal heat generation and voltage drop, ideal for high-power energy storage, inverters and large outdoor power equipment. Rated voltage reaches 600V for both AC and DC circuits. 2. IP68 Full Waterproof & Dustproof Protection Three-layer silicone rubber sealing system: cable clamping seal, mating face compression gasket and integrated shell sealing structure. Fully blocks water immersion, rain, mud, dust, oil mist and weak chemical vapor, suitable for outdoor, flood-prone, damp workshop and marine working environments. 3. Rugged Flame-Retardant Shell Material Housing adopts PA66+30% glass fiber reinforced nylon, UL94-V0 flame retardant grade, UV-resistant, shockproof, anti-aging and crack-proof. Stable electrical performance under extreme temperature range of -40℃ ~ +105℃, long service life for year-round outdoor operation. 4. Convenient On-Site Assembly Structure Screw-type terminal wiring requires no professional crimp tools for fast wiring, maintenance and replacement. Adjustable cable gland fits wire outer diameter 12–28mm, compatible with large cross-section power cables. Rotatable coarse thread locking ring tightly locks plug and socket to avoid disconnection caused by pulling or mechanical vibration. 5. Safe & Durable Mechanical & Electrical Performance ≥3000 reliable plug-unplug mating cycles; unique anti-reverse insertion keyway eliminates mis-mating and short-circuit risks. Insulation resistance ≥1000MΩ (DC500V), withstand 1500V dielectric voltage for 1 minute to prevent electric leakage. Complete Technical Specifications • Model: M45-4pin Waterproof Assembly Connector • Rated Current: 80A per contact • Rated Voltage: 600V AC/DC • Waterproof Rating: IP68 • Housing Material: Glass-filled PA66 flame retardant nylon • Contact Material: Solid brass with heavy gold plating • Wiring Method: Screw terminal connection • Applicable Cable OD: 13–28mm • Mechanical Lifespan: ≥3000 mating cycles • Operating Temperature: -40℃ ~ +105℃ • Certifications: CE, RoHS, SAA, TUV • Insulation Resistance: ≥1000MΩ @ DC500V • Dielectric Withstand Voltage: 1500V / 1 minute Main Application Scenarios • Commercial & household energy storage battery packs, hybrid inverters • Large solar photovoltaic power stations, off-grid power supply systems • Outdoor high-power industrial LED screens, stadium lighting • Construction machinery, agricultural heavy-duty equipment • Marine power distribution equipment, outdoor 5G base station power harness • EV auxiliary high-current power circuits, portable large power stations 3. Short BOM / Offer Sheet Header M45-4pin 80A IP68 Waterproof Circular Assembly Connector, 600V, Glass-Filled PA66 Flame Retardant Housing, 4 Gold-Plated High-Current Brass Contacts, Screw Termination, In-line & Panel Mount Optional, CE RoHS SAA Certified, for Multi-Core High Power Energy Storage & Industrial Outdoor Power & Signal Connection
