LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors

LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 80A current range, 3 pin layout. Termination direction is screw fixed, which should be checked against the actual harness build.

High Current Waterproof Connectors M45 Threaded Model: LLT-M45-70003M1051
M45 / Threaded LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 24mm

Pin

3

IP Rating

IP68

Rated Current

80A

Rated Voltage

600V

Product Series

M45

Wiring Type

Screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Feature: * Multi pin optional: 2~24pin * IP67 rating, ensure your safety (waterproof & shockproof & dustproof) * Certificated by UL, CE, TUV, CQC, RoHS * PA66 material, suitable for harsh environment (antiflaming & antioxidant) * Free combination, field assembly or molded with cable, male/female/socket. * After-sale guarantee, 1 years warranty * Quality guarantee, full inspection of incoming materials, and at least 3~6 full inspections during the production process according to field assembly series or molded with cable series

Application Fit

Typical application directions

  • Energy storage cabinets, battery modules, and inverter platforms with demanding load profiles
  • Outdoor electrical equipment where high current and sealing reliability must be handled together
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 80A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

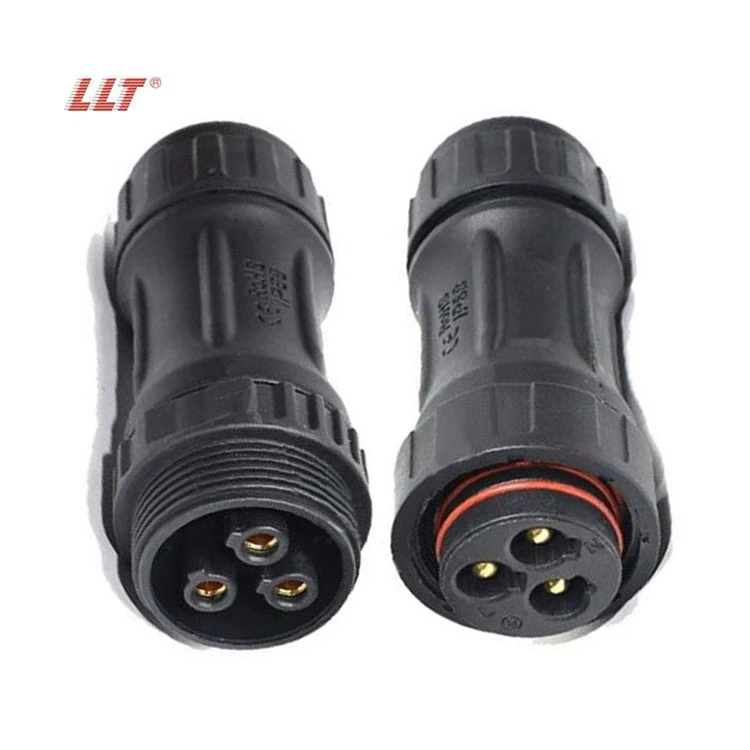

LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors gallery image 1

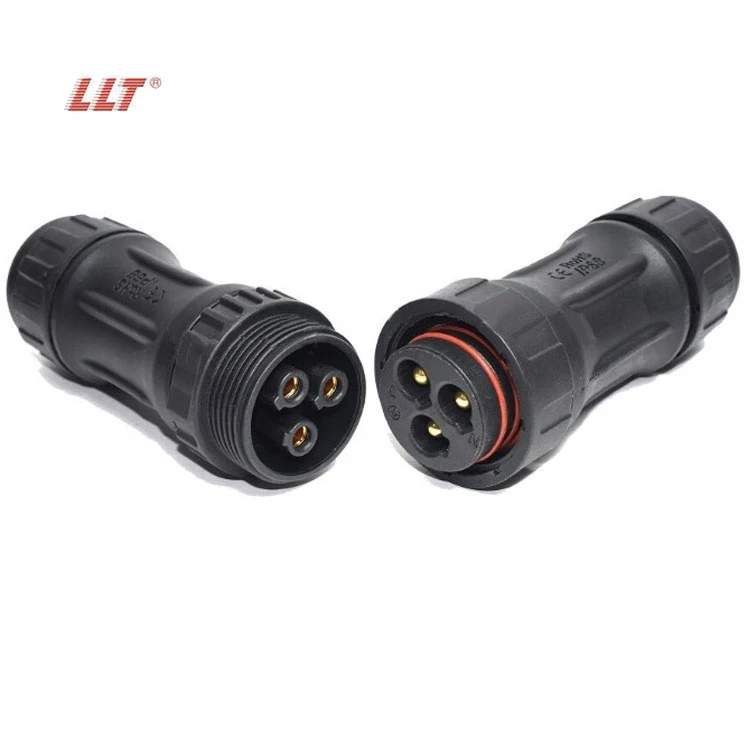

LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors gallery image 2

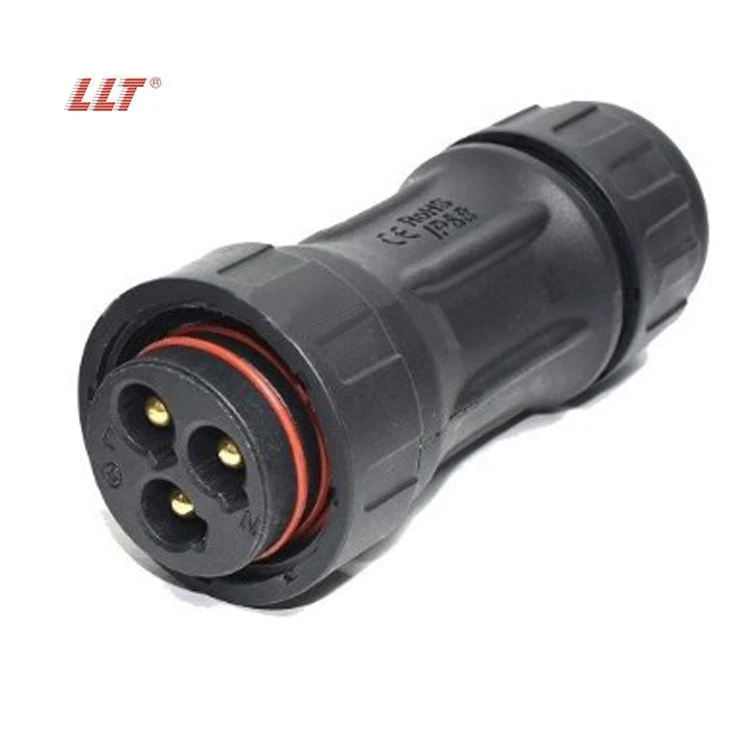

LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors gallery image 3

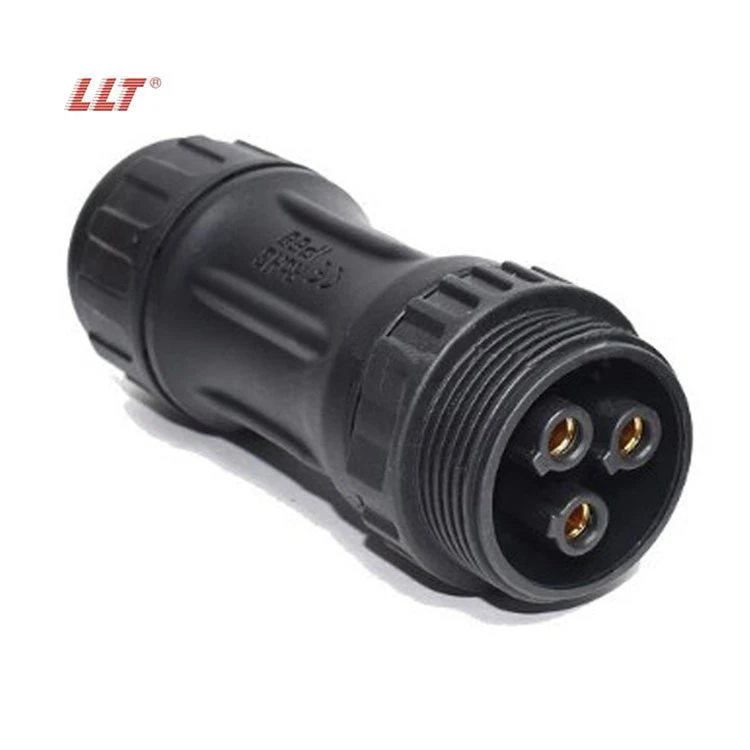

LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors gallery image 4

Technical FAQ

What should be confirmed before selecting LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 80A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT IP68 High Current 80A 3 pin 4 Pin Waterproof Connector LED Power Wire Cable Connectors?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
