LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power

Name: LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M19-20003F1031

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 3pin pin layout, push lock interface. Termination direction is soldering, which should be checked against the actual harness build.

Automotive Connectors M19 Push-Lock Model: LLT-M19-20003F1031

M19 / Push-Lock LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-3pin field assembly connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through push lock. attach cable by solder.We have 4.2/6.3/7.8/8.5/9/10/11mm grommet can fit your different diameter cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

Electric motorcycles, auxiliary vehicle modules, and compact mobility systems.
Vehicle-mounted low-voltage power or signal interfaces exposed to splash, vibration, and repetitive servicing.
Projects targeting IP67/IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 20A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. M16 to M22 Medium Connector Range Published range for medium-size circular connector configurations.

Visual Gallery

Product details, interface geometry, and cable integration views

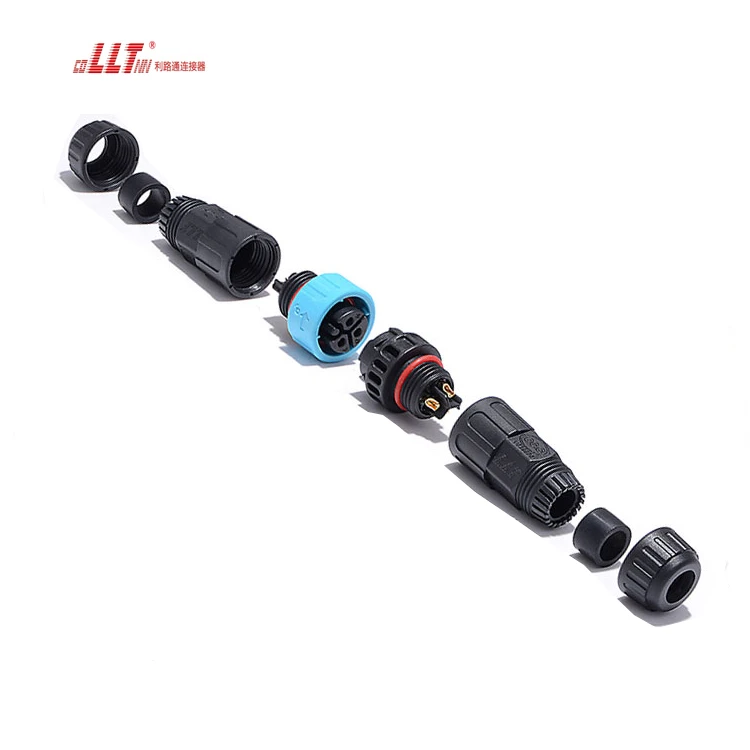

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 1

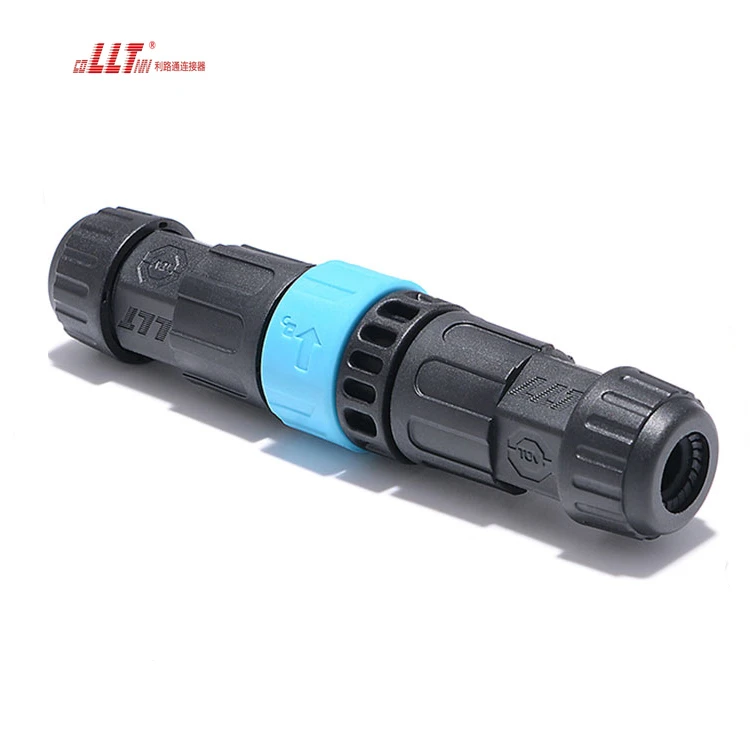

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 2

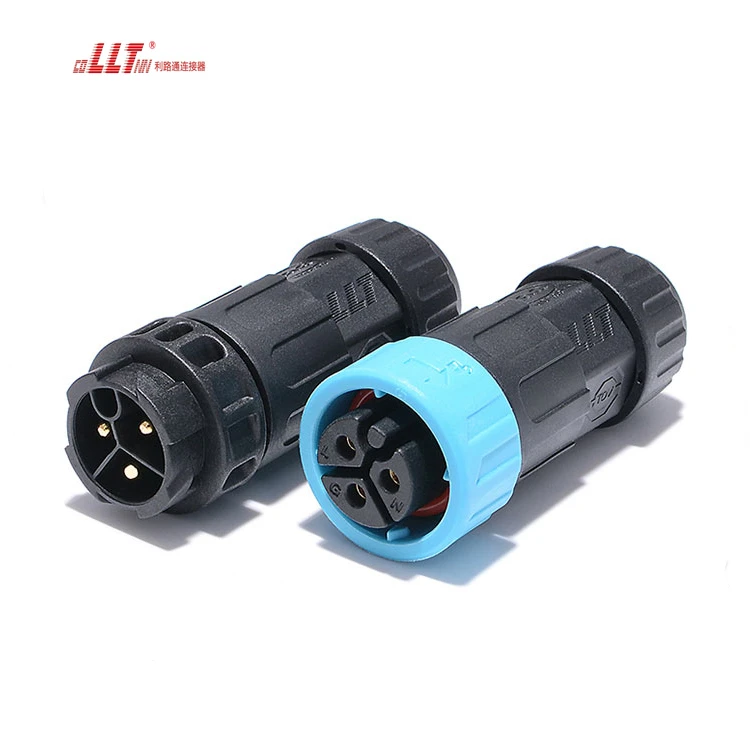

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 3

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 4

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 5

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 6

LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

20A Waterproof Connectors 12 published products 10A Waterproof Connectors 11 published products High Current Waterproof Connectors 10 published products Waterproof Power Connector 9 published products

Technical FAQ

What should be confirmed before selecting LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT IP68 Waterproof 3Pin M19 Circular Cable Connector Male Female Plug Copper Brass Contracts for Electrical Power?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
