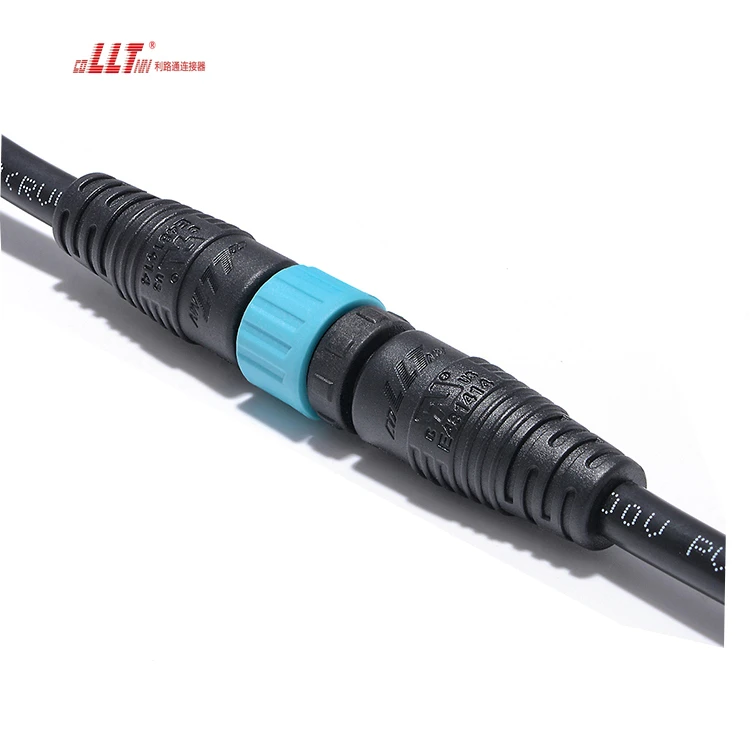

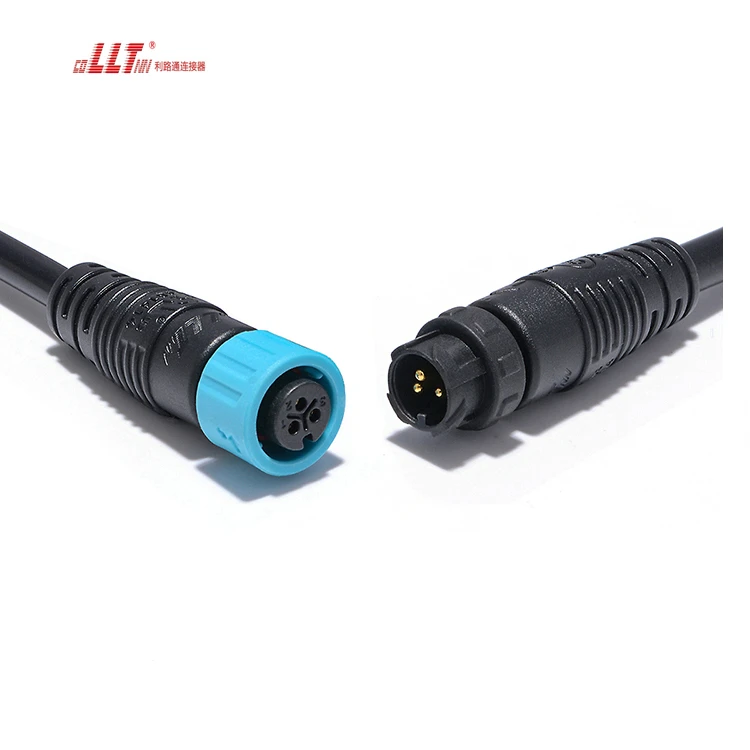

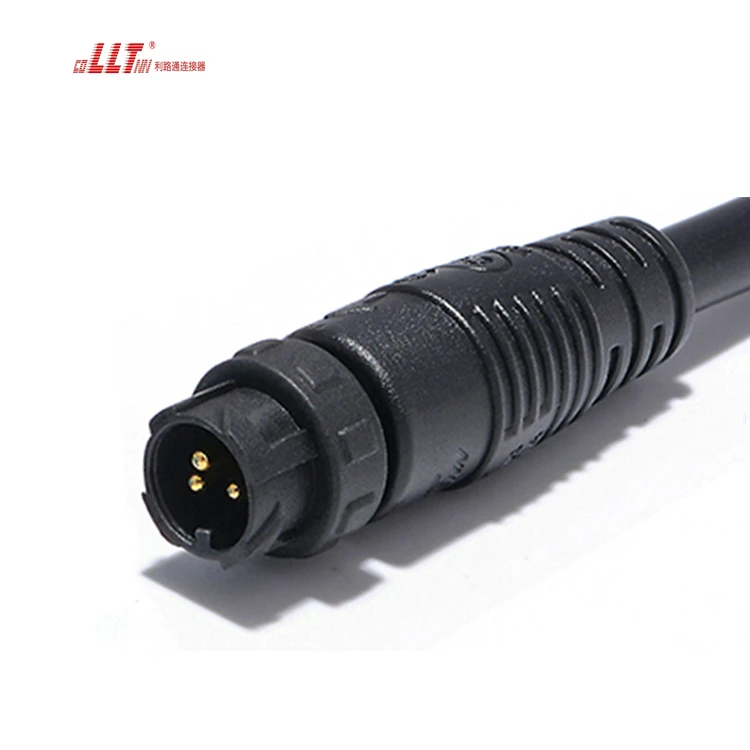

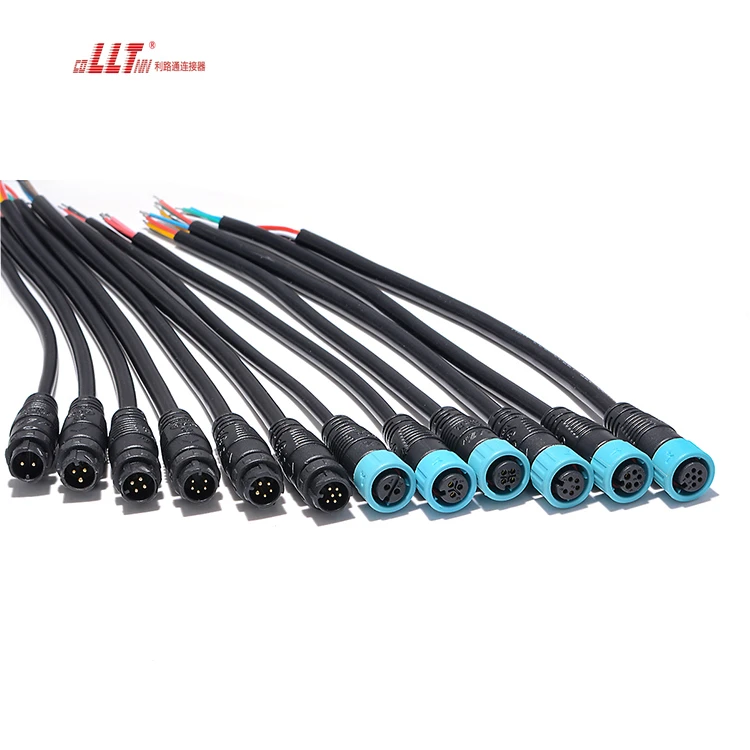

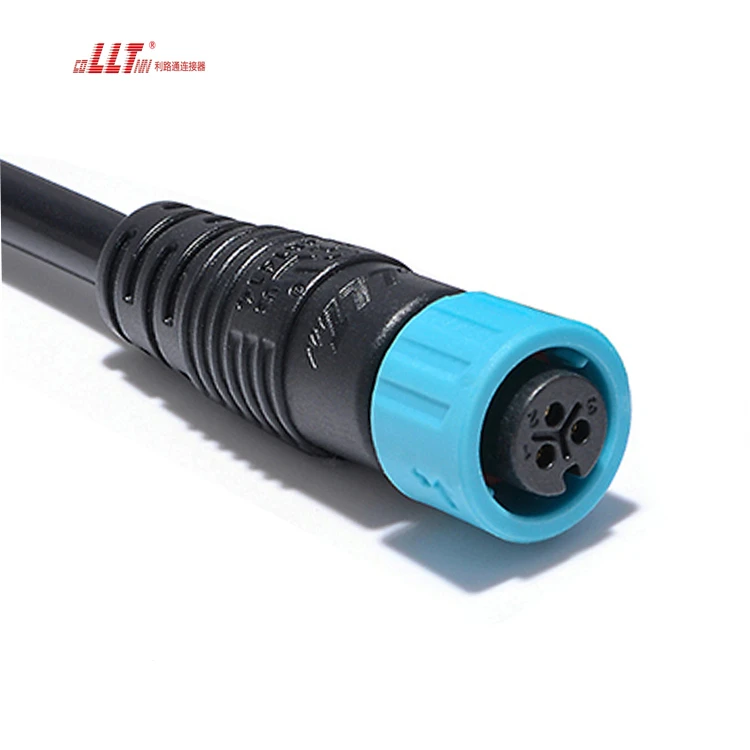

LLT IP67 Waterproof Electrical Cable 3Poles Waterproof Terminal Plug Block Butt

This M12-3pin push-lock electrical cable connector is a tool-free, quick-connect circular connector designed for industrial automation, sensors, actuators, and field cabling. It combines the compact M12 form factor (12mm thread diameter per IEC 61076-2-101) with a push-pull self-locking mechanism, enabling fast, secure connections without tools—ideal for space-constrained or high-cabling-density environments. - Push-Pull Locking: Intuitive insert/remove action with audible/tactile feedback for positive locking; reduces installation time by up to 80% vs. screw-lock versions. - Robust Protection: IP67/IP68/IP69K ratings for dustproof, waterproof, and high-pressure washdown resistance (e.g., automotive, food-grade settings). - Reliable Electrical Performance: 3 contacts for low-current signals/power; rated ~4A (common) / up to 12A (high-current variants); 250V AC/DC max; EMC-shielded versions available for interference-prone environment - Durable Materials: Brass/gold-plated contacts, and PUR/PVC cable jackets (resistant to oil, abrasion, and temperature extremes: -25°C to +85°C, some variants to -55°C) Typical Applications - Industrial automation (sensors, actuators, PLC I/O) - Automotive and vehicle electronics - Food/beverage processing (washdown environments) - Medical equipment - Smart machinery and IoT field cabling Key Specifications (Typical) Parameter Value Form Factor M12 circular (IEC 61076-2-101) Contacts 3-pin Locking Push-pull self-locking Protection IP67/IP68/IP69K (mated) Rated Current 4A (standard); 12A (high-current) Rated Voltage 250V AC/DC max Temperature Range -25°C to +85°C (standard) Cable Jackets PUR/PVC (shielded/unshielded) Mechanical Life ≥1000–5000 insert/remove cycles Why Choose Push-Lock Over Screw-Lock? Push-lock connectors eliminate torque requirements and threaded alignment, making them faster to install in tight spaces. They maintain cross-manufacturer compatibility with standard M12 interfaces while adding convenience for field maintenance and rapid deployment,the M12-3pin push-lock connector balances speed, reliability, and environmental resilience—making it a go-to solution for modern industrial wiring needs.
