LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector

Audio & Video Connector M25 Threaded Model: LLT-M25-05010F3054
M25 / Threaded LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M25

Pin

10pin

IP Rating

IP65/IP67

Rated Current

10A

Rated Voltage

110V

Product Series

M25

Wiring Type

By molding

Interface Type

Thread lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M25-10pin molded cable connector can get IP65/IP67 waterproof rate ,male connector mate female connector via thread lock.The body matrial is PA66, V-0 fire retardant. Conduct material is plated gold brass .It can burden 10A/110V This model 2-24pin and 2+6/3+8pin can be choice, It can mold the outer diameter less than 15mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement .The Work temperature is Minus 25℃ to 105℃ . It is widely used in Grow light, LED light,Outdoor light,Signal transmission,Power drive ,Illuminating industry and et cetera. We have cooperated with domestic and abroad customers, winning many project ,such as Beijing Olympic Game Stadium ,Bird's Nest ,Water Cube,Bangkok New International Airport,Shanghai World Expo and etc , I wish we can win your project ,looking forward to cooperating with you .

Application Fit

Typical application directions

  • Cable-to-cable transitions in outdoor and industrial equipment
  • Harness assemblies that need strain relief and overmold planning
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

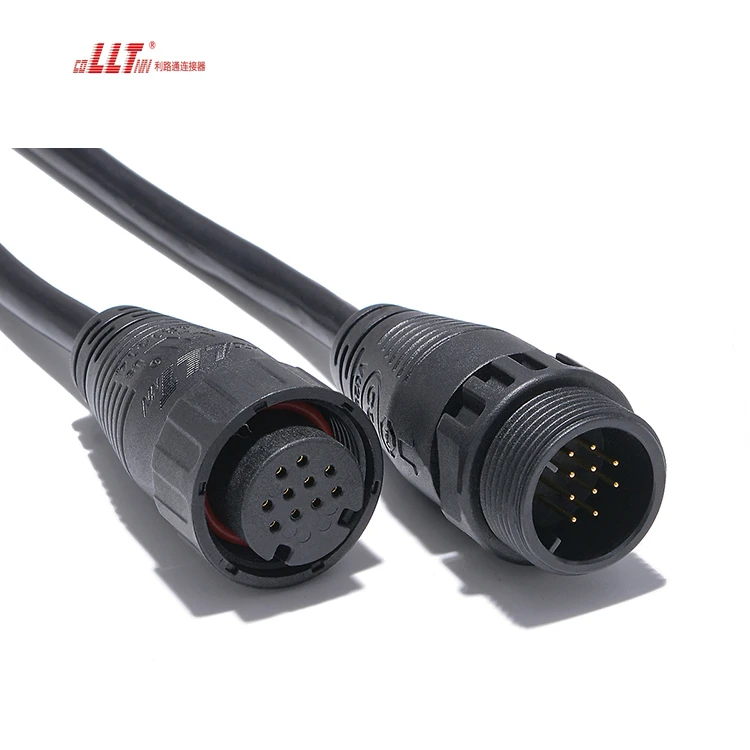

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 1

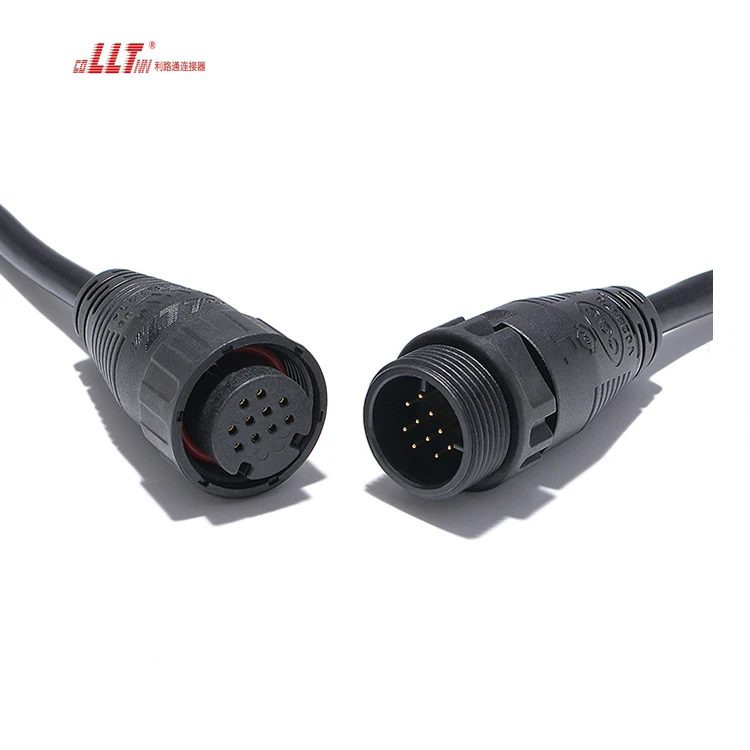

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 2

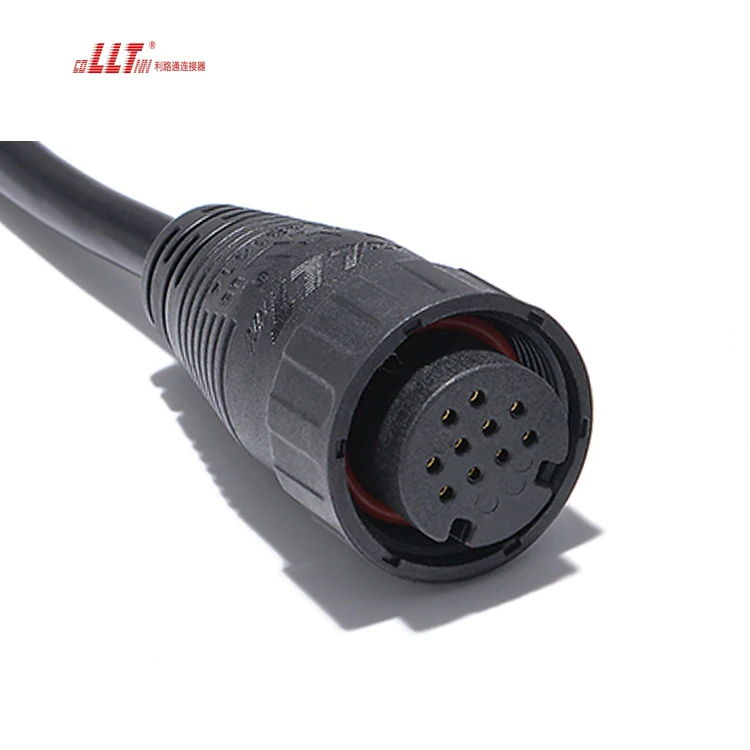

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 3

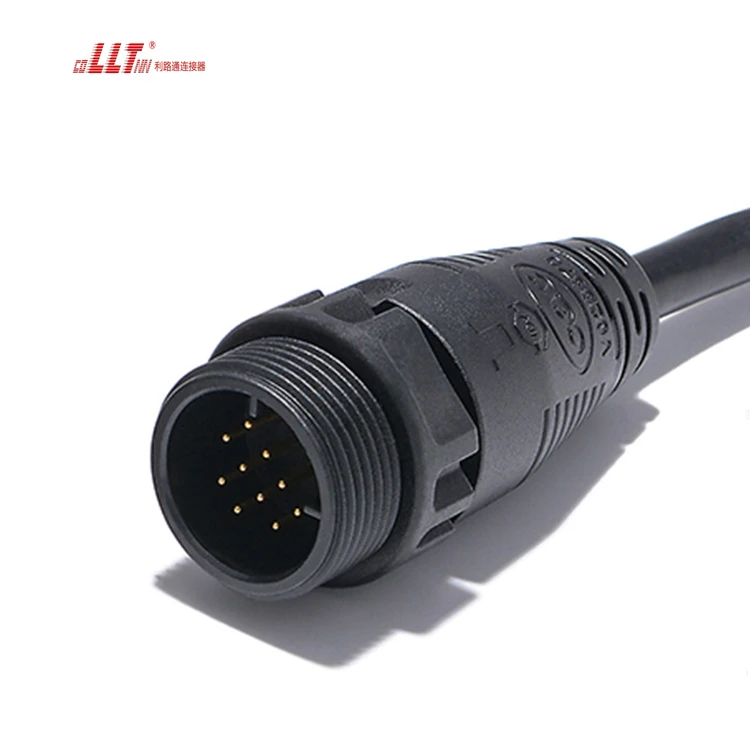

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 4

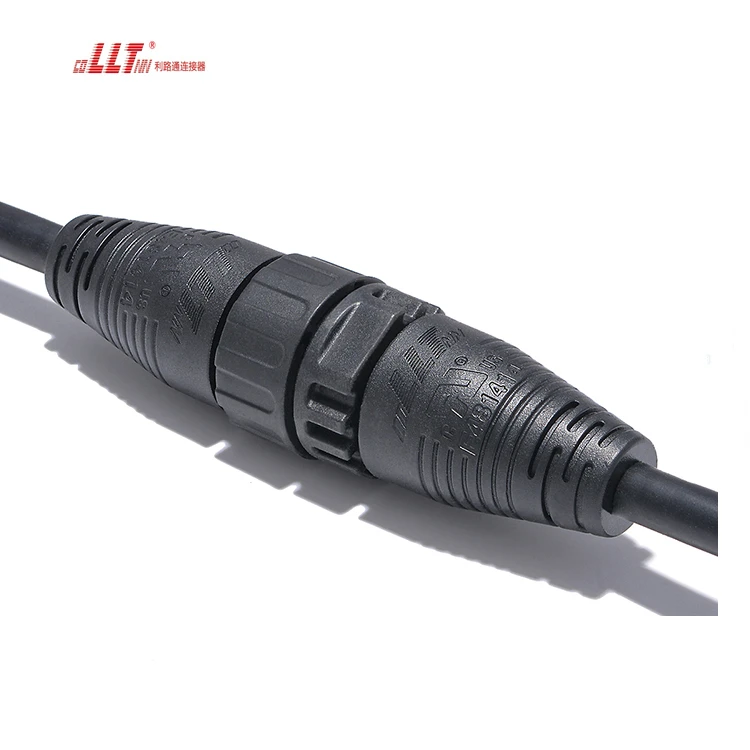

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 5

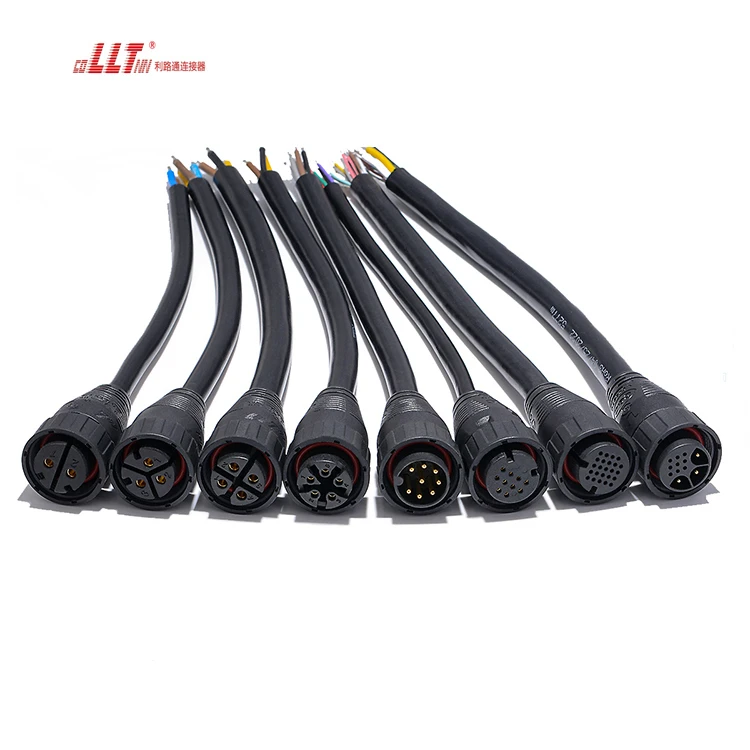

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 6

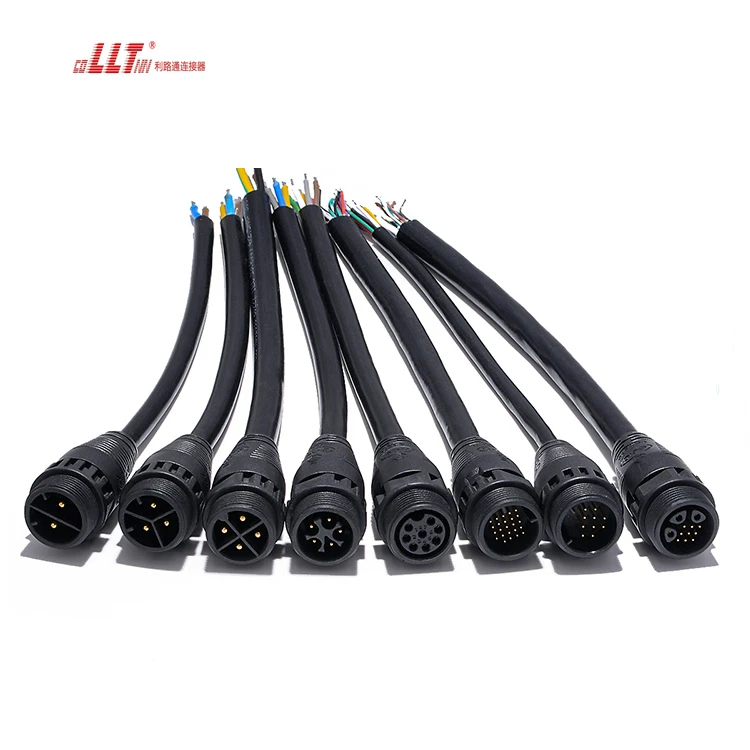

LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M25 Multiple 10 Pin Audio Video 100V 5A Thread Lock Male Female IP67 IP68 Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
