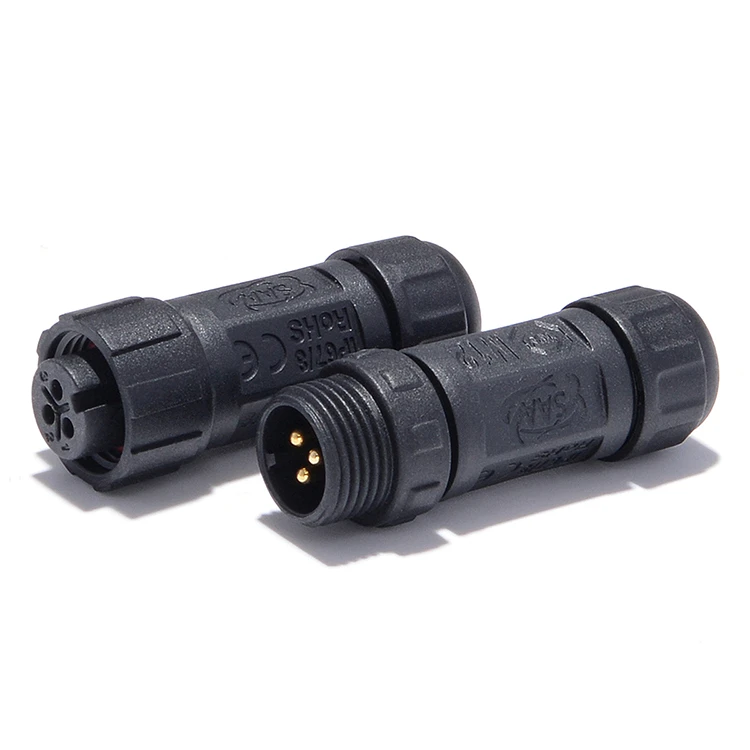

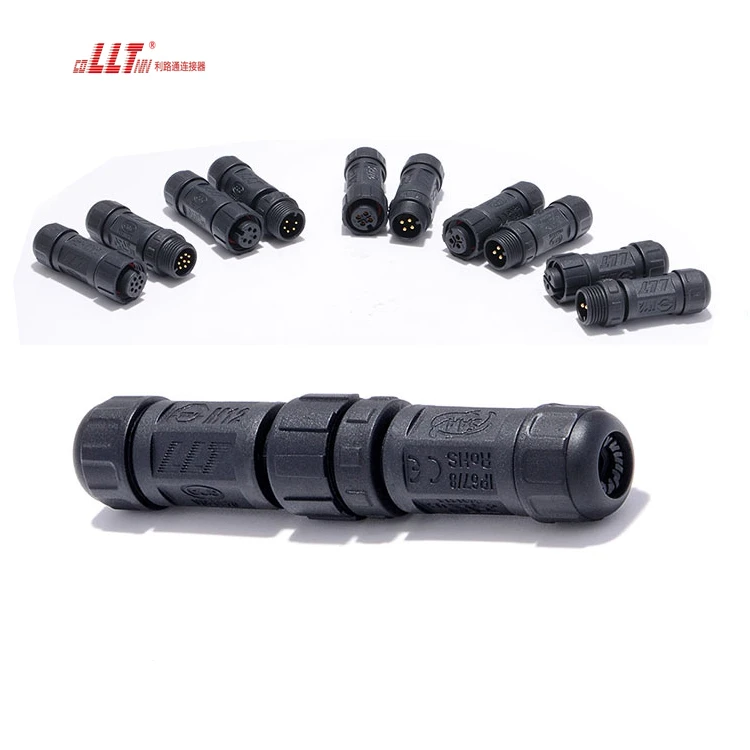

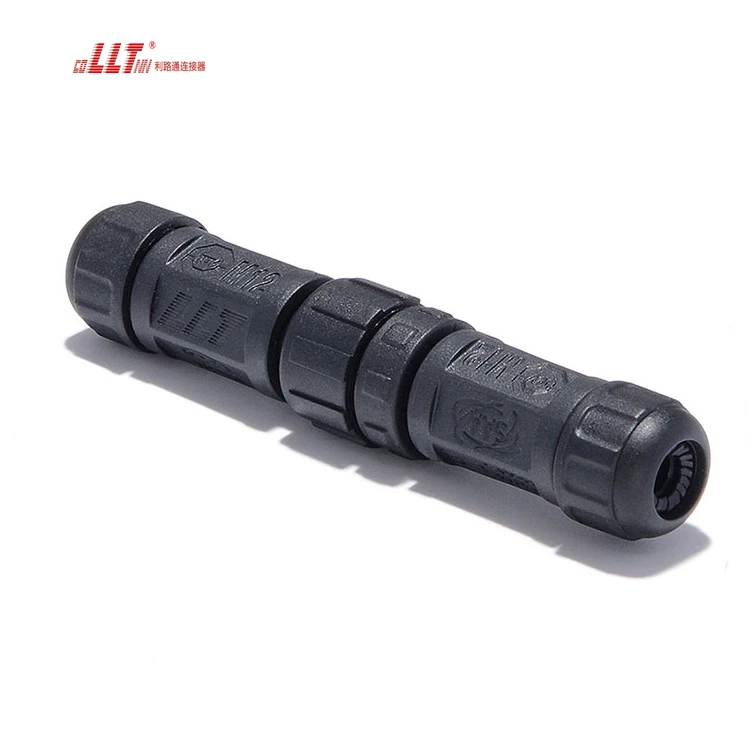

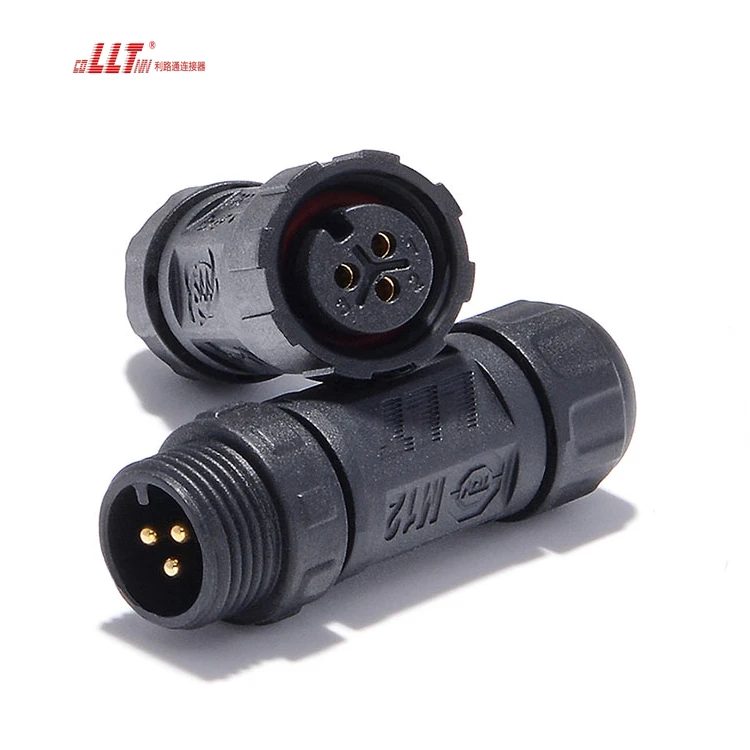

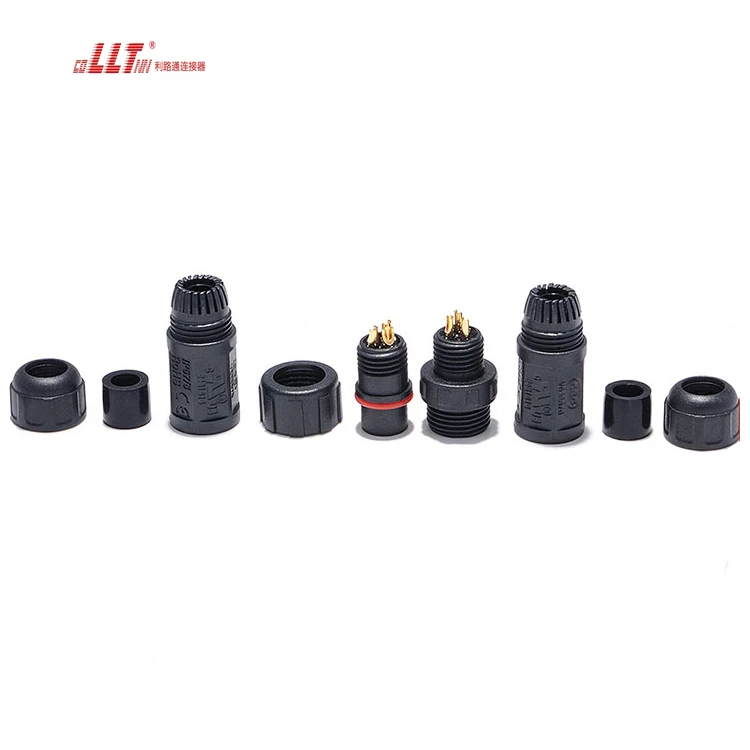

LLT Factory Mini Sensor 3pin M12 Thread Lock IP68 Waterproof Solder Wire Video connector

M12-3Pin video assembly connector is a compact, circular industrial connector with a 12mm metric thread and 3 pins, used for video signal transmission Key Features - Design:- Threaded locking: M12×1 screw coupling for secure, vibration-resistant connections. - 3-pin configuration - IP rating: IP67/IP68 (dustproof, waterproof) . - Shape: Straight or 90° angled; male/female available. - Materials:- Shell: PA66/PA-GF (high-strength plastic). - Contacts: Gold-plated brass (low contact resistance, corrosion-resistant). - Sealing: Rubber/O-ring (waterproof). 4.2/5.5/6.1mm can choice - Electrical Specs:- Rated voltage: 110V AC/DC. - Rated current: 10A. - Insulation resistance: ≥ 100MΩ. - Contact resistance: ≤ 5mΩ. - Temperature: -25°C to +105°C. - Standards:- Complies with IEC 61076-2-101. - RoHS compliant. Applications - Industrial video surveillance (cameras, monitors). - Machine vision (factory automation, inspection systems) . - Transportation (vehicle cameras, traffic systems) . - Outdoor/harsh environments (dust, moisture, vibration). Pinout - Pin 1: Video Signal (V+) - Pin 2: Ground (GND) - Pin 3: Power (V-) / Shield Advantages - Rugged & reliable: Thread lock + IP67/IP68 for industrial use. - Compact: Small size for tight spaces. - Easy assembly: Field-wireable (solder termination). - Cost-effective: Durable, low maintenance. Summary The M12-3Pin video assembly connector is a robust, waterproof, 3-pin circular connector optimized for video signal transmission in industrial, outdoor, and high-vibration environments. It offers IP67 protection, and threaded locking for reliable performance.
